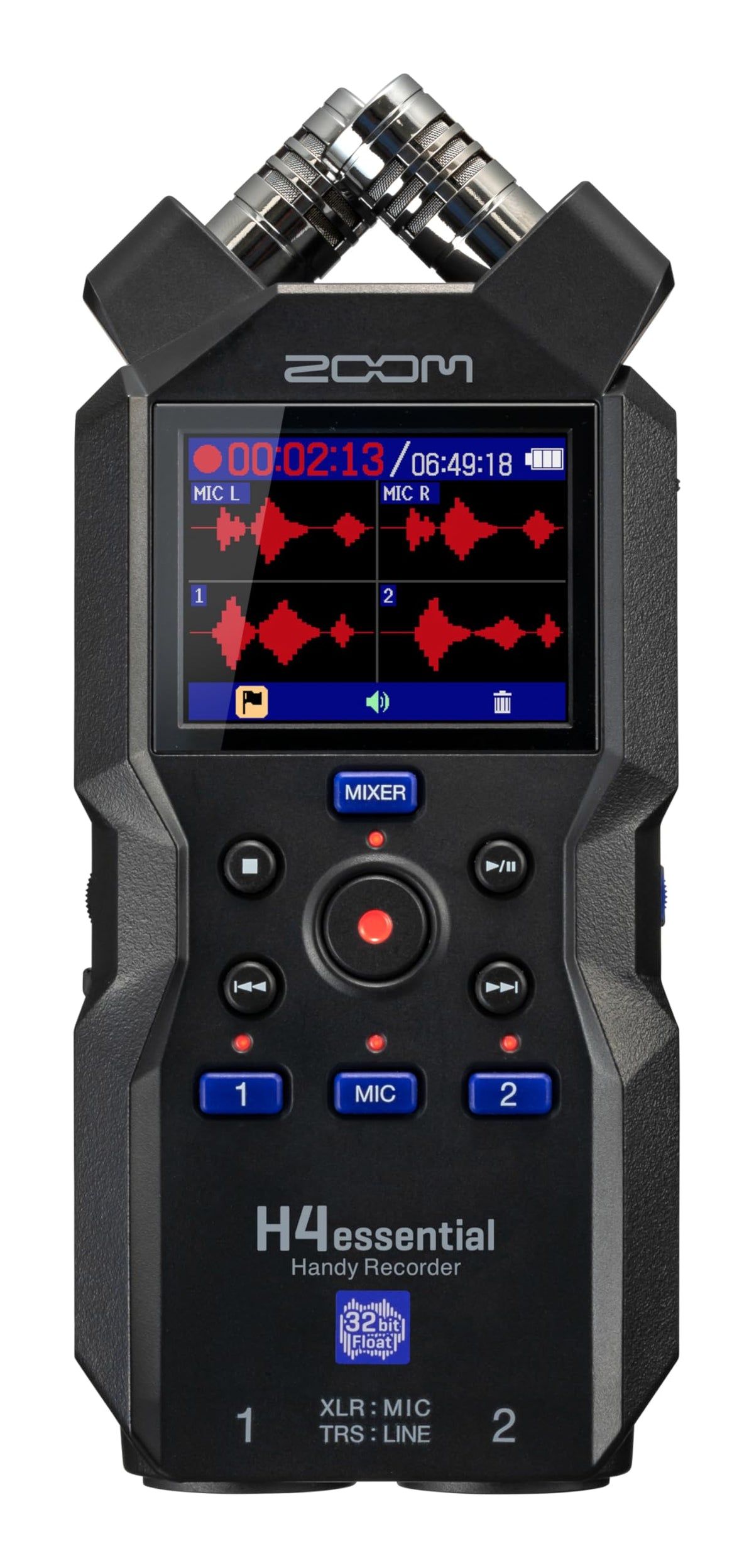

Zoom H4essential Handheld Audio Recorder

The Zoom H4essential is a portable handheld audio recorder built for musicians, podcasters, filmmakers, and field recordists who need flexible capture without a separate recording rig. Its built-in 90-degree X/Y stereo microphone system handles quick ambient, rehearsal, interview, and performance recordings. Two XLR/TRS combo inputs add connection options for external microphones, mixers, and line-level sources.

32-bit float WAV recording helps preserve usable audio across a wide range of sound levels, including quiet dialogue and loud live events. The INPUT 1 and INPUT 2 connectors use dual A/D converter circuits, reducing the need for input-gain adjustment on those channels. The built-in X/Y microphones support sound pressure levels up to 130 dB SPL.

For creators recording more than a simple stereo source, the H4essential provides separate input channels and a built-in mixer for monitoring balance. It can record up to six tracks simultaneously and play back up to four tracks. The full-color LCD includes waveform display information to help monitor recording activity and available time.

The recorder also works as a USB-C audio interface for computers, smartphones, and tablets. It supports 4-in/2-out multitrack operation or 2-in/2-out stereo operation, with onboard recording available at 44.1 or 48 kHz while in audio-interface mode. A loopback function can mix device playback with connected input sources for streaming or narration workflows.

For location and mobile use, recordings are stored to a user-supplied microSD card, while power can come from two AA batteries, USB bus power, a 5V portable battery, or the optional Zoom AD-17 adapter. A 3.5 mm PHONE/LINE OUT supports headphone monitoring or camera connection. Spoken guide-sound accessibility functions provide audible menu guidance and status feedback.

Key Features

• 32-Bit Float WAV Recording: Captures audio with flexible level recovery during post-production.
• Built-In X/Y Microphones: Records focused stereo sound with natural width and depth.
• Dual XLR/TRS Inputs: Connects external microphones, mixers, and line-level equipment.
• USB-C Audio Interface: Sends multitrack or stereo audio to compatible devices.
• microSD Recording: Stores recordings on supported microSDHC or microSDXC cards.
• Guide Sound Accessibility: Provides audible menu guidance and operation feedback.

Design & Installation

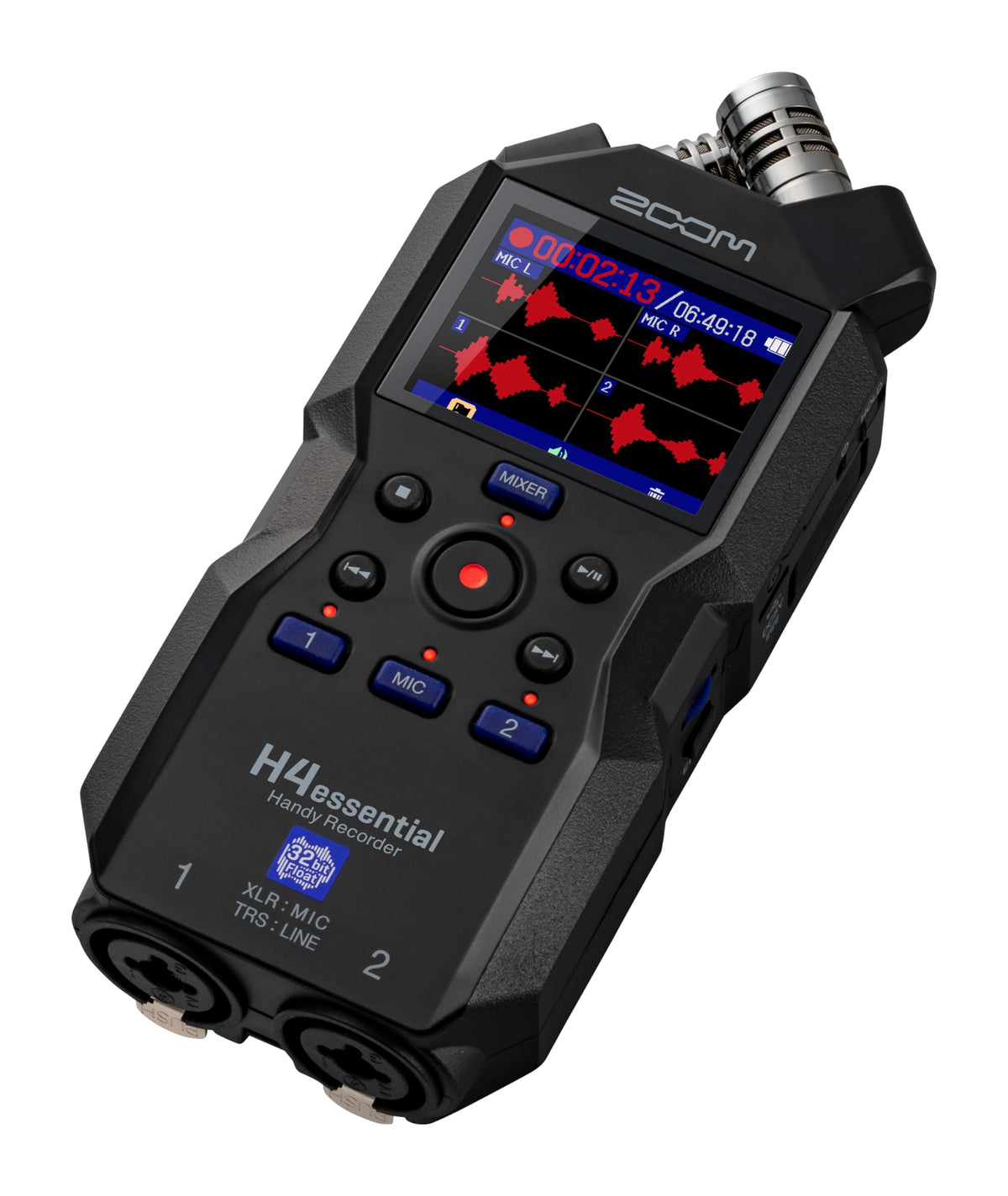

The H4essential is a self-contained handheld recorder with a built-in speaker, full-color 2.00-inch LCD, dedicated transport controls, a selection dial, and physical track buttons. Its soft-touch recording and rotary controls are designed for quiet operation. A tripod mounting thread allows stable placement for room, desktop, or location recording.

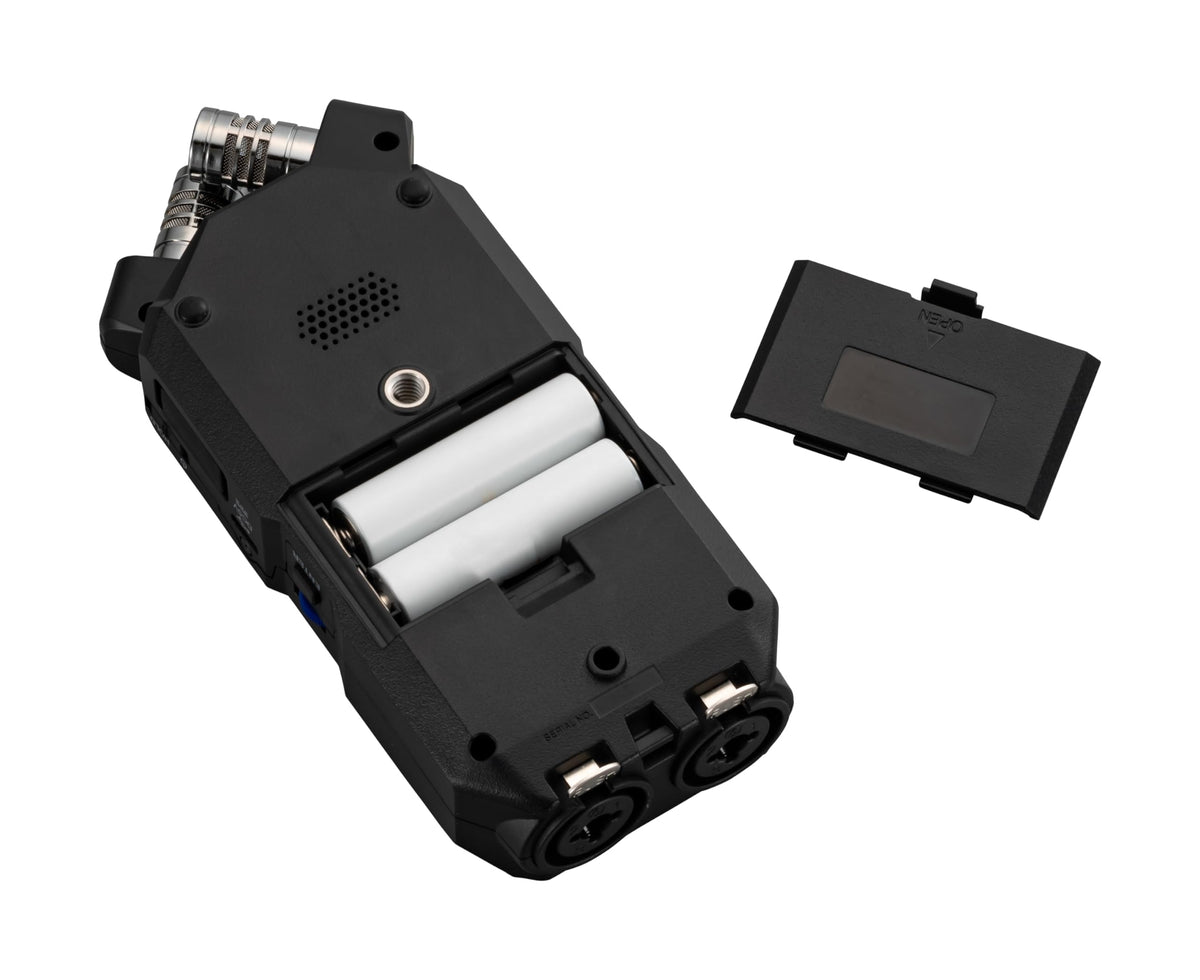

No vehicle installation or amplifier wiring is required. Insert a compatible microSD card, supply power with two AA batteries or USB-C power, and connect sources to the built-in microphones, 3.5 mm MIC/LINE IN, or XLR/TRS inputs as needed. Use headphones or a camera connection through the 3.5 mm PHONE/LINE OUT, and use a USB-C data cable for file transfer or audio-interface operation.
