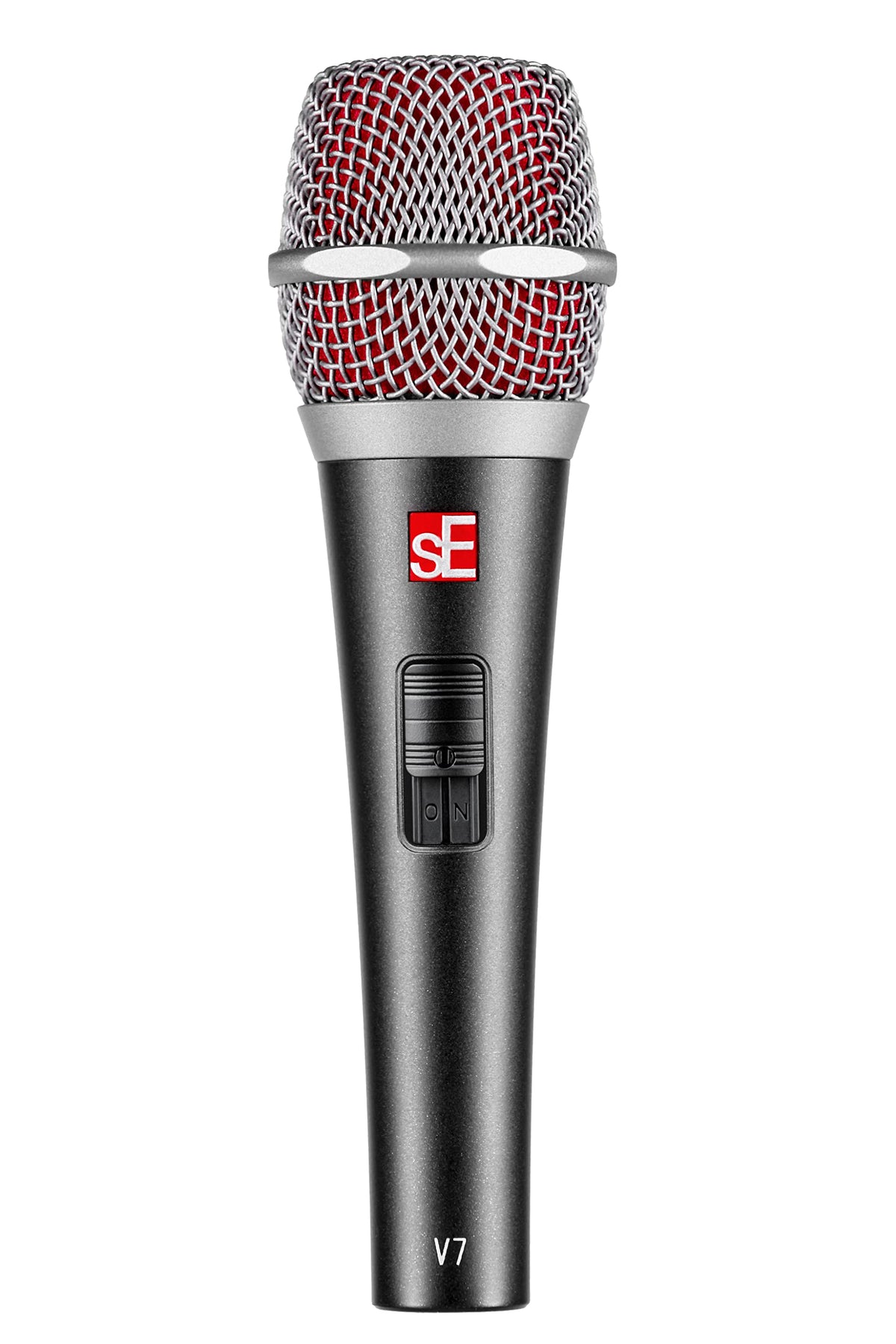

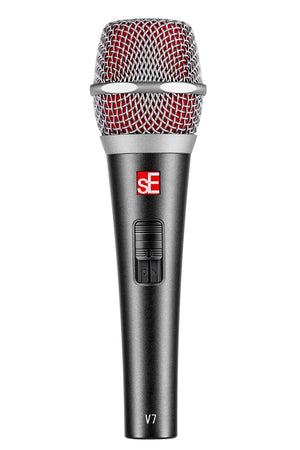

sE Electronics V7 SWITCH Handheld Dynamic Microphone

The sE Electronics V7 SWITCH is a wired handheld dynamic microphone designed for live vocals, speech, talkback, rehearsal, and instrument use. Its supercardioid pickup pattern helps focus on the intended source while reducing pickup from surrounding stage sound. The integrated on/off switch adds practical control for performers and engineers who need a switchable XLR microphone.

This microphone is a practical choice for singers, presenters, houses of worship, rehearsal rooms, and front-of-house or monitor talkback positions. Its dynamic capsule is suited to close-miked use, and the supercardioid pattern is intended to provide useful isolation in active performance environments. It connects through a standard 3-pin male XLR output to compatible microphone inputs.

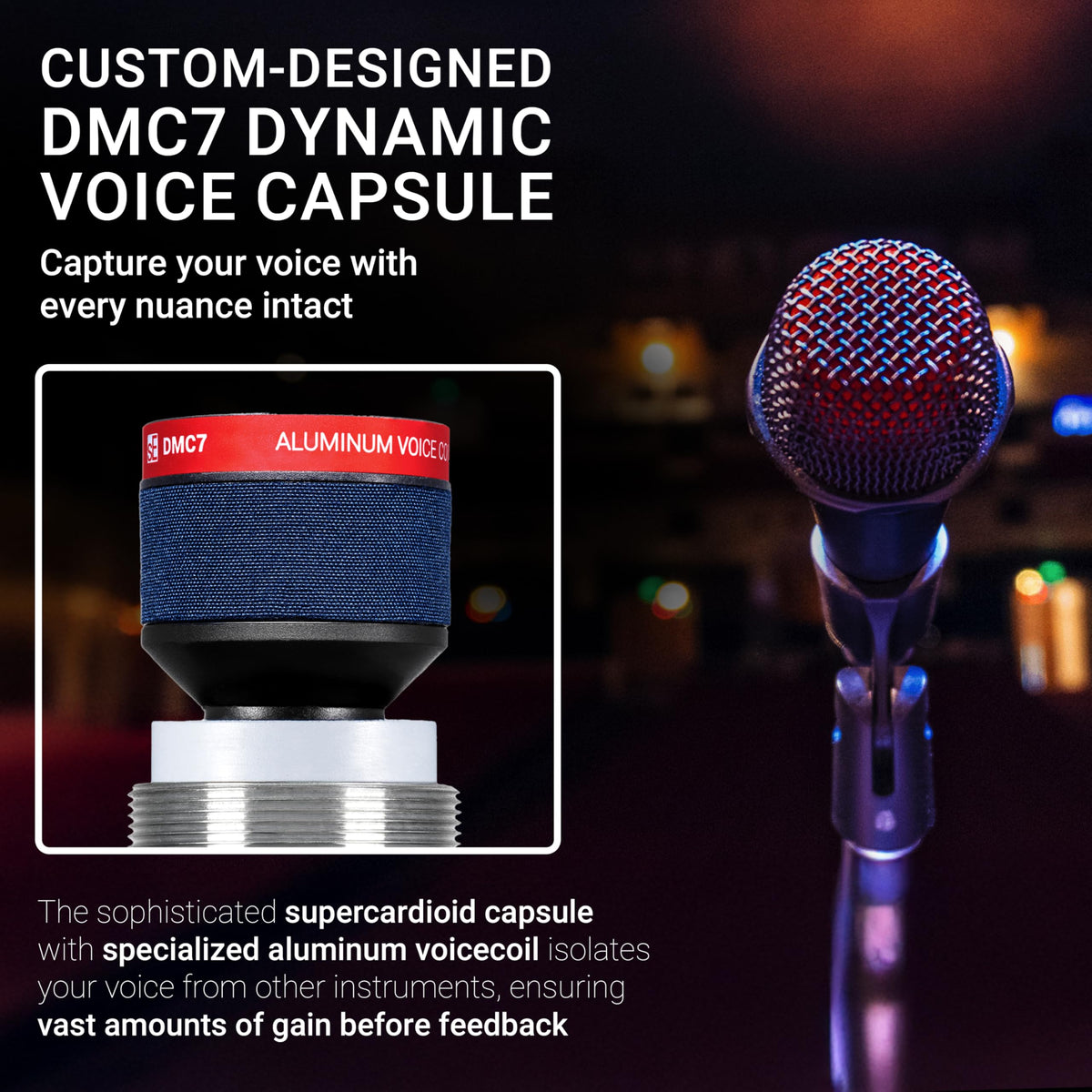

The V7 SWITCH uses sE Electronics' DMC7 dynamic capsule with an aluminum voice coil and neodymium magnet. Its specified 40 Hz to 19 kHz frequency range and 2.0 mV/Pa sensitivity support vocal and instrument capture with a detailed, open character. A 300-ohm electrical impedance makes it appropriate for common mixers, mic preamps, audio interfaces, and stage snakes with XLR microphone inputs.

A recessed, lockable on/off switch uses a reed element for click-free operation. This provides convenient muting control while helping reduce the chance of an accidental switch movement during a performance. The patented integrated shockmount decouples the capsule from mechanical vibration to help reduce handling noise.

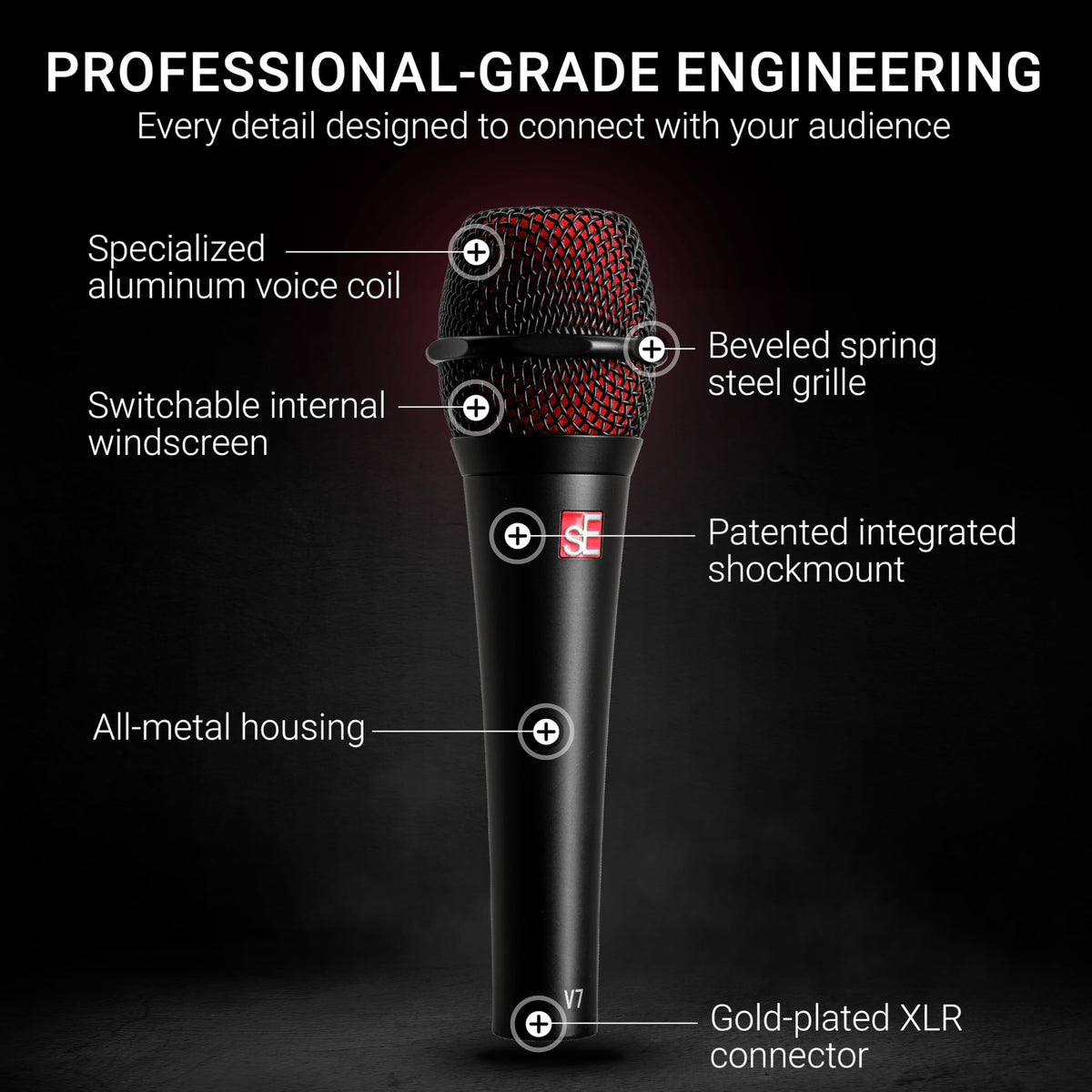

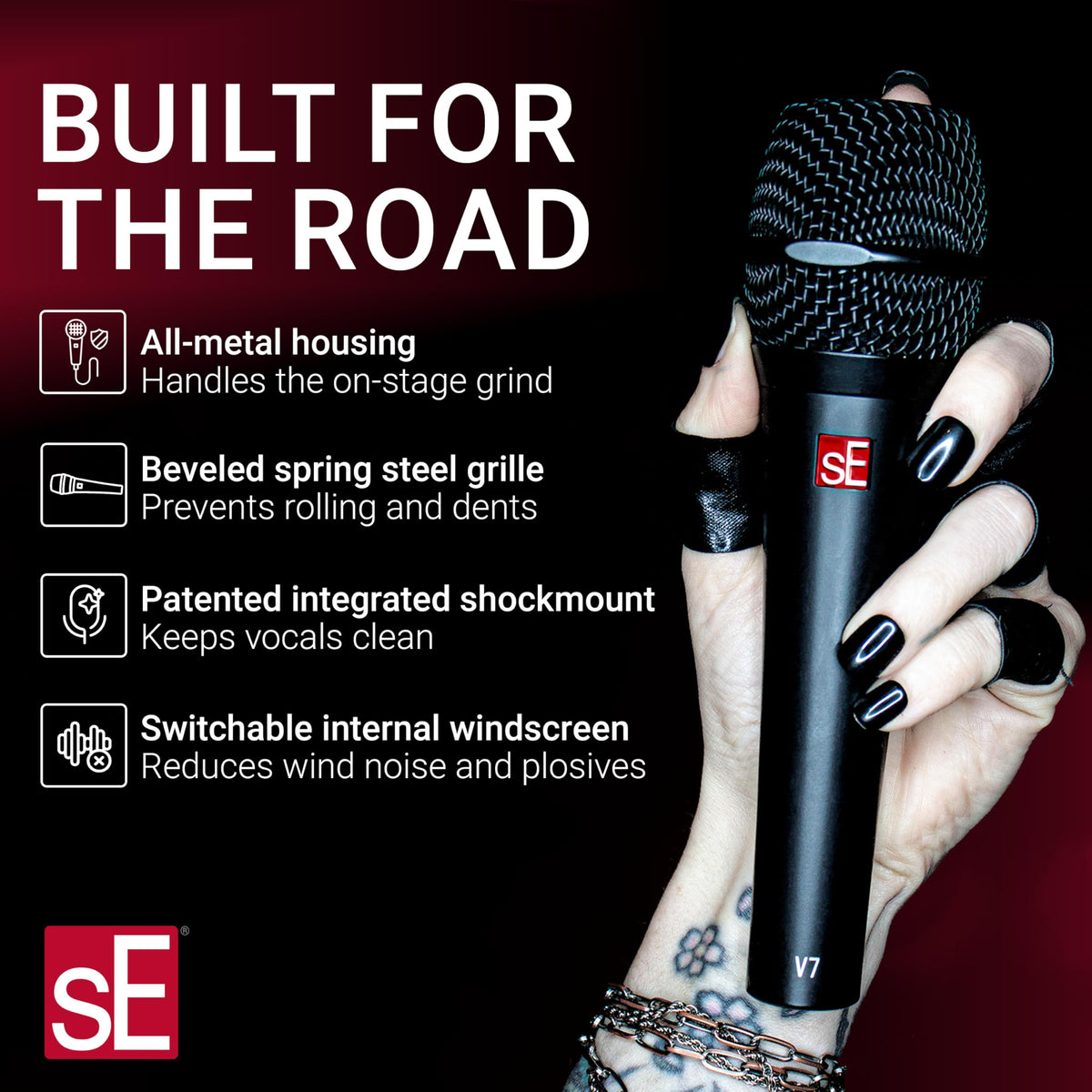

The V7 SWITCH is built for repeated handheld use with an all-metal zinc-alloy housing, gold-plated XLR connector, and a spring-steel mesh grille. Its beveled grille edge is designed to help keep the microphone from rolling when placed on a flat surface. A spare black internal windscreen, mic clip, thread adapter, zipper pouch, and documentation are included for a complete basic setup.

Key Features

• Supercardioid Pickup Pattern: Helps isolate the primary voice or instrument from nearby stage sound.
• DMC7 Dynamic Capsule: Uses an aluminum voice coil and neodymium magnet for responsive signal capture.
• Lockable Reed Switch: Provides recessed on/off control with click-free operation.
• Integrated Shockmount: Decouples the capsule from handling vibration to reduce mechanical noise.
• All-Metal Construction: Combines a zinc-alloy body with a spring-steel mesh grille.
• Internal Windscreen Options: Includes a spare black internal windscreen for alternate appearance and wind-noise reduction.

Design & Installation

The V7 SWITCH has an all-metal, zinc-alloy housing with a gold-plated 3-pin XLR connector. Its spring-steel mesh grille has a beveled edge, while the capsule is supported by sE Electronics' patented integrated shockmount. The microphone measures 54 mm in diameter, 184 mm long, and weighs 305 g.

Connect the microphone's 3-pin male XLR output to a compatible mixer, audio interface, microphone preamp, or stage snake using an XLR microphone cable. Secure it in the included mic clip or use the included thread adapter with a compatible stand. For handheld vocals or speech, position the grille close to the source and use the supercardioid pattern thoughtfully when placing stage monitors.
