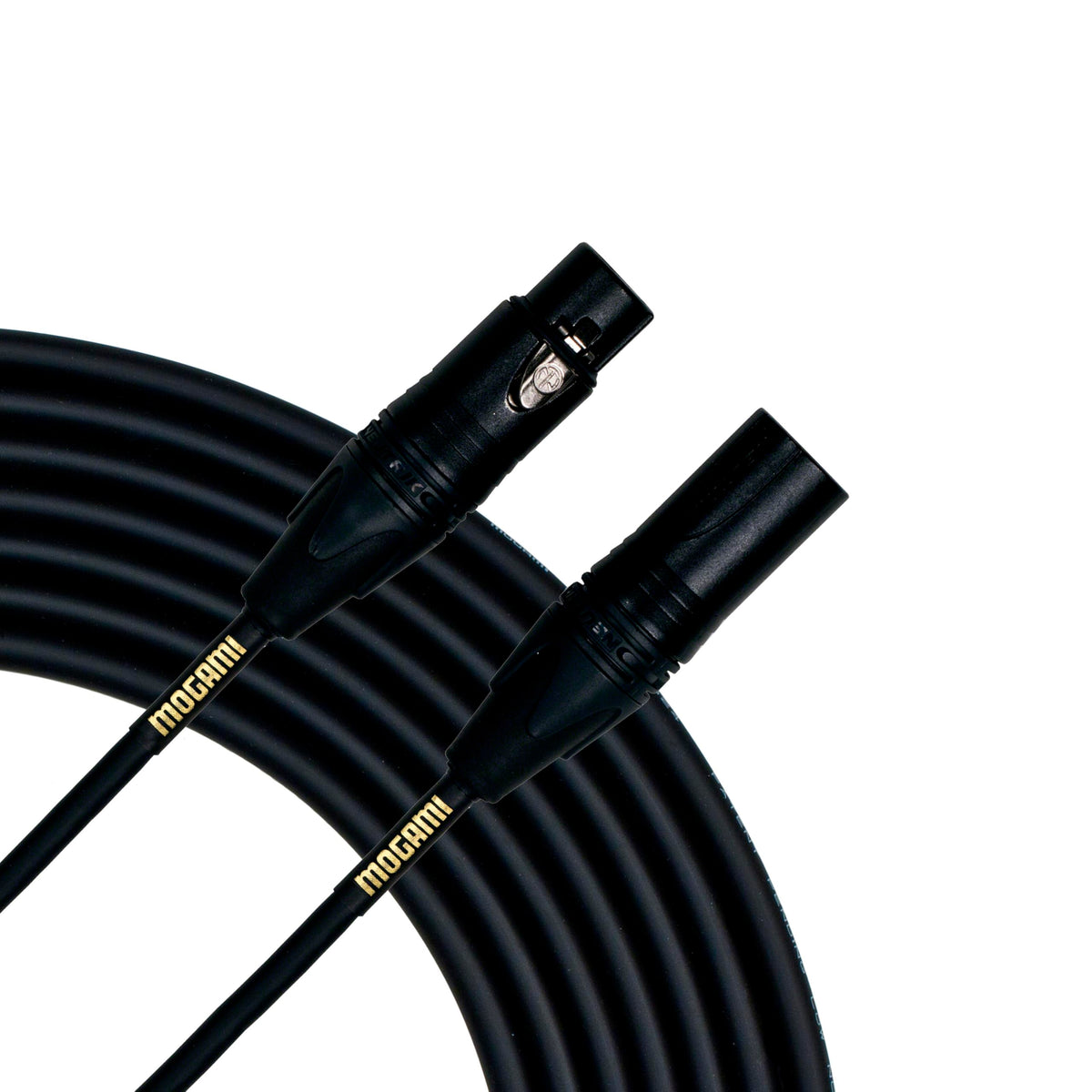

Mogami GOLD STUDIO-06 6' XLR Male to Female Cable

The Mogami GOLD STUDIO-06 is a 6-foot analog XLR microphone and balanced audio cable with a 3-pin XLR male connector on one end and a 3-pin XLR female connector on the other. It is designed for linking microphones, audio interfaces, mixers, preamps, powered speakers, and other compatible XLR-equipped equipment. Its short length suits close-range studio, broadcast, and live-sound connections where excess cable is unnecessary.

This cable uses Mogami Neglex W2534 Studio Quad cable, a four-conductor design intended to improve rejection of electromagnetic and radio-frequency interference. The quad construction is useful where audio lines pass near power supplies, lighting equipment, wireless devices, or other potential noise sources. It carries balanced analog audio and is also suited to certain unbalanced-equipment connections when properly wired.

Each conductor uses oxygen-free copper and XLPE insulation, while a served bare-copper shield surrounds the internal conductors. This combination is designed to maintain a low-noise signal path while keeping the cable flexible enough for regular studio routing. The black flexible PVC outer jacket has a 6.0 mm outer diameter.

Black-body 3-pin XLR connectors with gold contacts complete the assembly. The connector format provides a standard male-to-female XLR link for common microphone and balanced line-level applications. Gold-plated contacts are used to help maintain dependable connector contact over repeated connections.

The GOLD STUDIO-06 is a practical choice for users building a compact recording setup, connecting a vocal microphone to an interface, or wiring balanced gear in a rack or desktop system. It can also serve as part of a larger Mogami Gold Studio cable system when consistent connector types and cable construction are preferred. Mogami covers factory-assembled Gold cable assemblies with its lifetime warranty for the original purchaser.

Key Features

• 6-Foot XLR Cable: Provides a compact connection length for nearby audio equipment.
• Neglex W2534 Quad Core: Uses four conductors for enhanced noise-cancellation performance.
• 24 AWG OFC Conductors: Oxygen-free copper conductors carry balanced analog audio signals.
• XLPE Insulation: Cross-linked polyethylene insulates each internal conductor.
• Served Copper Shield: Bare-copper spiral shielding helps reduce external interference.
• Gold-Contact XLR Ends: Black 3-pin XLR connectors provide male-to-female connectivity.

Design & Installation

The GOLD STUDIO-06 combines four 24 AWG oxygen-free copper conductors, XLPE conductor insulation, a served bare-copper shield, and a flexible PVC jacket. Its nominal cable diameter is 6.0 mm, and the assembly is finished in black with black-body, gold-contact XLR connectors. The cable uses blue and clear conductor identification within its quad configuration.

Connect the XLR female end to a microphone or other device with an XLR male output, then connect the XLR male end to a compatible XLR female input on an interface, mixer, preamp, powered speaker, or other balanced audio device. Confirm that both devices use standard 3-pin XLR connections and route the cable away from AC power cords where practical. This is a single analog XLR-to-XLR cable and does not replace adapters, converters, or additional channels required by the rest of a system.
