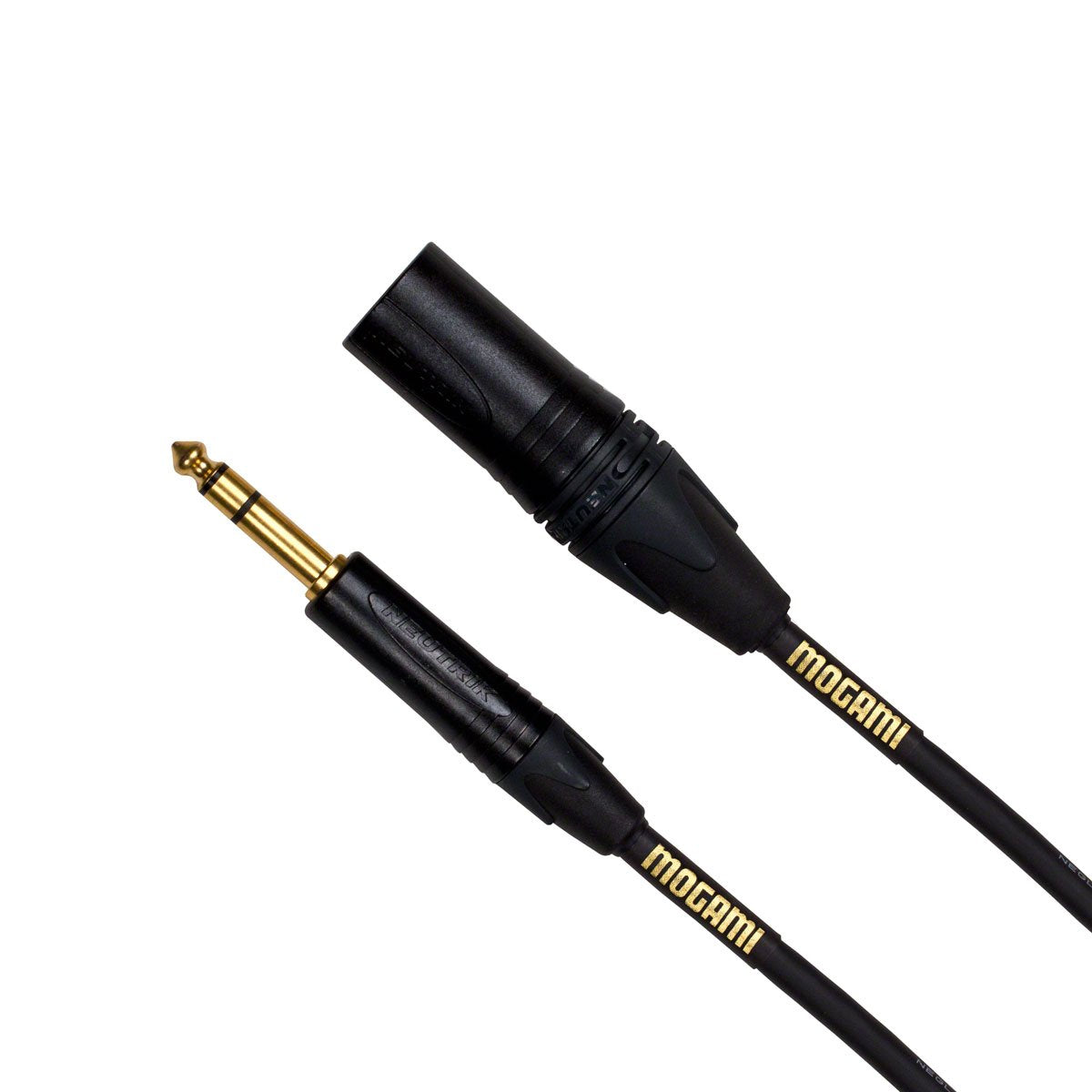

Mogami GOLD TRS-XLRM-20 20' TRS-to-XLRM Patch Cable

The Mogami GOLD TRS-XLRM-20 is a 20-foot balanced patch cable with a 1/4-inch TRS male connector on one end and a 3-pin XLR male connector on the other. It is designed to link compatible balanced audio equipment that uses these two connector formats. The extended length is useful when equipment needs to be positioned farther apart without adding couplers or extensions.

This cable is intended for studio, recording, live-sound, and powered-speaker setups using balanced line connections. It can help simplify connections between compatible mixers, interfaces, processors, monitor controllers, powered speakers, and other professional audio equipment. Connector type, signal level, and pinout should be verified on both devices before use.

Mogami builds this assembly with Neglex W2534 Quad high-definition microphone cable. Its four-conductor quad construction and served copper shield are designed to support balanced signal transmission in environments where electromagnetic or radio-frequency interference may be present. The cable uses oxygen-free copper conductors and a flexible PVC outer jacket.

Gold-plated contacts are used at both the 1/4-inch TRS and XLR male terminations. The black-body, straight connectors provide a conventional, practical format for patching compatible gear. XLPE conductor insulation is used within the W2534 cable construction.

The GOLD TRS-XLRM-20 fits into systems that need a direct balanced TRS-to-XLR male cable rather than an adapter plus a separate cable. Its 20-foot reach supports organized routing between racks, workstations, stage equipment, and powered speakers. Mogami includes a lifetime warranty with this Gold-series cable.

Key Features

• TRS-to-XLRM Terminations: Connects compatible 1/4-inch TRS and 3-pin XLR male interfaces.
• 20-Foot Length: Provides extended reach for equipment placement and cable routing.
• Balanced Quad Construction: Uses four conductors for balanced audio signal wiring.
• Neglex W2534 Cable: Uses Mogami's quad high-definition microphone cable.
• Gold-Plated Contacts: Gold contact plating is used at both connectors.
• Spiral Copper Shield: Served bare-copper shielding supports noise-resistant cable construction.

Design & Installation

The GOLD TRS-XLRM-20 uses flexible PVC jacketing around W2534 Neglex Quad cable, with XLPE conductor insulation and a served bare-copper shield. Its four 24 AWG oxygen-free copper conductors are arranged in a quad configuration. Both ends use straight, black-body connectors with gold-plated contacts.

Use this cable only where a balanced 1/4-inch TRS male connection and a 3-pin XLR male connection are appropriate for the connected equipment. Route the cable away from AC power cords, power supplies, and areas where it may be pinched or repeatedly stressed. Do not use it as a speaker cable for passive speakers, and confirm the required connector gender and signal level before purchase.
