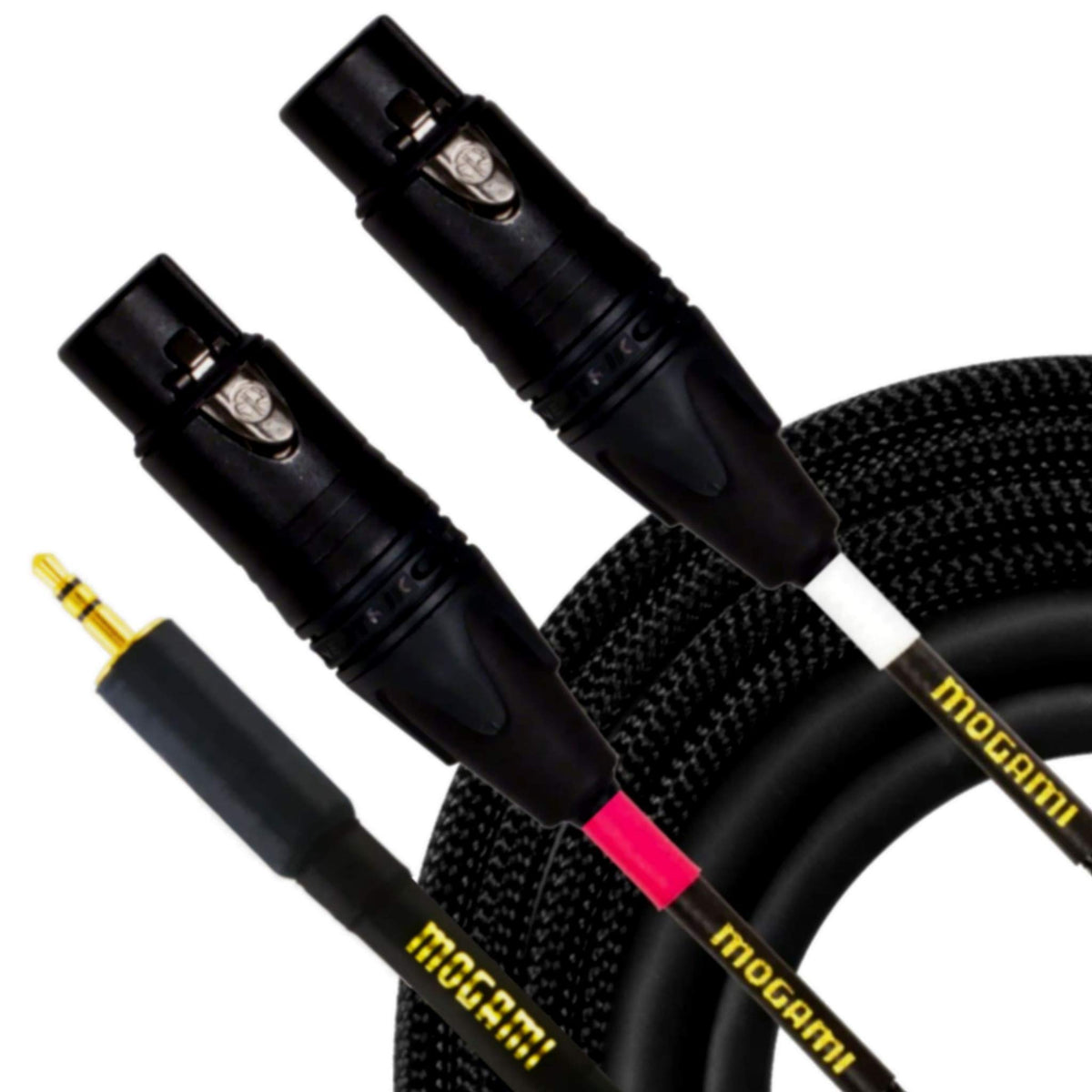

Mogami GOLD 3.5 2 XLRF 03 Dual XLRF to 3.5mm Cable

The Mogami GOLD 3.5 2 XLRF 03 is a 3-foot stereo Y-adapter cable that connects left and right XLR line-level outputs to a single 3.5mm stereo input. It is designed for setups where a mixer, preamp, or audio interface needs to feed a portable recorder, computer, or other device with a 1/8-inch stereo input. The cable terminates in two XLR female connectors and one 3.5mm TRS male plug.

This cable is suited to studio, broadcast, livestream, and location-recording systems that need a compact analog stereo connection. Its dual XLR female ends connect to the source equipment's XLR male outputs, while the 3.5mm plug connects to the destination input. The Y configuration keeps the left and right channels organized in one cable run.

Mogami builds this adapter with multicore microphone snake cable for flexible handling in portable and installed audio systems. Gold-contact connectors are used at both ends, and the connectors are straight for conventional routing through equipment racks, desks, and recorder bags. The 3-foot overall length is useful when connected equipment is positioned nearby.

The cable provides a practical interface between professional XLR-based line-level gear and devices using a 3.5mm stereo input. Because the destination connection is a stereo 3.5mm TRS plug, it combines separate left and right channels into one miniature stereo connection. Confirm that the destination has a 3.5mm stereo input and that the source provides dual XLR line-level outputs.

GOLD 3.5-2XLRF cables are directional by connector type and are not intended to be reversed. The XLR female connectors are intended for the source side, while the 3.5mm TRS male plug goes to the destination input. For the opposite connection direction—from a 3.5mm stereo output to dual XLR inputs—the corresponding dual-XLR-male version is required.

Key Features

• Dual XLR Female Ends: Connects to left and right XLR male source outputs.
• 3.5mm Stereo TRS Plug: Feeds a single 1/8-inch stereo input.
• Three-Foot Length: Suits close-range recorder, interface, and mixer connections.
• Multicore Snake Cable: Provides flexible cable handling for audio setups.
• Gold-Contact Connectors: Uses gold-contact terminations at both cable ends.
• Straight Connector Bodies: Supports standard routing and conventional equipment placement.

Design & Installation

This black Y-adapter uses Mogami multicore microphone snake cable and straight connectors at both ends. The assembly separates into two XLR female connectors at the fan-out and terminates in one 3.5mm TRS male plug. Gold-contact connectors are specified for the cable.

Connect the two XLR female ends to the left and right XLR male line outputs of the source device, then insert the 3.5mm TRS plug into a compatible stereo input. Keep the 18-inch fan-out accessible so the XLR connectors can reach the source outputs without strain. This cable is intended for line-level stereo routing and is not the reverse-direction adapter for feeding dual XLR inputs from a 3.5mm output.
