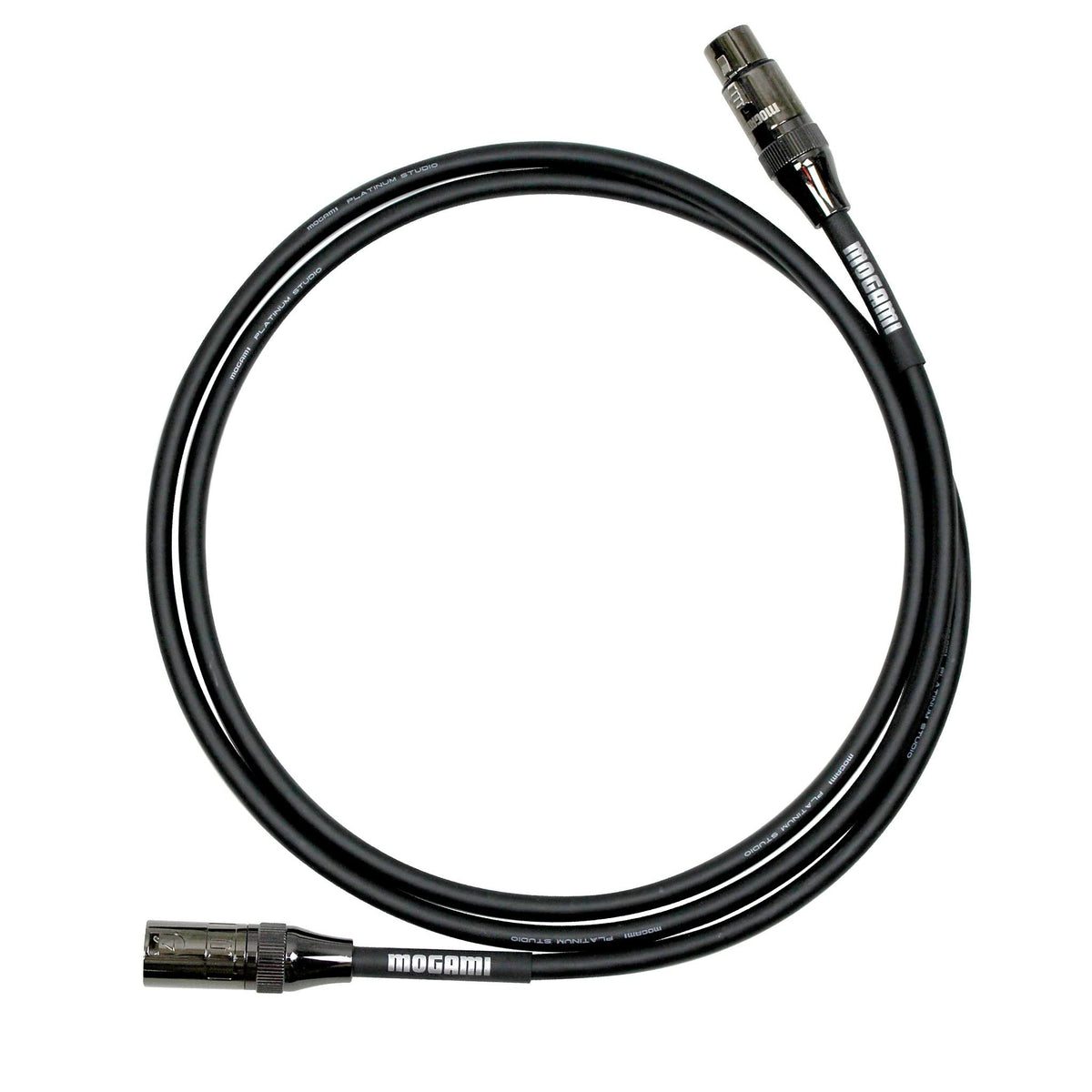

Mogami PLATINUM STUDIO 12 12' XLR Microphone Cable

The Mogami PLATINUM STUDIO 12 is a 12-foot XLR-to-XLR cable for studio microphone, line-level, and AES3 digital-audio connections. It provides a practical link between compatible 3-pin XLR equipment where a fixed 12-foot run suits the setup. This factory-assembled cable is intended for recording, mastering, monitoring, and installation-oriented applications.

The cable uses two 18 AWG oxygen-free copper conductors and is designed for low-capacitance signal transfer. Its 110-ohm characteristic impedance supports AES3 digital audio while retaining suitability for analog audio connections. Mogami positions the Platinum Studio series for accuracy-focused studio work rather than live-stage duty.

A 100% coverage spiral shield helps protect the signal path from interference. The cable's specified capacitance is 15.3 pF per foot between the inner conductors at 1 kHz and 20°C. This construction makes it appropriate for balanced XLR signal paths in studio racks, control rooms, and powered-monitor systems.

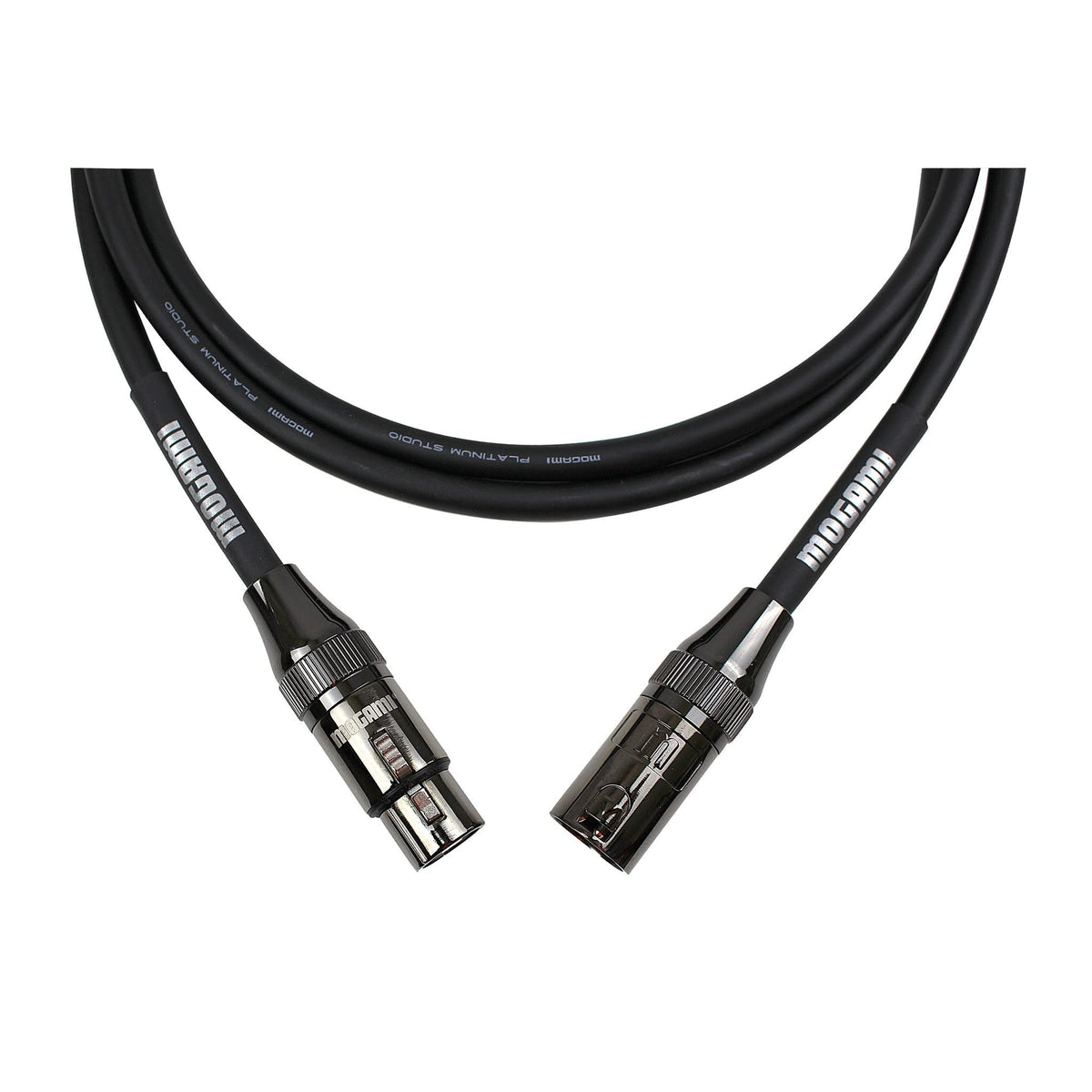

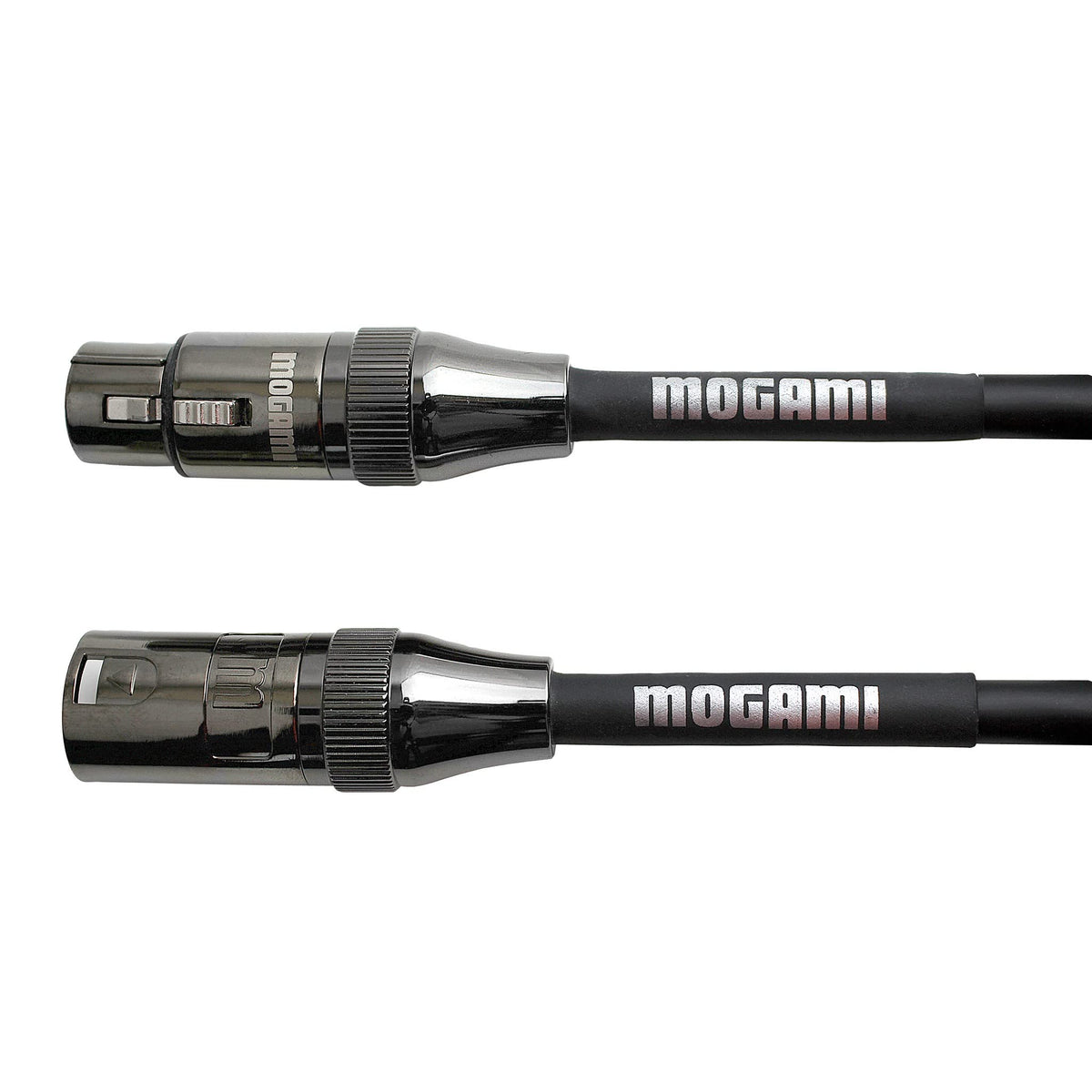

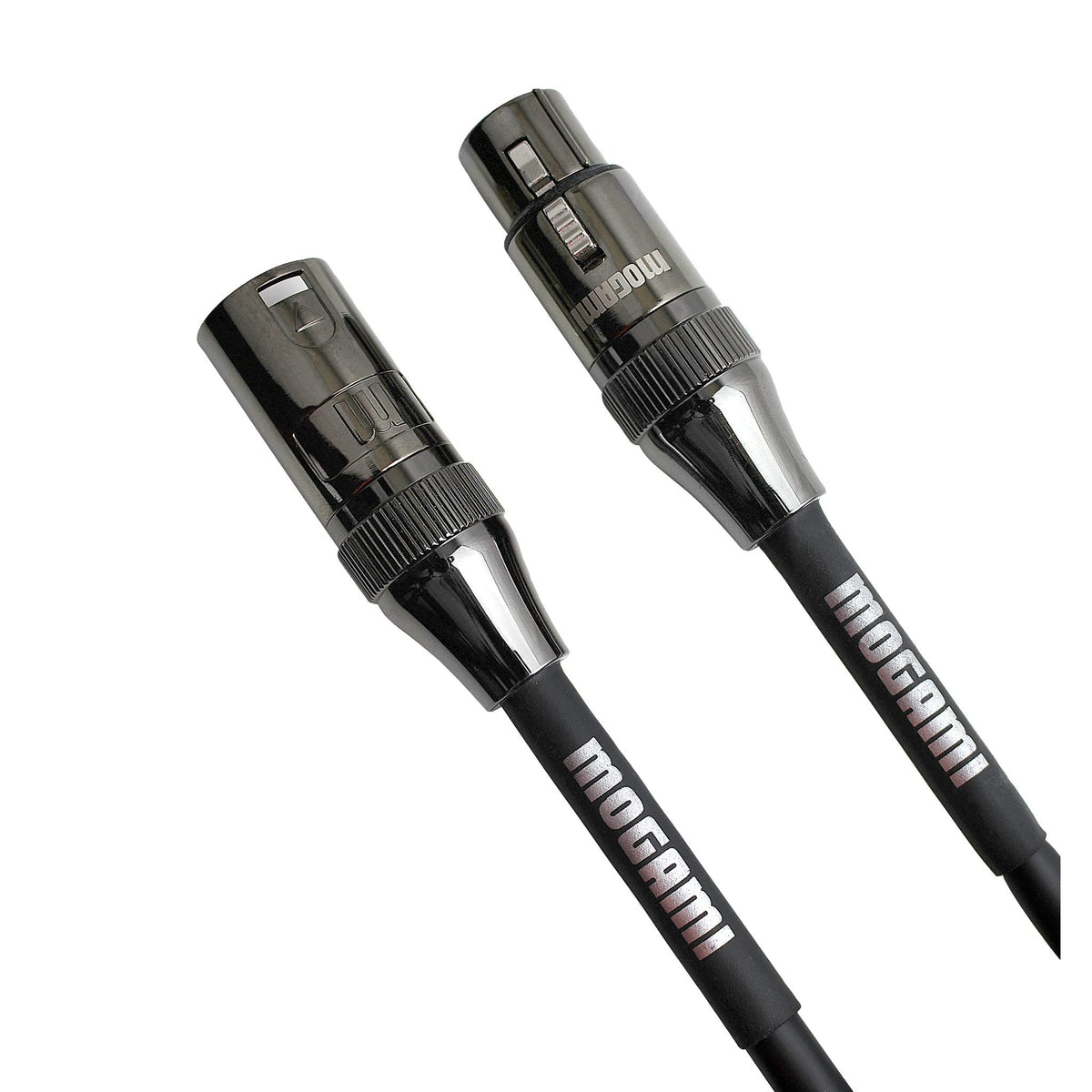

One end terminates in a 3-pin male XLR connector and the other in a 3-pin female XLR connector. That configuration is commonly used to connect a microphone to an XLR input or to carry balanced audio between compatible devices. The 12-foot length offers room for nearby stands, interfaces, mixers, processors, or active speakers without using an unnecessarily long cable.

The PLATINUM STUDIO 12 can also be used with compatible powered speakers or subwoofers that accept balanced XLR connections. It is not a speaker-level cable for connecting a power amplifier to passive speakers. Choose it when both connected components use standard 3-pin XLR connections and the installation is primarily studio based.

Key Features

• 12-Foot Length: Provides a 12-foot XLR connection for nearby studio equipment.
• 3-Pin XLR Ends: Connects a male XLR output to a female XLR input.
• 18 AWG OFC Conductors: Uses two oxygen-free copper signal conductors.
• AES3 Compatibility: Supports compatible 110-ohm digital audio connections.
• Spiral Shield: Uses a full-coverage served shield for interference protection.
• Low Capacitance: Helps suit detailed analog signal paths and monitoring setups.

Design & Installation

The PLATINUM STUDIO 12 is built around Mogami W3402 cable with red and white insulated conductors, a clear LDPE monofilament filler, and a black PVC outer jacket. The cable has an overall jacket diameter of 7.8 ± 0.5 mm. Its served shield uses approximately 100 strands of 0.18 mm wire.

Route the cable between compatible 3-pin XLR devices, matching the male end to a female XLR jack and the female end to a male XLR jack. It is suited to studio microphones, recording interfaces, mixers, outboard gear, and compatible powered speakers or subwoofers. Mogami specifies this series for studio use and not for frequent rough handling or live-stage use.
