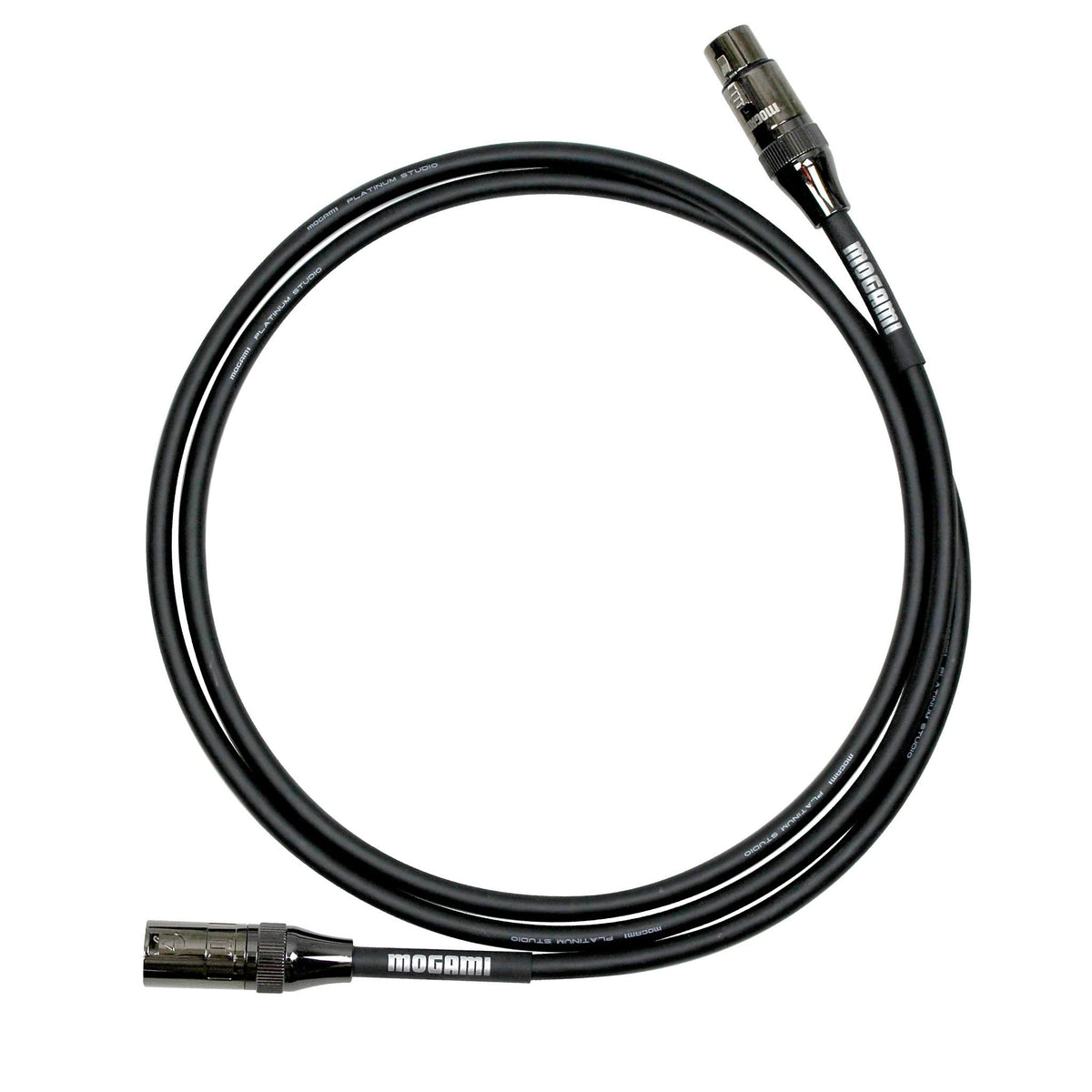

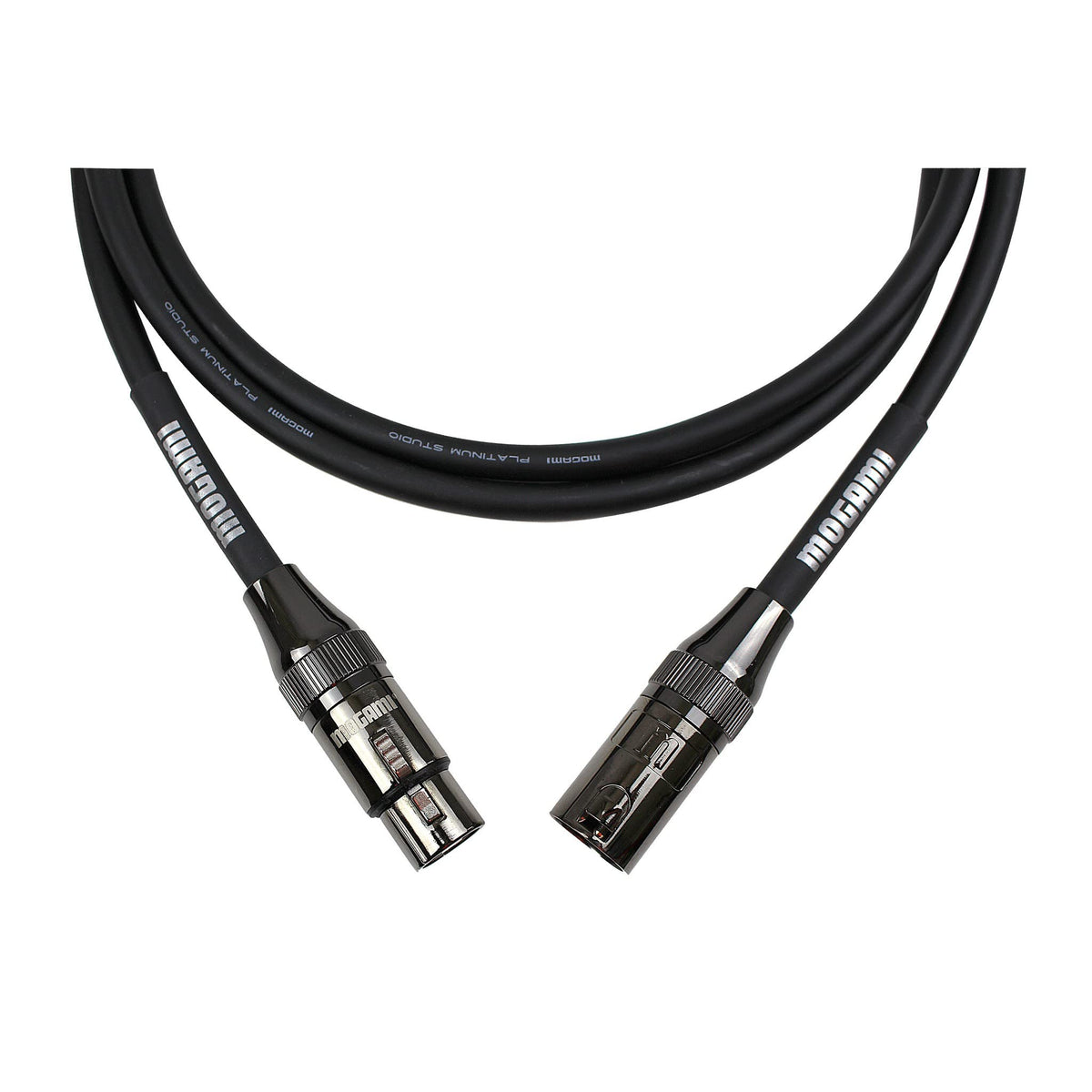

Mogami PLATINUM STUDIO 25 25' XLR Microphone Cable

The Mogami PLATINUM STUDIO 25 is a 25-foot balanced XLR cable for connecting microphones, line-level equipment, powered speakers, and AES3 digital audio gear. It provides a ready-made XLR male-to-XLR female connection for studio signal paths that need a longer cable run. The cable is intended for fixed or carefully handled professional studio environments rather than demanding live-stage use.

This cable is well suited to recording, mixing, mastering, broadcast, and home AV installations using standard 3-pin XLR connections. Its balanced construction supports microphone and line signals while also meeting AES3 digital-audio requirements. The 25-foot length can help bridge the distance between a mic position, audio interface, preamp, mixer, monitor, or converter.

Mogami builds the Platinum Studio series around two large-gauge, high-purity oxygen-free copper conductors. The 18 AWG conductors and low 50 pF/m capacitance specification are designed for extended high-frequency transmission in analog applications. Its 110-ohm characteristic impedance also supports AES3 digital signal use.

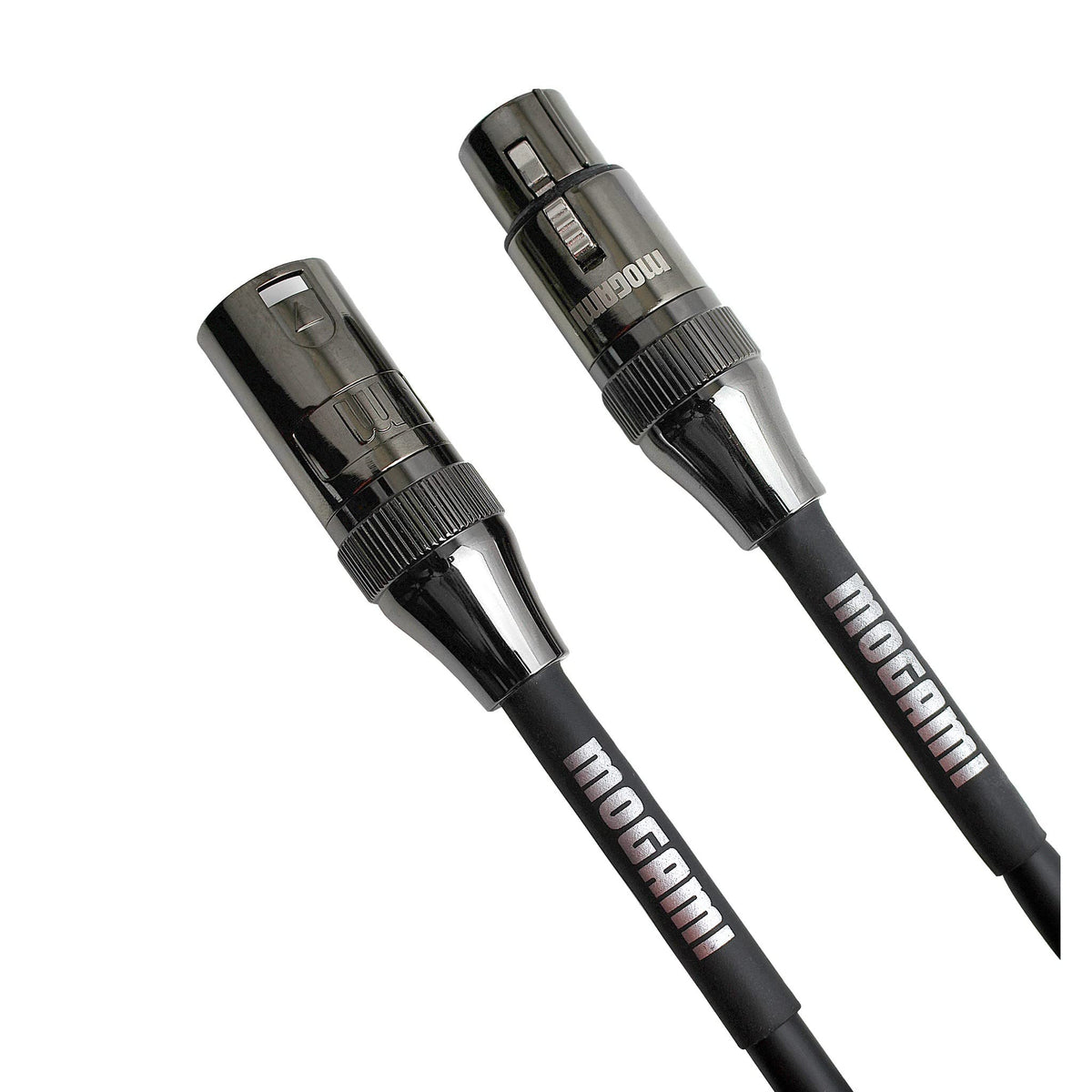

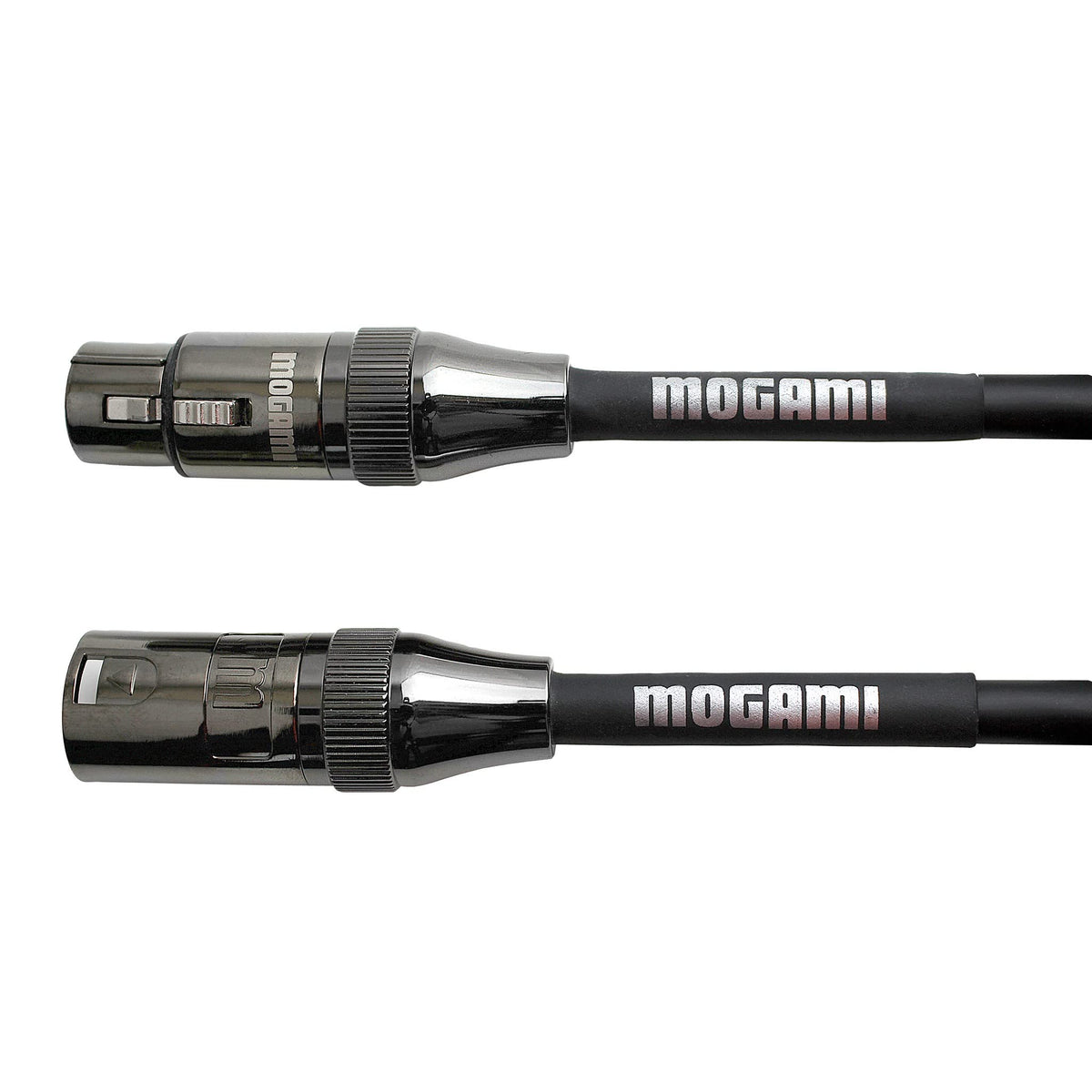

A served shield surrounds the internal conductors to help maintain a protected balanced connection in studio equipment chains. The cable uses red and white conductor insulation, a clear LDPE filler, and a black PVC outer jacket. Custom XLR connectors use silver pins for low contact resistance, with polished black-chrome connector housings.

The PLATINUM STUDIO 25 is a practical choice when upgrading a critical XLR run without changing microphones, monitors, interfaces, or other equipment. It connects directly between devices equipped with standard 3-pin XLR male and female ports. For portable and frequently moved systems, use care: this series is specified for studio use and is not intended for repeated rough handling on a live stage.

Key Features

• 25-Foot XLR Run: Connects XLR-equipped equipment across a longer studio distance.
• Balanced XLR Construction: Supports balanced microphone and line-level signal connections.
• 18 AWG OFC Conductors: Uses large-gauge, high-purity oxygen-free copper conductors.
• AES3 Compatibility: Meets AES3 requirements for compatible digital audio connections.
• Low Capacitance: 50 pF/m capacitance supports extended analog high-frequency transmission.
• Silver-Pin XLR Connectors: Provides low-resistance contacts at each cable end.

Design & Installation

The cable uses two 19/0.25A OFC conductors with CPP insulation, a clear LDPE monofilament filler, an approximately 100/0.18A served shield, and a black PVC jacket. Its nominal outer diameter is 7.8 mm, with a tolerance of ±0.5 mm. Polished black-chrome XLR connector housings and silver pins complete the terminated assembly.

Connect the XLR male end to an XLR female output and the XLR female end to an XLR male output, such as a microphone, mic preamp, mixer, converter, powered monitor, or AES3 device. Verify that both devices use standard 3-pin XLR connections before purchasing. Route the cable where it will not be repeatedly stepped on, pulled, or subjected to live-stage handling.
