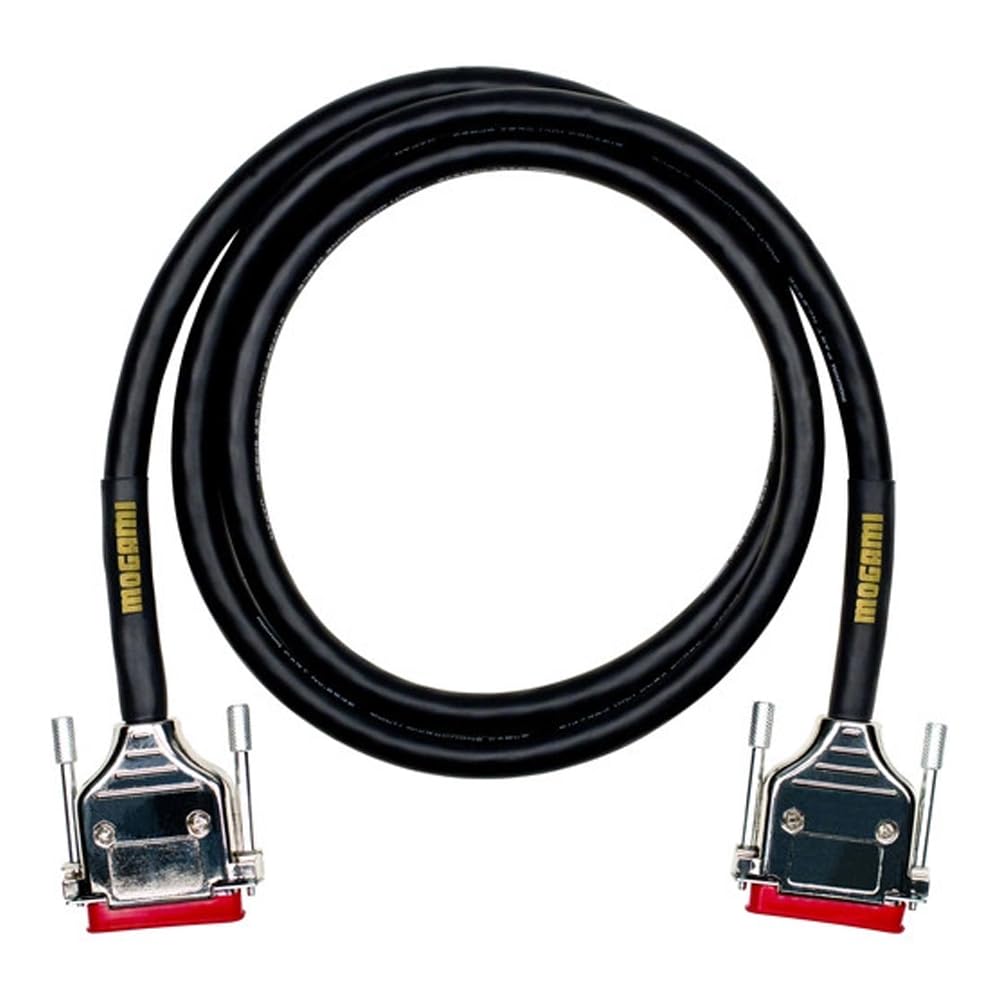

Mogami GOLD DB25-DB25-05 8-Channel DB25 Analog Cable

The Mogami GOLD DB25-DB25-05 is a 5-foot, 8-channel analog interface cable built for routing multiple balanced audio channels between compatible DB25-equipped devices. It provides a compact alternative to running eight separate analog cables, helping keep equipment racks, patchbays, interfaces, and consoles organized. Its industry-standard analog DB25 pinout supports multichannel analog I/O connections.

This cable is suited to recording studios, production rooms, broadcast installations, and other fixed audio systems using D-sub analog connections. It can connect compatible converters, consoles, patchbays, recording interfaces, and other multitrack equipment with DB25 analog I/O. Both ends use DB25 connectors, so it is intended for systems that already provide matching analog DB25 ports.

Mogami builds this interface cable around its 2932 Neglex multipair cable, an eight-channel design with individually shielded wire sets. The construction is designed to help reduce electromagnetic and radio-frequency interference between channels. Individual channel identification also helps simplify organization during installation and service.

Each channel uses stranded copper conductors, XLPE insulation, a drain wire, and a served bare-copper spiral shield. The flexible PVC outer jacket helps the cable route through studio furniture and behind equipment while maintaining an overall diameter of approximately 11.5 mm. Metal D-sub shells and thumbscrews provide a secure physical connection at each end.

The GOLD DB25-DB25-05 is a signal cable only and does not add inputs, outputs, amplification, or audio conversion. It is a practical connection link for systems already configured around the standard analog DB25 format. For installations requiring additional reach, Mogami offers this cable type in other lengths.

Key Features

• Eight Analog Channels: Carries eight channels of analog audio through one DB25-to-DB25 cable.
• Standard Analog Pinout: Supports compatible multichannel equipment using industry-standard DB25 analog wiring.
• Mogami 2932 Cable: Uses an eight-channel Neglex multipair cable construction.
• Individual Shielding: Shielded wire sets help limit interference between audio channels.
• Metal D-Sub Shells: Rugged connector shells protect the DB25 terminations.
• Five-Foot Length: Provides a short 5-foot run for nearby rack or patchbay connections.

Design & Installation

The cable uses a flexible PVC outer jacket over Mogami 2932 eight-channel multipair cable. Its channel pairs use XLPE insulation, individual drain wires, and served bare-copper spiral shielding. All-metal DB25 shells, gold-plated contacts, and metal thumbscrews are used at the connector ends.

Confirm that both connected devices use DB25 analog I/O and the same industry-standard analog pinout before installation. Align each DB25 connector carefully, seat it fully, and tighten the thumbscrews by hand to secure the connection. The 5-foot length is well suited to close-proximity equipment such as interfaces, converters, consoles, and patchbays.
