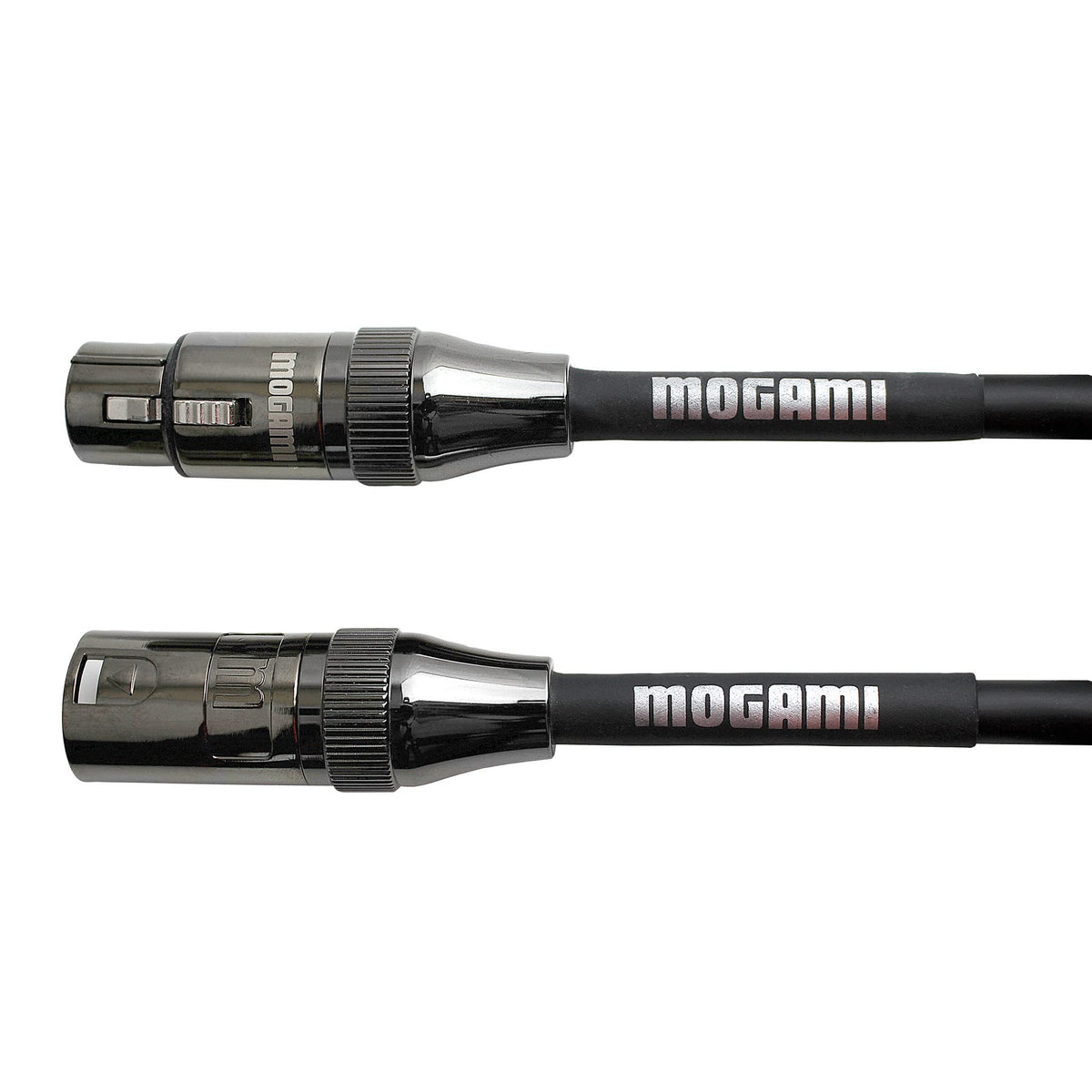

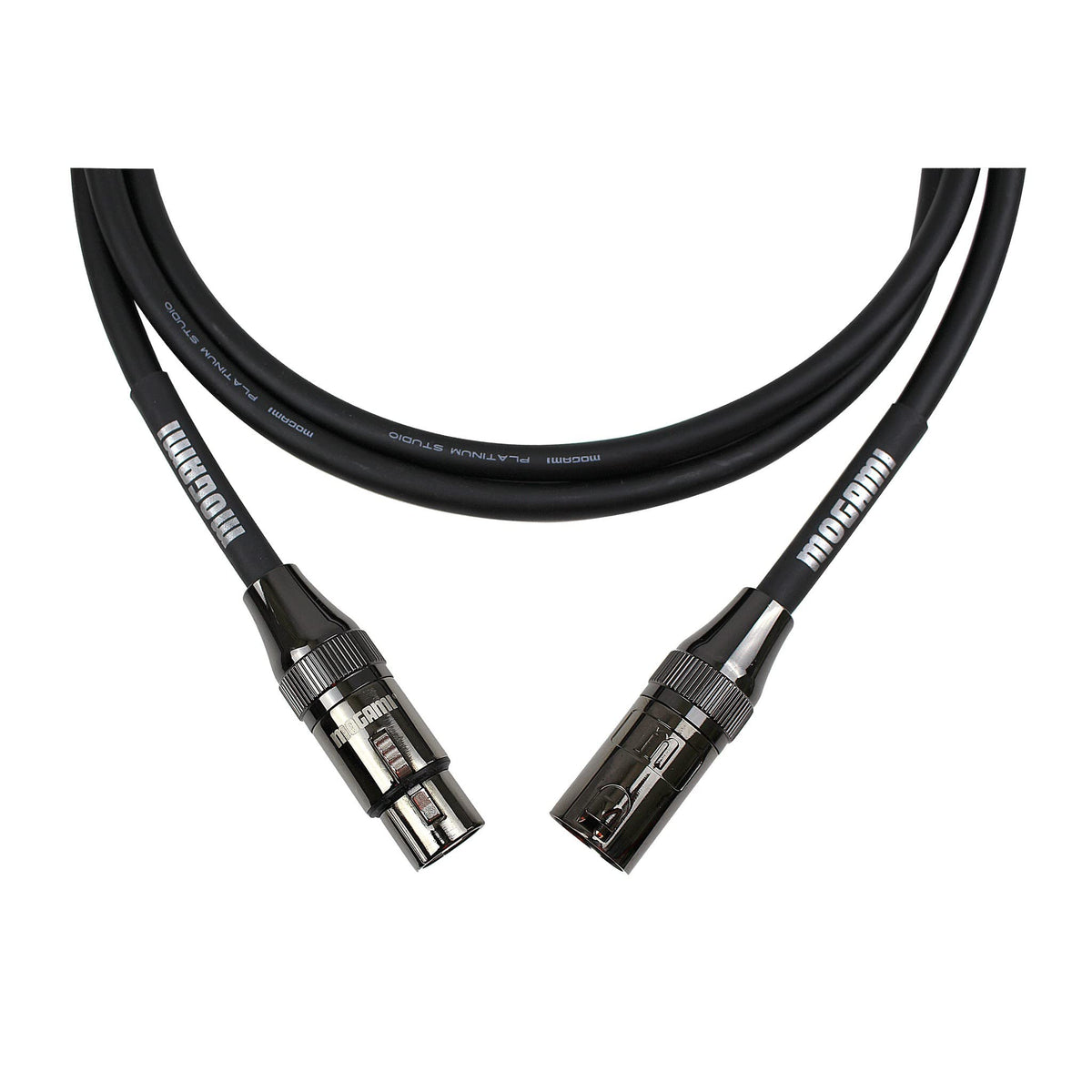

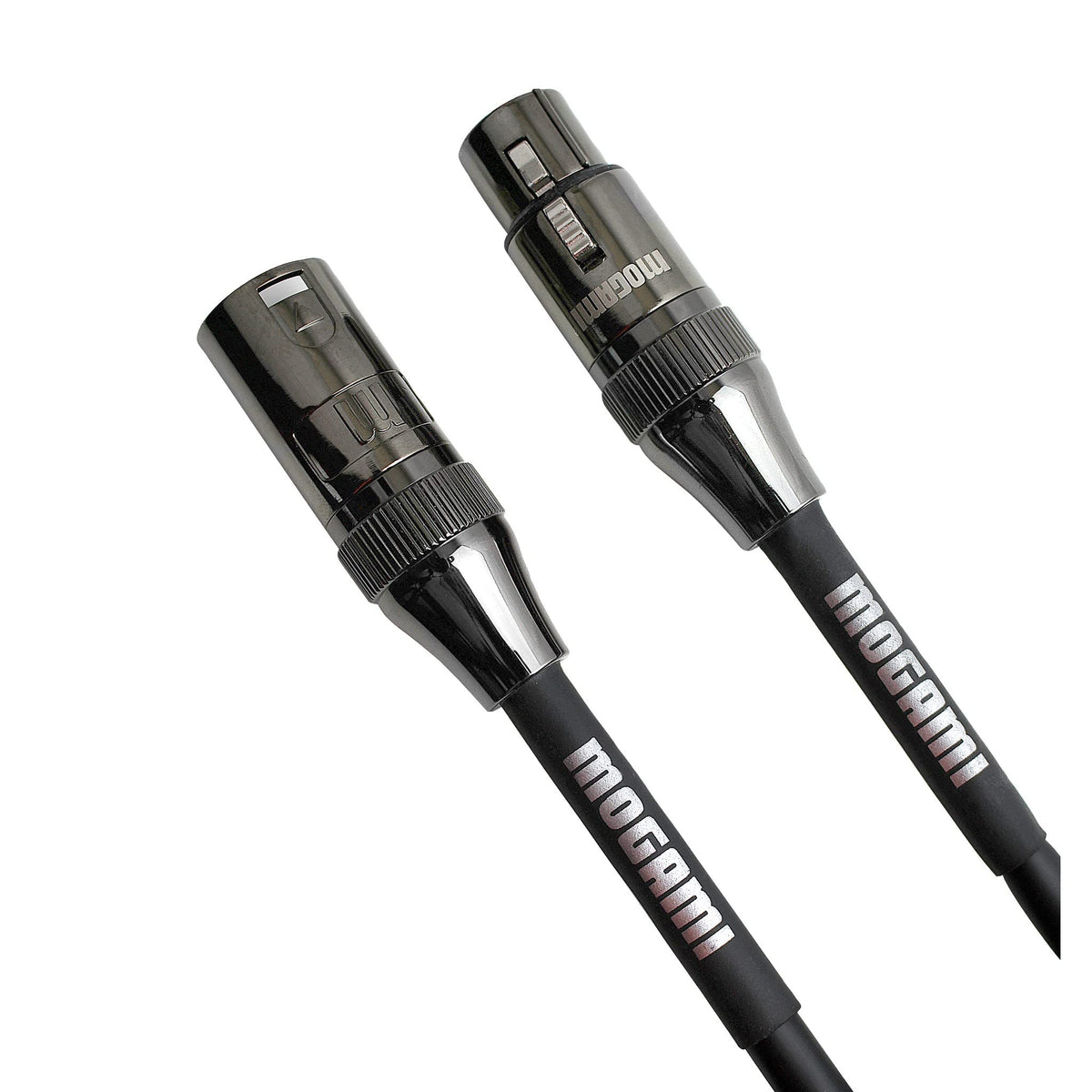

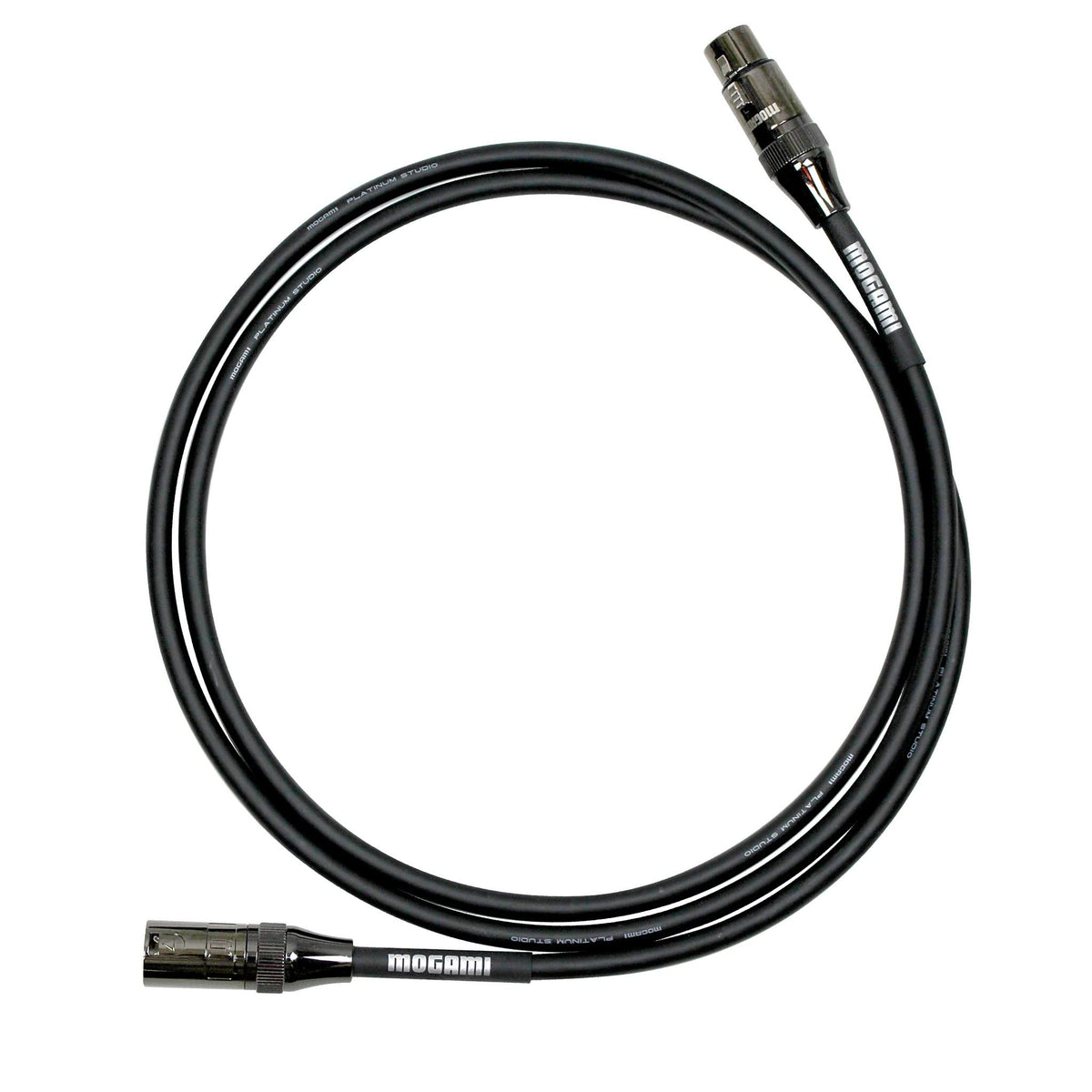

Mogami PLATINUM STUDIO 50 50-Foot XLR Microphone Cable

The Mogami PLATINUM STUDIO 50 is a 50-foot balanced XLR cable built for microphone, line-level, and AES3 digital-audio connections in fixed studio environments. It provides the reach needed to connect microphones, interfaces, preamps, powered speakers, or outboard equipment without changing connector formats. Its XLR male-to-XLR female configuration suits standard balanced audio signal paths.

This cable is intended for recording, mastering, monitoring, and high-end home A/V installations where a long balanced run is required. It is designed with the mastering engineer in mind and is not intended for frequent handling or live-stage use. The 50-foot length is useful for control rooms, vocal booths, equipment racks, and powered-monitor placement.

Mogami uses two large 18 AWG oxygen-free copper conductors in its Platinum Studio W3402 cable. The cable is specified with low capacitance, wide bandwidth, and a 110-ohm characteristic impedance. These electrical properties support analog audio use while also meeting AES3 digital-audio requirements.

A 100% coverage spiral shield helps protect the balanced signal path from radio-frequency interference. The cable uses red and white insulated conductors, a clear LDPE monofilament filler, and a black PVC outer jacket. Custom XLR terminations use silver-pin contacts for low contact resistance.

The PLATINUM STUDIO 50 fits systems that need a premium long-run XLR connection rather than an adapter or speaker cable. Use it between compatible 3-pin XLR equipment, including microphones and balanced analog or AES/EBU devices. It can also be used with powered speakers or subwoofers that accept balanced XLR connections.

Key Features

• 50-Foot XLR Run: Provides substantial reach for studio routing and equipment placement.
• 18 AWG OFC Conductors: Uses high-purity oxygen-free copper signal conductors.
• Balanced XLR Configuration: Connects a 3-pin XLR male output to a female input.
• AES3 Compliance: Supports compatible AES/EBU digital-audio signal paths.
• Low-Capacitance Design: Helps preserve analog-signal performance over longer runs.
• Spiral RF Shield: Provides full-coverage shielding against interference.

Design & Installation

The PLATINUM STUDIO 50 is assembled around Mogami W3402 cable with two 18 AWG OFC conductors, CPP insulation, a clear LDPE filler, a served shield, and a black PVC jacket. Its cable outer diameter is specified at 7.8 ± 0.5 mm. The terminated cable uses Mogami 3-pin XLR male and female connectors.

Route the cable between devices with matching 3-pin XLR connectors, keeping it clear of pinch points and avoiding unnecessary strain on the connectors. It is suited to installed or controlled studio environments rather than frequent rough handling. For AES/EBU use, connect compatible XLR digital outputs and inputs; no adapter is included.
