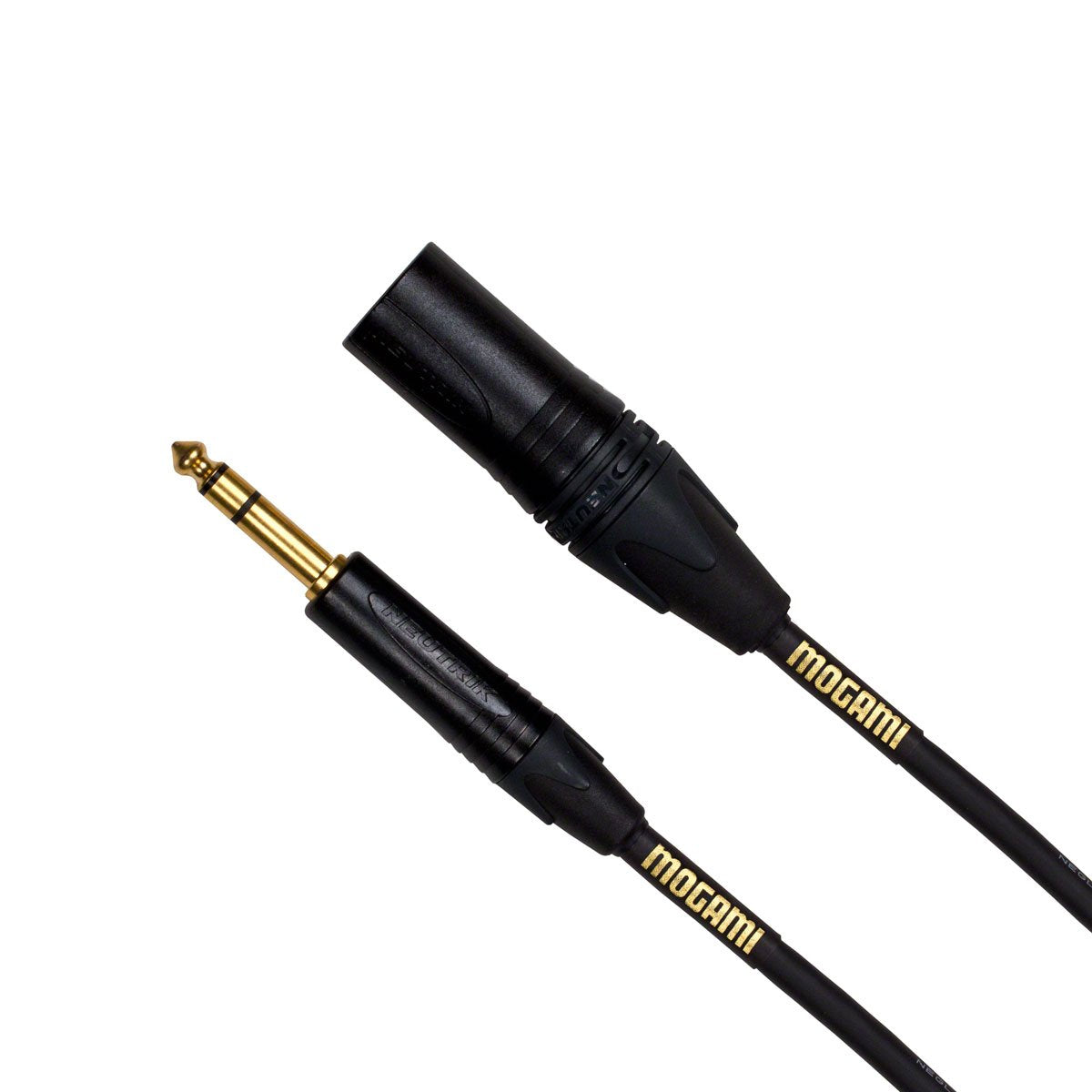

Mogami GOLD TRS-XLRM-10 10' TRS to XLR Male Cable

The Mogami GOLD TRS-XLRM-10 is a 10-foot balanced audio patch cable with a 1/4-inch TRS male connector on one end and a 3-pin XLR male connector on the other. It is intended for balanced analog signal routing where equipment uses different connector formats. The cable provides a direct connection without relying on separate adapters.

This cable is suited to studio, live-sound, broadcast, and powered-speaker setups with compatible balanced TRS and XLR connections. It can be used to link gear such as mixers, audio interfaces, patch bays, signal processors, and monitor systems. Both ends are male, so the connected equipment must provide matching female inputs or outputs.

Mogami builds this assembly with Neglex Quad 2534 cable, a four-conductor design used for balanced audio applications. Its quad construction and served copper shield are designed to help reduce the pickup of electromagnetic interference around audio equipment. This makes it a practical choice for organized signal routing in electrically busy setups.

Gold-plated contacts are used at the TRS and XLR terminations, while the connectors use black bodies. The cable has a flexible PVC outer jacket and a nominal 6.0 mm outside diameter. Its 24 AWG oxygen-free-copper conductors balance compact handling with professional audio-cable construction.

The 10-foot length is useful when components are separated by a rack, desk, speaker stand, or console position. It is a single-channel cable rather than a stereo pair or multi-channel snake. Use it where the destination and source are designed for compatible balanced TRS-to-XLR signal wiring.

Key Features

• Balanced TRS-to-XLRM Wiring: Connects compatible 1/4-inch TRS and XLR female ports.
• 10-Foot Length: Provides added reach for studio and system routing.
• Neglex Quad 2534 Cable: Uses four conductors for balanced analog audio cabling.
• 24 AWG OFC Conductors: Provides stranded oxygen-free-copper signal conductors.
• Served Copper Shield: Helps limit interference pickup in demanding installations.
• Gold-Plated Contacts: Gold-plated connector contacts complete both cable ends.

Design & Installation

The GOLD TRS-XLRM-10 uses Mogami Neglex Quad 2534 cable with XLPE conductor insulation, a served shield, and a flexible PVC jacket. The finished cable is black and has black-body connectors with gold-plated contacts. Its nominal cable outside diameter is 6.0 mm.

Connect the 1/4-inch TRS male plug to a compatible female balanced TRS jack and the XLR male end to a compatible female XLR connector. Confirm that the source, destination, signal level, and balanced wiring are appropriate for the equipment before installation. Route the cable away from power wiring where practical and avoid sharply bending or crushing the cable.
