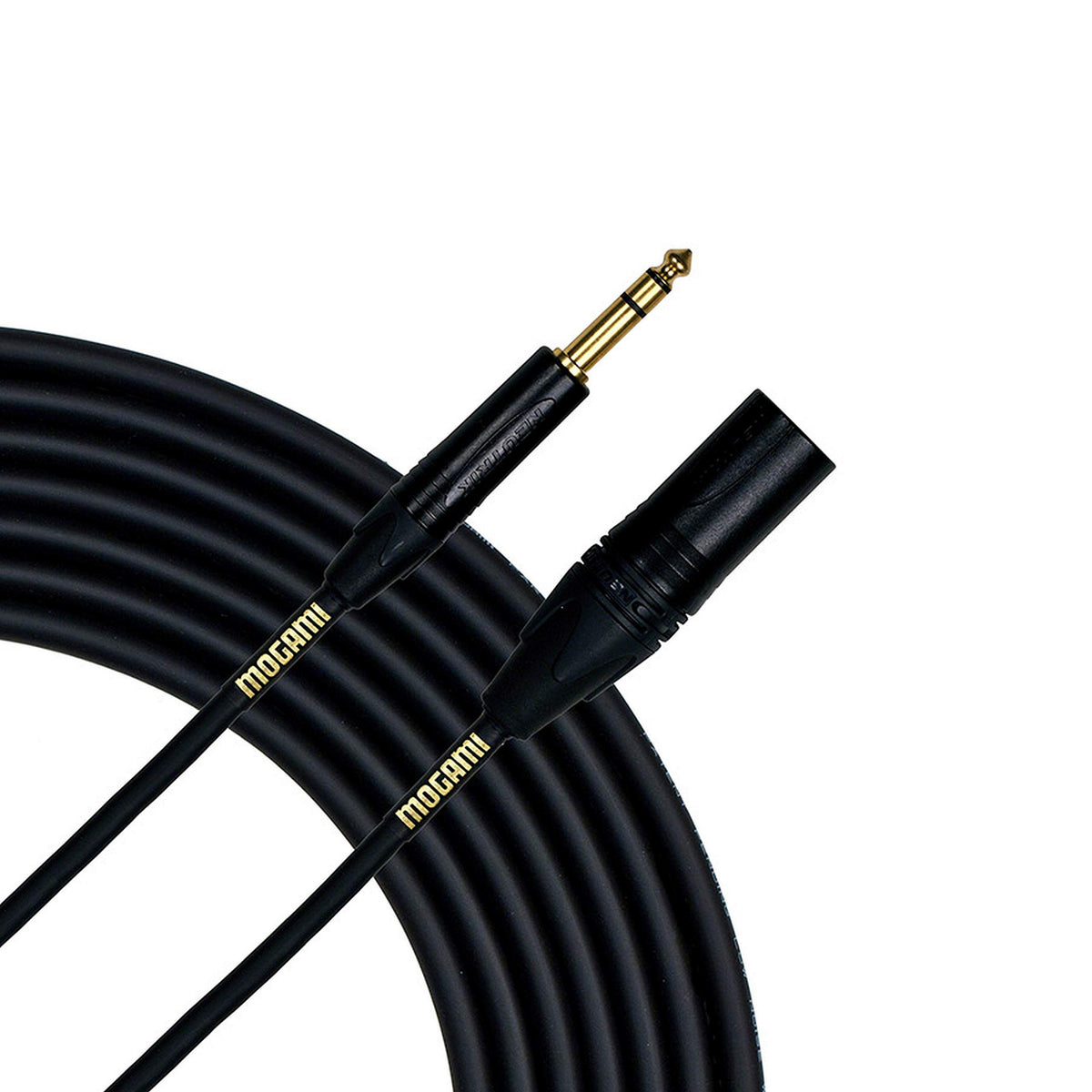

Mogami GOLD-TRSXLRM-30 30-Foot TRS to XLR Male Cable

The Mogami GOLD-TRSXLRM-30 is a 30-foot balanced audio cable with a 1/4-inch TRS male connector on one end and an XLR male connector on the other. It provides a practical way to join compatible balanced line-level equipment with different connector formats. This cable is intended for studio, live-sound, and powered-speaker signal paths.

This cable is suited to users connecting mixers, audio interfaces, keyboards, processors, powered speakers, and other equipment with compatible balanced TRS and XLR connections. Its 30-foot length provides added reach for equipment placed across a room, stage, or control area. Verify the connector gender and input or output type on both devices before ordering.

The Gold TRS-XLRM uses Mogami Neglex W2534 quad microphone cable, a four-conductor design made for balanced audio applications. The quad construction and spiral copper shield are designed to help reduce the effects of electromagnetic and radio-frequency interference. It is a signal cable for audio interconnection, not a speaker cable for carrying amplified speaker power.

XLPE conductor insulation is used in the cable construction for stable electrical characteristics, while the flexible PVC outer jacket supports routine routing and handling. The cable uses a served bare-copper shield around the conductors. Gold-contact connector terminations provide the TRS-to-XLRM interface.

Use the GOLD-TRSXLRM-30 where a balanced 1/4-inch TRS connection needs to interface with a female XLR input or panel connector. It can be a useful part of a system upgrade when replacing a shorter run or standardizing a balanced signal path. Mogami backs the Gold TRS-XLRM series with a lifetime warranty.

Key Features

• 30-Foot Length: Provides reach for spaced studio or live-sound equipment.
• TRS to XLRM Ends: Connects compatible 1/4-inch TRS and female XLR ports.
• Balanced Wiring: Supports balanced line-level audio signal connections.
• Neglex W2534 Quad Cable: Uses four conductors for enhanced noise-canceling capability.
• Spiral Copper Shield: Helps protect the signal from external interference.
• Lifetime Warranty: Covered by Mogami's lifetime warranty.

Design & Installation

The GOLD-TRSXLRM-30 is built around Mogami W2534 Neglex Quad cable with 24 AWG OFC conductors, XLPE insulation, a served bare-copper shield, and a flexible PVC jacket. Its quad conductor arrangement and dense spiral shield are designed for balanced audio runs in environments where electromagnetic or radio-frequency noise can be a concern. The cable has gold-contact TRS and XLRM connector terminations.

Connect the 1/4-inch TRS male end to a compatible balanced TRS jack and the XLR male end to a compatible female XLR input or connector. Route the cable away from AC power cords, power supplies, and other potential interference sources where practical. This cable is for low-level audio interconnection; do not use it between a power amplifier and a passive speaker.
