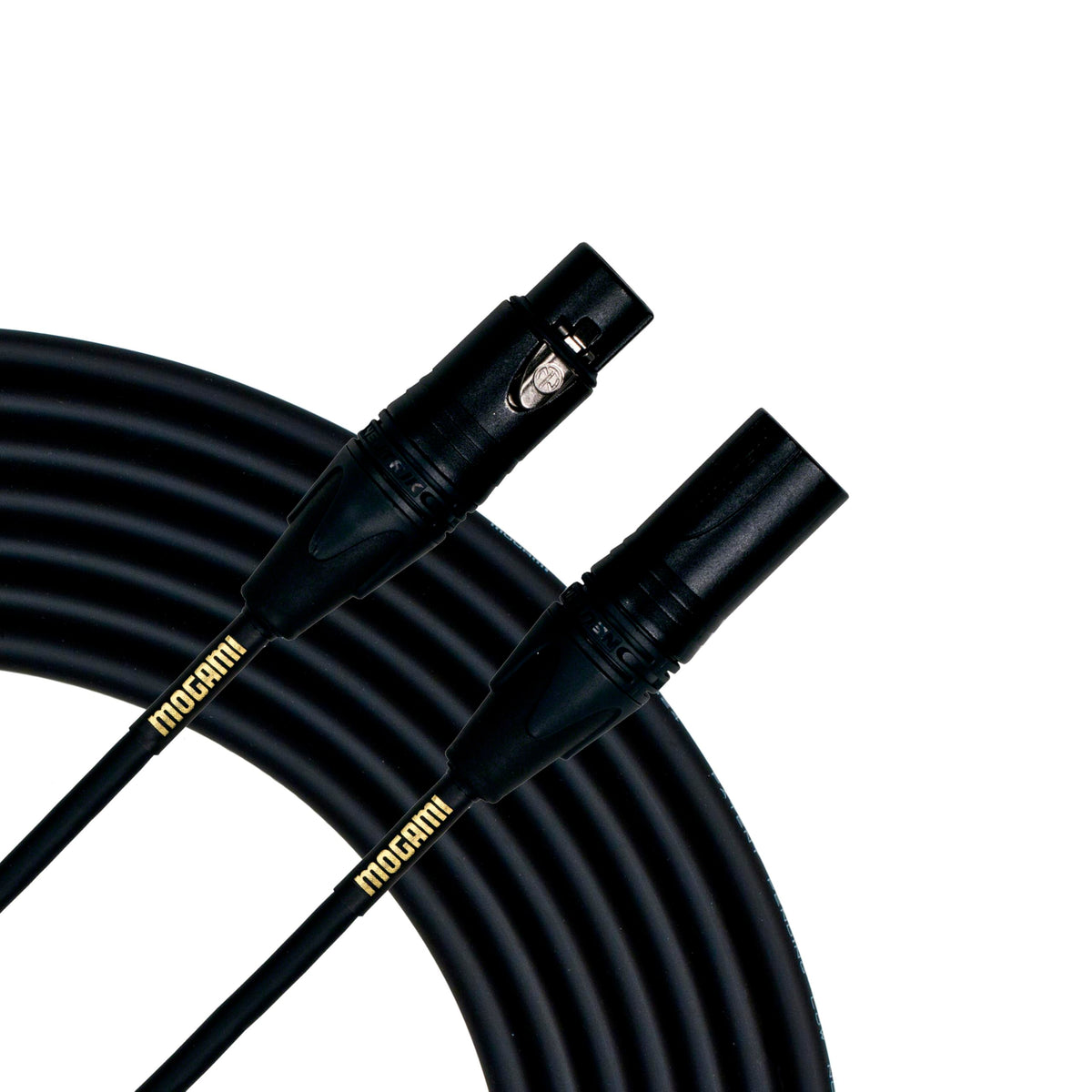

Mogami GOLD STUDIO-10 10' XLR Microphone Cable

The Mogami GOLD STUDIO-10 is a 10-foot balanced XLR microphone cable with one 3-pin XLR female connector and one 3-pin XLR male connector. It is designed to link microphones, mixers, audio interfaces, preamps, and other equipment with compatible XLR connections. Its quad-conductor construction is intended for clean signal transfer in studio, stage, broadcast, and installed audio applications.

This cable is suited to recording musicians, engineers, content creators, and live-sound users who need a practical 10-foot connection between nearby components. The length works well for a microphone stand to an interface or mixer, or for short balanced connections within a rack or control-room setup. It is a signal cable rather than a speaker cable and is not intended for amplified speaker-level connections.

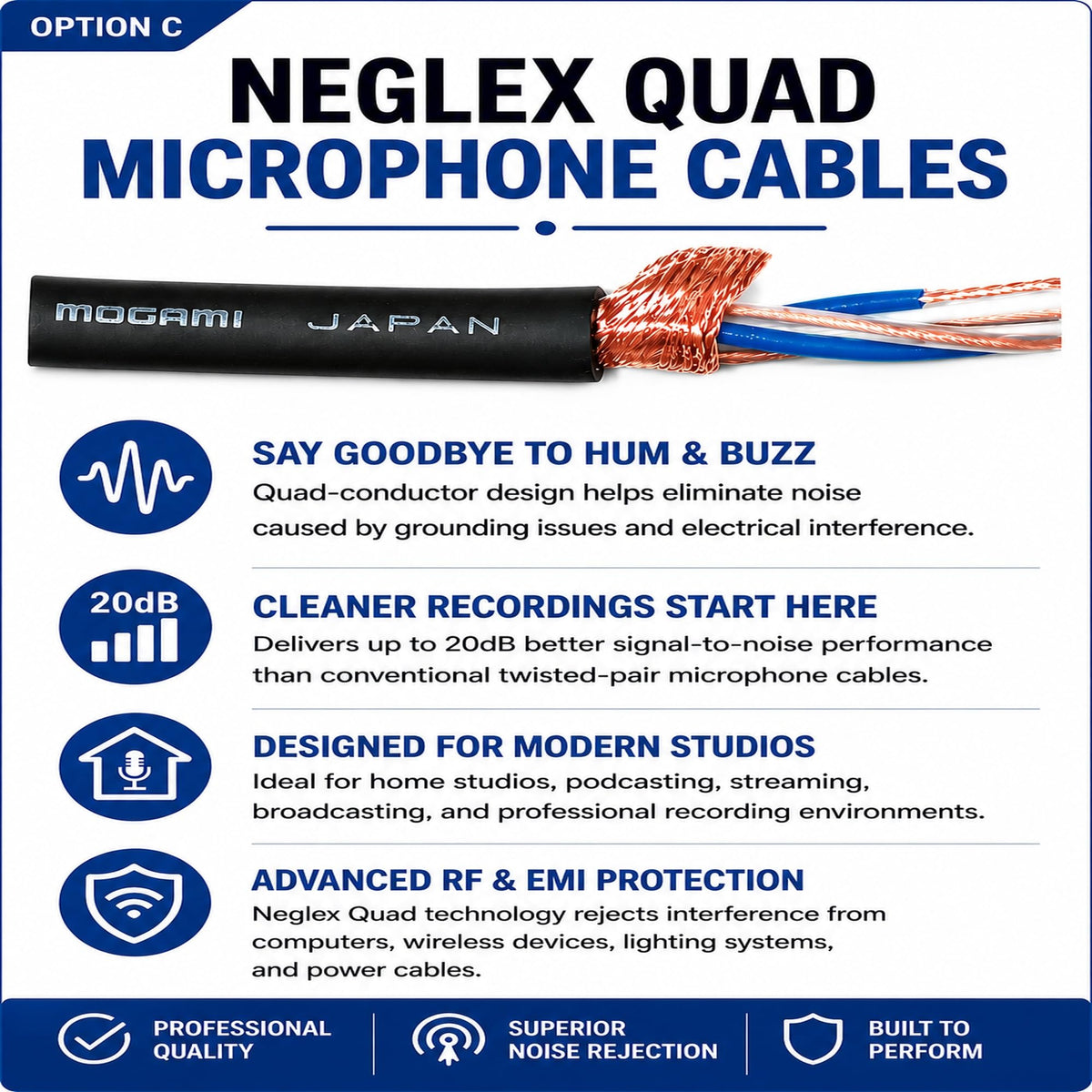

At its core is Mogami W2534 Neglex Quad cable, using four oxygen-free copper conductors in a quad arrangement. This configuration supports common-mode noise rejection when used in a balanced XLR signal path. The cable also uses a served bare-copper shield to help reduce susceptibility to interference.

The GOLD STUDIO-10 uses black-body 3-pin XLR connectors with gold-plated contacts. Gold-plated contacts are used to provide corrosion resistance at the connection points. The flexible PVC jacket and approximately 6 mm outer diameter make the cable suitable for routine routing around studio furniture, microphone stands, and equipment racks.

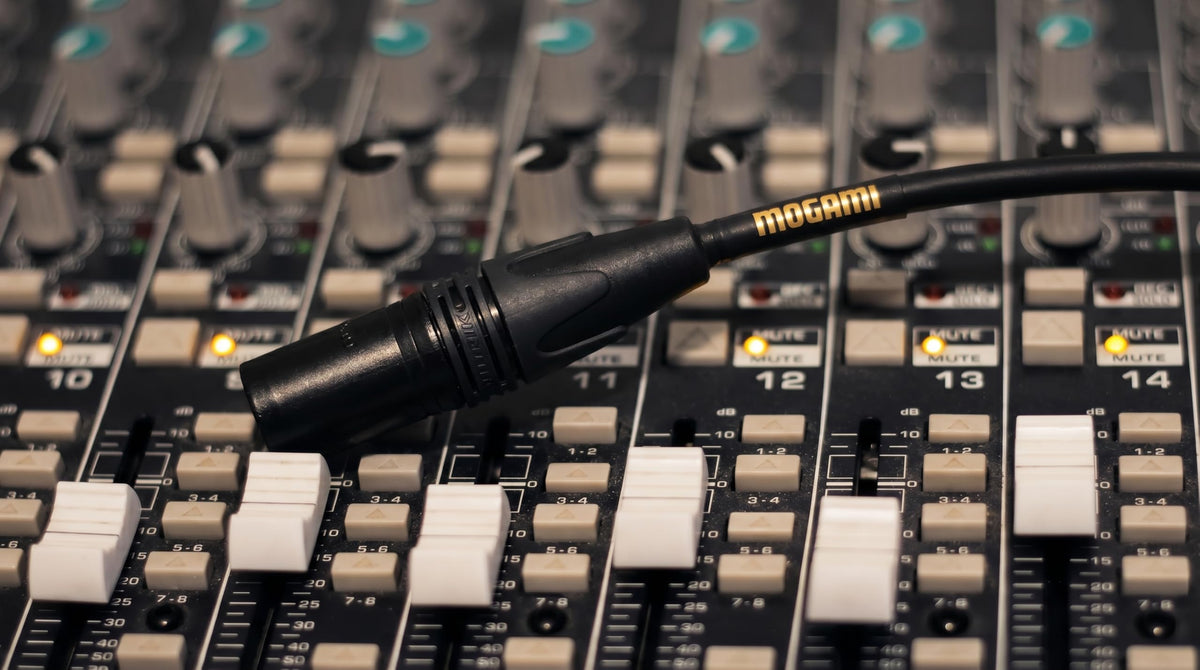

Use the GOLD STUDIO-10 where both devices provide standard 3-pin XLR connections and a 10-foot run is appropriate. It can connect a microphone to a mixer or audio interface, or carry balanced line-level audio between compatible XLR-equipped devices. A single cable is included, so stereo or dual-microphone setups require additional cables.

Key Features

• 10-Foot XLR Cable: Provides a 10-foot connection for nearby audio equipment.
• Neglex Quad Construction: Uses four conductors for balanced signal wiring.
• W2534 Cable: Built with Mogami's 24 AWG quad microphone cable.
• Bare Copper Shield: Adds shielding around the internal conductors.
• Gold-Plated Contacts: Helps resist corrosion at the connector contacts.

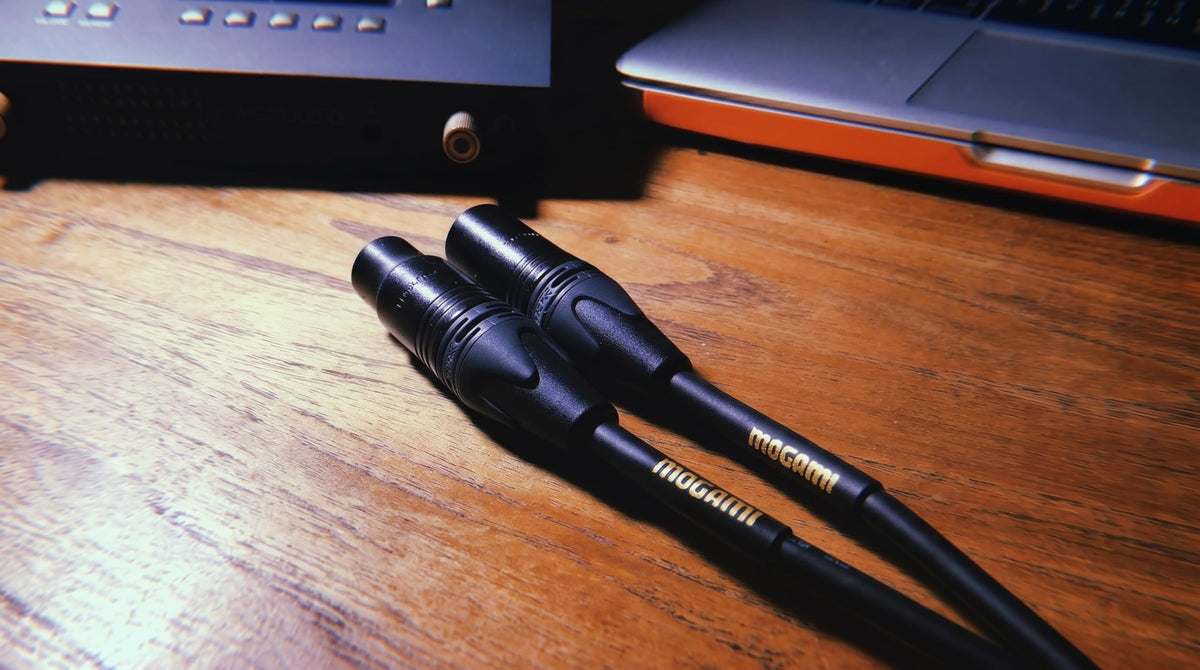

• 3-Pin XLR Ends: Includes one XLR female and one XLR male connector.

Design & Installation

The cable combines oxygen-free copper conductors, XLPE insulation, a served bare-copper shield, and a flexible PVC outer jacket. Its nominal outside diameter is 6.0 mm, and the finished cable is black with black-body XLR connectors. The contacts are gold-plated, while the internal conductors use blue and clear insulation colors in the quad construction.

Connect the XLR female end to a microphone or device with a male XLR output, then connect the XLR male end to a compatible female XLR input on a mixer, interface, preamp, or powered audio device. Route the cable away from AC power cords and avoid sharp bends, pinching, or strain at the connector ends. Confirm that both connected devices use standard 3-pin XLR connections before installation.
