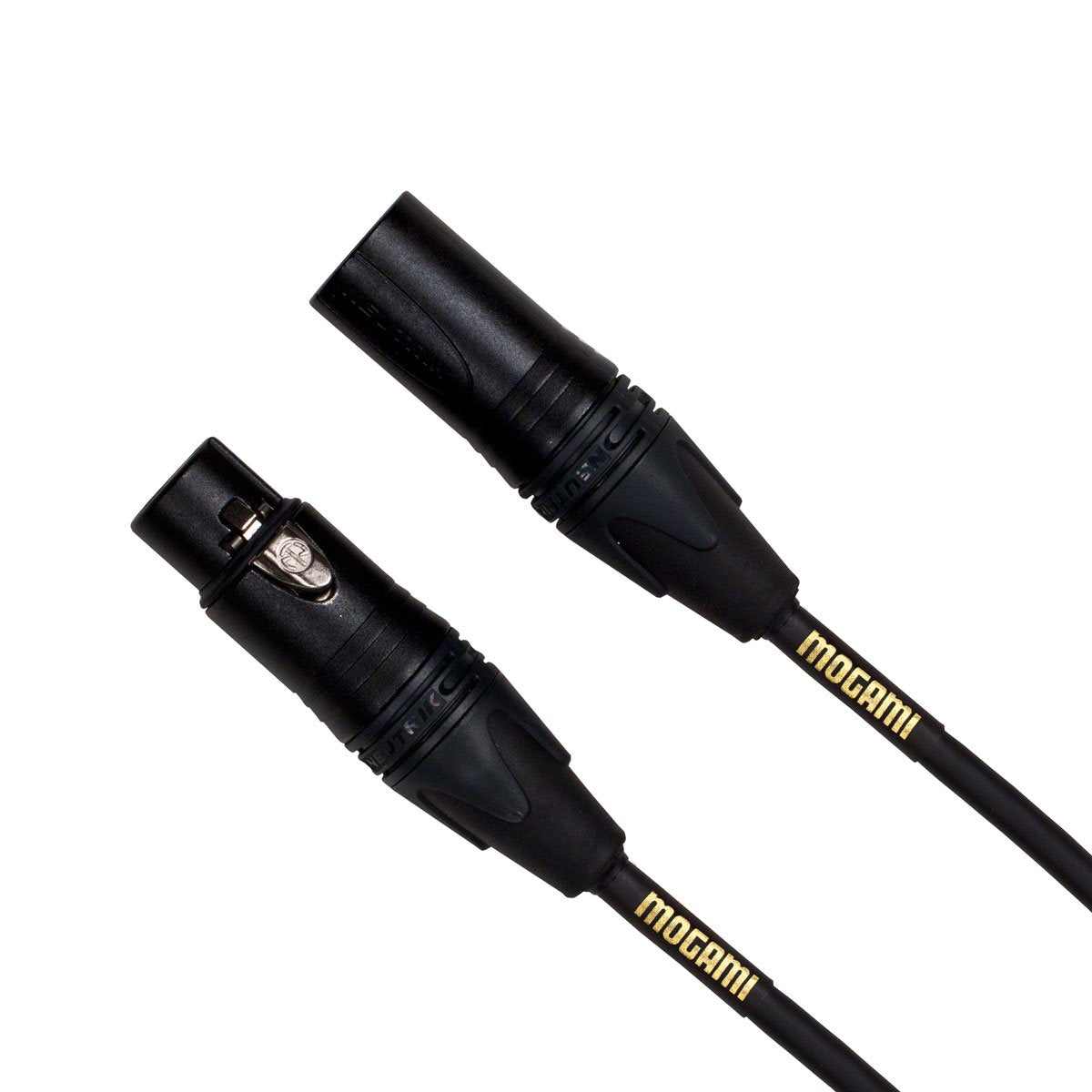

Mogami GOLD STAGE-30 30 Ft XLR Microphone Cable

The Mogami GOLD STAGE-30 is a 30-foot balanced XLR microphone cable designed for dependable signal routing between microphones, mixers, interfaces, stage boxes, and other XLR-equipped audio gear. It provides a practical connection length for live stages, rehearsal rooms, broadcast setups, and studio tracking spaces. Its female-to-male 3-pin XLR configuration supports standard balanced microphone connections.

This cable is intended for users who regularly deploy, coil, and move microphone lines. Mogami builds the Gold Stage series around its W2791 broadcast microphone cable, which uses high-strand-count conductors, a binder and filler system, and a braided shield. That construction is suited to applications where flexibility and repeated handling matter.

The W2791 cable uses two 24 AWG conductors and a braided shield for balanced audio signal transmission. Its electrical specifications include low conductor resistance and controlled capacitance characteristics. These details support clean signal delivery across the cable's 30-foot length in compatible balanced audio systems.

For demanding locations, the cable remains specified for use from -20°C to +70°C (-4°F to +158°F). Its 105-strand annealed bare-copper conductors are designed to retain flexibility during repeated movement. The black flexible PVC jacket has a compact 5.5 mm outside diameter for straightforward routing on stage or in a production setup.

Gold-contact, black-body 3-pin XLR connectors terminate the cable with one male and one female end. It can be used as a direct microphone lead or as part of a larger XLR signal chain between a microphone and an input device. The factory-assembled cable is covered by Mogami's lifetime warranty for the original purchaser.

Key Features

• 30-Foot XLR Run: Provides useful reach for stage, studio, and broadcast microphone setups.
• Balanced 3-Pin XLR: Connects standard XLR microphones to compatible balanced inputs.
• W2791 Cable: Uses Mogami's two-conductor broadcast microphone cable construction.
• 105-Strand Conductors: Supports flexibility for frequent handling and cable management.
• Braided Shield: Adds shielding and physical durability for regularly used cable runs.
• Lifetime Warranty: Factory-assembled cable is covered for the original purchaser.

Design & Installation

The GOLD STAGE-30 uses Mogami W2791 cable with 105 strands of 0.05 mm annealed bare copper in each conductor, XLPE insulation, a braided shield, and a flexible black PVC jacket. The cable measures 5.5 mm in outside diameter and is fitted with black-body, gold-contact 3-pin XLR connectors. Its construction is specified for repeated flexing, with a manufacturer-rated flex life of 131,000 cycles under Mogami test methods.

Connect the female XLR end to a microphone or other device with a male XLR output, then connect the male XLR end to a mixer, audio interface, stage box, preamp, or other compatible female XLR input. Route the cable away from pinch points, sharp edges, and high-traffic areas where practical, and use cable ties or floor-safe cable covers when needed. This is a portable stage and production cable, not a cable specified for in-wall installation.
