Mogami GOLD 3.5 2 XLRF 06 Dual XLRF Y-Adapter Cable

The Mogami GOLD 3.5 2 XLRF 06 is a 6-foot stereo breakout cable with one 3.5mm TRS male plug and two XLR female connectors. It is designed for routing a stereo line-level signal from left and right XLR outputs to a device equipped with a 3.5mm stereo input. This configuration can simplify connections between mixers, preamps, audio interfaces, and recorders or computers with a miniature stereo input.

This cable is intended for studio, live-sound, streaming, recording, and portable-production systems where compatible connectors are already present. Its dual XLR female ends connect to corresponding XLR male output connectors, while the 3.5mm TRS plug connects to the destination's stereo input. The left and right XLR legs provide a practical way to combine a two-channel source into one stereo mini-jack connection.

Mogami builds this GOLD-series Y-adapter with multicore microphone snake cable for flexible handling in professional audio environments. The cable uses gold-contact connectors and straight connector housings at both ends. Its 18-inch fan-out gives the two XLR female connectors useful separation when connecting adjacent output channels.

The 3.5mm TRS end carries an unbalanced stereo connection, so this cable should not be treated as a fully balanced end-to-end signal path. It is best used with compatible line-level equipment and appropriately configured input and output levels. For applications requiring a 3.5mm output to feed dual XLR inputs, Mogami offers the separate 3.5-2XLRM configuration with XLR male connectors.

At 6 feet overall, the GOLD 3.5 2 XLRF 06 fits compact desktop rigs, portable recording kits, and nearby rack or mixer connections. It can replace multi-adapter setups with one purpose-built stereo cable. The included Mogami limited lifetime warranty supports long-term use by the original purchaser.

Key Features

• Stereo XLR-to-3.5mm Breakout: Connects dual XLR female ends to one 3.5mm TRS male plug.
• 6-Foot Overall Length: Provides reach for close-range studio and production connections.
• 18-Inch XLR Fan-Out: Separates the left and right XLR connectors for easier routing.
• Gold-Contact Connectors: Uses gold-contact terminations for durable connection points.
• Multicore Cable Construction: Uses Mogami multicore microphone snake cable for flexible handling.
• Straight Connector Design: Keeps both the TRS plug and XLR connectors straight.

Design & Installation

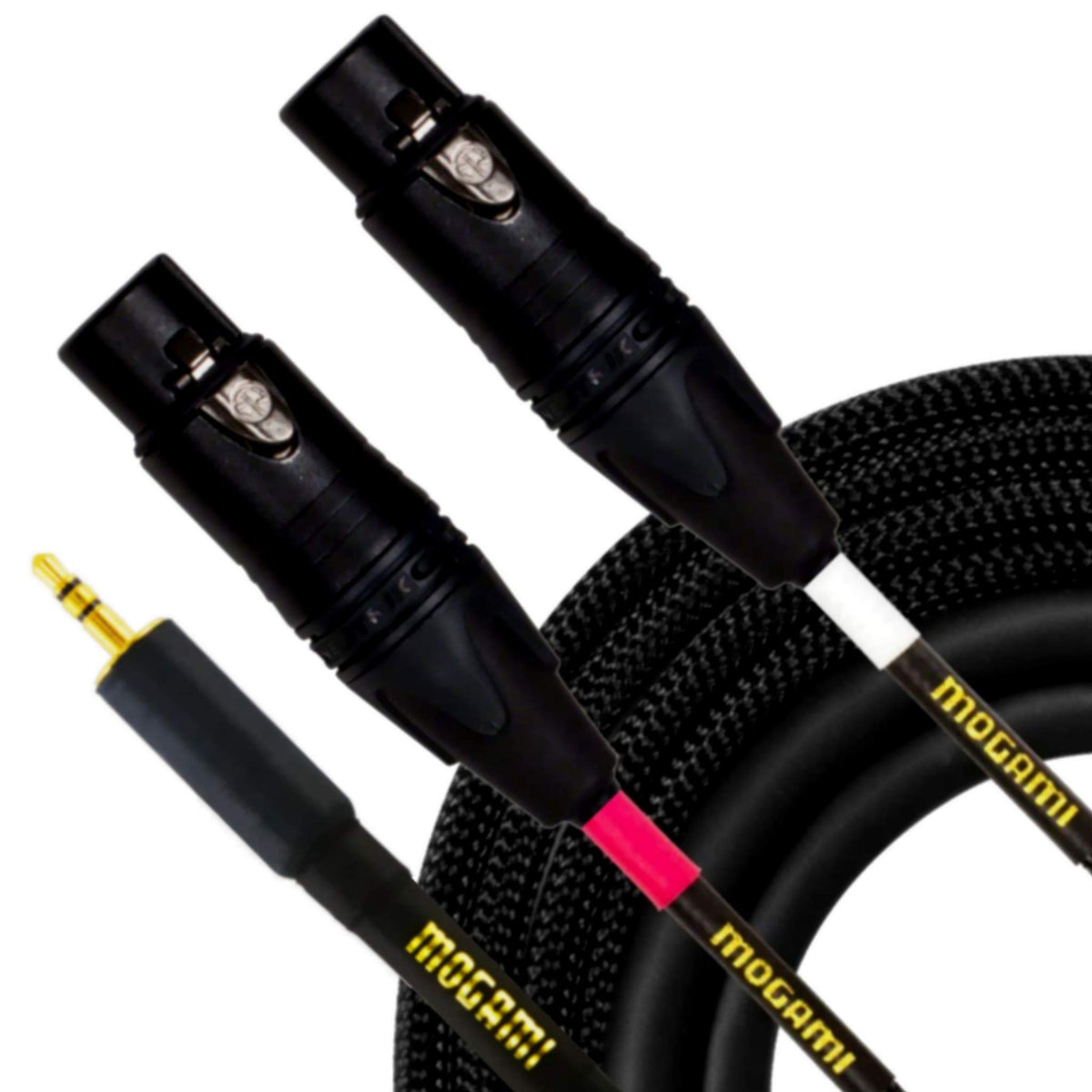

The GOLD 3.5 2 XLRF 06 uses a black, flexible multicore cable with a Y-split construction. It has a straight 3.5mm TRS male connector on one end and two straight 3-pin XLR female connectors on the other. Gold contacts and the 18-inch fan-out are part of the cable's purpose-built audio-interconnect design.

Connect the XLR female connectors to compatible left and right XLR male outputs, then connect the 3.5mm TRS plug to a compatible stereo line input. Verify that the destination accepts a 3.5mm stereo input and set connected devices for suitable line-level operation. This model is directional by connector gender; use the separate 3.5-2XLRM version when a 3.5mm source must feed dual XLR female inputs.
