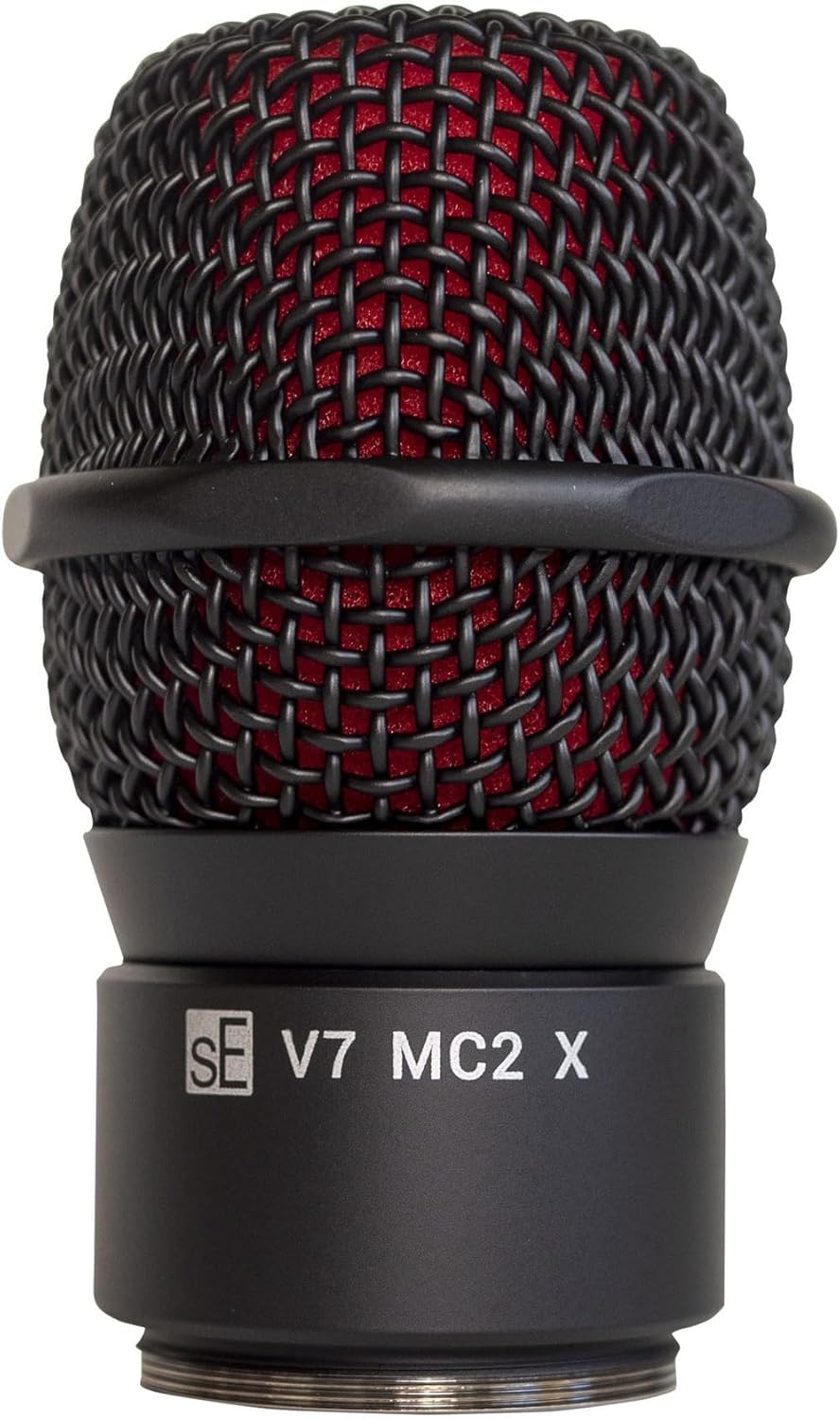

sE Electronics V7 MC2 X BLACK Wireless Mic Capsule

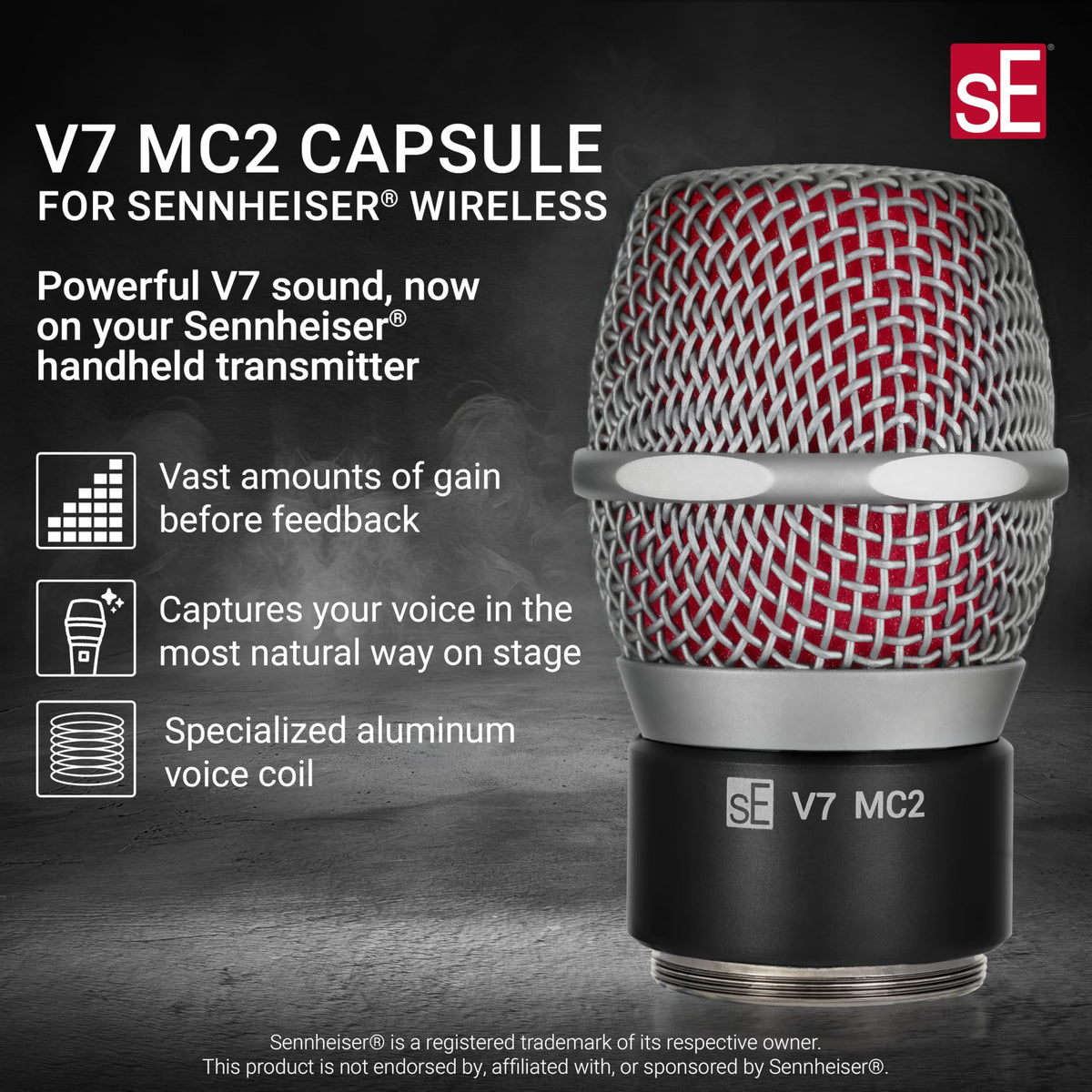

The sE Electronics V7 MC2 X BLACK is a replacement-style dynamic microphone capsule made to bring the V7 X sound character to compatible Sennheiser wireless handheld transmitters. It is intended for performers, engineers, and production teams that want a wireless handheld system with a focused supercardioid pickup pattern. The capsule itself is not a complete wireless microphone system and requires a compatible Sennheiser handheld transmitter.

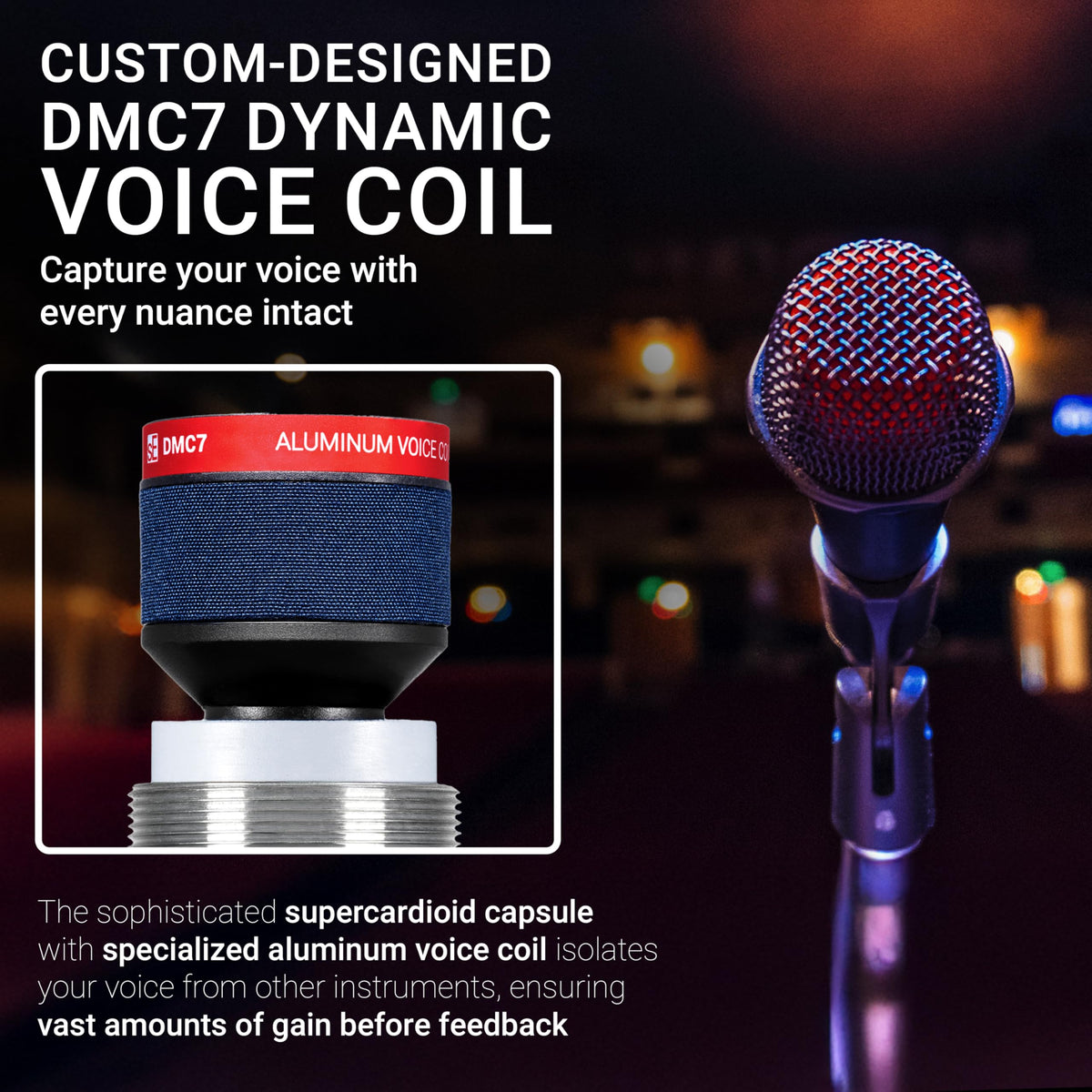

Its dynamic DMC7 X capsule uses an aluminum voice coil and neodymium magnet to provide a balanced, open sound across a 30 Hz to 19 kHz frequency range. The response is suited to vocals as well as live and studio instrument capture, including amplified instruments and acoustic sources. A 300-ohm electrical impedance and 2.0 mV/Pa sensitivity support use within its intended wireless-transmitter platform.

The supercardioid polar pattern concentrates pickup toward the front of the capsule while reducing sound arriving from the sides and rear. This can help limit stage bleed and improve usable gain before feedback when monitors and other sources are nearby. Published off-axis rejection figures are greater than 5 dB at 60 degrees, 14 dB at 120 degrees, and 10 dB at 180 degrees.

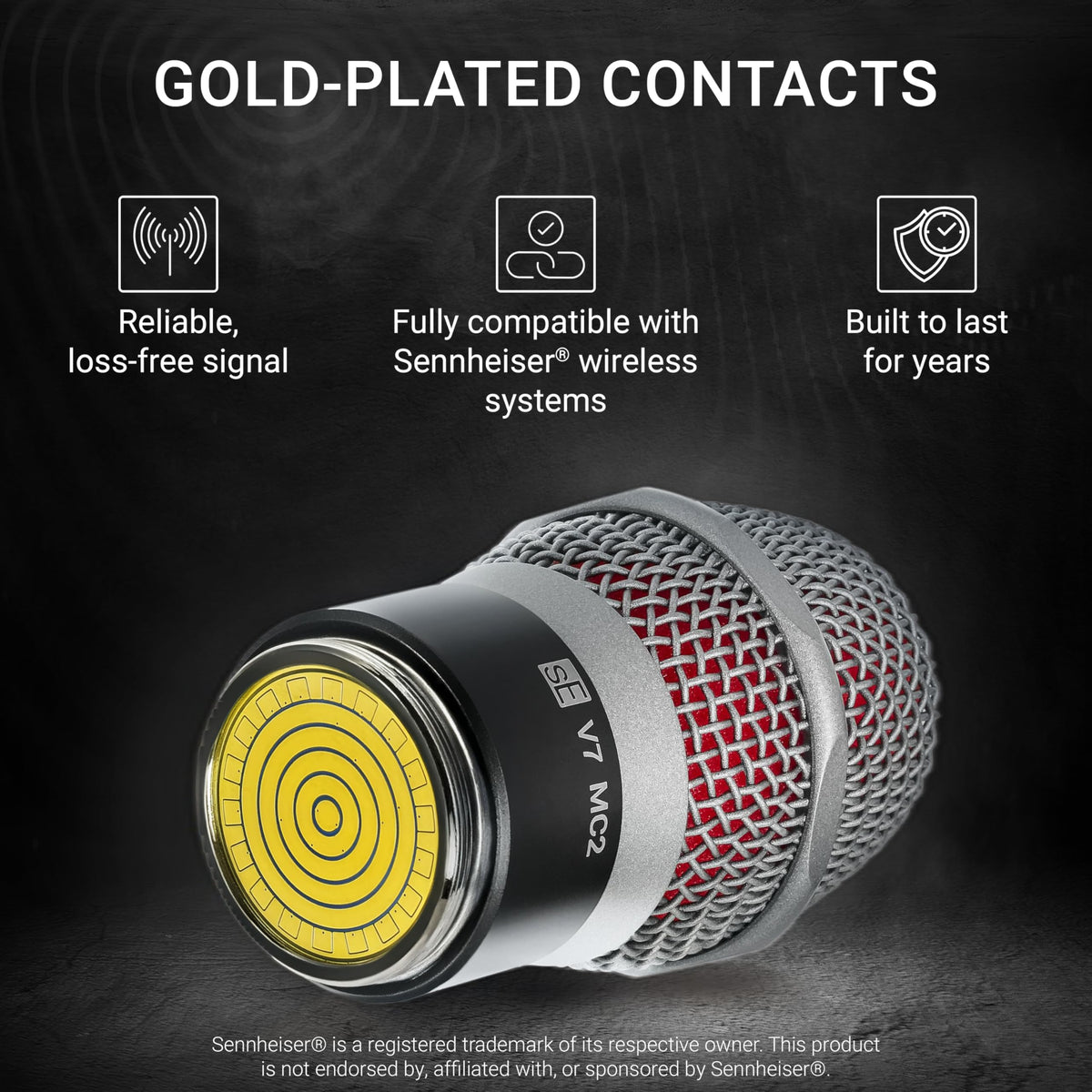

sE Electronics equips the V7 MC2 X with a patented integrated shockmount system intended to reduce handling noise, footfall noise, and low-frequency rumble. Gold-plated contacts support a dependable connection with the transmitter, while the internal windscreen helps reduce wind noise and plosive sounds. Both red and black internal windscreens are included for a choice of appearance.

This capsule is a practical upgrade path for compatible Sennheiser wireless handheld systems used with a receiver, mixer, recorder, or PA system. Its black finish matches understated stage setups, while the V7 X design is built for regular live-performance use. Confirm transmitter compatibility before ordering, especially when working with older or nonstandard Sennheiser handheld systems.

Key Features

• V7 X Wireless Capsule: Transfers the V7 X sound character to compatible Sennheiser handheld transmitters.
• Dynamic DMC7 X Element: Uses a dynamic capsule design for live sound and recording applications.
• Supercardioid Pattern: Focuses pickup on the source while helping reduce stage bleed.
• Aluminum Voice Coil: Supports a clear, balanced sound with detailed high-frequency response.
• Patented Shockmount: Helps reduce handling noise, rumble, and footfall vibration.
• Two Internal Windscreens: Includes red and black screens for plosive control and appearance options.

Design & Installation

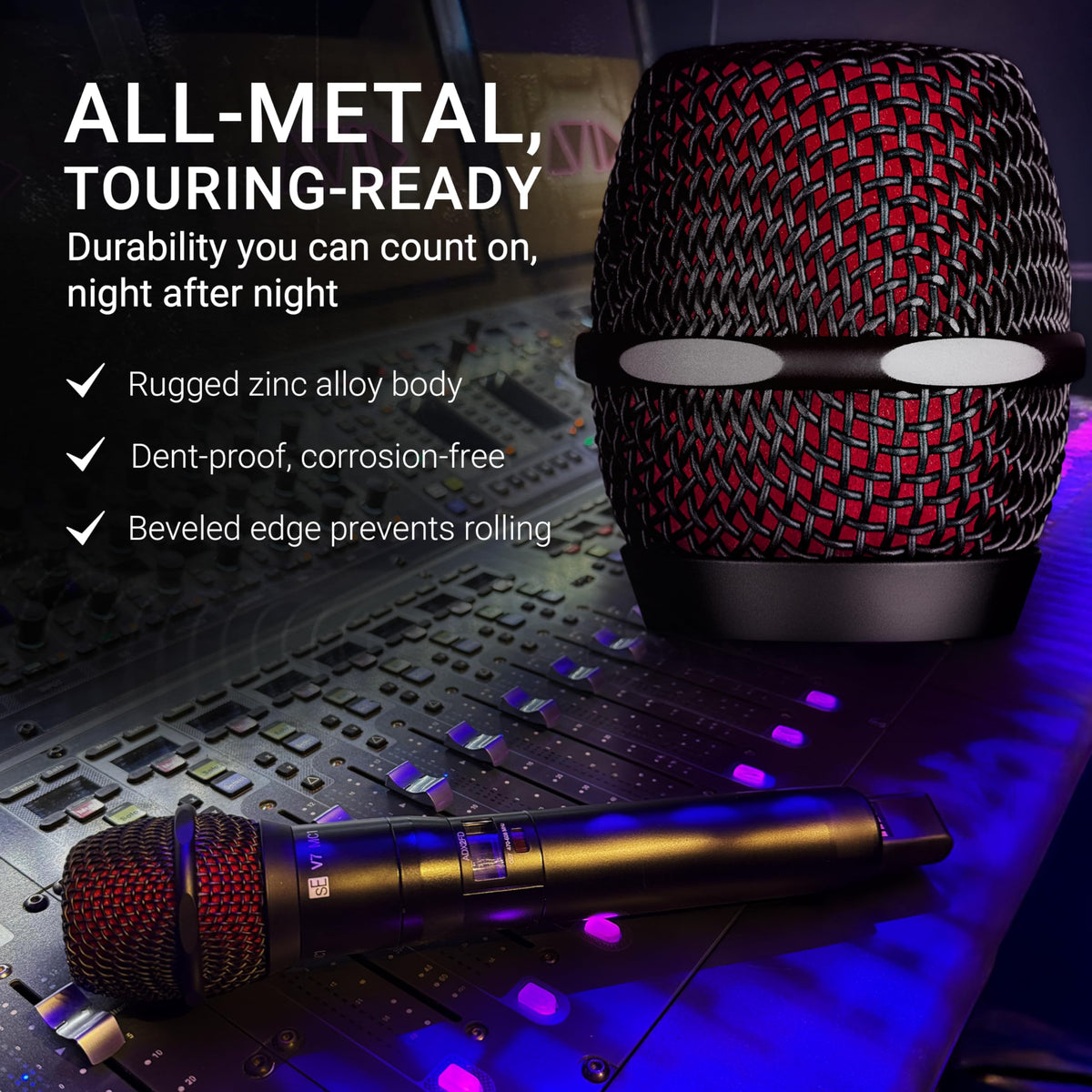

The V7 MC2 X BLACK combines a black finish with a durable all-metal grille design, a beveled spring-steel mesh grille, and gold-plated contacts. Its neodymium magnet and aluminum voice coil are paired with an integrated internal shockmount. The capsule is designed for regular stage use and helps resist grille dents and corrosion.

Install the capsule only on a compatible Sennheiser wireless handheld transmitter, following the transmitter manufacturer's capsule-removal and installation procedure. No separate XLR cable or microphone stand mount is needed for the capsule itself; the transmitter, wireless receiver, and associated audio system are sold separately. For best results, aim the microphone toward the intended source and position stage monitors to take advantage of the supercardioid pattern.
