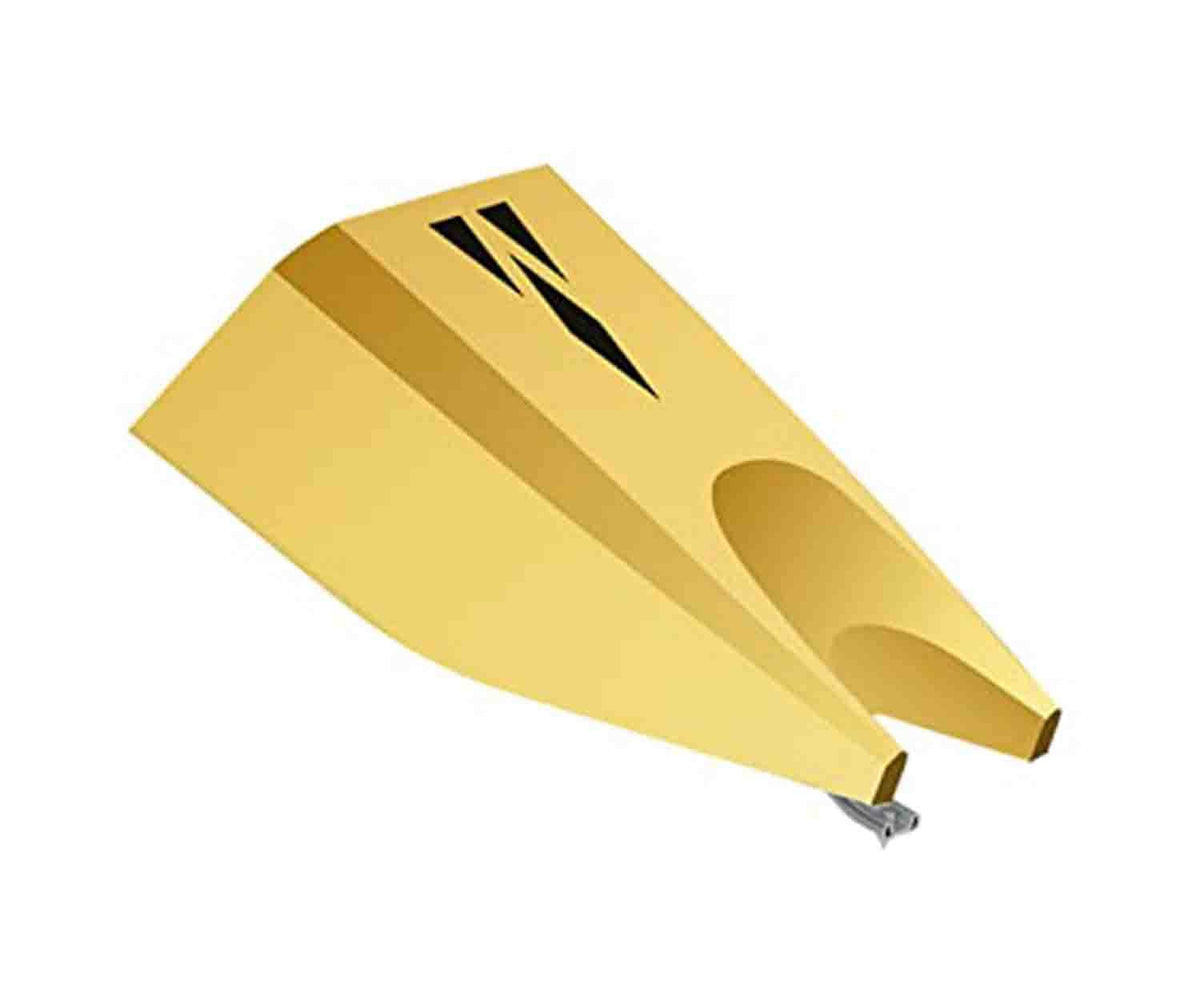

Ortofon STYLUS ELITE Concorde Elite Replacement Stylus

The Ortofon STYLUS ELITE is a replacement stylus made specifically for the Concorde Elite cartridge. It restores the cartridge’s intended tracking and playback characteristics when the original stylus is worn or damaged. This is a turntable component for vinyl playback, not a complete cartridge or a car-audio speaker product.

Designed for listeners and DJs using the Concorde Elite system, this stylus combines a nude elliptical diamond tip with a rigid aluminum-magnesium cantilever. Its elliptical profile is engineered to follow record-groove detail with precision. The result is detailed playback with strong output from a properly matched Concorde Elite cartridge.

The stylus assembly uses a specially molded body with genuine gold plating. Beyond its distinctive finish, the assembly is designed to maintain the Elite cartridge’s mechanical setup and specified tracking geometry. The stylus itself weighs 1 g.

A nude elliptical diamond reduces moving mass compared with a bonded stylus design. This supports accurate groove tracing and helps the stylus retrieve high-frequency information specified for the Elite system. The Elite stylus is rated for 100 µm tracking ability at 315 Hz when set to its recommended tracking force.

Use the STYLUS ELITE as the service replacement for an existing Ortofon Concorde Elite cartridge. Set the tonearm to the specified 3.0 g recommended tracking force, then confirm proper balance and alignment on the turntable. Its 8.5 mV output specification and electrical loading figures apply when the stylus is used with the compatible Concorde Elite cartridge.

Key Features

• Concorde Elite Compatibility: Made as the dedicated replacement stylus for Concorde Elite cartridges.
• Nude Elliptical Diamond: Tracks groove detail with a low-moving-mass diamond assembly.
• Gold-Plated Stylus Body: Specially molded body finished with genuine gold plating.
• Aluminum-Magnesium Cantilever: Rigid lightweight cantilever transfers groove motion to the generator.
• 3.0 g Recommended Tracking Force: Provides the specified operating point for the Elite stylus.
• High Tracking Ability: Rated to track 100 µm at 315 Hz.

Design & Installation

The STYLUS ELITE combines a real gold-plated molded stylus housing, nude elliptical diamond, and aluminum-magnesium cantilever. Its diamond tip has an r/R radius of 8/18 µm, while the specified tracking angle is 20°. The stylus is designed as a precision replacement assembly rather than a universal needle.

Install it only on a compatible Ortofon Concorde Elite cartridge body. Carefully remove the existing stylus and fit the replacement without touching the diamond tip or cantilever, then set tracking force to 3.0 g; the approved range is 2.0 to 4.0 g. Confirm the turntable can accommodate the required force and follow the turntable and cartridge setup instructions before playing records.
