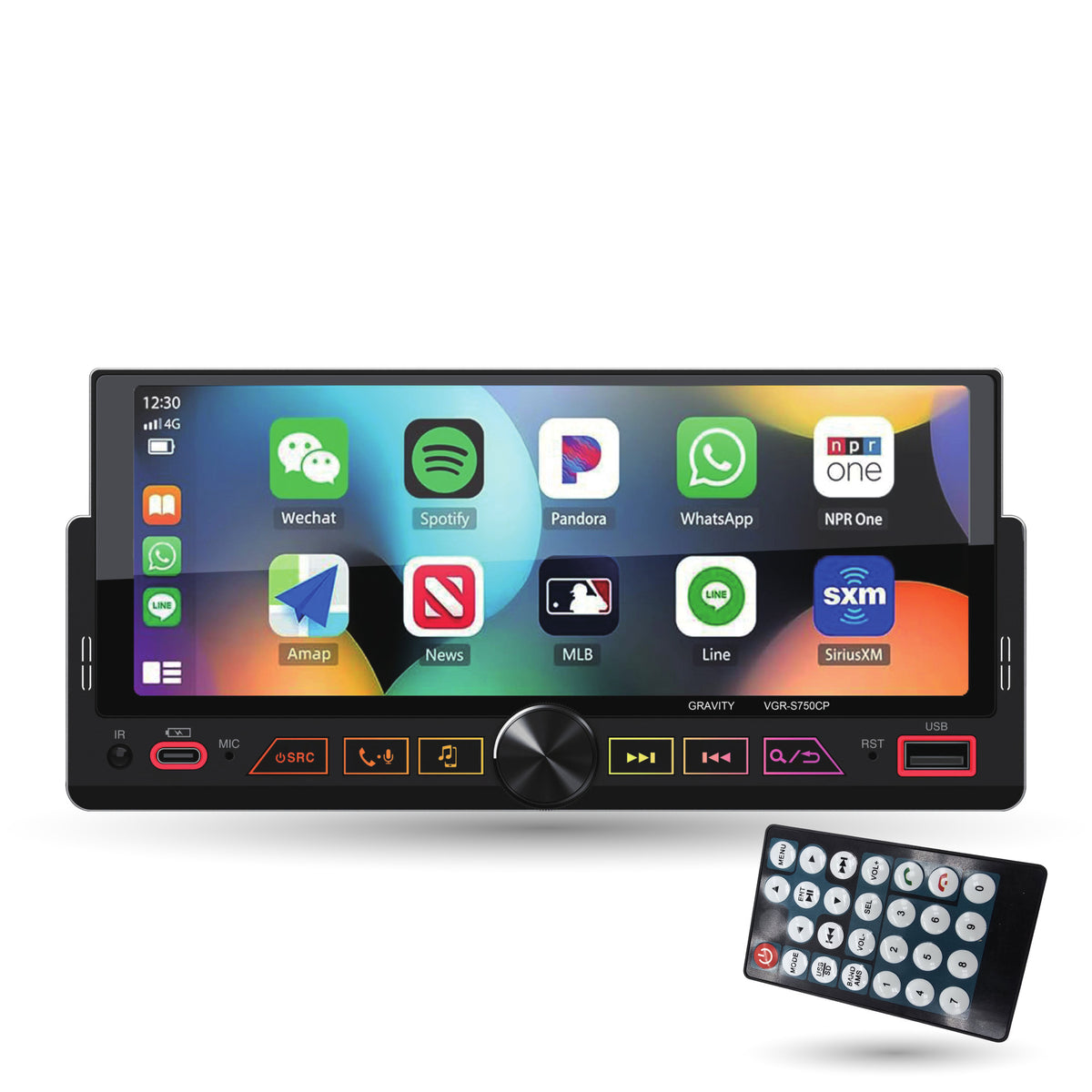

Gravity VGR-S750CP 6.86" Single DIN Wireless CarPlay Stereo

The Gravity VGR-S750CP is a single-DIN digital media receiver designed to bring a modern touchscreen interface to vehicles with a standard single-DIN radio opening. Its 6.86-inch floating display provides a wider viewing area than a conventional single-DIN chassis alone. It is a practical upgrade for drivers who want smartphone-based navigation, calling and music access without changing to a double-DIN dashboard layout.

Wireless Apple CarPlay and Android Auto place compatible phone apps and controls on the receiver display without a wired phone connection. Bluetooth with A2DP supports wireless music streaming and hands-free calling, while CML-Play MirrorLink provides screen-display capability with supported phones. These connection options help keep commonly used media and communication functions organized at the dash.

The VGR-S750CP uses a built-in 4 x 45-watt rated amplifier with up to 240 watts maximum output. DSP processing, bass, treble, balance, fader and loudness controls allow basic system adjustment from the receiver. Selectable Pop, Rock, Classic and Jazz EQ modes provide quick tonal presets for different listening preferences.

Media flexibility includes a front 3.5 mm AUX input, USB playback and SD or MMC card playback. The receiver supports audio, photo and 1080P video playback from compatible media up to 64 GB. An electronic PLL FM tuner adds local radio listening with automatic seek, automatic store and 18 preset memories.

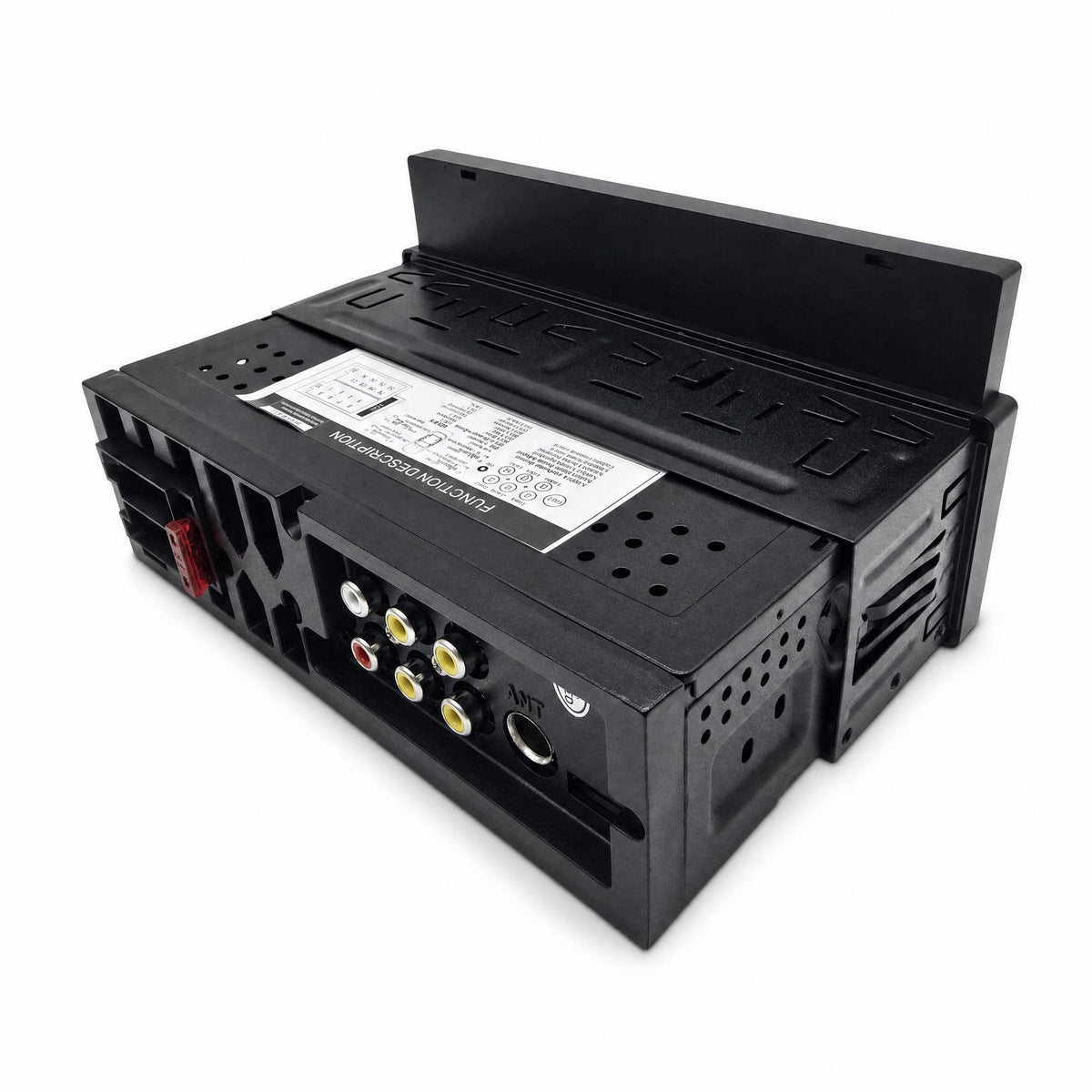

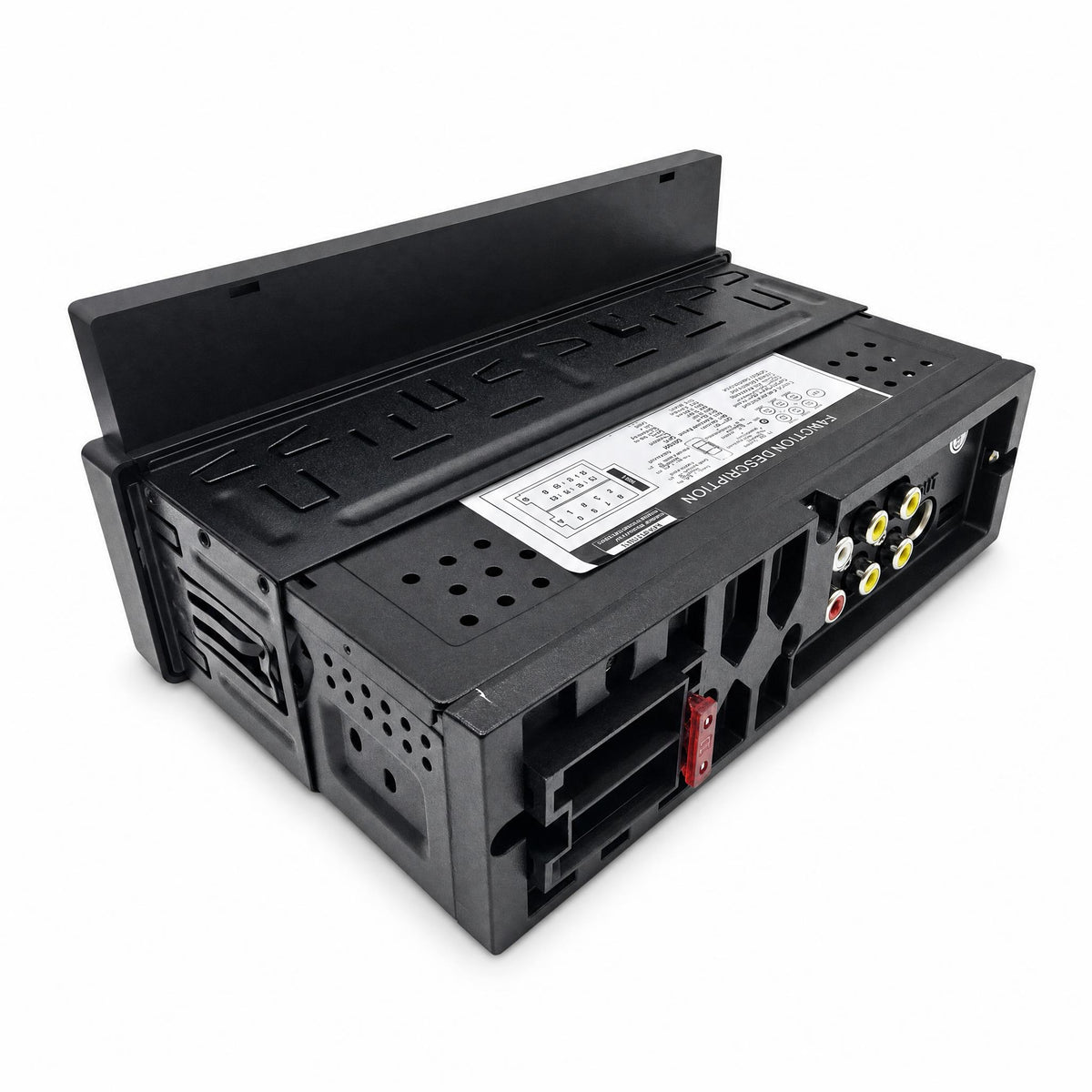

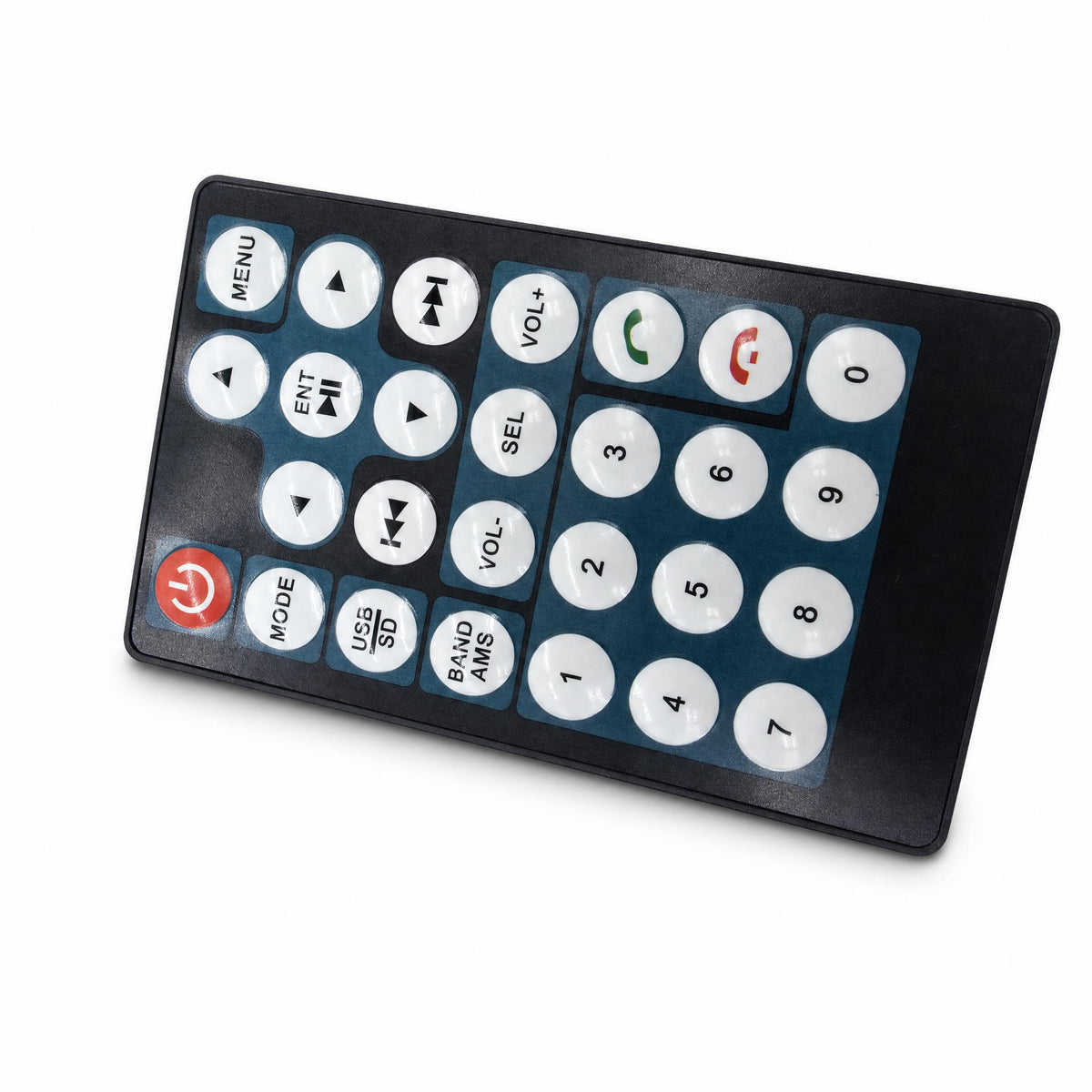

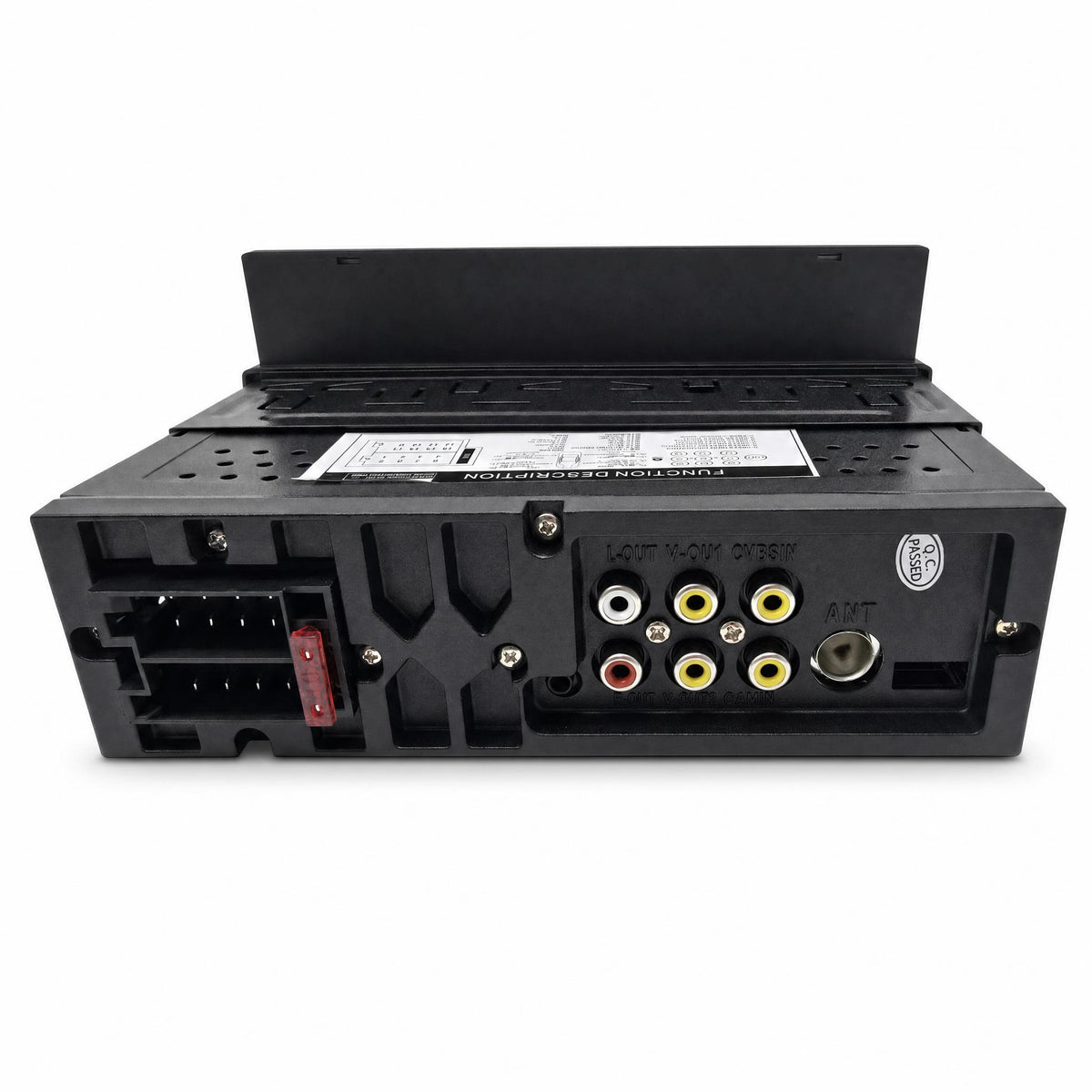

For a broader vehicle electronics upgrade, the VGR-S750CP includes an AHD rear-view camera input, two video outputs and two RCA outputs. Steering-wheel-control compatibility can help retain familiar vehicle controls when correctly integrated. A full-function infrared remote, digital clock, ESP shock protection and 1A phone charging add everyday utility.

Key Features

• 6.86-Inch Floating Display: Adds a wide touchscreen interface to a standard single-DIN opening.
• Wireless Smartphone Integration: Supports wireless Apple CarPlay and Android Auto with compatible phones.
• Built-In Amplification: Provides 4 x 45-watt rated amplification for a basic speaker system.
• DSP Sound Adjustment: Includes tone, balance, fader, loudness and preset EQ controls.
• Flexible Media Playback: Plays compatible USB, SD and MMC media up to 64 GB.
• System Expansion: Provides camera, video-output and RCA-output connections for additional equipment.

Design & Installation

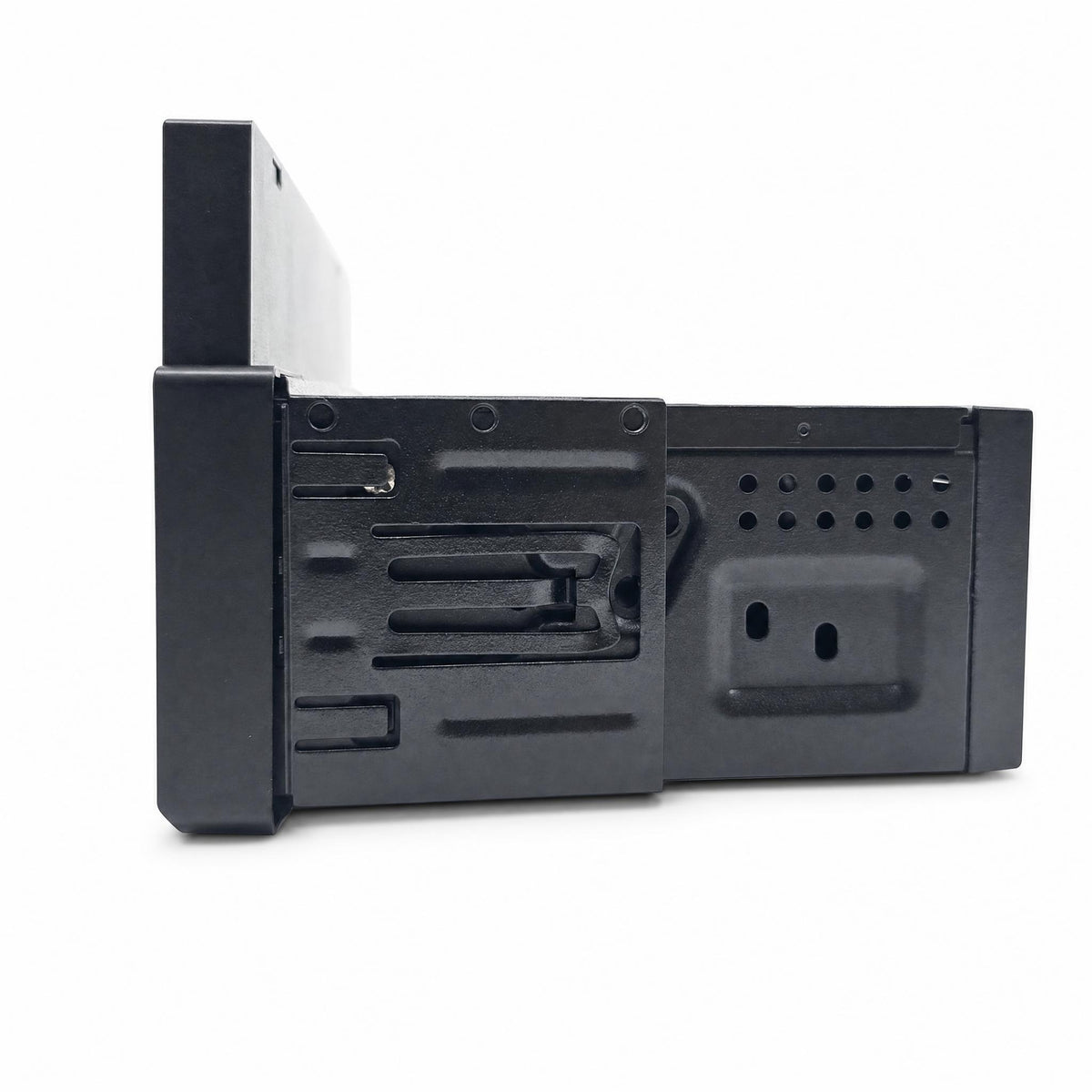

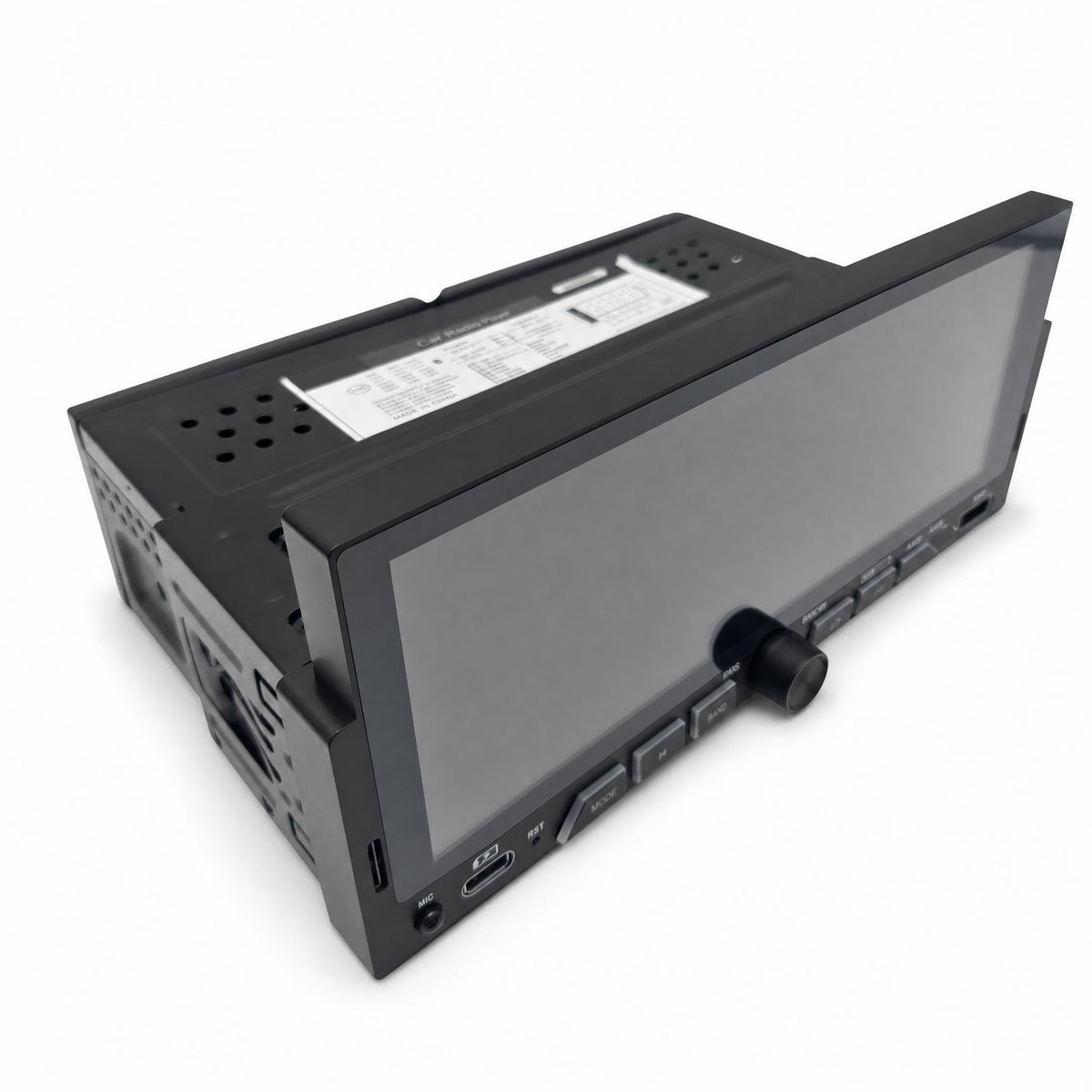

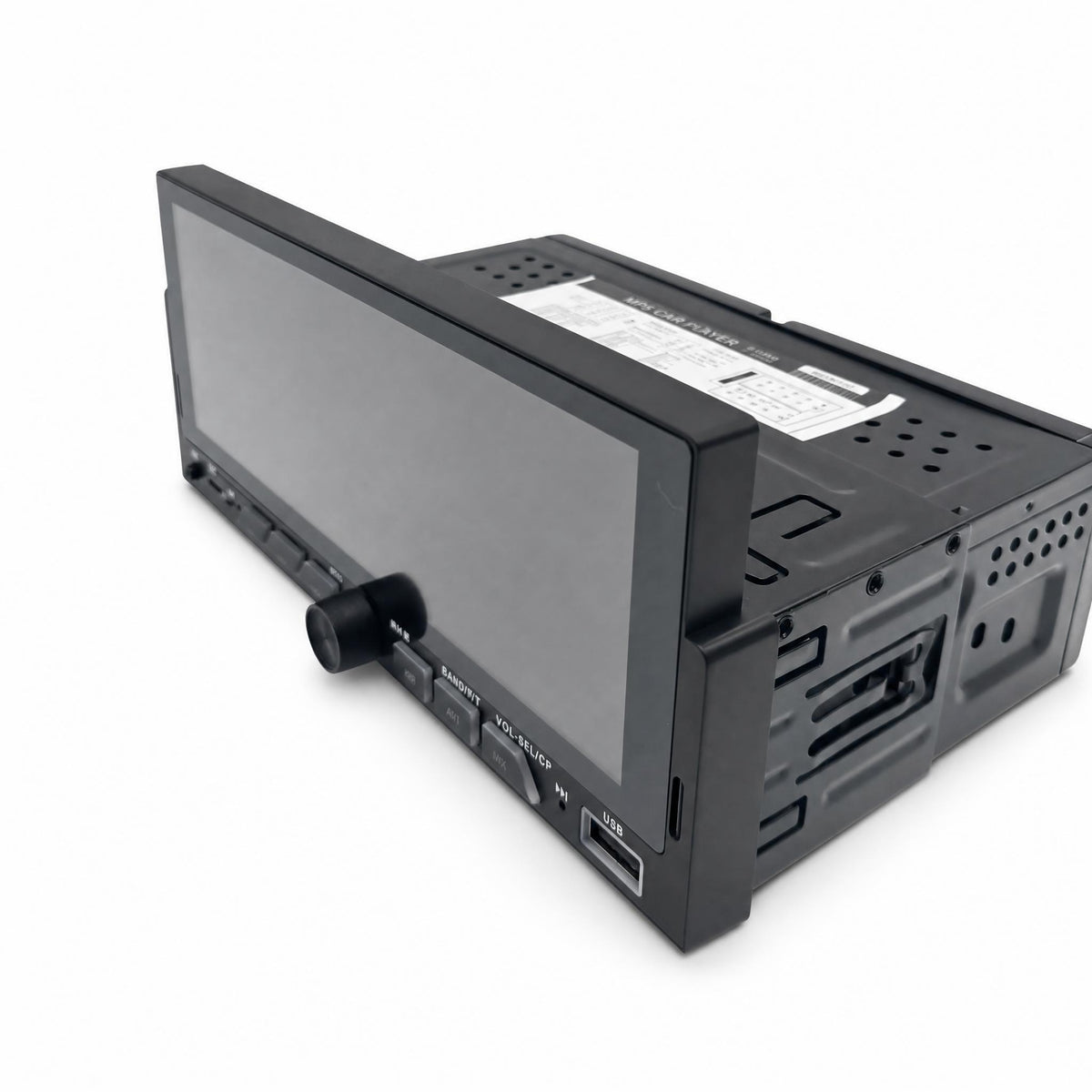

The receiver combines a standard single-DIN chassis with a floating 6.86-inch capacitive touchscreen panel. Its 1280 x 480 display resolution is designed for a broad, modern dashboard viewing area. The floating-panel format is intended for vehicles that have a standard single-DIN radio opening but benefit from a larger screen interface.

Installation requires a compatible single-DIN mounting location and appropriate vehicle-specific wiring integration. An AHD-compatible rear-view camera can be connected for reverse-view capability, while the RCA and video outputs can support external equipment. Steering-wheel-control retention depends on compatible vehicle integration hardware and proper setup.
