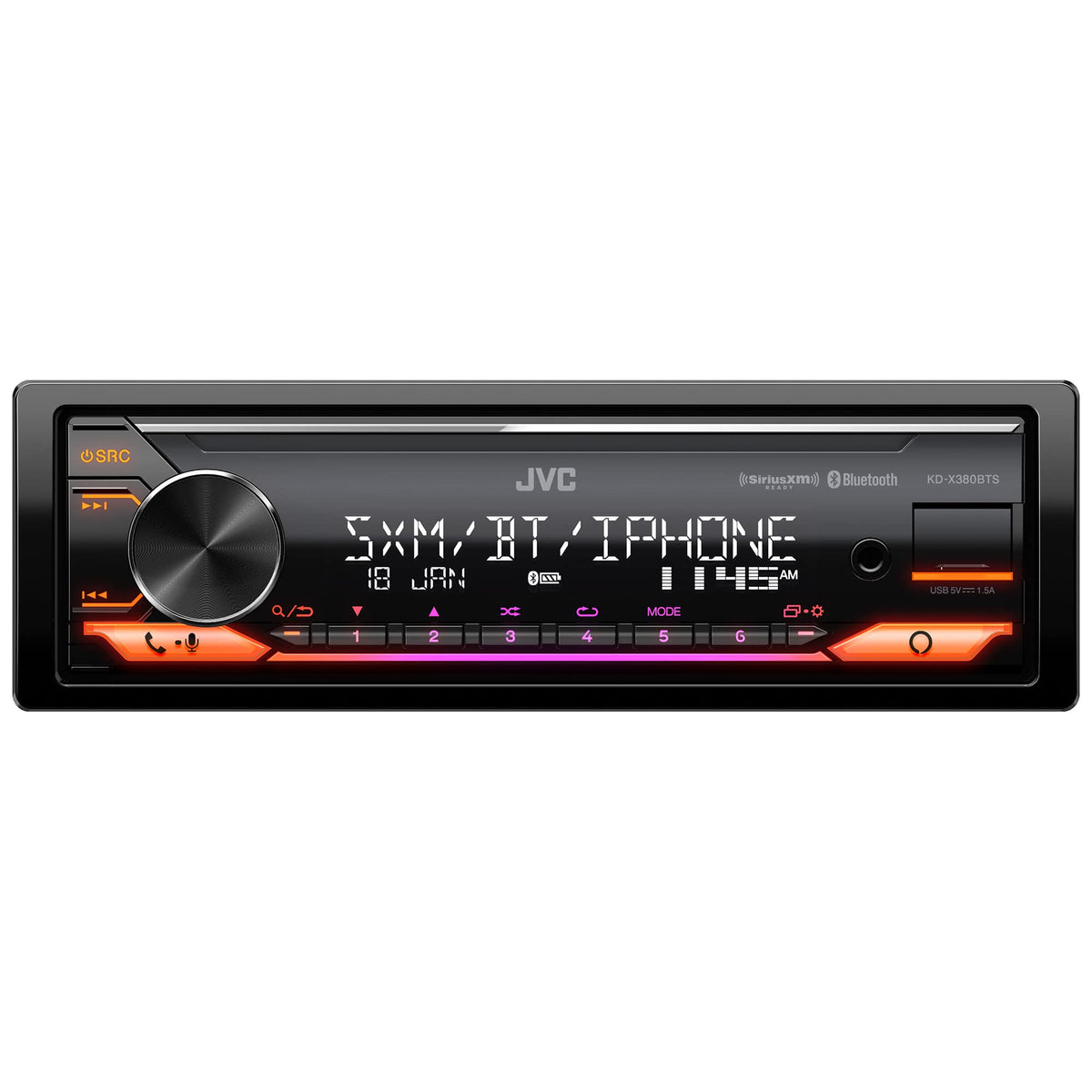

JVC KD-X380BTS Single DIN Digital Media Receiver

The JVC KD-X380BTS is a Single DIN digital media receiver for vehicles that need modern phone connectivity without a CD mechanism. It combines AM/FM radio, Bluetooth, USB playback, a front auxiliary input, and SiriusXM readiness in a compact chassis. It is suited to drivers replacing an older factory radio or building a practical aftermarket audio system.

Built-in Bluetooth supports hands-free calling and wireless music streaming, helping keep a compatible phone connected while driving. The receiver can maintain full-time connections with two phones, while JVC Streaming DJ supports up to five Bluetooth audio devices for shared music playback. iPhone automatic Bluetooth pairing is supported when an iPhone is connected by USB.

The internal amplifier is rated for 22 watts RMS per channel across four channels at less than 1% THD, with 50 watts maximum output per channel. A 13-band graphic EQ, bass boost, loudness control, K2 processing, time alignment, and selectable high- and low-pass filters provide useful tuning tools. Its 4-volt three-pair preamp outputs also support expansion with external amplifiers and a subwoofer.

For stored music, the KD-X380BTS plays MP3, WMA, AAC, WAV, and FLAC files from compatible USB mass-storage devices. The USB connection provides up to 1.5 amps of charging current for a connected device. Amazon Alexa compatibility and JVC Remote app compatibility add smartphone-based control options where supported.

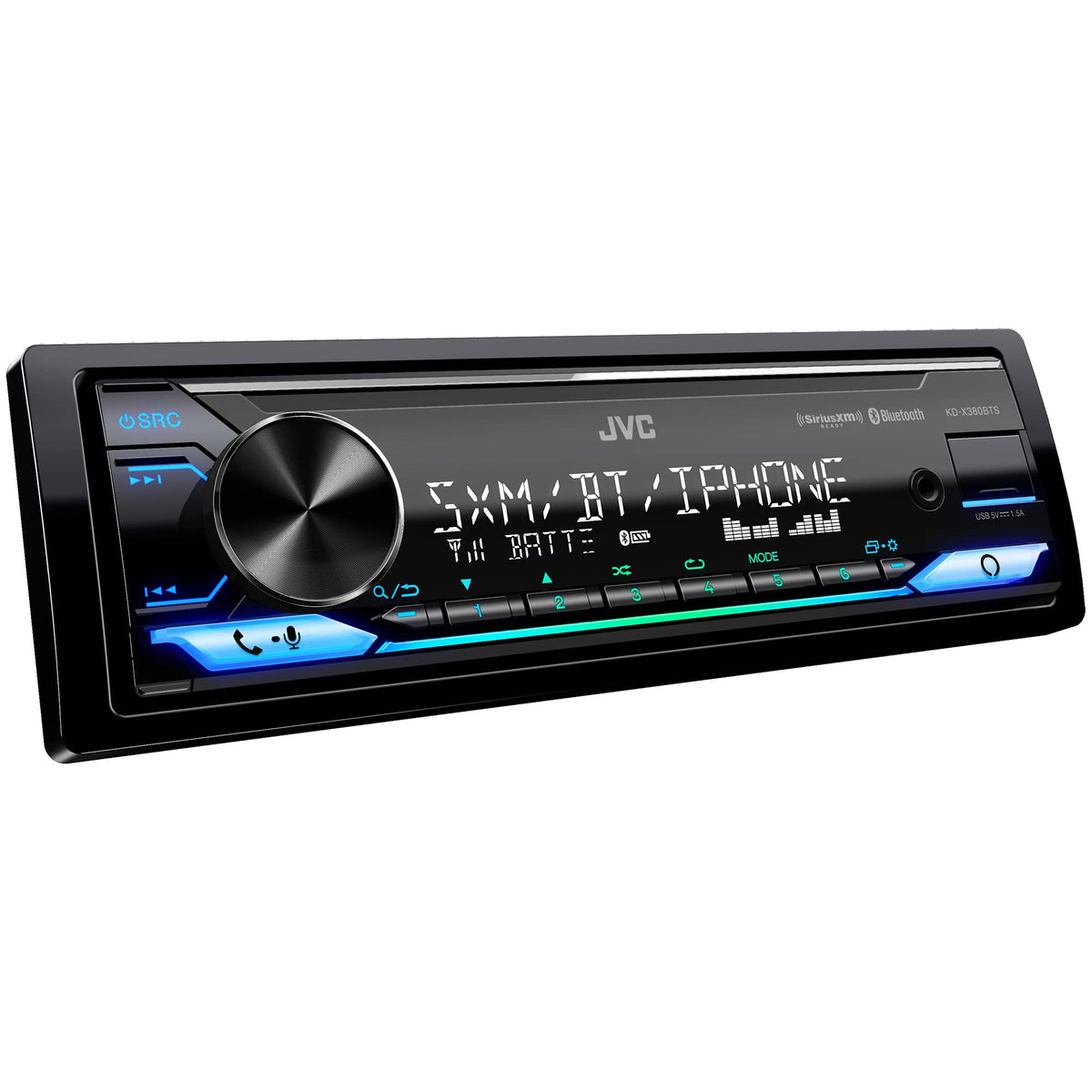

A two-line VA LCD display provides source and track information, while two-zone variable-color illumination lets the controls better match a vehicle interior. The detachable faceplate offers a measure of theft deterrence when parked. SiriusXM capability is available with a separately purchased compatible SiriusXM Vehicle Tuner and subscription.

Key Features

• Bluetooth 4.2: Supports hands-free calling, audio streaming, phonebook access, and voice dialing.
• JVC Streaming DJ: Connect up to five Bluetooth audio devices for shared music control.
• 13-Band EQ: Adjusts thirteen frequency bands for more tailored system voicing.

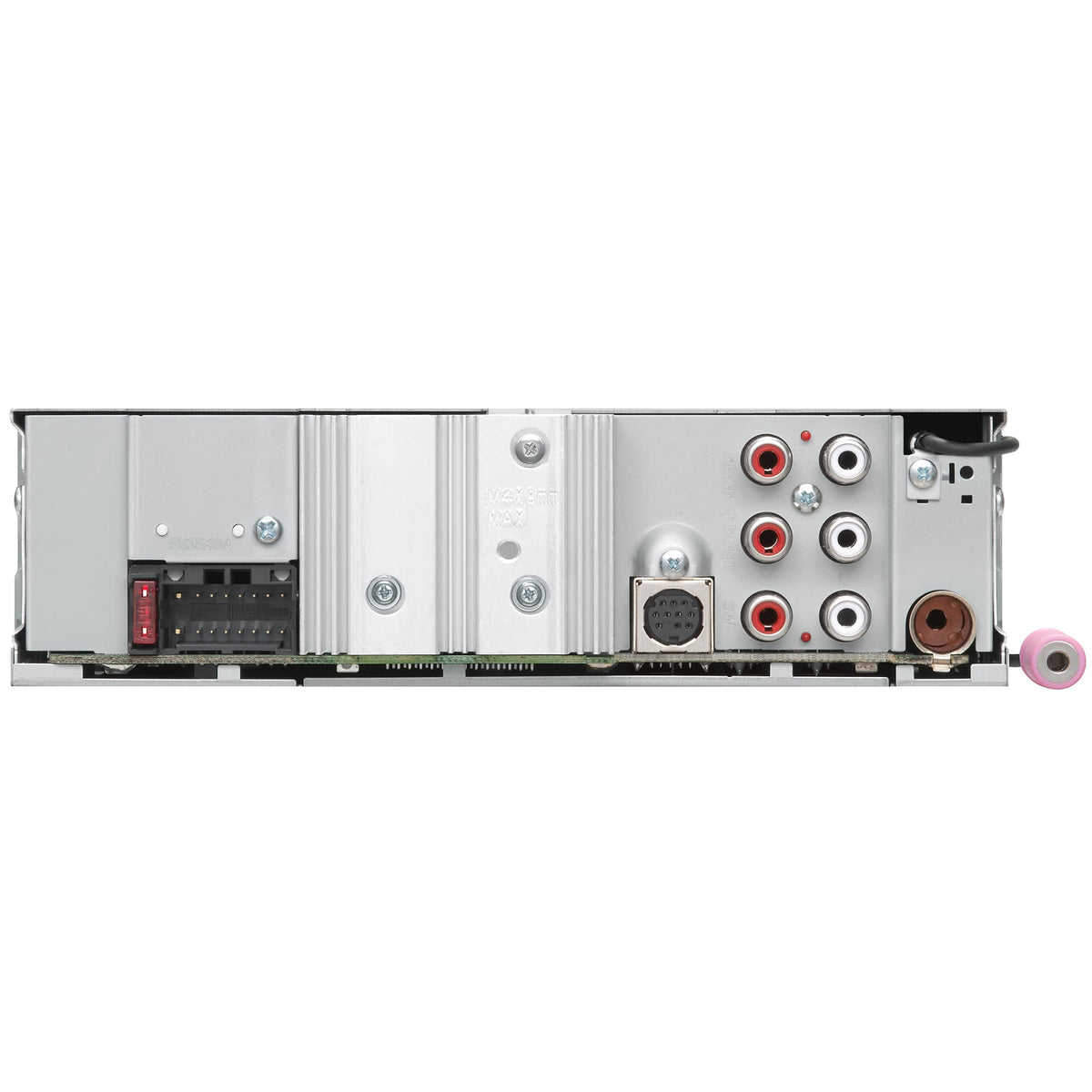

• 4-Volt Preamp Outputs: Provides front, rear, and subwoofer outputs for external amplifiers.
• USB Media Playback: Plays MP3, WMA, AAC, WAV, and FLAC audio files.
• Variable Illumination: Uses two independently adjustable front-panel color zones.

Design & Installation

The KD-X380BTS uses a compact short-chassis Single DIN design with a detachable faceplate, two-line VA LCD display, and front-panel USB and auxiliary connections. JVC includes a trim plate and mounting sleeve for installation, along with a wiring harness and extraction keys. Its control illumination can be configured in two separate color zones, including preset and manually adjusted color settings.

Installation requires a 12-volt negative-ground vehicle electrical system and a compatible dash opening or vehicle-specific installation kit. A vehicle-specific wiring harness is recommended, and professional installation is advised for safe wiring and mounting. Use the RCA preamp outputs for external amplifiers, connect a compatible SiriusXM Vehicle Tuner separately for satellite radio, and use a third-party adapter if retaining compatible factory steering-wheel controls.
