Pioneer DMH-WT5000NEX 9" Single DIN Digital Media Receiver

The Pioneer DMH-WT5000NEX is a 1-DIN digital media receiver built for drivers who want a large touchscreen without needing a conventional double-DIN opening. Its 9.0-inch floating capacitive display mounts in front of the radio location, bringing modern smartphone control and media access to a wide range of compatible vehicles. It is a practical upgrade for replacing an older factory radio or adding a larger interface to a custom installation.

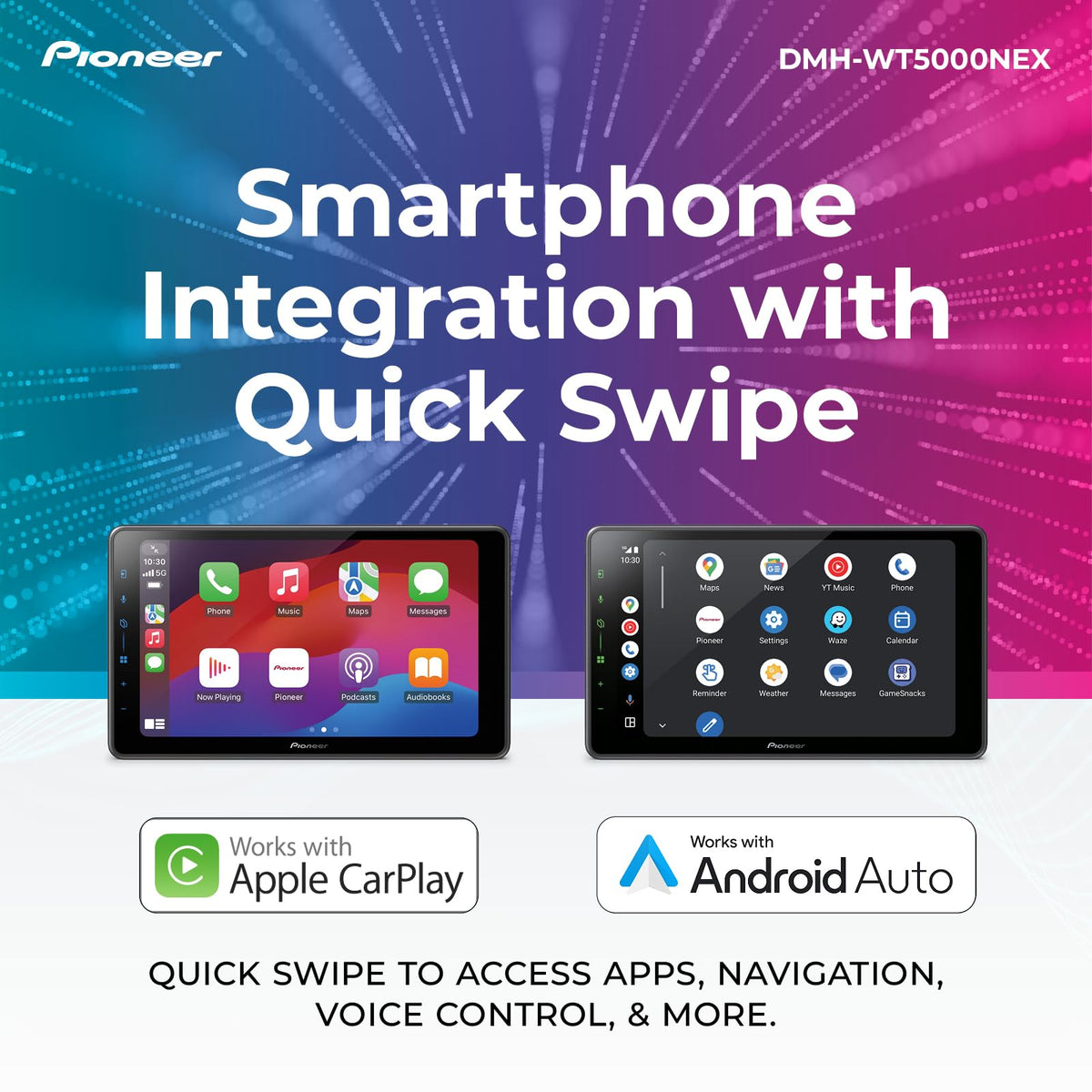

Wireless and wired Apple CarPlay and Android Auto place compatible phone navigation, calling, messaging, music, and voice-control functions on the receiver's display. Built-in Bluetooth supports hands-free calling and wireless audio, while dual-phone connection adds convenience for shared vehicles. Wi-Fi tethering and hotspot capability support its connected feature set.

The DMH-WT5000NEX combines its touchscreen interface with built-in HD Radio, RDS, and SiriusXM readiness for drivers who use both broadcast and streaming sources. USB playback supports a broad selection of music, video, and image file types. A rear USB connection also provides direct control for compatible iPhone models.

For system tuning, Pioneer equips this receiver with a built-in dual-core 48-bit DSP/DAC, 13-band graphic equalizer, time alignment, selectable crossover functions, and subwoofer control. Its 4-volt, 6-channel RCA preouts provide a clean connection point for external amplifiers. The built-in four-channel amplifier can power compatible speakers directly while supporting a staged upgrade path.

Camera and vehicle-integration provisions help the receiver fit into a more complete in-car system. It includes a dedicated backup-camera input, an additional A/V or second-camera input, and parking-assist lines. Compatibility with iDatalink Maestro, Metra Axxess, and optional steering-wheel-control adapters can help retain supported vehicle functions when matched with the appropriate installation hardware.

Key Features

• 9-Inch Floating Display: WSVGA capacitive touchscreen fits ahead of a 1-DIN chassis location.
• Wireless Smartphone Integration: Supports wired or wireless Apple CarPlay and Android Auto connections.
• Built-In HD Radio: Provides HD Radio reception, RDS, artist experience, and multicasting support.
• Advanced Audio Tuning: Dual-core DSP/DAC, 13-band EQ, crossover controls, and time alignment tailor the system.
• Camera Expandability: Dedicated backup-camera and secondary A/V or camera inputs support added visibility.
• System Expansion: Six-channel 4-volt RCA preouts support connections to external amplifiers.

Design & Installation

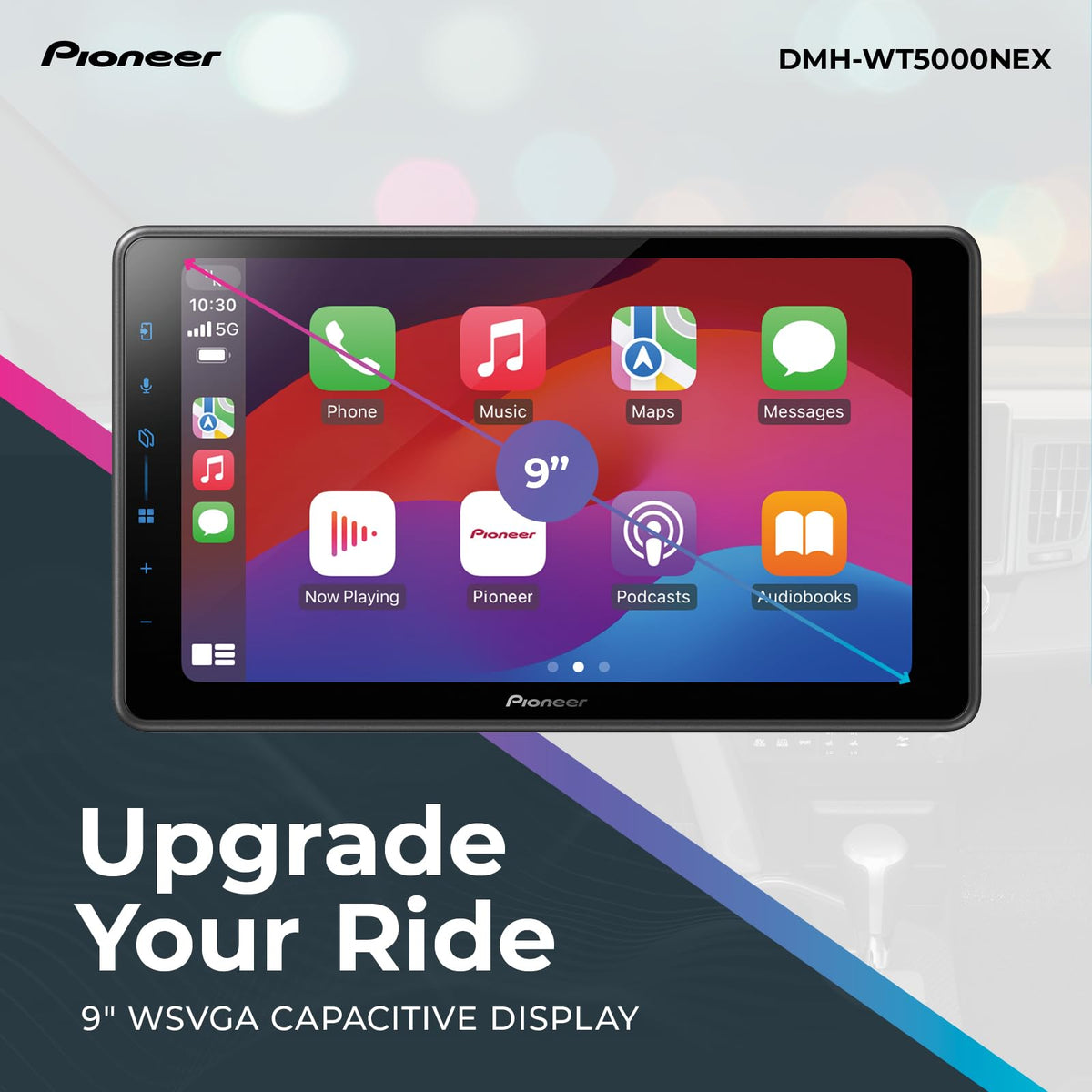

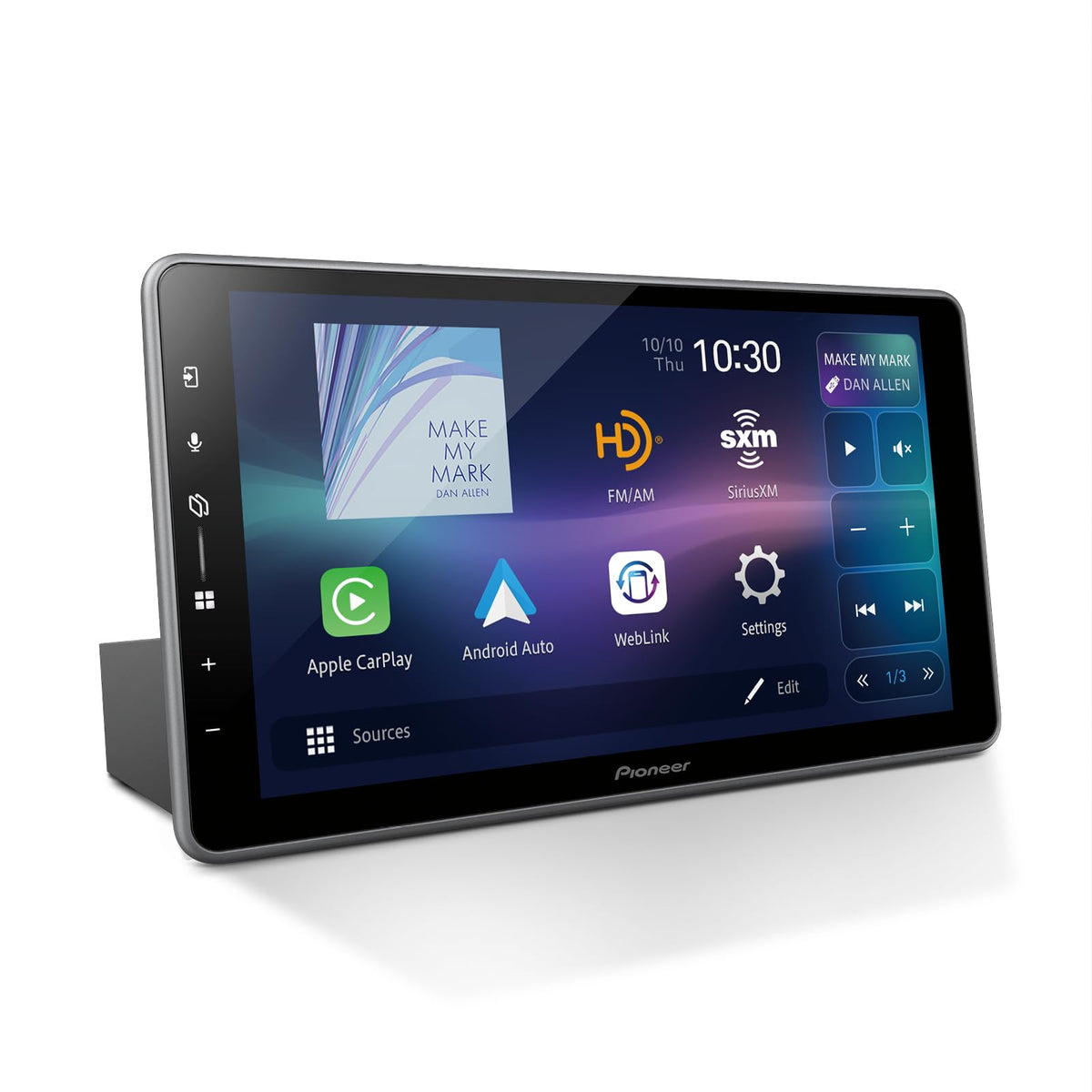

The DMH-WT5000NEX uses a fixed-face, floating-screen design with a 9.0-inch 1024 x 600 capacitive display and a compact 1-DIN chassis. Its screen arrangement is intended to sit in front of the radio opening rather than inside a traditional double-DIN cavity. The interface supports multiple display languages, and the included microphone supports Bluetooth hands-free calling.

Confirm dash clearance, screen position, chassis depth, and possible interference with climate controls or vents before purchase. Installation requires vehicle-specific wiring and mounting hardware as applicable; steering-wheel-control retention requires a separately sold adapter. For expanded functionality, connect compatible cameras, a SiriusXM tuner sold separately, external amplifiers through the RCA preouts, and supported iDatalink Maestro or Metra Axxess interfaces.
