KENWOOD KMM-BT232U Single DIN Digital Media Receiver

The KENWOOD KMM-BT232U is a Single DIN digital media receiver for drivers who want modern phone connectivity and flexible audio playback without a CD mechanism. It combines Bluetooth streaming, hands-free calling, front USB playback, and a front auxiliary input in a compact chassis. It is a practical upgrade for vehicles with a standard Single DIN radio opening.

This receiver suits daily drivers who use a smartphone for music and calls, as well as listeners who keep music on a USB drive. KENWOOD Music Mix supports pairing up to five Bluetooth devices for shared music streaming. Dual Phone Connection lets two phones stay connected for convenient switching between compatible connected phones.

The built-in four-channel amplifier is rated at 22 watts RMS by 4 channels at less than 1% THD, with 50 watts by 4 channels maximum power. A 13-band equalizer, Digital Time Alignment, and Drive EQ provide tools to tailor playback to the vehicle and listening position. These controls help make the most of compatible factory or aftermarket speakers.

Bluetooth 4.2 supports hands-free calling and wireless audio streaming, while direct Bluetooth-access controls simplify source and call access from the faceplate. The receiver also works with the KENWOOD Remote App on compatible iPhone and Android devices for control of many basic functions. USB playback supports FLAC, WAV, MP3, WMA, and AAC audio files from compatible storage devices.

The KMM-BT232U is designed for straightforward integration into a conventional 12-volt negative-ground vehicle electrical system. Its 3-15/16-inch mounting depth helps where dash space is limited. A 2.5-volt RCA preout allows expansion with a compatible external amplifier or powered subwoofer.

Key Features

• KENWOOD Music Mix: Pair up to five Bluetooth devices and switch music streaming between them.
• Dual Phone Connection: Keep two compatible phones connected for convenient phone switching.
• 13-Band EQ and DTA: Adjust tonal balance and timing for the vehicle interior.
• Front USB and AUX Inputs: Connect compatible USB media devices or portable audio players.

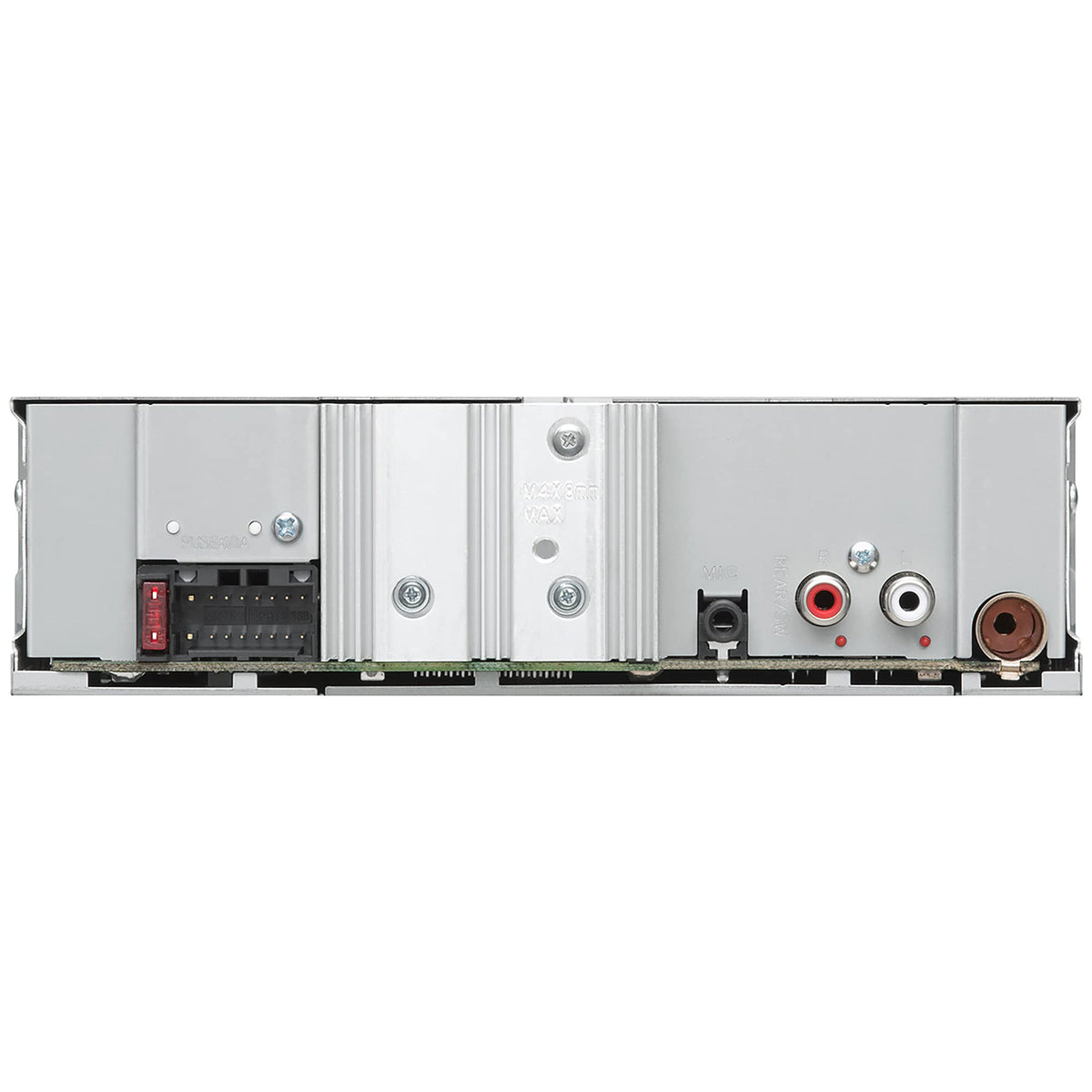

• 2.5V RCA Preout: Add a compatible amplifier or powered subwoofer to the system.
• Short Chassis: The 100 mm mounting depth supports installation in tighter dashboards.

Design & Installation

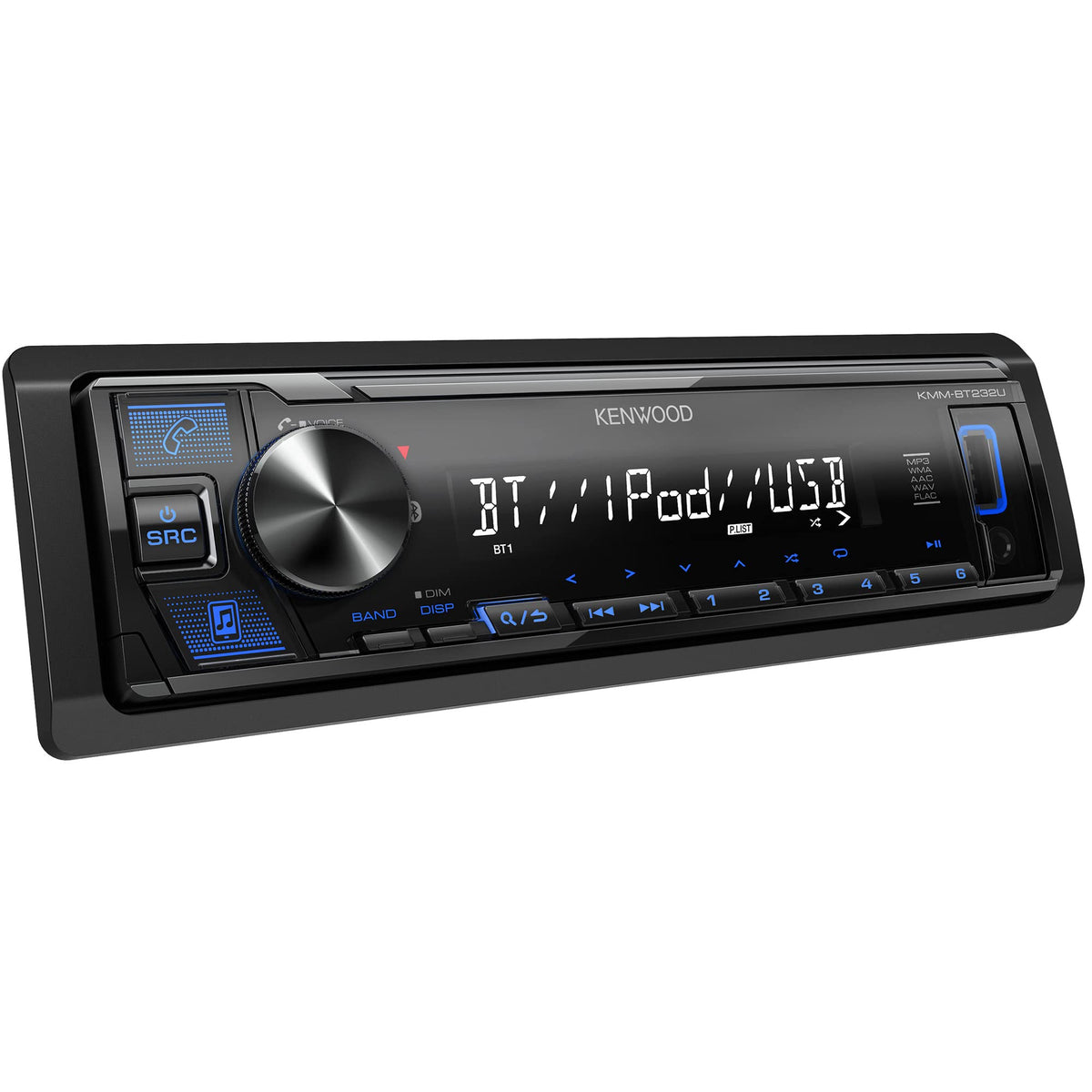

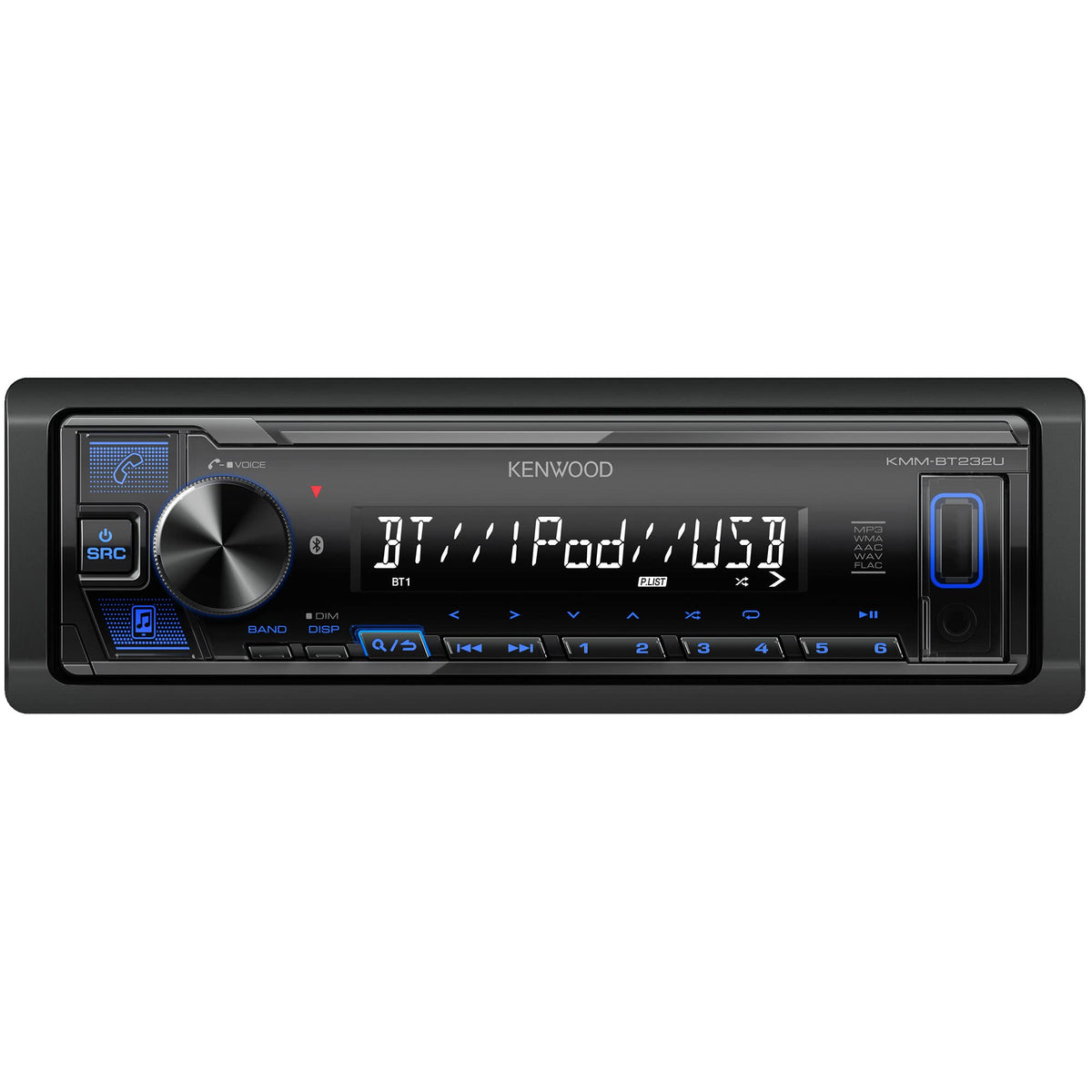

The KMM-BT232U uses a detachable faceplate with a 205-segment, one-line text display and blue/white illumination. Its front-panel layout includes a volume knob, USB input, auxiliary input, and dedicated Bluetooth access controls. The compact chassis measures 182 mm wide by 53 mm high by 100 mm deep.

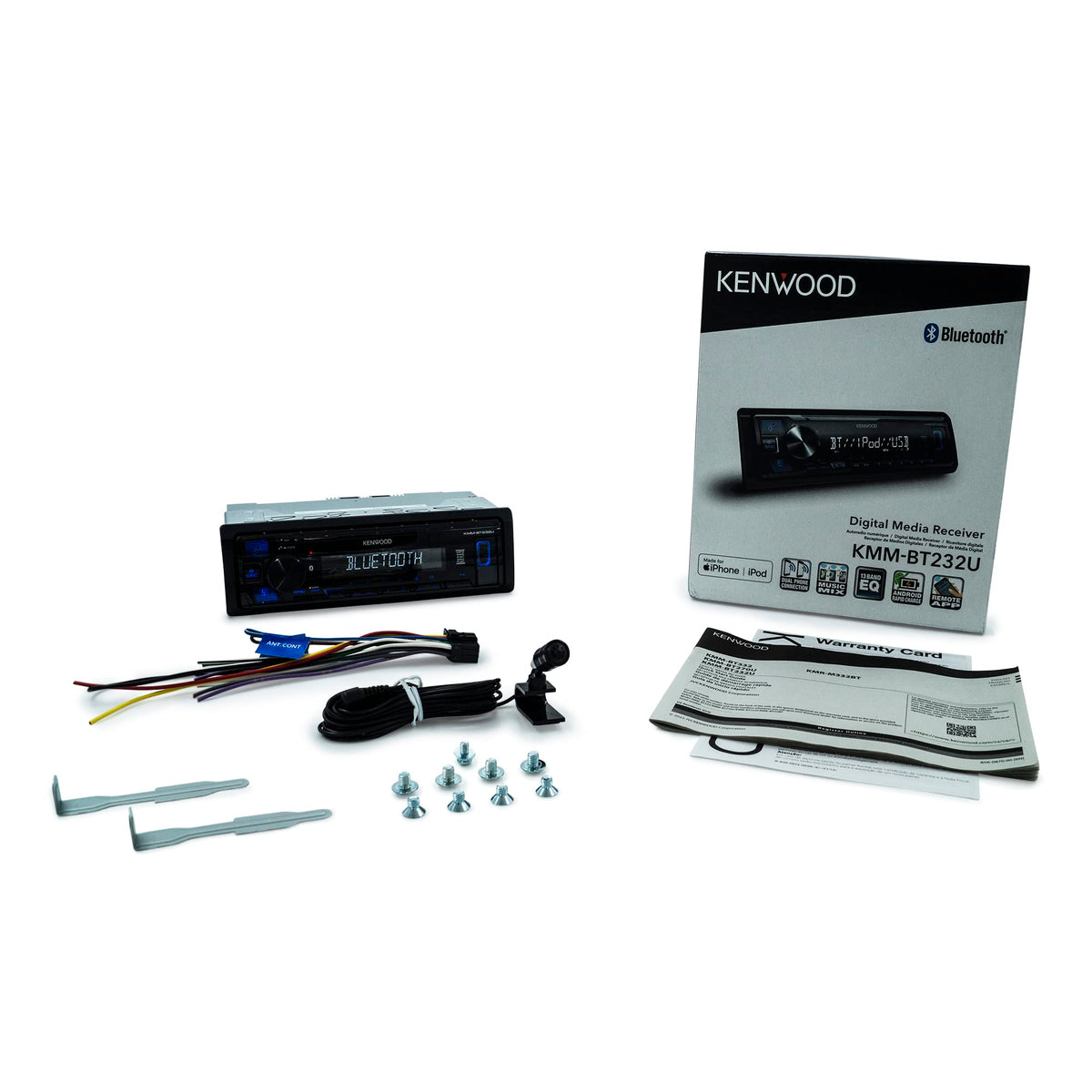

Install this receiver in a compatible Single DIN dash opening in a 12-volt, negative-ground vehicle. The package includes a trim plate, mounting sleeve, wiring harness, extraction keys, and supplied microphone; vehicle-specific integration parts may be needed depending on the vehicle. For system expansion, use the RCA preout with a compatible amplifier or powered subwoofer and configure the receiver settings as needed.
