Pioneer MVH-S322BT Single DIN Digital Media Receiver

The Pioneer MVH-S322BT is a Single DIN digital media receiver for drivers who want modern smartphone connectivity in a compact dashboard format. It combines AM/FM radio, Bluetooth audio and calling, front USB playback, and a front 3.5 mm auxiliary input. Its shallow 3-7/8-inch chassis depth can be useful when installing in vehicles with limited radio-cavity space.

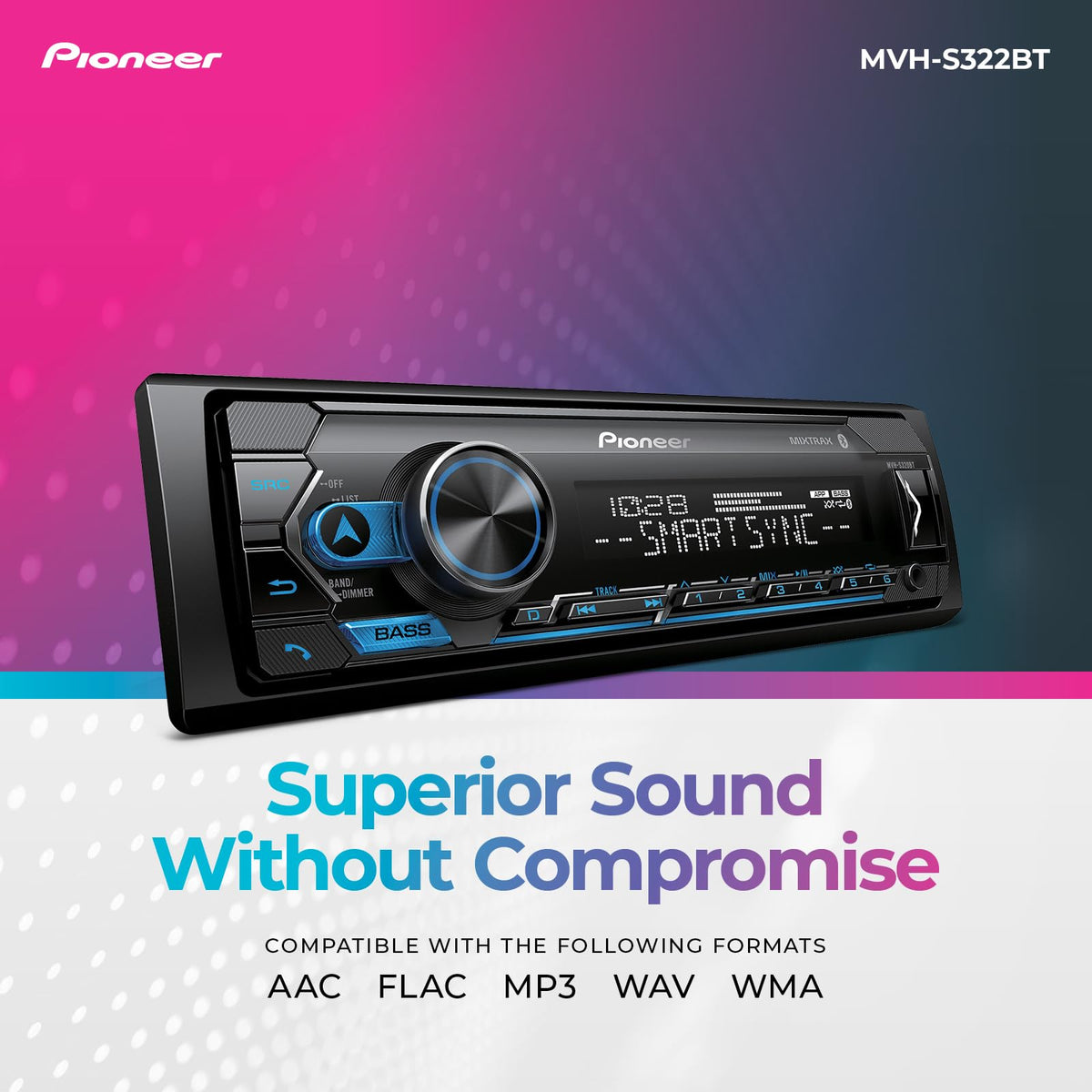

This receiver is designed for music libraries and streaming rather than disc playback. It supports MP3, WMA, AAC, FLAC, and WAV files from compatible USB devices, while Bluetooth provides a wireless option for music and calls. A supplied external microphone supports hands-free calling and voice-control functions.

Sound adjustment is a central part of the MVH-S322BT design. Its built-in MOSFET amplifier supplies up to 50 watts by four channels of maximum power, with a 13-band graphic equalizer, adjustable high- and low-pass filters, subwoofer control, and manual time alignment. Advanced Sound Retriever and Sound Retriever Air modes are also available to tailor playback from compressed sources.

Pioneer Smart Sync expands control through a compatible iPhone or Android device connected by USB or Bluetooth. The app can provide app-based source and sound controls, including access to a 31-band EQ setting. Amazon Alexa functionality is available when paired through Pioneer Smart Sync and the Alexa app.

For a system that may grow over time, the MVH-S322BT includes two pairs of 4-volt RCA preamp outputs. Its configurable rear speaker and RCA-output modes support common full-range and subwoofer system layouts. This makes it a practical foundation for a four-speaker system, a powered subwoofer, or external amplifiers.

Key Features

• Bluetooth 4.0 Connectivity: Stream audio, make hands-free calls, and connect compatible devices wirelessly.
• Front USB Input: Plays compatible digital music files and provides up to 1.5A charging output.
• 13-Band Graphic EQ: Lets you refine tonal balance for your speakers and vehicle acoustics.
• Pioneer Smart Sync: Adds app-based control and access to a 31-band EQ setting.
• 4V RCA Preouts: Two pairs of preamp outputs support external amplifiers or subwoofer systems.
• Adjustable Crossovers: High-pass and low-pass filters help divide frequencies between speakers and subwoofers.

Design & Installation

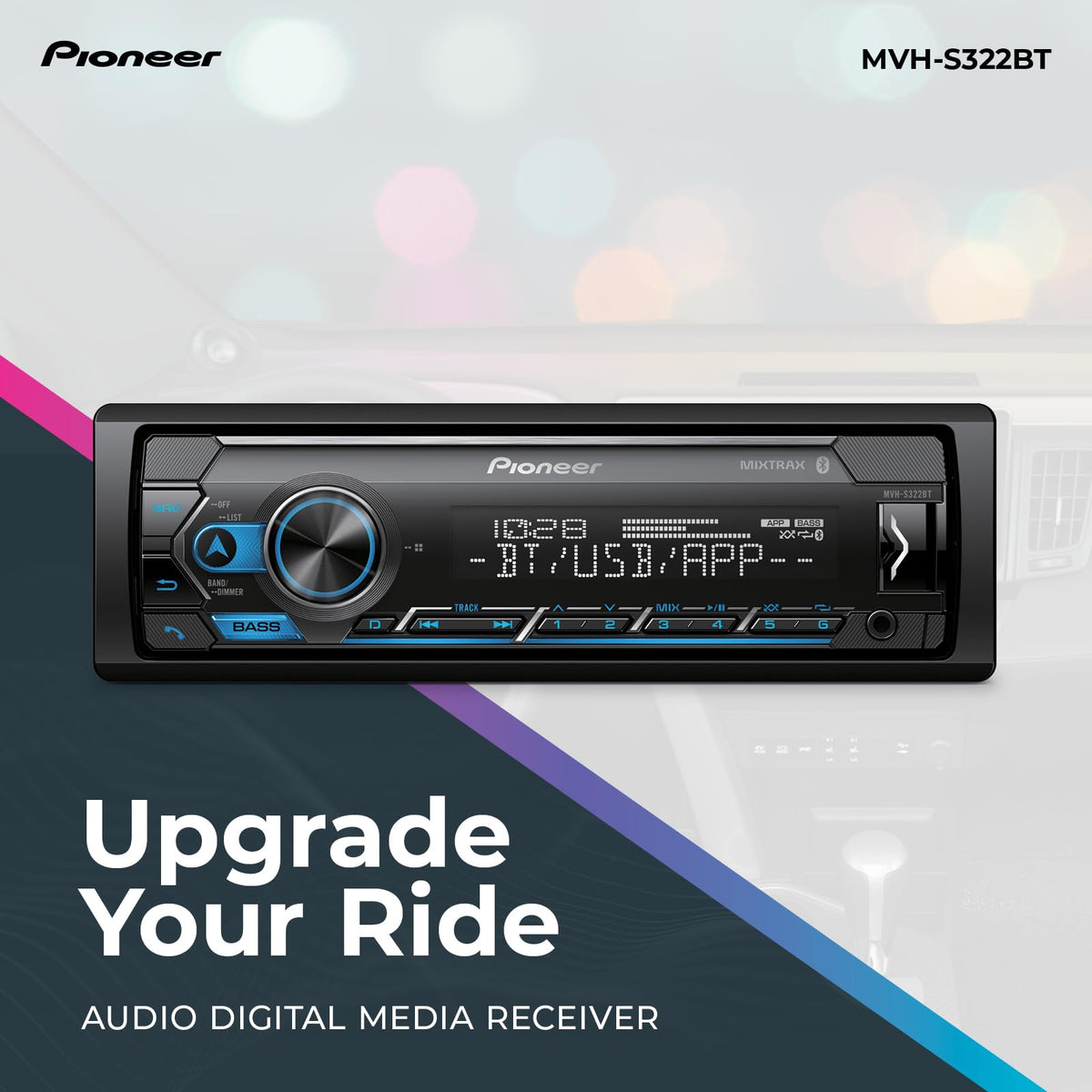

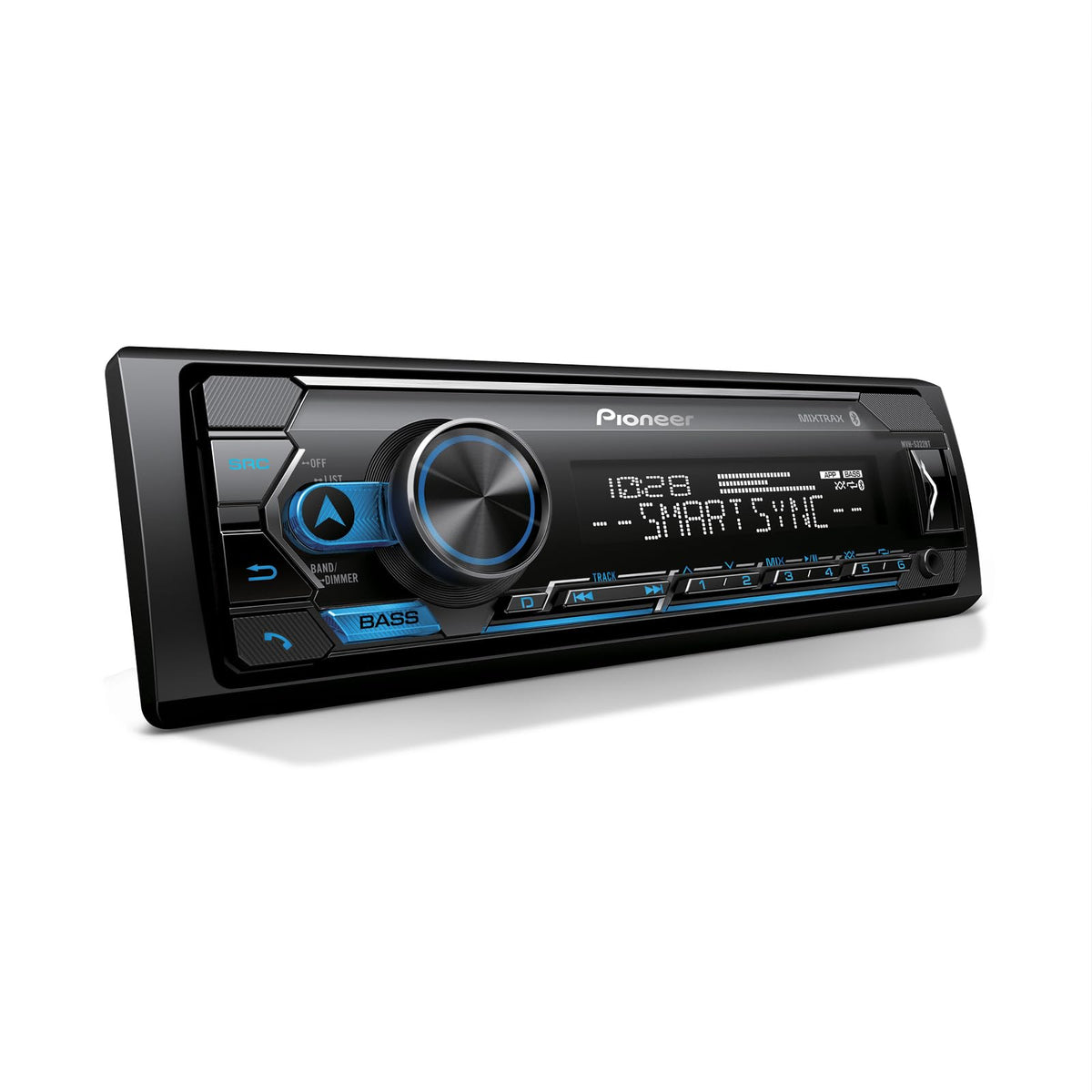

The MVH-S322BT uses a compact Single DIN chassis with a detachable faceplate, rotary volume control, LED backlighting, and a two-line VA LCD display. Brightness is adjustable from 1 to 10, with clock-synchronized or manual dimming settings. The front panel places the USB port and 3.5 mm stereo auxiliary input within easy reach.

Installation requires a compatible Single DIN dashboard opening and adequate clearance for the 97 mm chassis depth. The package includes a wiring harness, mounting sleeve, trim ring, microphone, mounting hardware, removal tools, and related brackets; vehicle-specific dash kits, wiring interfaces, antenna adapters, and steering-wheel-control adapters may be needed depending on the vehicle. Configure the rear speaker/RCA-output mode during setup to match a full-range or subwoofer system layout.
