Pioneer DMH-WT6000NEX 10.1" Single DIN Multimedia Receiver

The Pioneer DMH-WT6000NEX is a Single DIN digital multimedia receiver designed for vehicles that need a large, modern touchscreen without converting the dash to a Double DIN opening. Its 10.1-inch floating HD display places key entertainment, communication, navigation, and camera functions within easy view. It is a practical upgrade for drivers replacing a factory radio or adding smartphone-focused media control to an existing audio system.

Wired and wireless Apple CarPlay and Android Auto let compatible phones bring familiar navigation, calling, messaging, and music apps to the receiver’s touchscreen. Built-in Bluetooth also supports hands-free calling and wireless audio streaming. The receiver is suited to commuters and road-trip drivers who want less cable dependence while retaining wired connection options.

For everyday listening, the DMH-WT6000NEX combines built-in HD Radio with SiriusXM readiness and USB media playback. Its internal amplifier is rated for 22 watts RMS per channel into 4 ohms under the stated test conditions, while 4-volt preouts support the addition of external amplifiers. A 13-band graphic equalizer, selectable crossover settings, time alignment, and speaker-level adjustment provide useful tuning tools for factory-replacement and amplified systems.

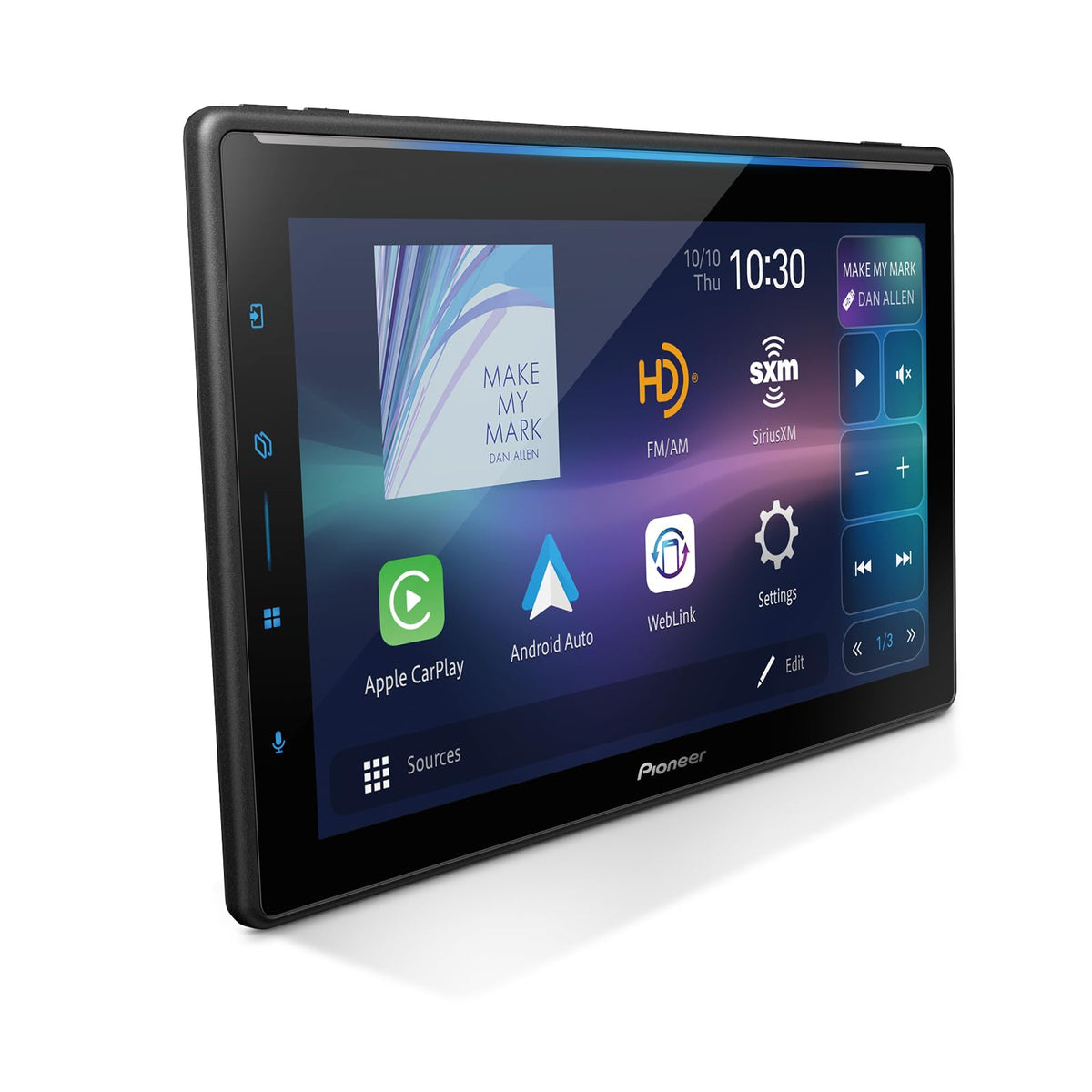

The floating touchscreen uses a 1280 x 720 RGB display and capacitive touch operation. Pioneer’s Luminous Bar adds visual status and navigation-related lighting functions, while split-screen operation can show multiple functions at once. The PxLink companion app supports home-screen customization, notifications, and wireless firmware updates when used with a compatible smartphone.

Camera expandability helps make this receiver part of a more complete vehicle upgrade. It supports a back-up camera input and a second camera input, with selectable video-signal settings and adjustable parking-assist guidelines for the rear camera. Compatibility with iDatalink Maestro and Metra Axxess interfaces can also help retain or display select vehicle information and controls when paired with the appropriate vehicle-specific hardware.

Key Features

• 10.1-Inch Floating HD Display: A large capacitive touchscreen mounts in front of the radio opening for clear, accessible control.
• Wireless Smartphone Integration: Supports wired or wireless Apple CarPlay and Android Auto with compatible smartphones.
• Built-In HD Radio: Receives compatible digital AM/FM broadcasts alongside standard radio listening.
• Advanced Audio Tuning: A 13-band EQ, crossovers, time alignment, and 4-volt preouts support system tuning and expansion.
• Dual Camera Capability: Connect a rear camera and second camera for added visibility and selectable viewing options.
• PxLink Connectivity: Use the companion app for home-screen customization, notifications, and wireless firmware updates.

Design & Installation

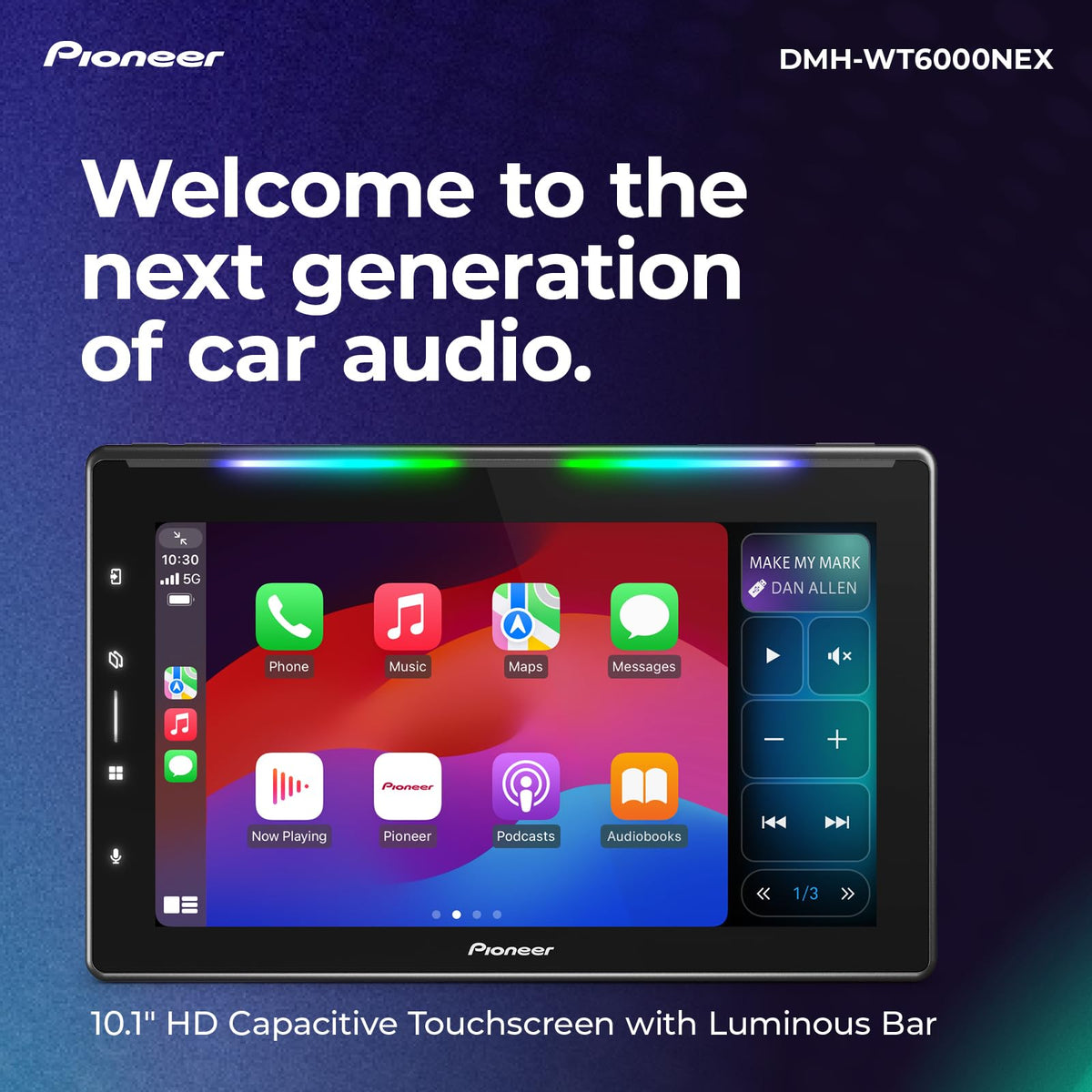

The DMH-WT6000NEX uses a separate 1-DIN chassis and floating 10.1-inch monitor assembly. The screen has a 16:9 capacitive TFT active-matrix display, and its adjustable floating arrangement is intended to position the monitor ahead of the factory radio location. The Luminous Bar is integrated below the display for additional visual feedback.

Verify both Single DIN mounting compatibility and adequate dash clearance for the floating monitor before purchase. Professional installation is recommended because vehicle-specific wiring harnesses, antenna adapters, steering-wheel-control interfaces, dash kits, camera wiring, and iDatalink or Metra modules may be required depending on the vehicle. The included GPS antenna should be installed and connected for wireless Apple CarPlay operation.
