KENWOOD KMM-BT332U Single DIN Bluetooth Digital Media Receiver

The KENWOOD KMM-BT332U is a Single DIN digital media receiver for vehicles that need modern Bluetooth, USB, and radio capability without a CD mechanism. It provides a practical upgrade path for drivers replacing an older factory radio or adding source flexibility to an aftermarket sound system. Its compact 100 mm chassis depth can help when working in dashboards with limited rear clearance.

Built-in Bluetooth supports wireless music streaming and hands-free calling through the included external microphone. The receiver can maintain connections for two phones and supports KENWOOD Music Mix for switching among up to five Bluetooth audio devices. Front-panel USB and auxiliary inputs provide direct wired options for compatible smartphones, portable players, and USB storage devices.

The internal amplifier is rated at 22 watts x 4 channels across the full bandwidth at less than 1% THD, with a 50 watts x 4 maximum-power rating. A 13-band equalizer, digital time alignment, Drive EQ, and selectable sound adjustments allow the system to be tailored to the vehicle and speakers. It is designed for everyday listening with factory-replacement speakers or as a control center for an amplified system.

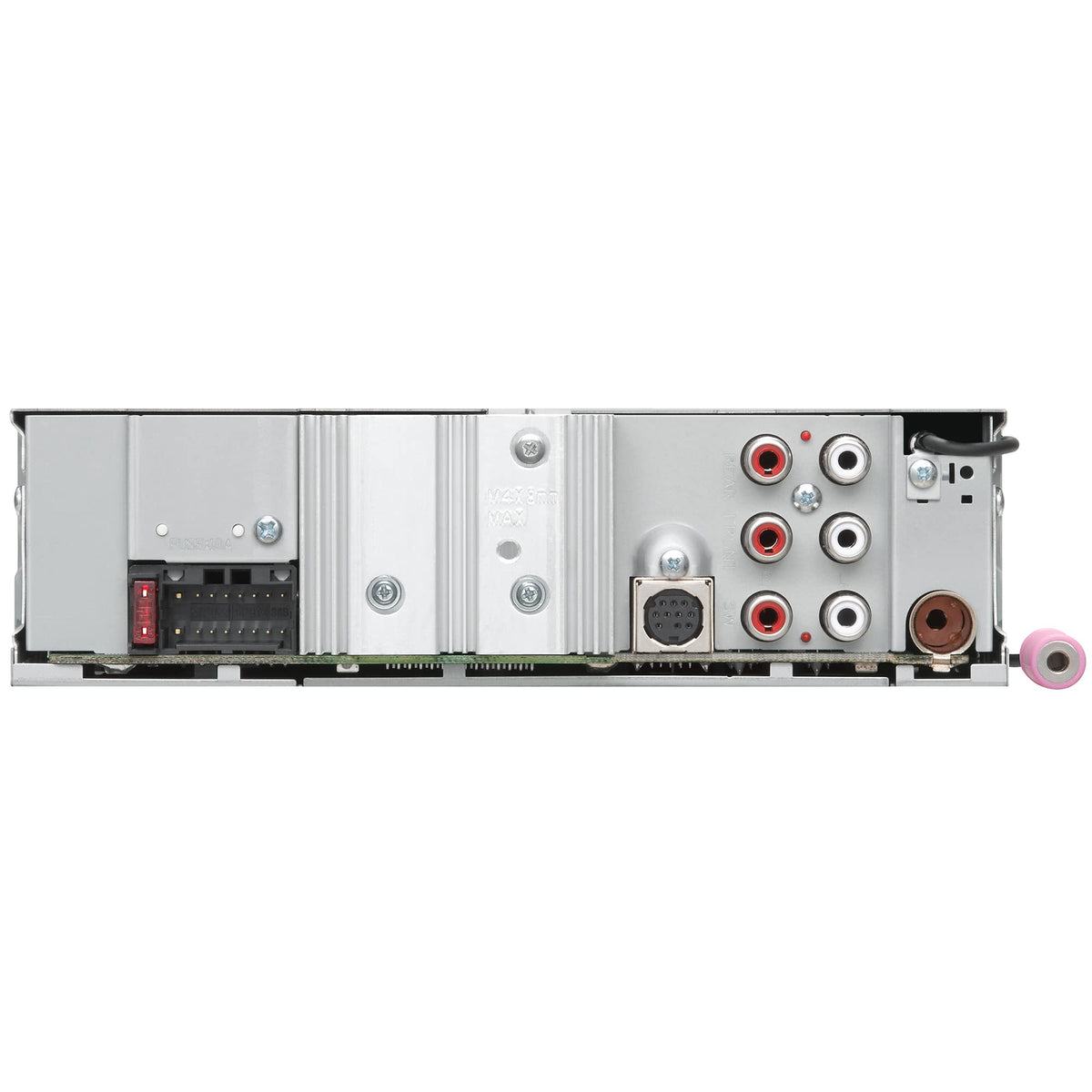

For expansion, the KMM-BT332U includes front, rear, and subwoofer preamp outputs rated at 2.5 volts. This makes it possible to add external amplifiers for speakers and a subwoofer while retaining independent output paths. The receiver also has an expansion port for a separately purchased SiriusXM Vehicle Tuner and subscription.

A 255-segment 1.5-line text display and variable-color illumination provide source and track information while allowing the lighting to better match the dashboard. Amazon Alexa operation is supported through a Bluetooth-connected smartphone running the Alexa mobile app. As a digital media receiver, this model does not play CDs and does not include Apple CarPlay or Android Auto.

Key Features

• Bluetooth 4.2 Connectivity: Stream audio and make hands-free calls with compatible devices.
• Dual Phone Connection: Switch between two connected Bluetooth phones from the receiver.
• Music Mix: Connect and switch among up to five Bluetooth audio devices.
• 13-Band EQ and DTA: Adjust tonal balance and speaker timing for the vehicle.
• Three 2.5V Preouts: Add external front, rear, and subwoofer amplification.
• Front USB and AUX Inputs: Connect compatible storage devices and portable audio sources.

Design & Installation

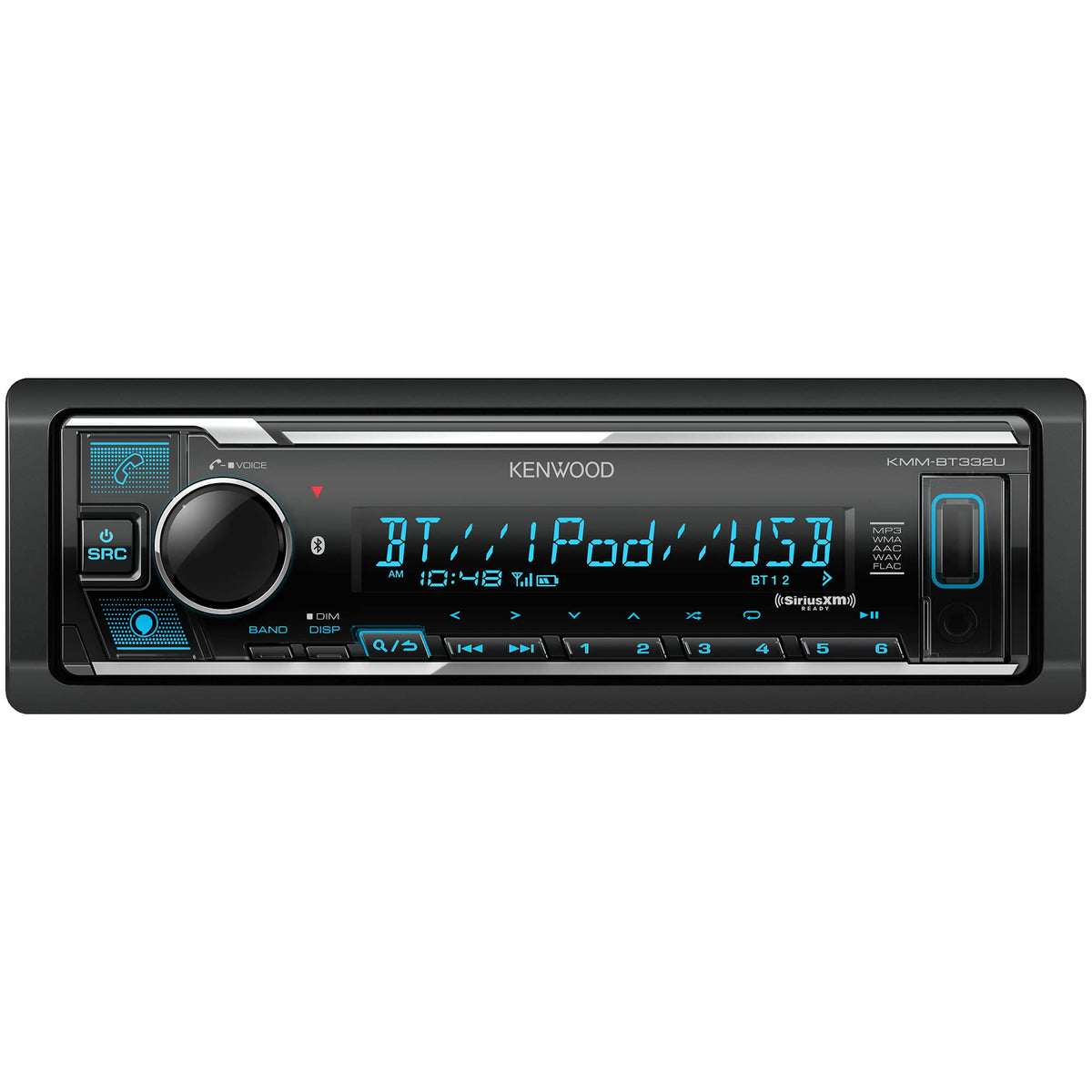

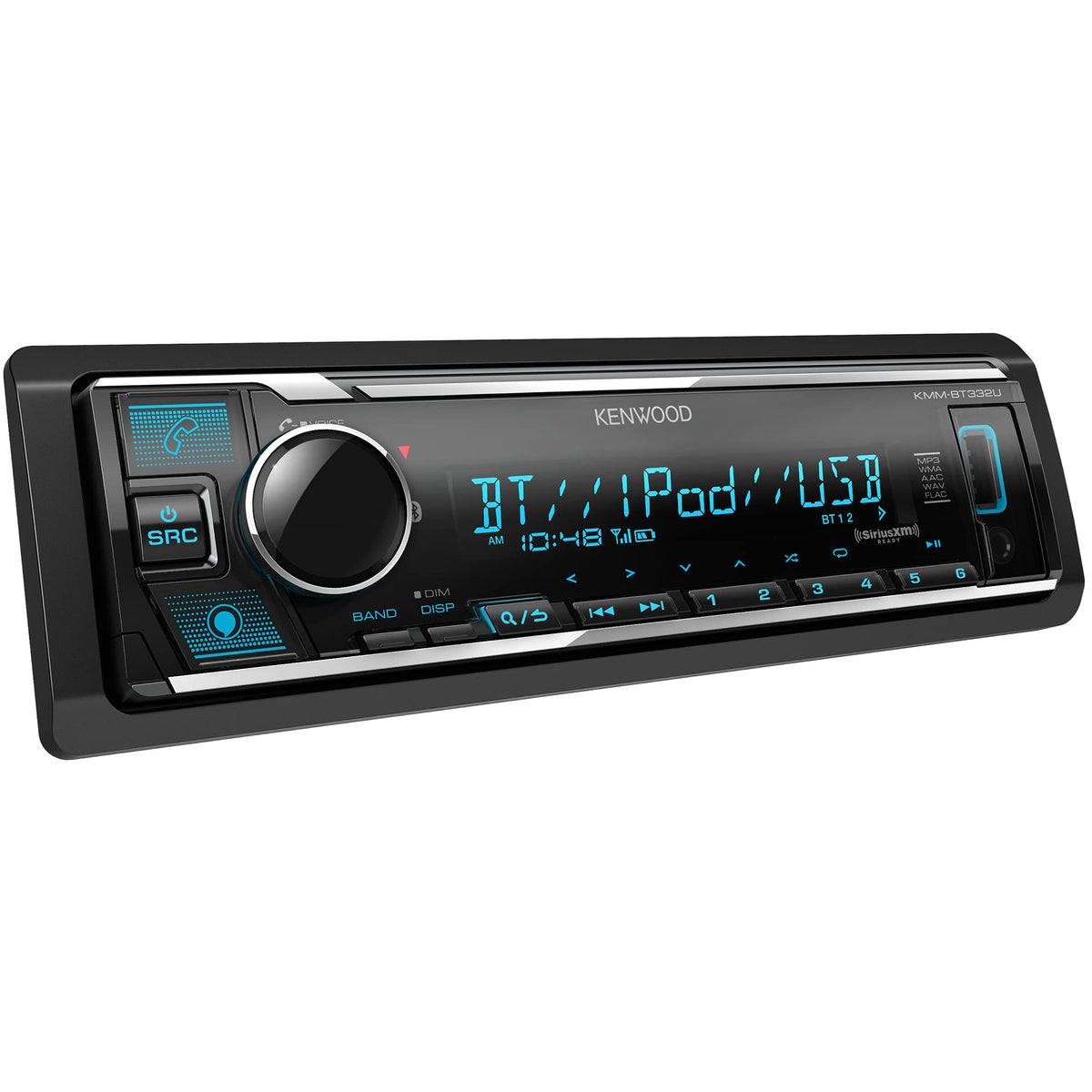

The KMM-BT332U uses a detachable faceplate, a 255-segment 1.5-line text display, and configurable variable-color illumination. Its short-depth chassis measures 7-3/16 inches wide by 2-1/16 inches high by 3-15/16 inches deep. The front-panel layout keeps the USB input, auxiliary input, display, and primary controls accessible from the driver’s seat.

This receiver fits a standard Single DIN radio opening and is intended for 12-volt negative-ground vehicles. The supplied installation hardware includes the faceplate, trim plate, mounting sleeve, wiring harness, and two extraction keys; vehicle-specific mounting hardware, a wiring interface, antenna adapter, and steering-wheel-control adapter may be needed depending on the vehicle. Use the front/rear/subwoofer preouts when adding external amplifiers, and use a separately purchased SiriusXM Vehicle Tuner and subscription for satellite radio.
