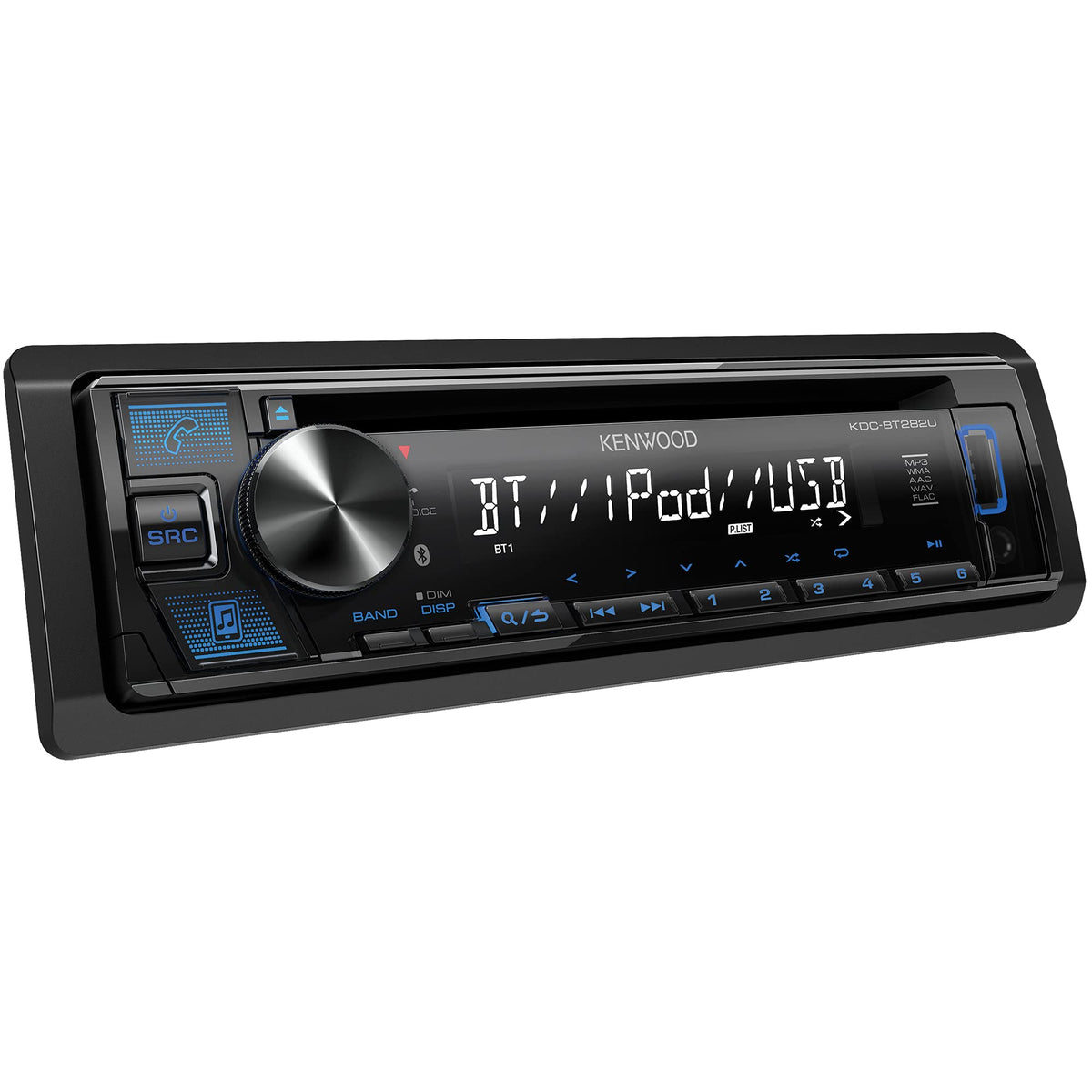

KENWOOD KDC-BT282U Single DIN CD Receiver

The KENWOOD KDC-BT282U is a Single DIN CD receiver for drivers who want modern phone connectivity while retaining CD playback and traditional AM/FM radio. It brings Bluetooth calling, music streaming, front USB, and front auxiliary input to vehicles with a standard Single DIN radio opening. A detachable faceplate adds a practical layer of security when the vehicle is parked.

This receiver suits drivers upgrading an older factory radio or replacing a basic aftermarket unit with hands-free calling and more flexible music sources. Dual-phone connection lets two phones remain connected for calling, while KENWOOD Music Mix supports switching among up to five paired Bluetooth audio devices. The KENWOOD Remote app can control many basic receiver functions from a compatible iPhone or Android phone.

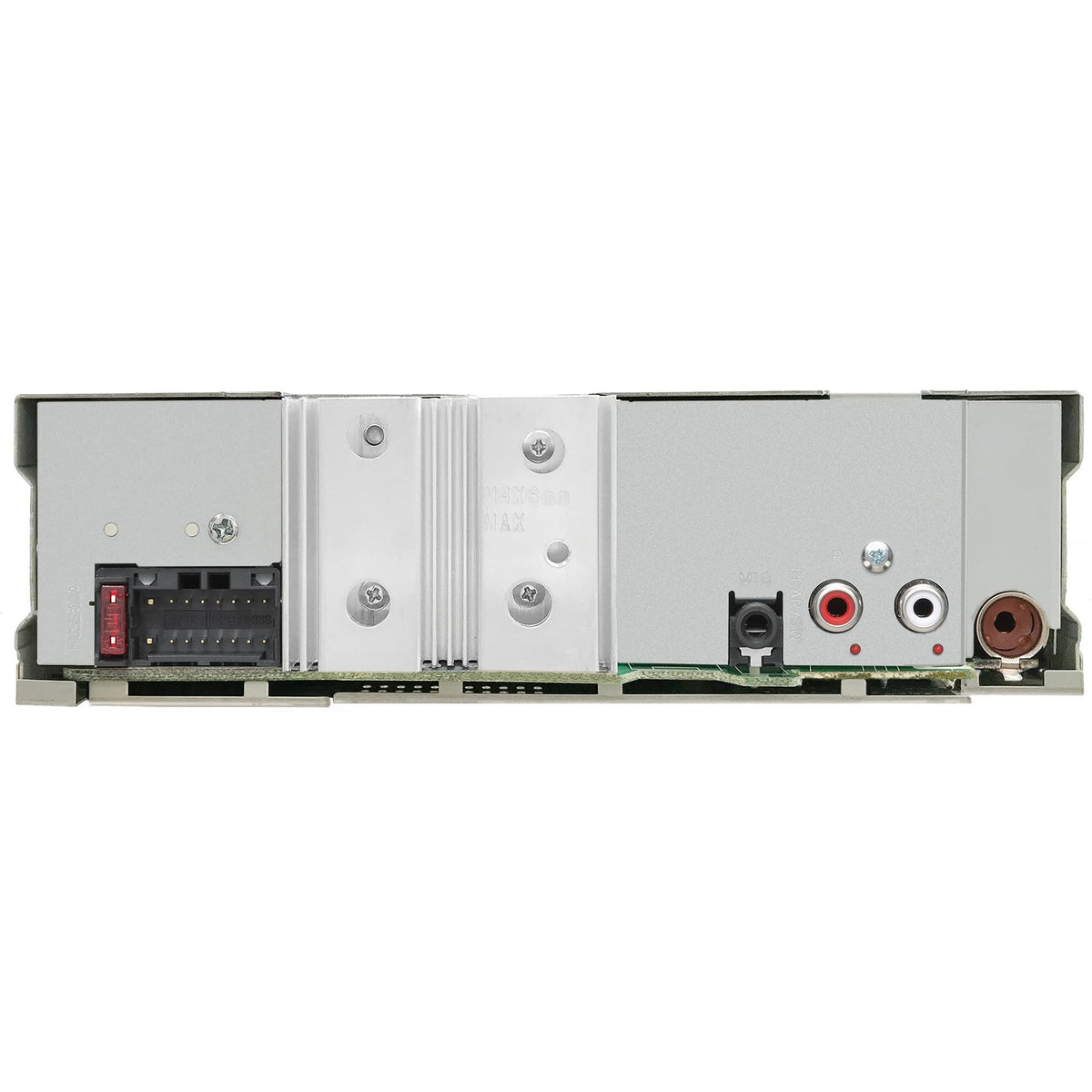

Its built-in amplifier is rated at 50 watts maximum by four channels, with 22 watts by four channels of full-bandwidth power at less than 1% THD. The receiver supports 4- to 8-ohm speakers and provides a 2.5-volt RCA preout that can be assigned for rear speakers or a subwoofer. This makes it suitable for a straightforward four-speaker system or as the control center for an amplified upgrade.

Sound adjustment is handled by a 13-band equalizer, Digital Time Alignment, and Drive EQ. Digital Time Alignment helps align arrival time from speakers at different positions in the vehicle, while Drive EQ is designed to compensate for road-noise effects. USB playback supports FLAC up to 24-bit/96 kHz along with WAV, MP3, WMA, and AAC files.

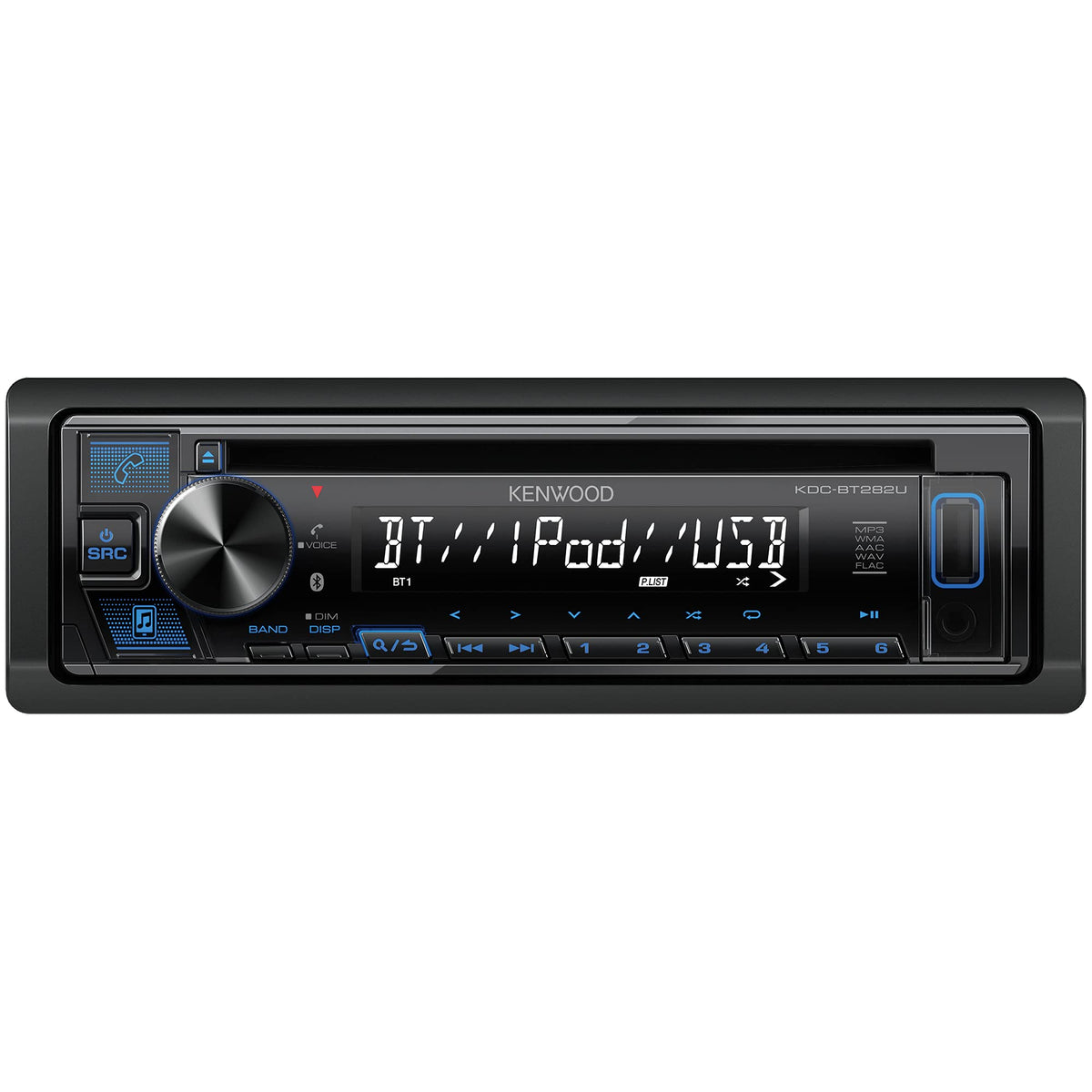

The 204-segment, one-line text display is paired with blue and white illumination and direct Bluetooth-access controls. Front-panel USB and auxiliary inputs keep commonly used connections within reach. Menu text can be set to English, Spanish, or French, making this receiver a practical replacement-radio option for compatible 12-volt negative-ground vehicles.

Key Features

• Bluetooth 4.2: Supports hands-free calling, wireless audio streaming, and phonebook access with compatible devices.
• KENWOOD Music Mix: Lets up to five paired Bluetooth audio devices take turns streaming music.
• CD And USB Playback: Plays CDs and compatible USB music files, including high-resolution FLAC.
• 13-Band EQ And DTA: Provides detailed tonal adjustment and speaker time-alignment settings.
• 2.5-Volt RCA Preout: Connect an external amplifier or powered subwoofer for system expansion.
• Detachable Faceplate: Allows the faceplate to be removed when leaving the vehicle.

Design & Installation

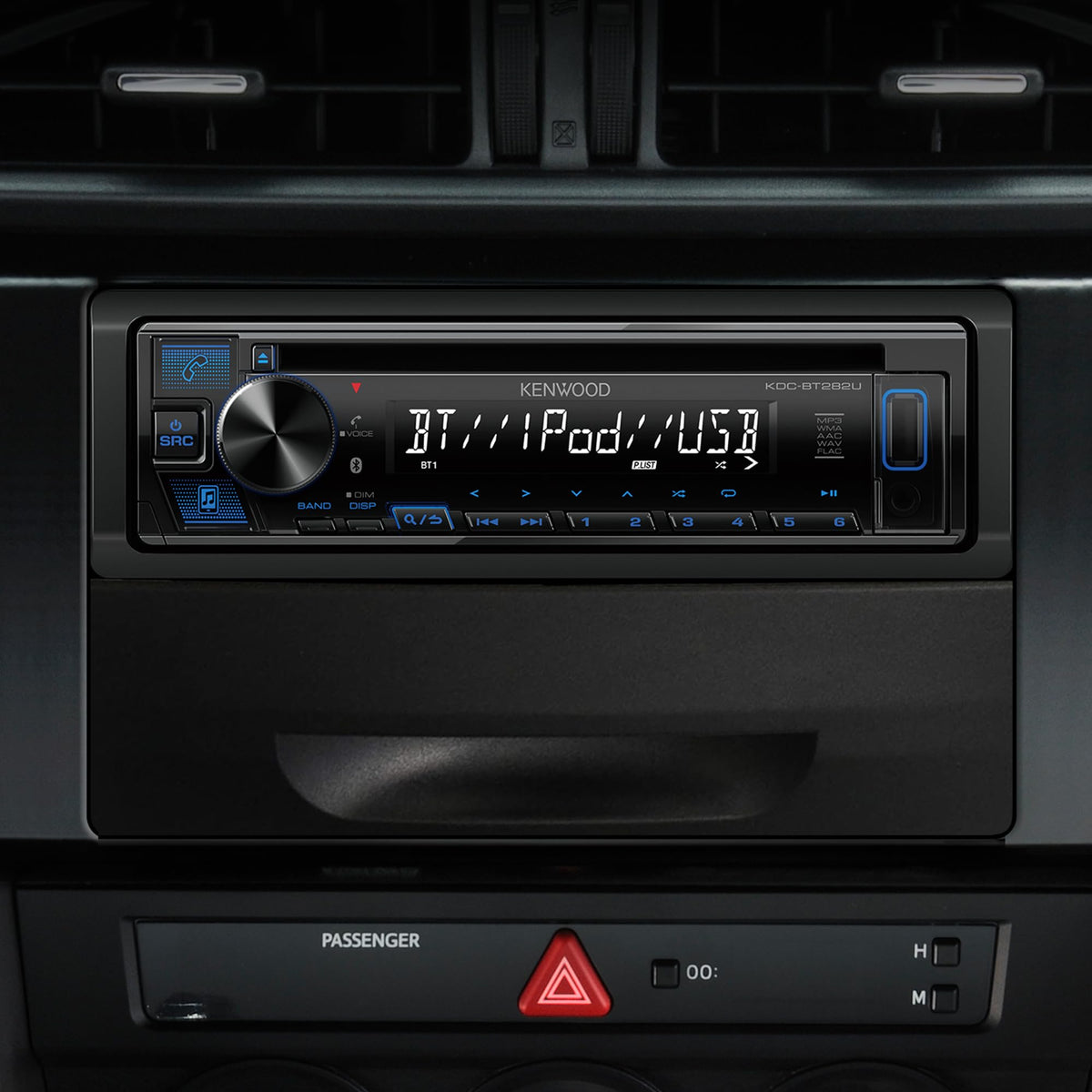

The KDC-BT282U uses the standard 182 x 53 mm Single DIN chassis format and includes a detachable faceplate, trim plate, and mounting sleeve. Its front panel places the USB port and auxiliary input within easy reach, while the one-line 204-segment display presents source and track information. Blue and white illumination gives the controls and display a clear, coordinated appearance.

Installation requires a compatible Single DIN dashboard opening and a 12-volt DC negative-ground electrical system. The included wiring harness, mounting sleeve, trim plate, and extraction keys support a conventional in-dash installation, but vehicle-specific harness adapters, antenna adapters, dash kits, and steering-wheel-control interfaces may be needed depending on the vehicle. For safe wiring and mounting, KENWOOD recommends professional installation; mount the receiver at an angle of less than 30 degrees.
