JVC KD-T920BTS Single DIN CD Receiver with Bluetooth

The JVC KD-T920BTS is a Single DIN CD receiver designed for drivers who want modern phone connectivity while retaining CD, AM/FM, USB, and auxiliary playback. It provides hands-free Bluetooth calling, wireless music streaming, and front-panel connections for everyday media use. This makes it a practical replacement for an older factory radio or a basic aftermarket receiver.

Its built-in amplifier delivers up to 22 watts RMS to each of four channels at less than 1% THD, providing a solid foundation for factory-replacement speakers. A 13-band graphic equalizer, digital time alignment, bass boost, loudness control, and high- and low-pass filters let listeners tailor the system to their vehicle and speaker setup. Volume Link EQ is included to help compensate for frequencies affected by road noise.

The KD-T920BTS supports Bluetooth 4.2 for calling and audio streaming, with two phones able to remain connected full time. JVC Streaming DJ allows up to five Bluetooth audio devices to be connected for shared music playback. iPhone users can also use automatic Bluetooth pairing when connecting by USB.

For source flexibility, this receiver plays CDs and supports MP3, WMA, AAC, WAV, and FLAC files from compatible media. Its front USB port supplies up to 1.5A for smartphone charging, while the front AUX input accommodates a conventional analog audio source. SiriusXM readiness expands the system when used with an optional compatible SiriusXM tuner.

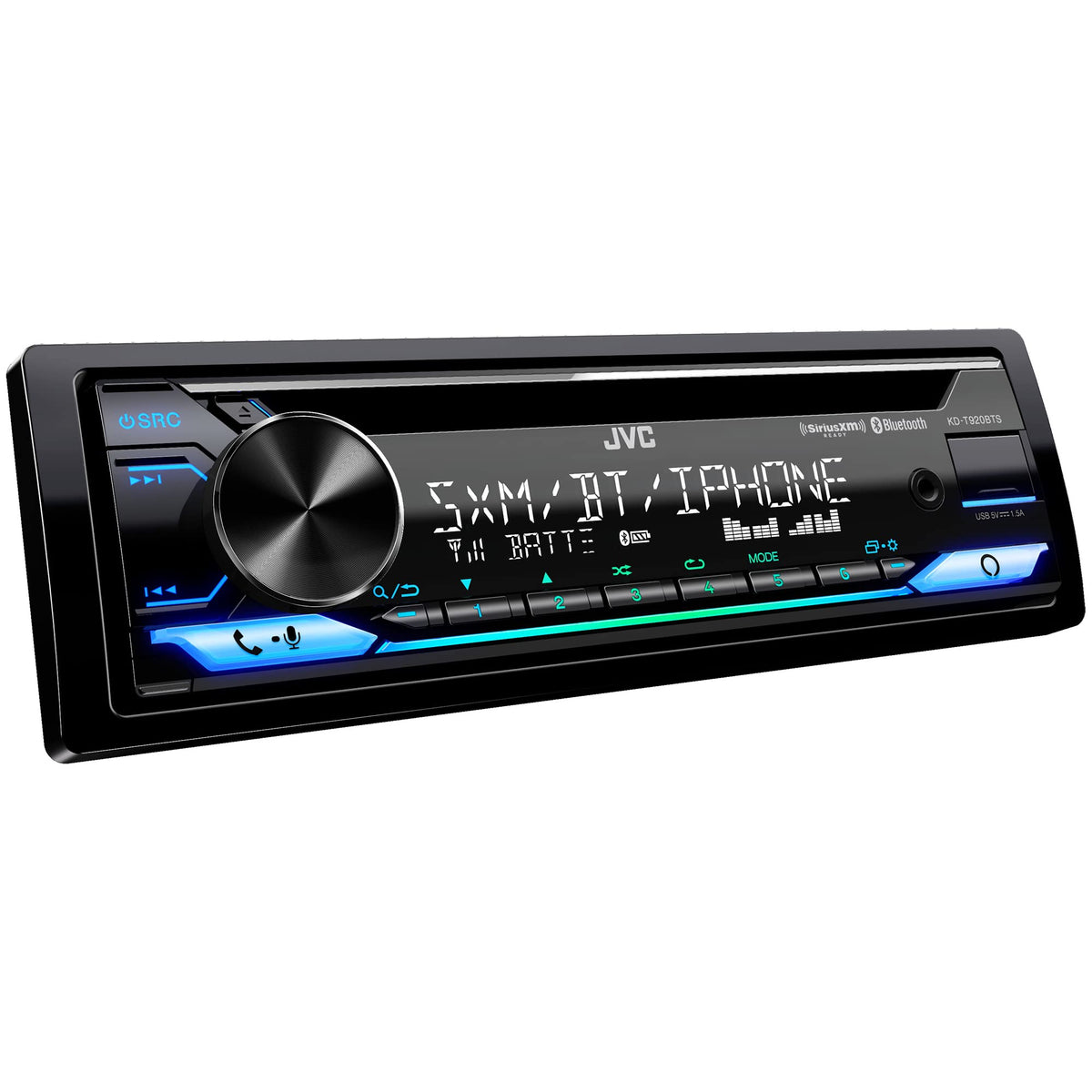

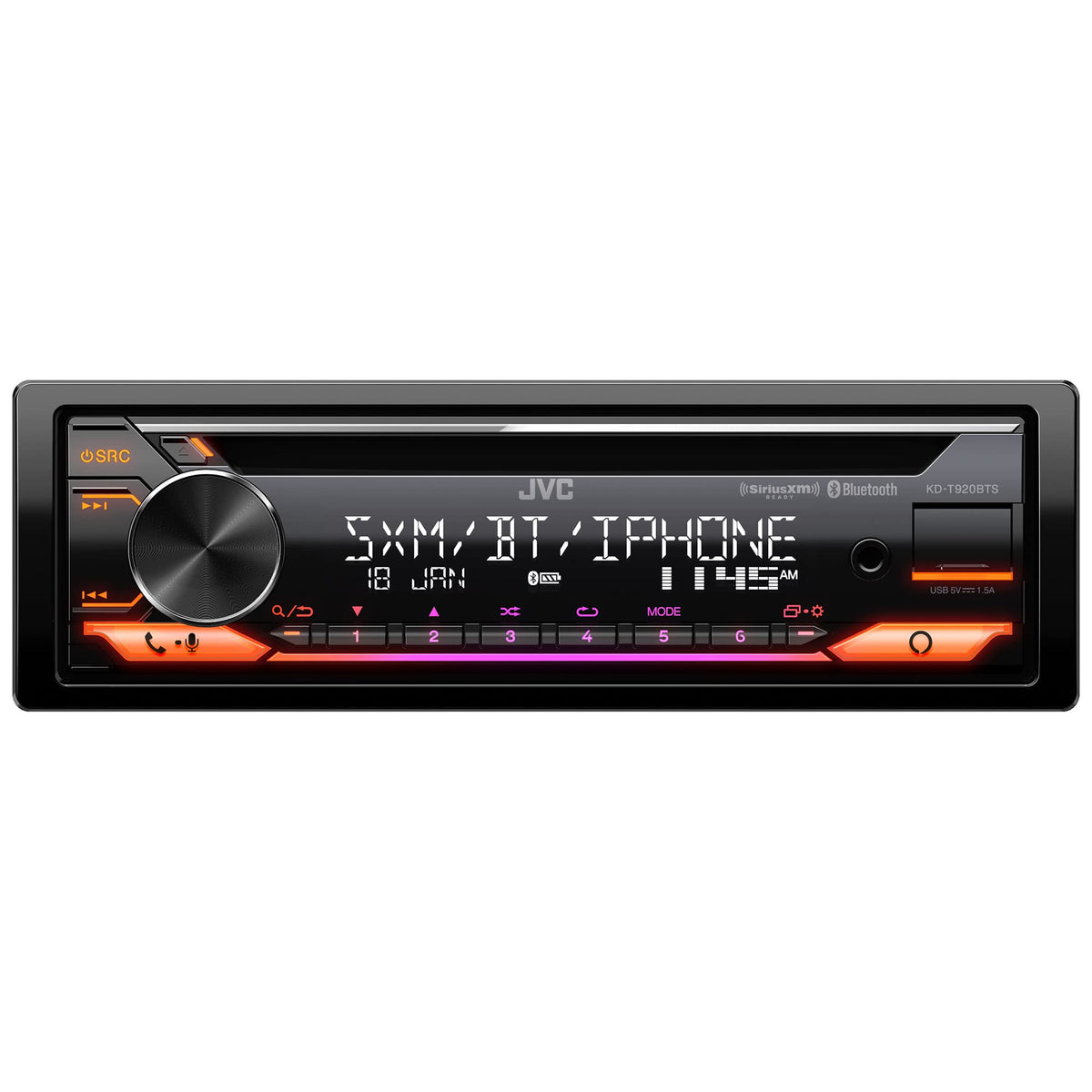

The receiver uses a two-line VA LCD display with adjustable brightness, auto dimming, and variable-color key illumination. Two illumination zones, music-sync effects, and Spanish or French text-display compatibility allow the interface to be tailored for the vehicle and driver. With front and selectable rear/subwoofer preamp outputs, it can also serve as the control center for a later amplifier or subwoofer upgrade.

Key Features

• Bluetooth 4.2 Connectivity: Stream audio and make hands-free calls from compatible phones.
• Dual Phone Connection: Keep two Bluetooth phones connected for convenient call handling.
• 13-Band Graphic EQ: Adjust tonal balance precisely for your vehicle and speakers.
• Front USB Charging: Charge a compatible smartphone at up to 1.5A.
• CD and High-Resolution File Support: Play CDs plus compatible FLAC, WAV, AAC, WMA, and MP3 files.

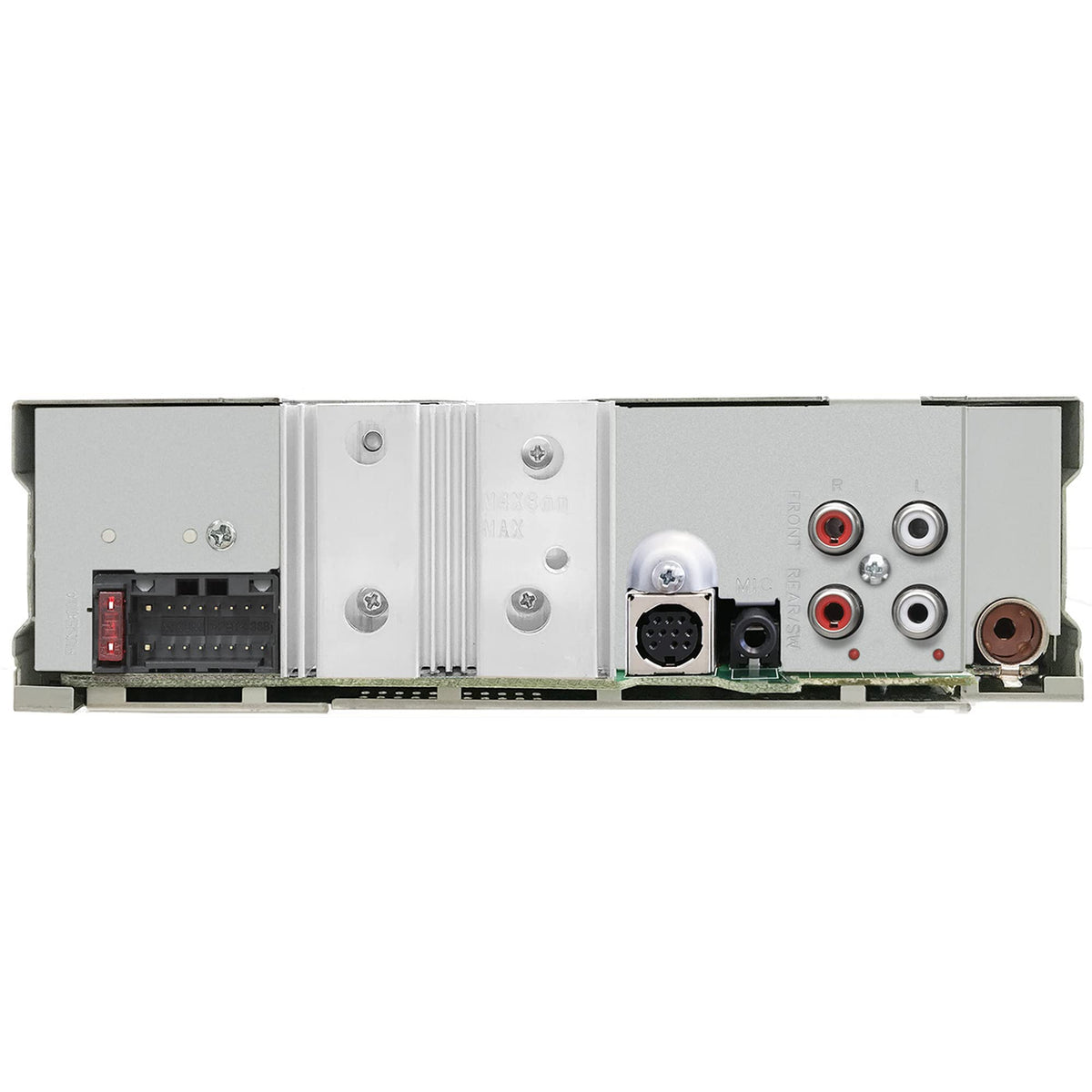

• 2.5V Preamp Outputs: Add external amplification or a subwoofer with selectable rear/subwoofer output.

Design & Installation

The KD-T920BTS has a compact Single DIN chassis, a detachable face panel, and a two-line vertical-alignment LCD designed for broad viewing angles. JVC specifies white LCD text, variable-color key lighting, two independently controllable illumination zones, and a selectable music-sync illumination effect. JVC does not publish a specific faceplate or chassis material specification for this model.

The installation chassis measures 7-3/16 inches wide by 2-1/16 inches high by 6-3/16 inches deep, so it is intended for a standard Single DIN radio opening. Use the front USB and AUX inputs for accessible device connections, and use the two pairs of preamp outputs when integrating external amplifiers. SiriusXM operation requires an optional compatible tuner, while wireless remote operation requires the optional JVC RM-RK52 remote.
