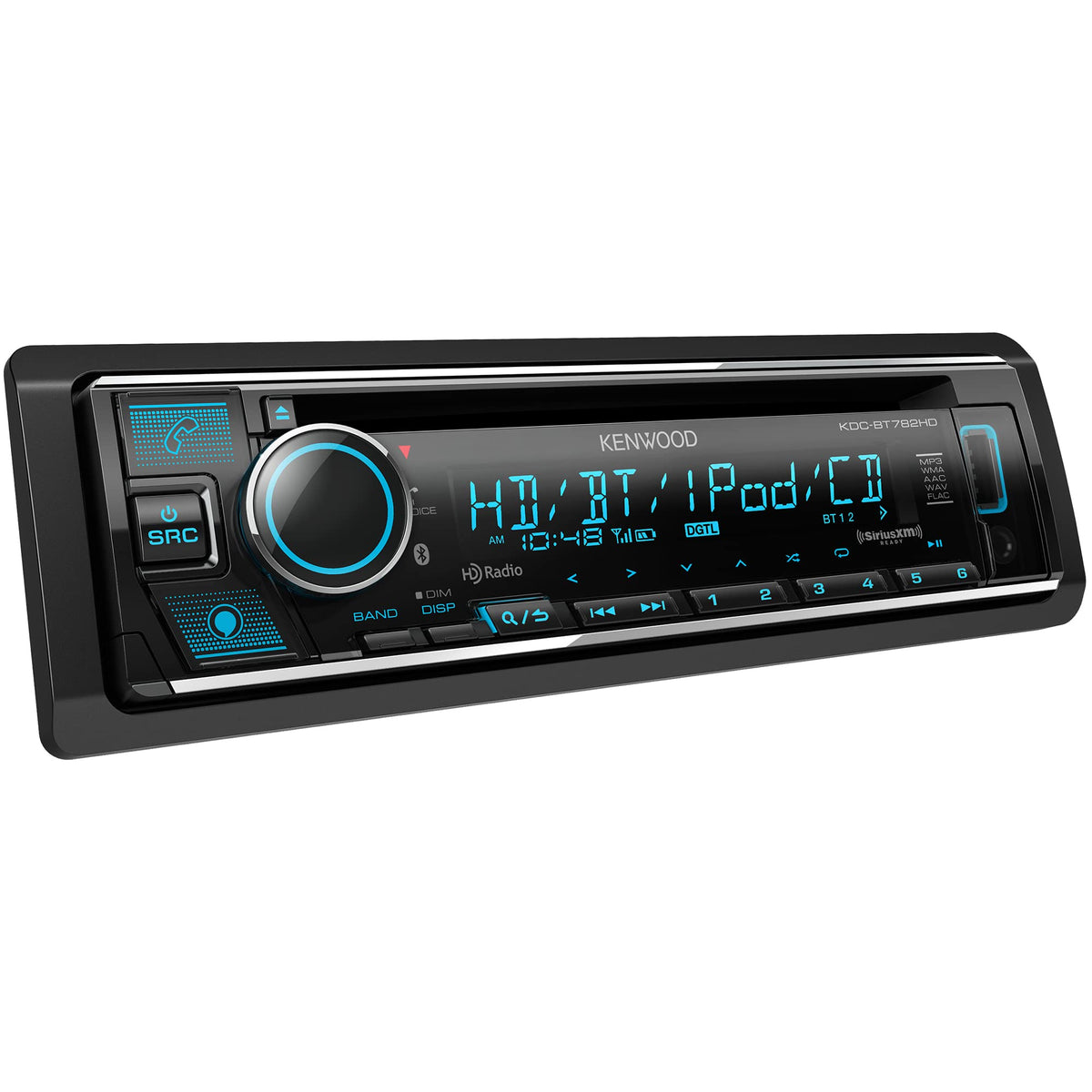

Kenwood KDC-BT782HD Single DIN CD Receiver with Bluetooth

The Kenwood KDC-BT782HD is a single-DIN CD receiver for drivers who want modern phone connectivity while retaining CD playback and traditional radio. It combines Bluetooth, front USB, front auxiliary input, HD Radio, and optional SiriusXM expansion in a compact in-dash format. The receiver is suited to factory-radio replacement projects where a touchscreen-based multimedia receiver is not required.

Its built-in four-channel amplifier supplies up to 22 watts RMS per channel at less than 1% THD, with a 50-watt maximum rating per channel. Bluetooth supports hands-free calling and wireless music playback, while the front USB input supports compatible portable devices and USB drives. A supplied microphone supports Bluetooth calling and Alexa voice interaction.

Sound tuning is a central part of the KDC-BT782HD design. It provides 13-band manual EQ, 3-band Easy EQ, eight EQ presets, Drive EQ, Stage EQ, bass boost, loudness, adjustable crossovers, and digital time alignment. These controls help tailor the receiver for different speaker layouts, listening positions, and road-noise conditions.

Amazon Alexa compatibility lets a paired smartphone and the Alexa mobile app provide voice access to supported Alexa functions. The receiver can be activated with its Alexa control or by voice after setup, and it requires a Bluetooth connection and smartphone internet access. Because Alexa is a third-party cloud service, its available functions and compatibility can change.

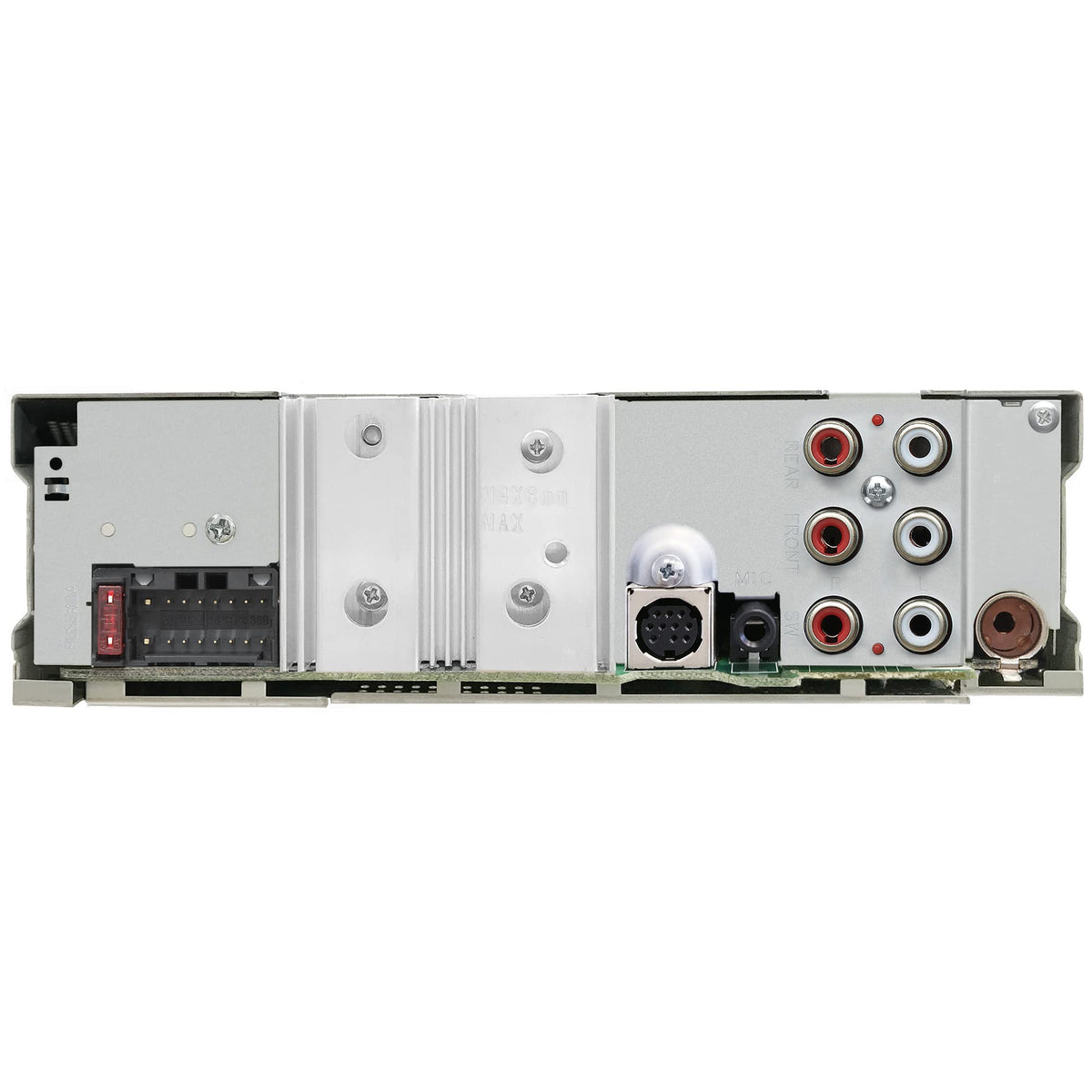

The KDC-BT782HD also provides a practical foundation for a larger audio system. Its three 4-volt RCA preouts provide front, rear, and subwoofer outputs for external amplifiers or a powered subwoofer. With variable-color illumination, a detachable faceplate, and a 255-segment 1.5-line text display, it is designed for a clean, conventional single-DIN upgrade.

Key Features

• Bluetooth 4.2: Supports wireless music streaming, hands-free calls, dual-phone connection, and Bluetooth audio switching.
• Amazon Alexa Ready: Enables Alexa voice functions through a compatible paired smartphone and the Alexa app.
• HD Radio Tuner: Receives analog and digital AM/FM broadcasts, including supported HD multicast channels.
• 13-Band EQ And DTA: Provides detailed frequency adjustment and digital time alignment for system tuning.
• Front USB And AUX: Gives convenient access for USB music playback, charging, and analog portable-audio connections.
• Three 4-Volt Preouts: Provides front, rear, and subwoofer RCA outputs for external amplification.

Design & Installation

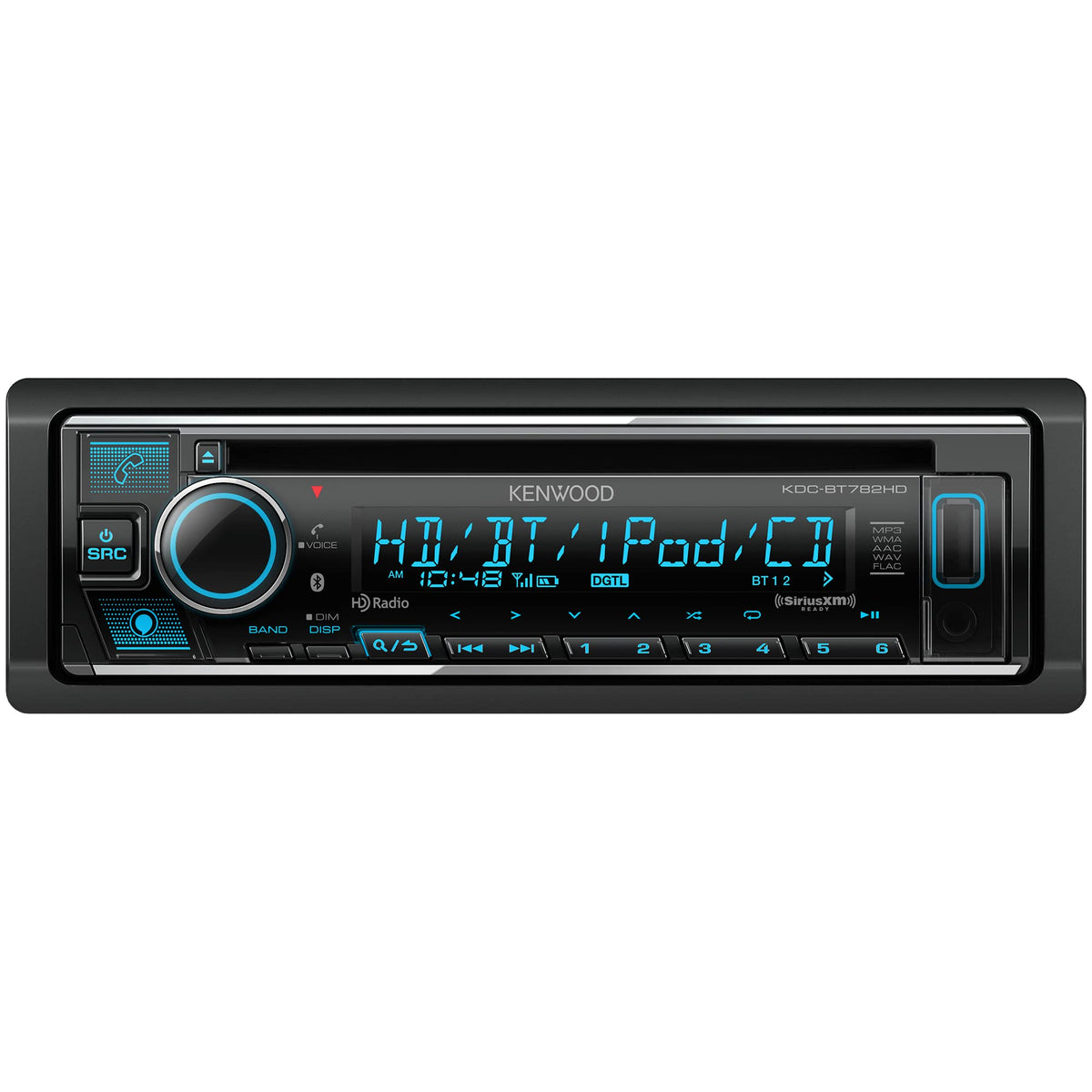

The KDC-BT782HD uses a compact single-DIN chassis with a detachable faceplate, front-loading CD slot, front USB port, and front auxiliary input. Its 255-segment 1.5-line LCD text display presents source information and clock information, while variable-color illumination can be adjusted to complement dashboard lighting. The display menu supports English, Canadian French, and Spanish.

Installation requires a compatible single-DIN dashboard opening, a 12-volt negative-ground vehicle electrical system, and proper vehicle-specific wiring integration. Kenwood includes a trim plate, mounting sleeve, wiring harness, extraction keys, installation screws, faceplate, and microphone; a vehicle-specific dash kit, wiring harness adapter, antenna adapter, or steering-wheel-control interface may be needed depending on the vehicle. The rear RCA outputs are useful when adding amplifiers or a powered subwoofer, while SiriusXM requires a separately sold compatible vehicle tuner and subscription.
