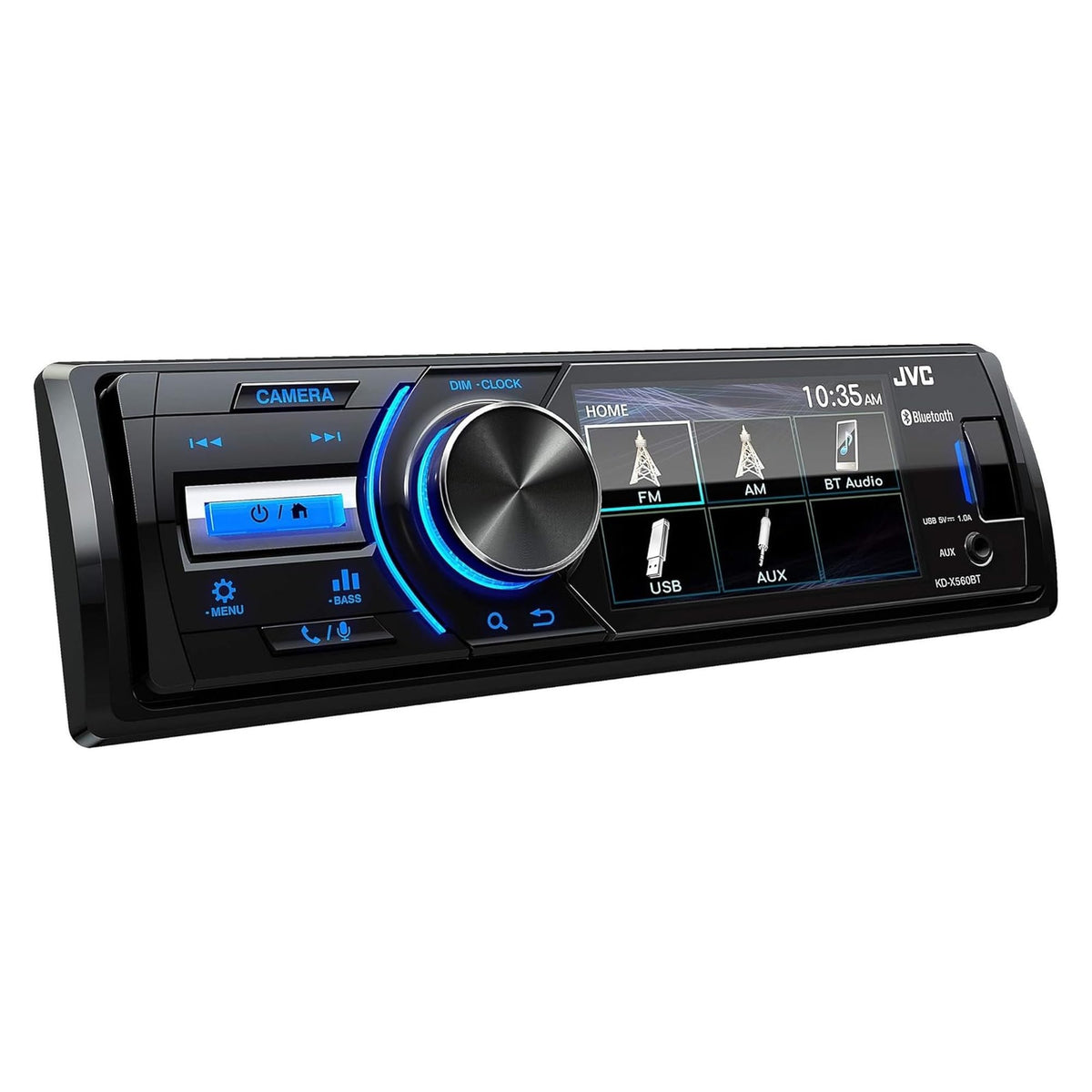

JVC KD-X560BT Single-DIN Digital Media Receiver

The JVC KD-X560BT is a Single-DIN digital media receiver designed for vehicles, boats, and powersports applications where CD playback is not needed. It combines AM/FM radio, Bluetooth, front USB, and AUX connectivity in a compact chassis with a 3.0-inch color display. The receiver is a practical upgrade for replacing a basic factory radio while adding modern media playback and camera capability.

This receiver suits drivers and riders who need a shallow-mount audio solution for a dash, console, UTV, or marine installation with limited rear clearance. Bluetooth supports hands-free calling and wireless audio streaming from a compatible phone, while the front USB port supports stored media and iPhone/iPod playback. An optional wired marine remote is available for installations where the receiver is mounted out of reach.

Its built-in four-channel amplifier is rated at 45 watts maximum per channel and 16 watts per channel of full-bandwidth power at 1% THD. A 13-band graphic EQ, adjustable crossover settings, loudness control, and time-alignment delay settings provide useful tuning tools for a basic speaker system. Three 2-volt preouts also allow the receiver to serve as the control center for external amplifiers and a subwoofer.

The KD-X560BT uses a conformal coating on its electronic circuits to help protect against moisture and airborne contaminants, including salt spray. Its 3.0-inch LED-backlit TFT display provides source information and supports rear-view camera monitoring. A dedicated CAMERA key lets the user manually call up the optional camera view when needed.

For system expansion, the receiver includes front, rear, and subwoofer preouts, plus a rear-view camera input and a steering-wheel remote-control input. It can play a broad range of audio, video, and image files from a USB mass-storage device. The short 4-5/8-inch installation depth helps make this receiver easier to fit where a conventional full-depth Single-DIN chassis may be difficult to install.

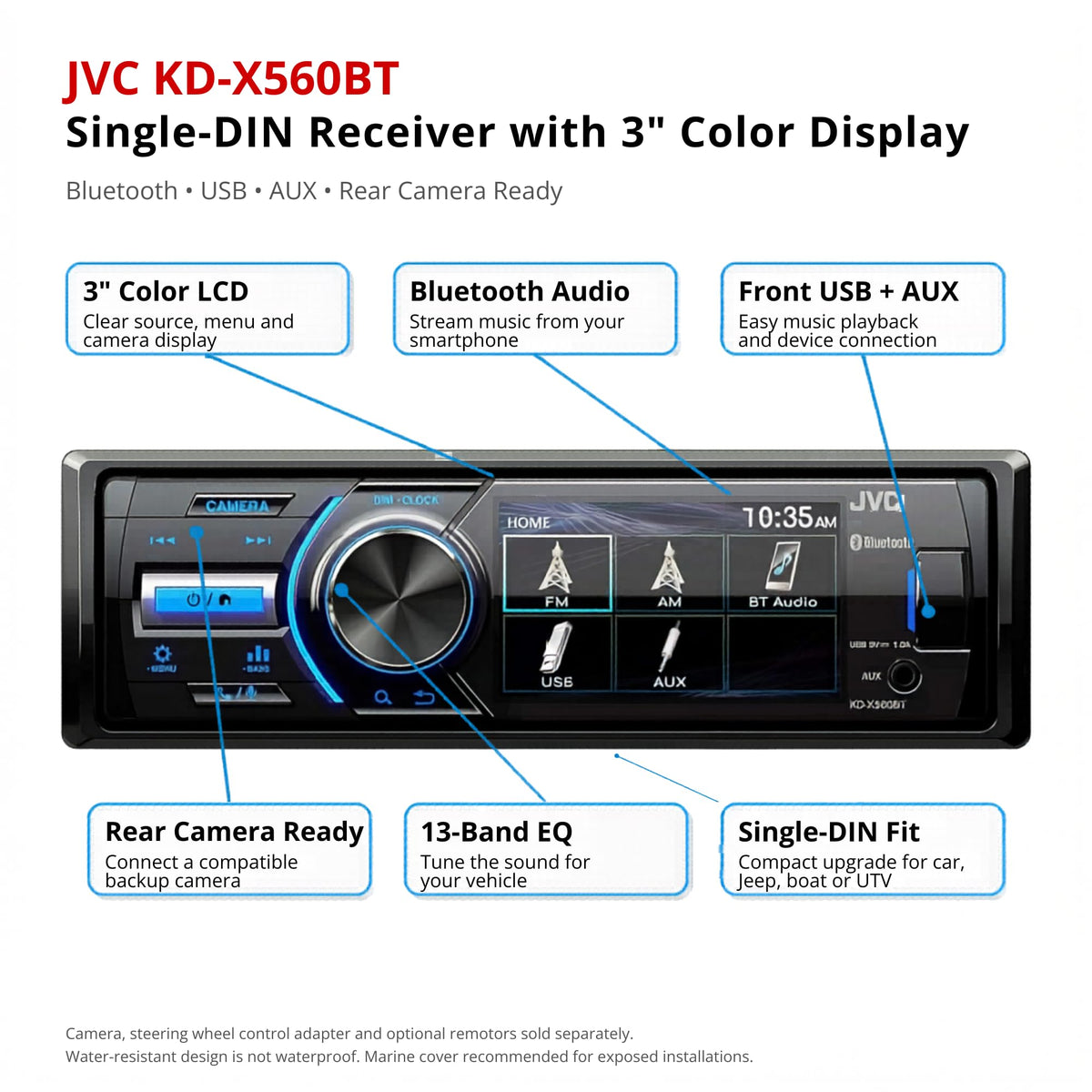

Key Features

• 3.0-Inch Color Display: LED-backlit TFT screen provides clear source information and camera viewing.
• Conformal-Coated Circuitry: Helps protect internal electronics from moisture and airborne contaminants.
• Bluetooth 4.2: Supports hands-free calls, phonebook access, and wireless audio streaming.
• Three 2-Volt Preouts: Front, rear, and subwoofer outputs support external amplifier expansion.

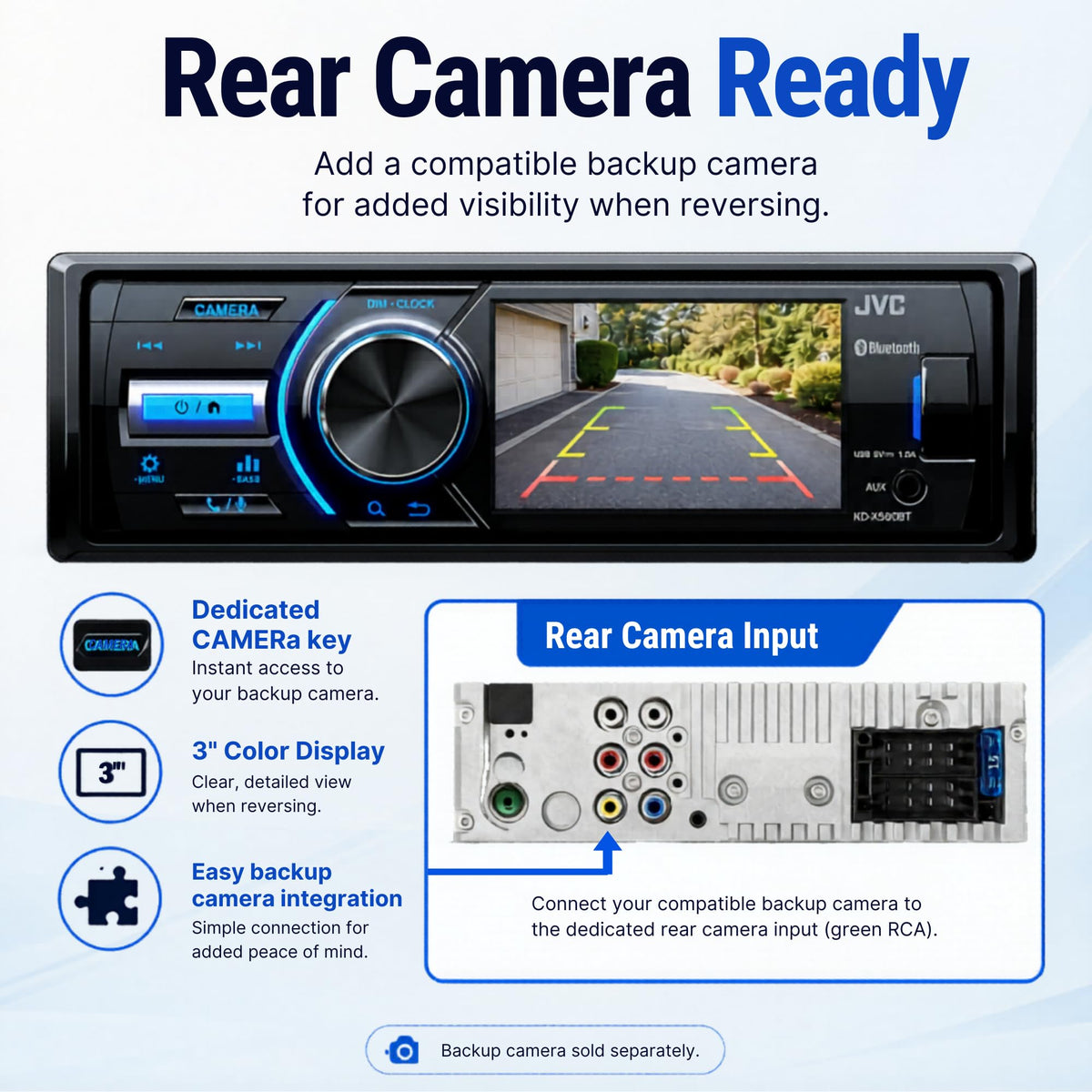

• Rear Camera Input: Connect an optional camera for reverse monitoring or manual viewing.
• 13-Band Sound Tuning: Equalizer, crossover, loudness, and delay controls tailor system response.

Design & Installation

The KD-X560BT uses a detachable faceplate, a 3.0-inch active-matrix TFT display, and a short chassis measuring 4-5/8 inches deep with its sleeve. Its conformal-coated circuitry is intended to add protection in installations exposed to moisture or contaminants. The receiver is not described as waterproof, so its mounting location should still be selected to avoid direct water exposure.

Installation requires a standard Single-DIN opening and a negative-ground 12-volt DC electrical system. The supplied installation hardware includes a wiring harness, mounting sleeve, trim plate, Bluetooth microphone, and extraction tools; vehicle-specific adapters may still be needed. For camera auto-switching, connect the reverse-sensor wire to the vehicle reverse-lamp harness, and use a compatible steering-wheel-control adapter if retaining factory steering-wheel controls.
