Fender 6943000000 Passport Event Series 2 Portable PA System

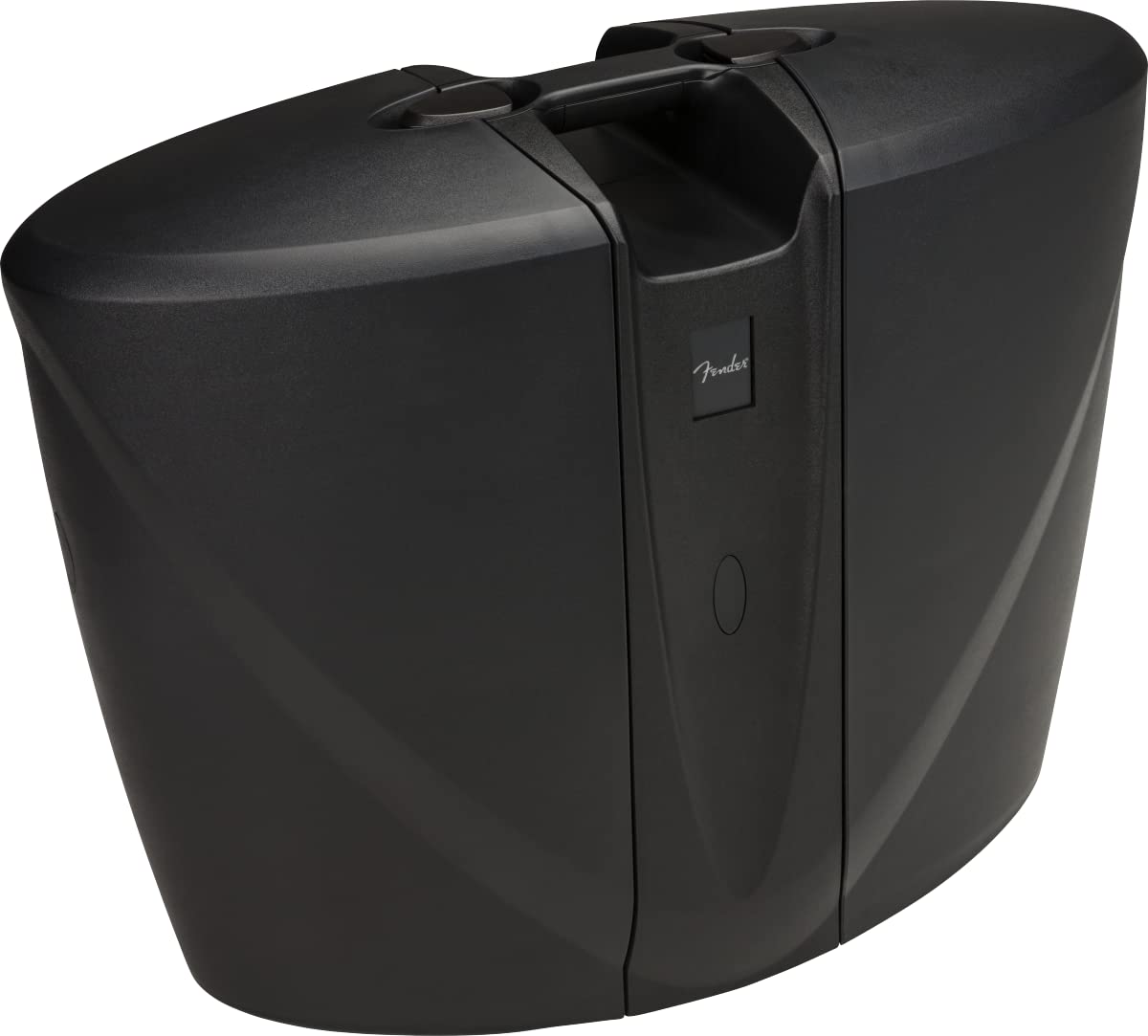

The Fender Passport Event Series 2 is a self-contained portable PA system built around a seven-channel powered mixer and two detachable full-range speaker cabinets. It provides a practical sound-reinforcement solution for presentations, meetings, worship services, classrooms, small performances, and other events where a conventional installed PA is unnecessary. The suitcase-style format keeps the primary system components together for transport and setup.

With 375 watts of Class D amplification, the Passport Event Series 2 is designed to reproduce speech, vocals, instruments, and playback material through its included speaker pair. Each cabinet uses an 8-inch woofer and a 1.2-inch high-frequency driver. Individual channel level, bass, treble, and reverb controls help users create a balanced mix for different sources.

The mixer supports a broad range of wired and wireless source connections. Four combination XLR/1/4-inch inputs accommodate microphones or mono line-level sources, while a dedicated 1/4-inch channel supports instruments or line-level equipment. Stereo 1/4-inch, 1/8-inch stereo, and Bluetooth inputs make it easy to connect keyboards, computers, and mobile devices.

Practical controls support reliable operation during live use. Signal/clip indicators help users set source levels, and the mic/line pad reduces input sensitivity by 24 dB when needed. A built-in reverb control is available on each channel for adding ambience to vocals or instruments.

The system can grow with additional powered sound-reinforcement equipment. Its mono output can feed a powered monitor, while the dedicated subwoofer output is intended for a powered subwoofer. When a powered subwoofer is connected, the system automatically removes frequencies below 120 Hz from the main Passport amplifier and speakers.

Key Features

• 375-Watt Class D Amplifier: Provides efficient power for the included portable PA system.
• Seven-Channel Mixer: Accommodates microphones, instruments, stereo sources, and Bluetooth playback.
• Nine Input Sources: Offers varied connection options for live and playback audio.
• Bluetooth Streaming: Enables wireless audio playback from a compatible external device.
• Subwoofer Output: Supports a powered subwoofer with automatic 120 Hz main-system high-pass filtering.
• Built-In Reverb: Adds adjustable ambience independently to each mixer channel.

Design & Installation

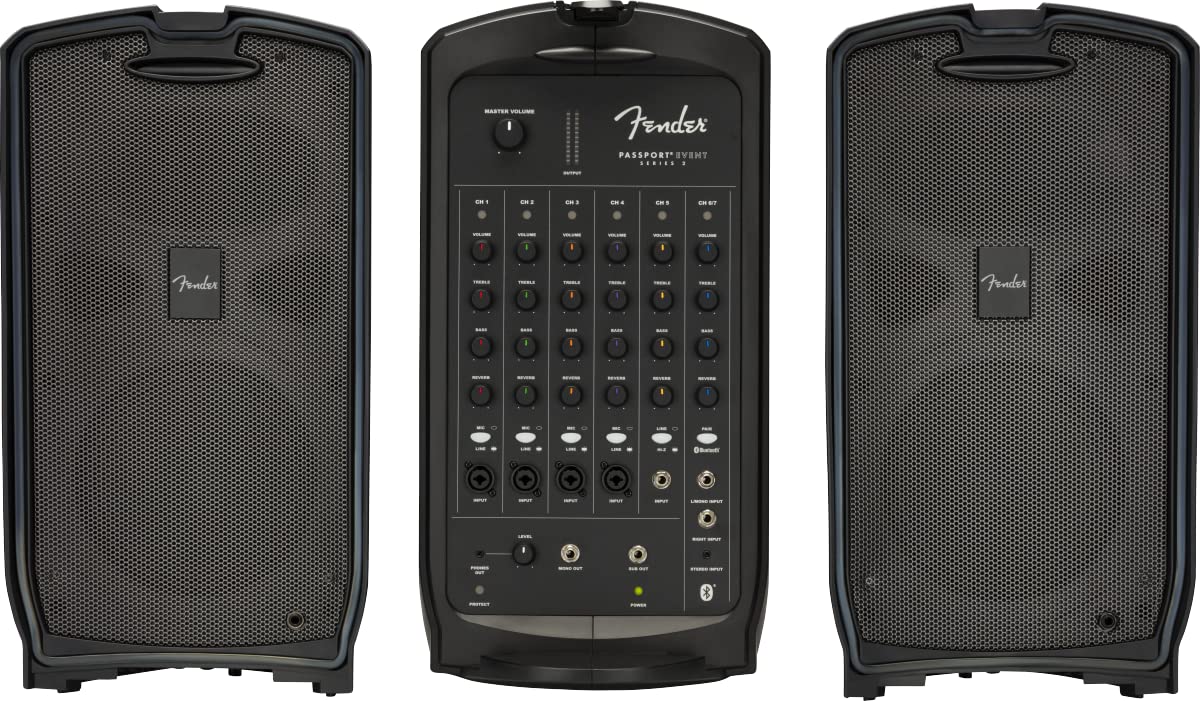

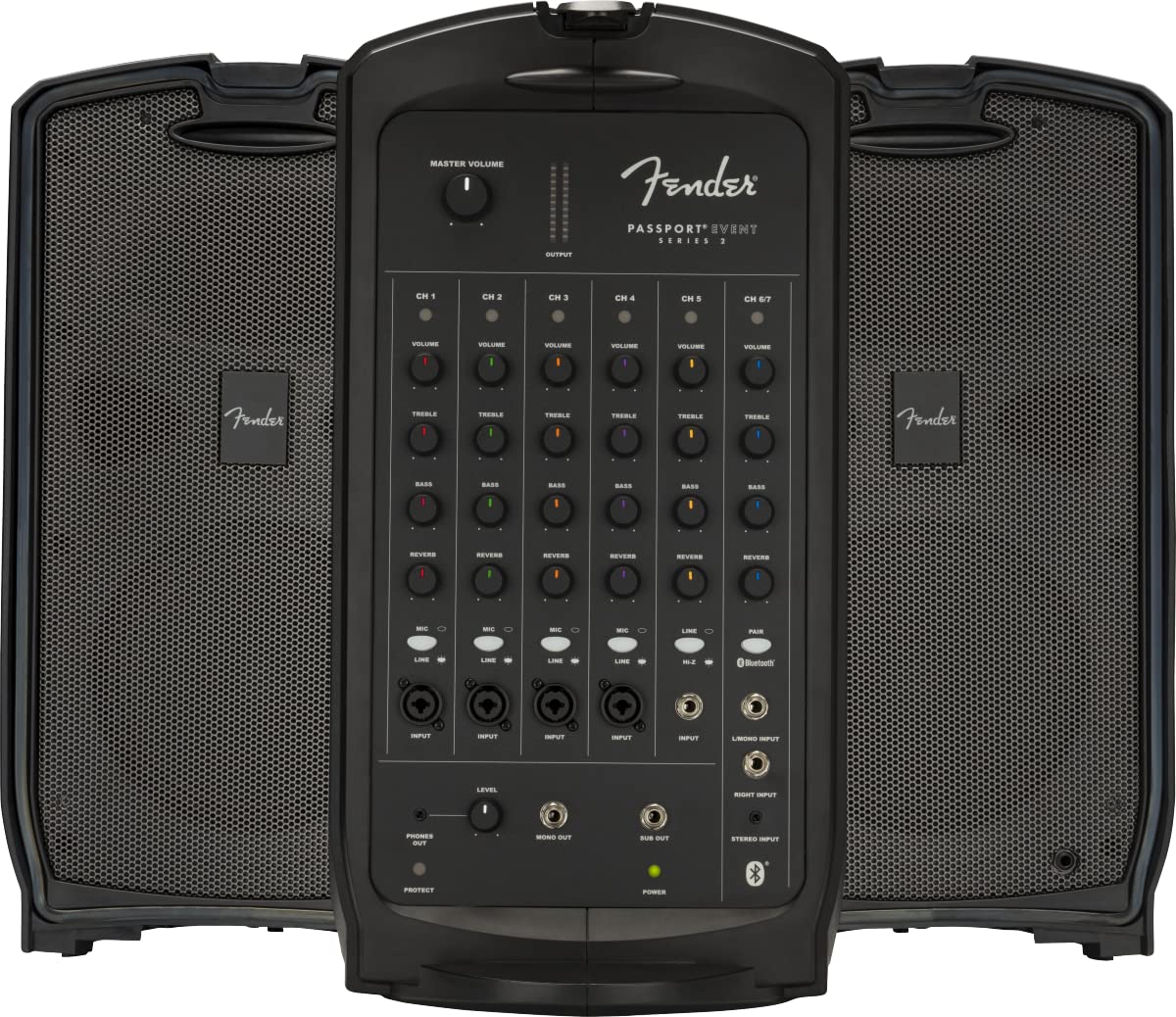

The Passport Event Series 2 combines a powered mixer section with two detachable speaker cabinets in a portable, suitcase-style enclosure. The system includes two 8-inch woofers and two 1.2-inch high-frequency drivers, with a storage compartment for the supplied power and speaker cables. Each speaker cabinet has a built-in 35 mm stand adapter for placement on compatible speaker stands.

For setup, detach the speaker cabinets, connect the supplied speaker cables to the left and right outputs, and connect the supplied power cord to a grounded AC outlet. Place the speakers on sturdy tables or compatible stands and spread them apart for stereo separation. Start with channel, master, and reverb levels turned down, then raise levels gradually while watching the signal/clip indicators.
