Fender 6942000000 Passport Conference Series 2 Portable PA

The Fender Passport Conference Series 2 is a self-contained portable PA system built for presentations, meetings, classes, worship services, small performances, and other events requiring clear amplified sound. Its suitcase-style format combines a powered mixer with two speaker enclosures, helping reduce the amount of separate equipment needed for a basic sound system. The system includes the speaker cables and detachable power cable needed for its primary setup.

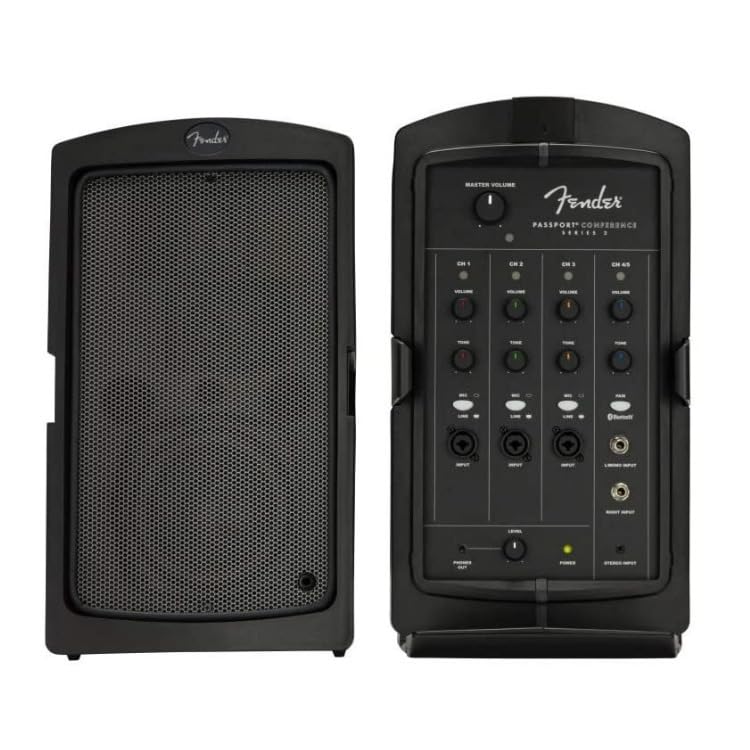

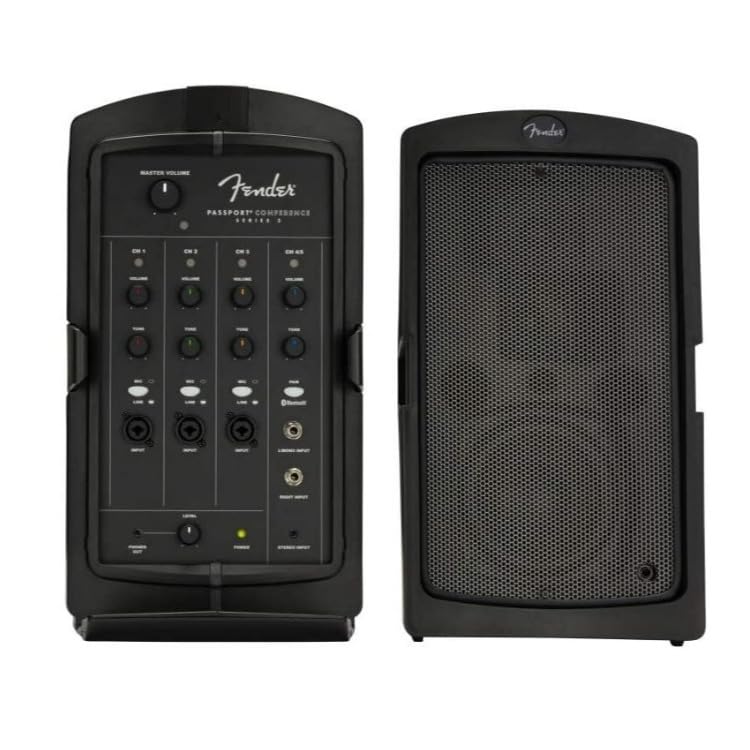

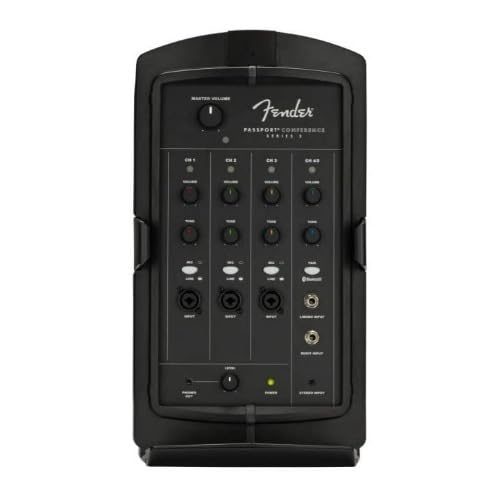

A five-channel mixer provides three mono mic/line channels plus a stereo channel arrangement for connected playback devices and line-level sources. Three XLR/1/4-inch combo inputs accommodate microphones, instruments, and other mono sources. Stereo 1/4-inch and 1/8-inch inputs support compatible music players, keyboards, and other stereo equipment.

The Class-D amplifier is rated at 175 watts of output power and drives the included pair of speaker enclosures. Each enclosure uses a 5.25-inch woofer and two 2.75-inch articulated high-frequency drivers. This configuration is designed to provide full-range reproduction for speech, background music, and modest live sound applications.

Bluetooth connectivity lets a compatible mobile device stream audio wirelessly to the system. For wired monitoring or signal routing, the Passport Conference Series 2 provides a 1/8-inch stereo line/headphone output with its own level control. Individual channel volume and tone controls help set a practical balance between microphones and music sources.

The Passport Conference Series 2 fits users who need a compact PA that can travel and set up without a separate mixer, amplifier, and speaker package. Signal/clip LEDs help monitor operating level, while Mic/Line pads on channels 1 through 3 can reduce sensitivity for stronger source signals. It can serve as a standalone portable sound system for small to medium-size audiences where portability and straightforward operation are priorities.

Key Features

• 175-Watt Class-D Amplifier: Powers the included stereo speaker system from the integrated mixer.
• Five-Channel Mixer: Supports three mono channels and stereo source connections.
• Three Combo Inputs: Accept XLR or 1/4-inch mic and line-level connections.
• Bluetooth Streaming: Plays wireless audio from a compatible Bluetooth device.
• Articulated HF Drivers: Four 2.75-inch high-frequency drivers support broad sound coverage.
• Portable Passport Format: Integrated handle and enclosure latches simplify transport and setup.

Design & Installation

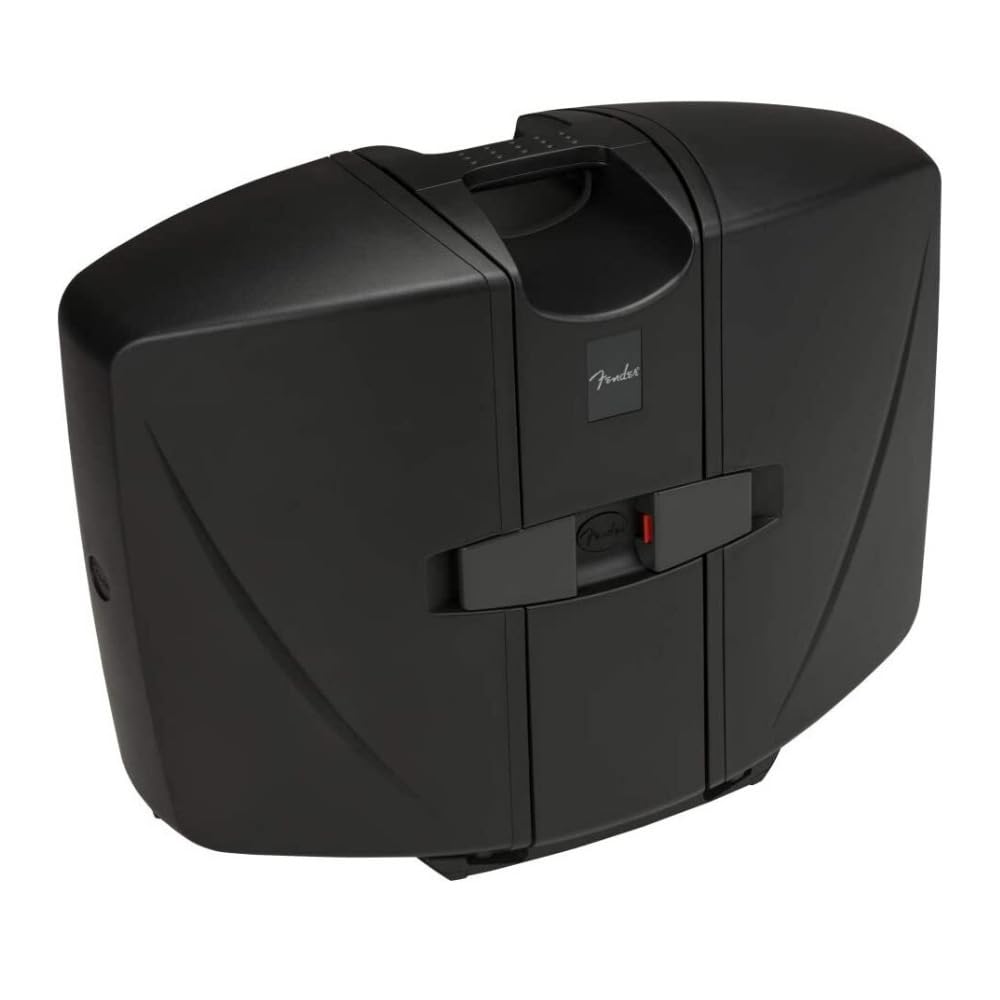

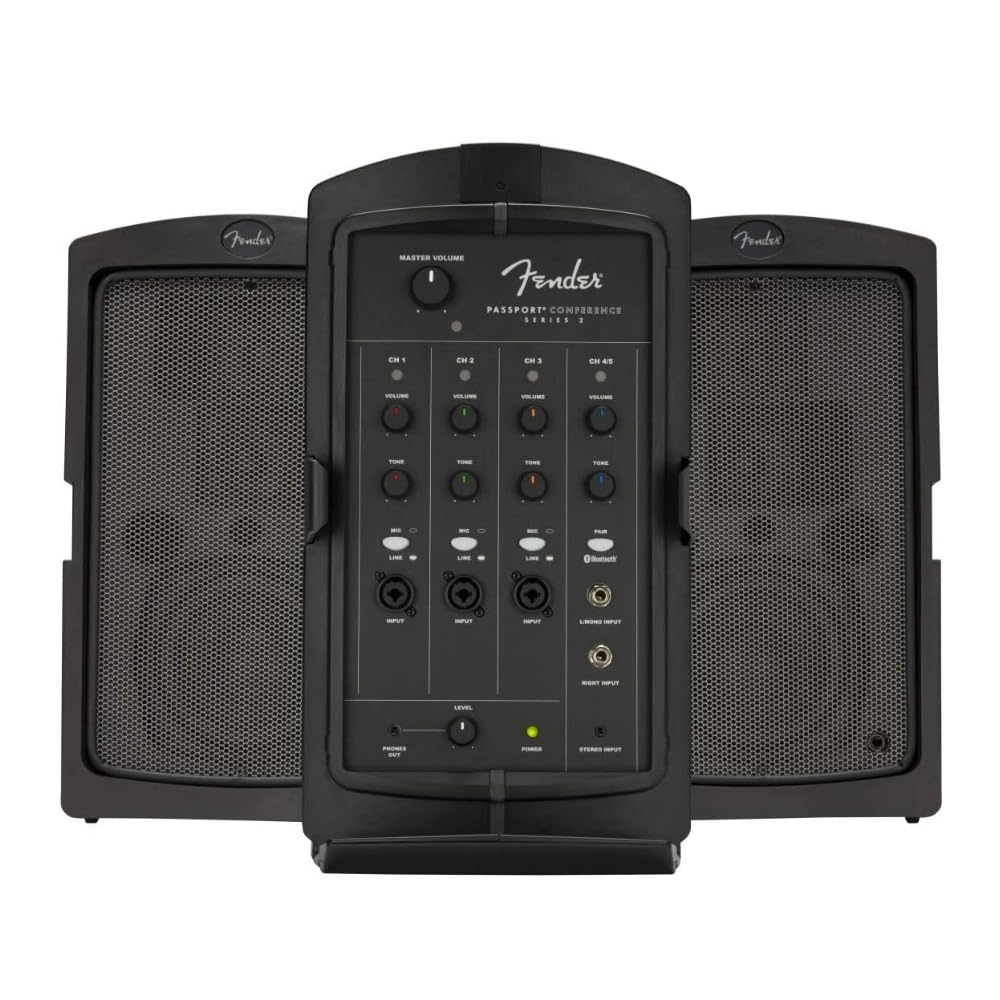

The system uses molded-plastic speaker cabinets with a black front panel and an integrated top-mounted handle. Its two speakers attach to the central mixer section in a suitcase-style package for transport. The complete system measures 25 inches wide, 19 inches high, and 10 inches deep, with a listed weight of 31 pounds.

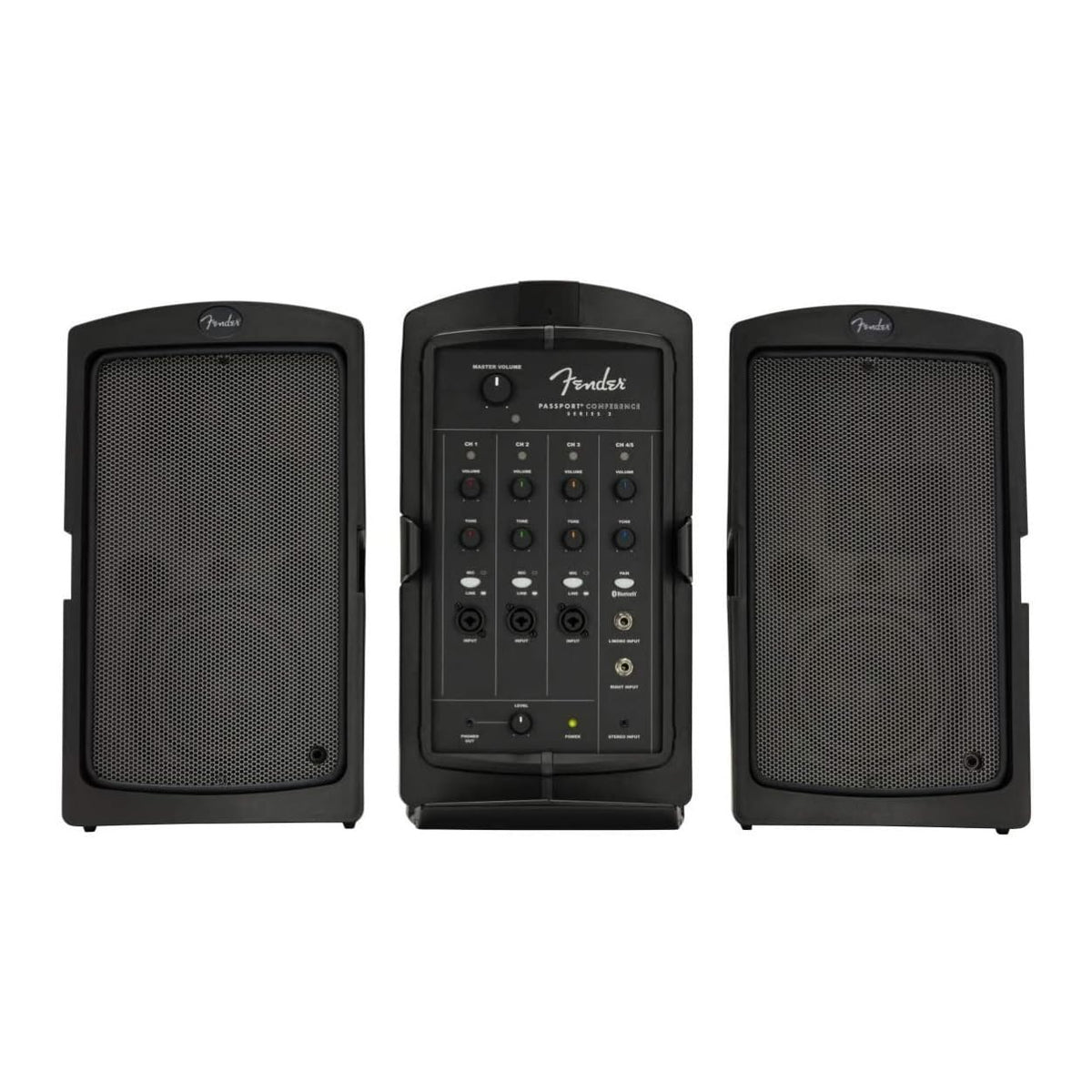

For setup, detach the two speakers and connect them to the left and right 1/4-inch speaker outputs using the supplied speaker cables. Connect microphones or mono sources to channels 1 through 3, and use the stereo 1/4-inch, stereo 1/8-inch, or Bluetooth connection for compatible playback devices. Start with volume controls lowered, set channel levels while watching the signal/clip indicators, then use the master control for overall loudness.
