Mackie SRM210 10" Powered Loudspeaker

The Mackie SRM210 V-Class is a compact 10-inch powered loudspeaker designed for portable sound reinforcement, stage monitoring, DJ playback, presentations, and small live-performance systems. Its built-in amplification and mixer reduce the amount of separate equipment needed for a basic setup. This makes it a practical choice when fast deployment and direct connection of sources are important.

The SRM210 combines a 10-inch ferrite low-frequency driver with a 1.4-inch polymer compression driver for full-range playback. Mackie specifies a 45 Hz to 20 kHz frequency range at -10 dB and up to 131 dB peak SPL. Its 90° horizontal by 60° vertical coverage is intended to distribute sound across a useful listening area.

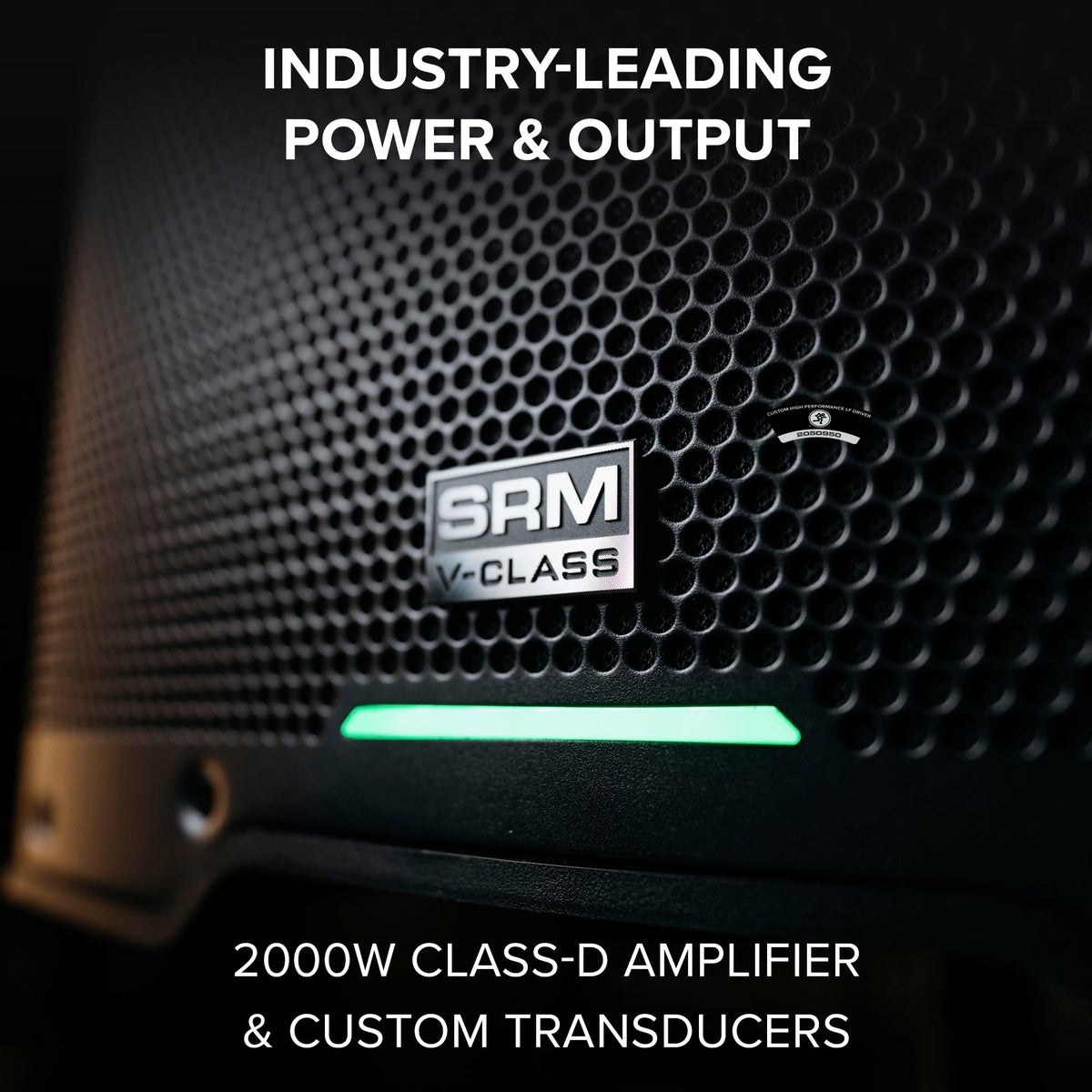

A 2,000-watt peak Class D amplification system powers the cabinet, with separate 1,800-watt peak low-frequency and 200-watt peak high-frequency amplifier sections. Advanced processing includes speaker voicings, three-band EQ, variable high-pass filtering, and alignment delay. These controls let users tailor the speaker for music playback, live sound, speech, club use, or monitor placement.

SRM Mix Control provides a built-in four-channel digital mixer with two combo mic/line inputs, a stereo 1/8-inch auxiliary input, and Bluetooth streaming. Direct outputs for channels 1 and 2 and a post-DSP mix output support expansion to additional loudspeakers. A color TFT display and rotary control provide access to levels, EQ, voicing, configuration, and saved presets.

For system growth, the SRM210 can be paired with another SRM V-Class speaker through wireless linking or connected to a subwoofer using its high-pass filter options. The cabinet can serve as a main PA speaker on a pole, a floor-standing loudspeaker, or a 45-degree stage monitor. SRM Connect app control allows compatible settings adjustments from a Bluetooth-connected mobile device.

Key Features

• 2,000W Peak Amplification: Separate Class D amplifier sections power the low- and high-frequency drivers.
• 10-Inch Two-Way Design: A ferrite woofer and polymer compression driver cover full-range sound duties.
• SRM Mix Control: The integrated four-channel mixer accepts microphones, line sources, instruments, auxiliary audio, and Bluetooth streaming.
• Selectable DSP Voicings: Ten voicing choices help adapt output to application and indoor or outdoor use.
• Flexible System Outputs: Direct outs and a post-DSP mix out support daisy-chaining additional speakers.
• Versatile Cabinet Positioning: Use it on the floor, on a pole, flown by qualified installers, or as a wedge monitor.

Design & Installation

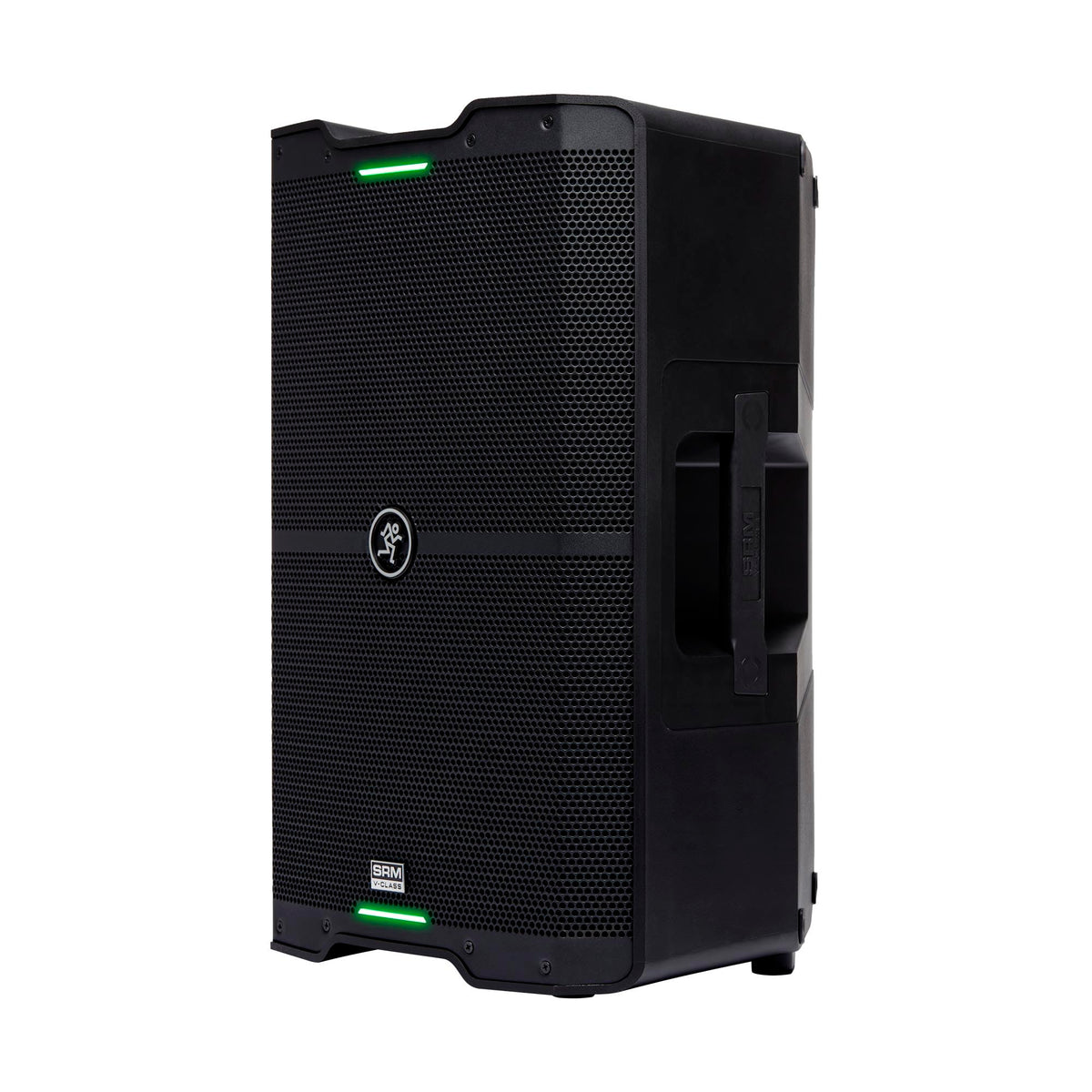

The SRM210 uses an asymmetrical black polypropylene enclosure with a light black textured finish, a powder-coated perforated-steel grille, and nylon net backing. A single integrated handle supports carrying, while front Power/Signal and rear Speaker Control LEDs provide visible status information. The cabinet measures 23.0 inches high, 15.1 inches wide, and 12.9 inches deep, with a weight of 30.9 pounds.

Connect microphones or balanced line sources to channels 1 and 2, connect a stereo source to the 1/8-inch auxiliary input, or stream from a Bluetooth-enabled device. Use the built-in bottom socket for pole mounting, and choose either the straight or 7-degree down-tilt pole angle as appropriate for coverage; the cabinet may also be placed horizontally at its 45-degree monitor angle. For flown installation, use the integrated M10 mounting points and qualified installation practices; a detachable IEC power cord is included.
