Zoom ZERL6 ERL-6 Eurorack Adapter for LiveTrak L6/L6max

The Zoom ERL-6 is a dedicated Eurorack mounting adapter for integrating a Zoom LiveTrak L6 or LiveTrak L6max digital mixer/recorder into a compatible modular-synth case. It provides the mounting hardware and power conversion needed to move the mixer from a desktop or portable setup into a rack-based system. This makes it useful for musicians and creators building compact, organized modular production or performance rigs.

The ERL-6 is intended for LiveTrak L6 and L6max owners who want their mixer positioned directly within a Eurorack workflow. It mounts the LiveTrak L6 in 54HP of rack space, while the LiveTrak L6max requires 66HP. The adapter keeps the mixer accessible alongside Eurorack sound sources, processors, and control modules.

Because the ERL-6 is a mounting and power accessory, it does not add audio processing or change the LiveTrak mixer's sound. Its function is to provide a secure physical installation and compatible power connection from the Eurorack case. The result is a cleaner integration path for using the LiveTrak as part of a modular system.

The included power adapter converts the Eurorack case's +12V supply to +5.6V for the connected LiveTrak L6 or L6max. A 300 mm ribbon cable is included for connection to the Eurorack power system. The adapter draws a maximum of 500 mA from the +12V supply, so available case power should be checked before installation.

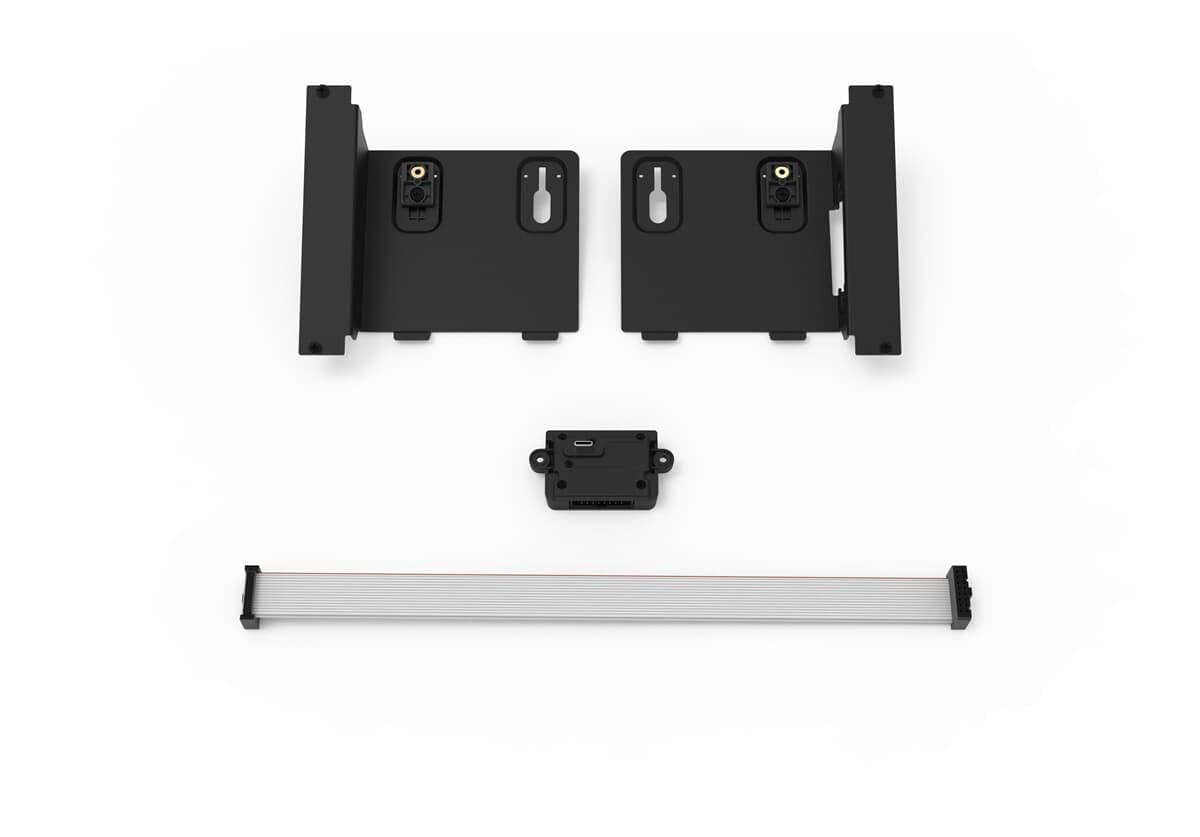

Two rack mounting plates, a power adapter, ribbon cable, and mounting screws are included in the package. The plates attach to the compatible LiveTrak unit and then secure into the Eurorack case. This purpose-built kit is a practical upgrade for users who want to make the LiveTrak L6 or L6max a permanent part of a modular setup.

Key Features

• LiveTrak Compatibility: Designed for the Zoom LiveTrak L6 and LiveTrak L6max.
• Eurorack Mounting: Installs the L6 in 54HP or L6max in 66HP.
• Power Conversion: Converts Eurorack +12V power to +5.6V for the mixer.
• Included Ribbon Cable: Supplies a 300 mm cable for Eurorack power connection.
• Complete Mounting Hardware: Includes two mounting plates and eight screws.
• Compact Components: Keeps the mounting and power hardware compact within a rack system.

Design & Installation

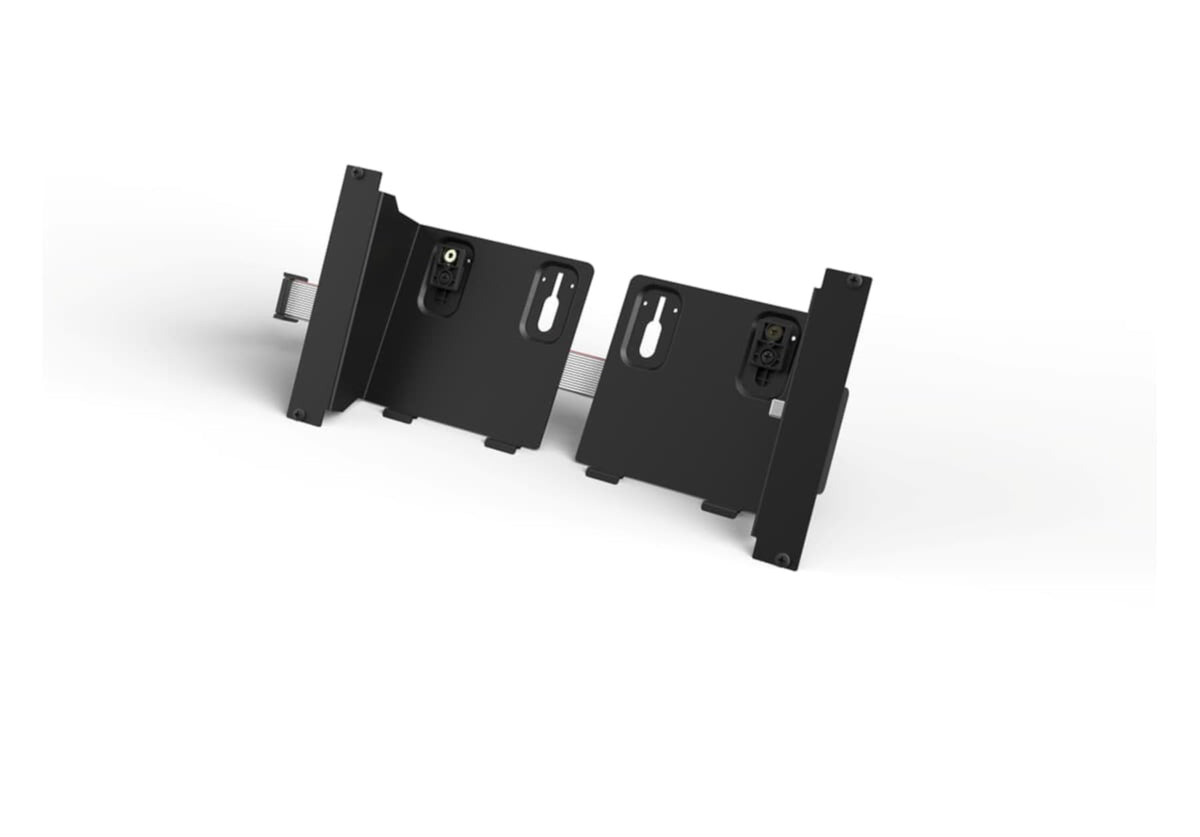

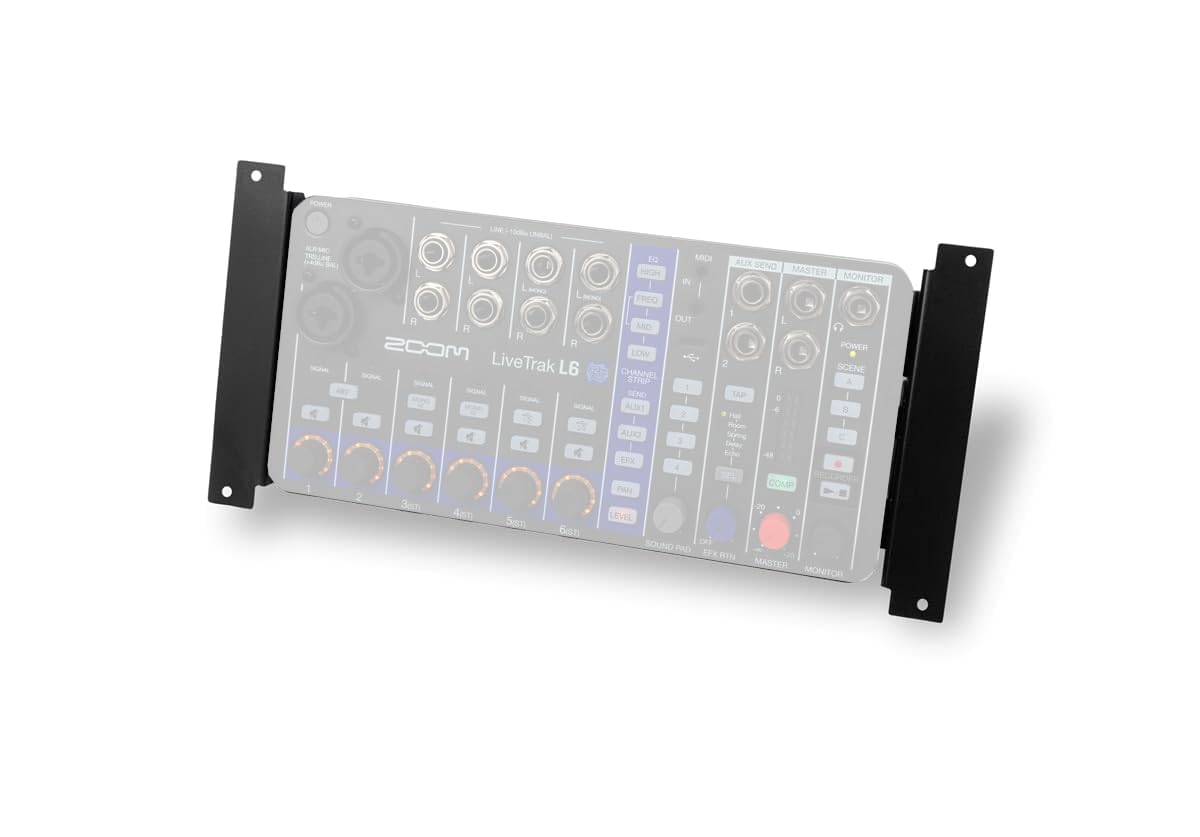

The ERL-6 uses two dedicated rack mounting plates that attach to the sides of the compatible LiveTrak L6 or L6max. The left and right plates have individual listed weights, and the included power adapter is compact enough to fit within the installation arrangement. Its modular-specific design keeps the mixer securely positioned in a standard Eurorack environment.

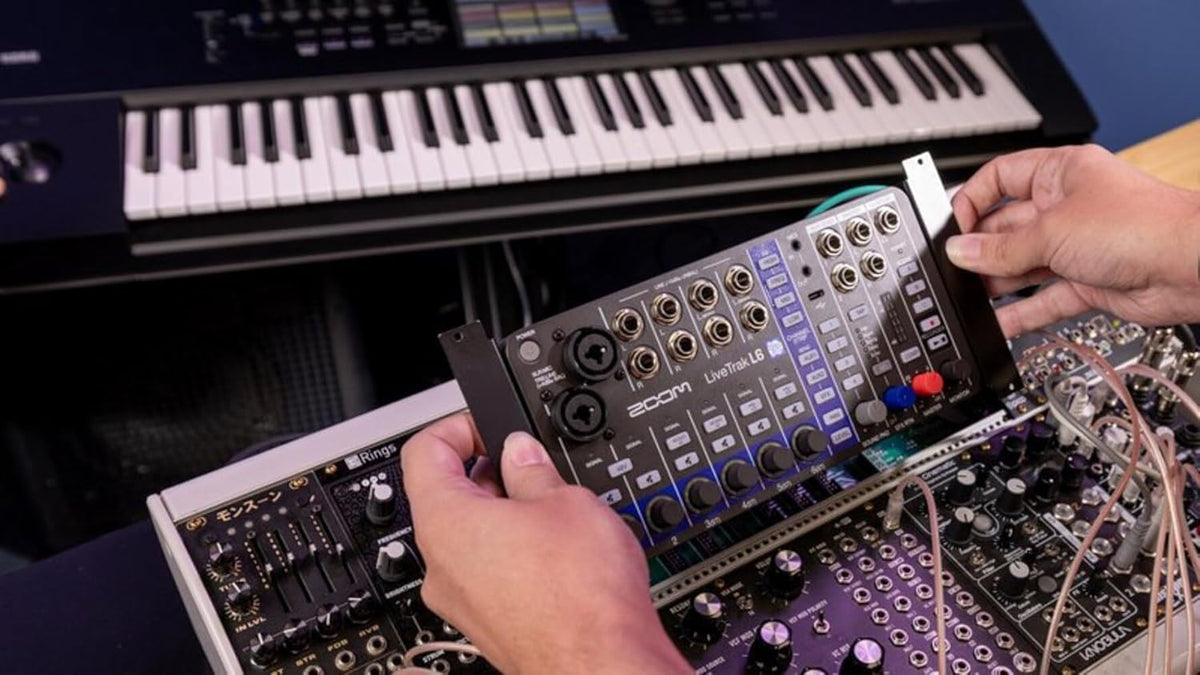

Before attaching the ERL-6, remove batteries from the LiveTrak unit and switch off the Eurorack case power. Connect the ribbon cable between the included power adapter and a compatible Eurorack power connector, observing the red-stripe orientation shown in the installation instructions. Confirm that the case can supply the required +12V current, then secure the assembly into the rack using four mounting points.
