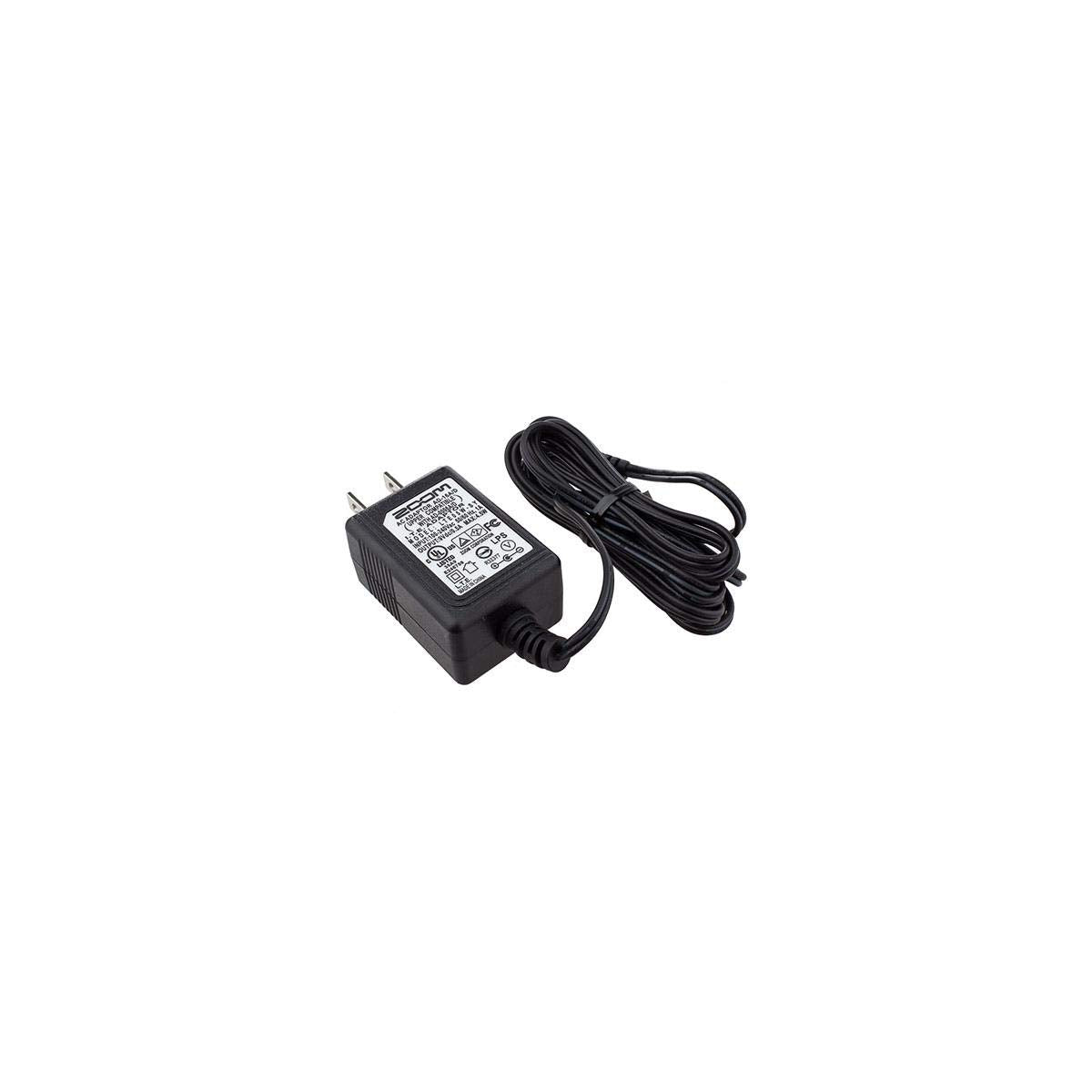

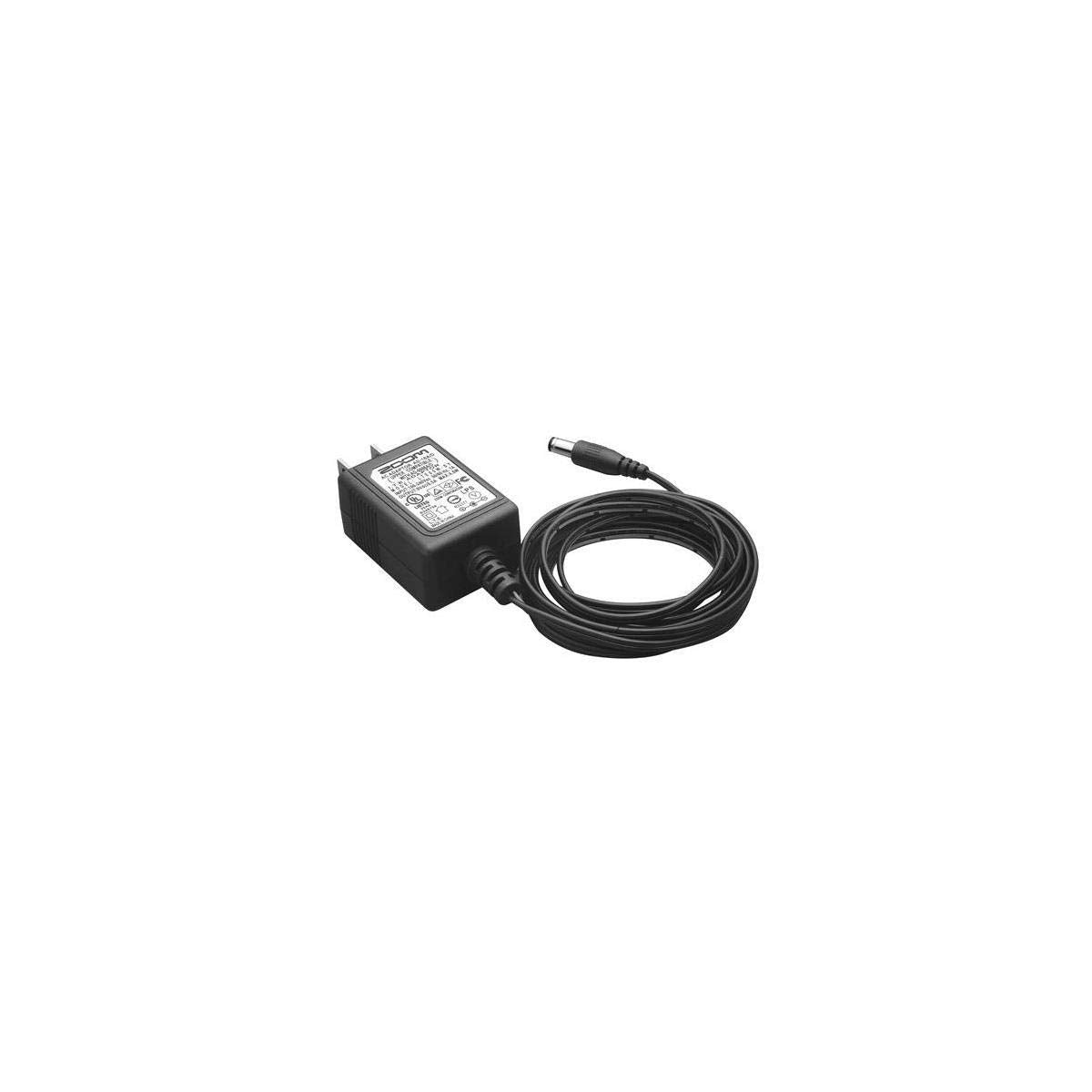

Zoom ZAD16 9V DC Power Adapter

The Zoom ZAD16 is a dedicated external power adapter for compatible Zoom effects pedals, multi-effects processors, rhythm machines, recorders, and vocal processors. It converts AC wall power to the 9V DC power required by supported Zoom equipment. This provides a practical alternative to battery operation for stationary practice, rehearsal, recording, or performance setups.

Designed for musicians and creators using compatible Zoom products, the adapter supplies 500mA of regulated 9V DC power with center-negative polarity. Its 100-240V input rating and 50/60Hz operation support use with appropriate local wall-plug arrangements. Always confirm that the connected Zoom device is listed as compatible before powering it.

The ZAD16 is a power accessory rather than an audio processor, so it does not alter the tone or sound character of the connected device. Its role is to provide the specified operating power so a compatible processor can perform as designed. Using the correct voltage, current rating, and polarity is important when replacing or adding a power supply.

Zoom specifies this adapter for a broad range of legacy and current-compatible products, including selected MS Series pedals, G3 and G3X processors, B3 bass effects, G5 guitar effects, and other Zoom devices. The center-negative DC output follows the power requirement documented for these supported products. It is intended for one compatible Zoom device at a time unless the device manufacturer specifically documents another arrangement.

For a pedalboard, desktop recording station, or rehearsal rig, the ZAD16 serves as the wall-power link between an AC outlet and a supported Zoom unit. Its universal-voltage input makes it suitable for travel when paired with the correct regional outlet connection. Check the exact model name on the Zoom compatibility list and the power label on the device before setup.

Key Features

• 9V DC Output: Supplies the DC voltage specified for compatible Zoom products.
• 500mA Current Rating: Provides up to 0.5A of output current.
• Center-Negative Polarity: Matches the documented polarity for supported Zoom devices.
• 100-240V Input: Supports a wide range of AC mains voltages.
• 50/60Hz Compatibility: Designed for common worldwide AC line frequencies.
• Zoom Device Support: Listed for numerous compatible pedals, processors, and accessories.

Design & Installation

The ZAD16 is an external Zoom power adapter built to deliver 9V DC at 500mA with center-negative polarity. Zoom's published specifications identify its electrical ratings and supported-device list, but do not specify housing material, cable length, connector dimensions, or product dimensions. Country of origin is listed as China.

Connect the adapter to a suitable AC outlet, then connect its DC output only to a confirmed compatible Zoom device. Verify that the device requires 9V DC, center-negative polarity, and no more than the adapter's 500mA output rating. Do not use it with equipment that requires a different voltage, polarity, connector, or power type.
