Shure BLX24R/SM58-H9 Rack-Mount Wireless Vocal System

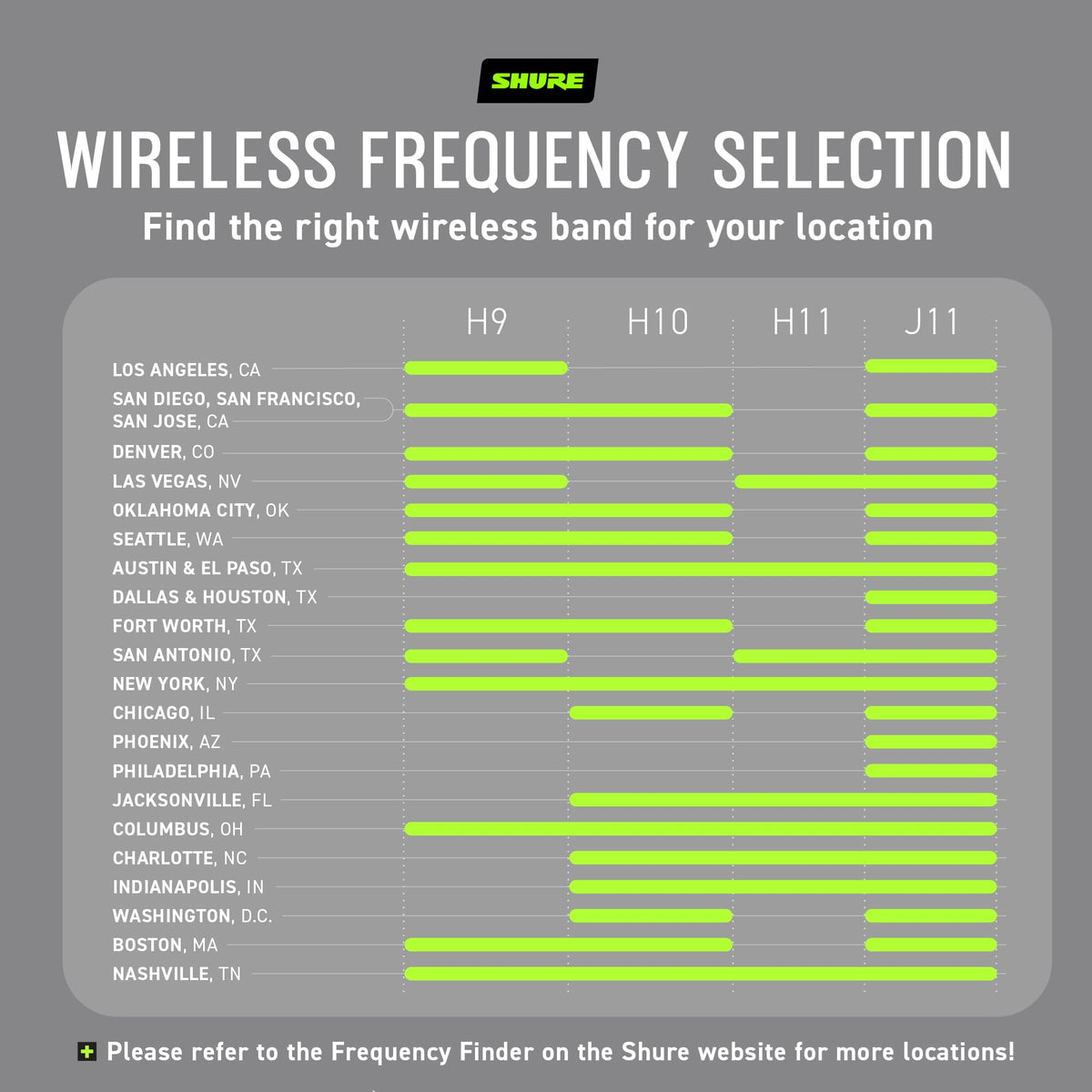

The Shure BLX24R/SM58-H9 is a single-channel UHF wireless vocal system built around a rack-mount receiver and a handheld transmitter with an integrated SM58 microphone capsule. It is designed for performers, presenters, houses of worship, and installed sound systems that need a dependable wireless vocal connection without placing a receiver on a tabletop. The H9 version operates in the 512–542 MHz frequency band, so local frequency authorization should be verified before use.

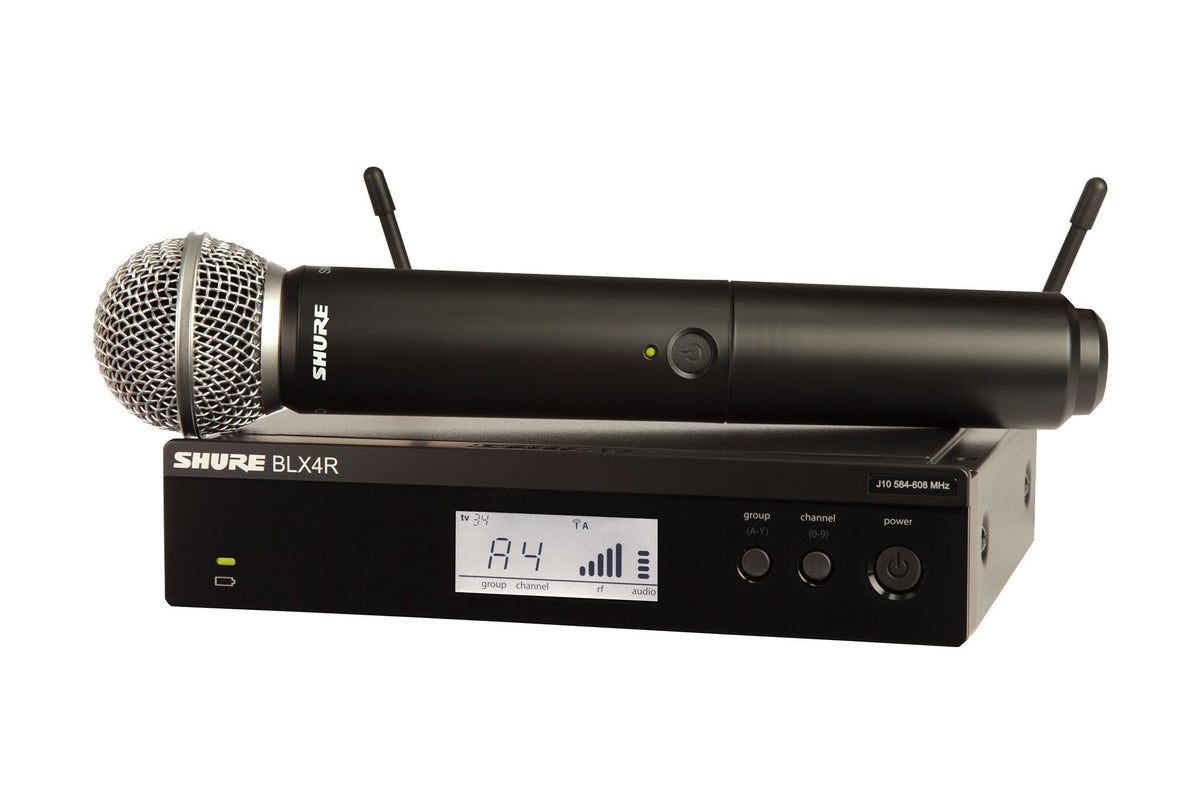

The system pairs the BLX4R half-rack receiver with the BLX2/SM58 handheld transmitter for clear, focused vocal reproduction. Its SM58 capsule uses a cardioid pickup pattern that emphasizes the performer while helping reduce pickup of sound from behind the microphone. This makes it well suited to speech, lead vocals, announcements, and live PA applications.

Shure specifies a line-of-sight operating range of up to 300 feet, with actual range depending on RF absorption, reflections, and interference in the environment. The BLX2 transmitter runs on two AA alkaline batteries for up to 14 hours under typical conditions. A -10 dB gain attenuation option helps accommodate louder vocal sources when needed.

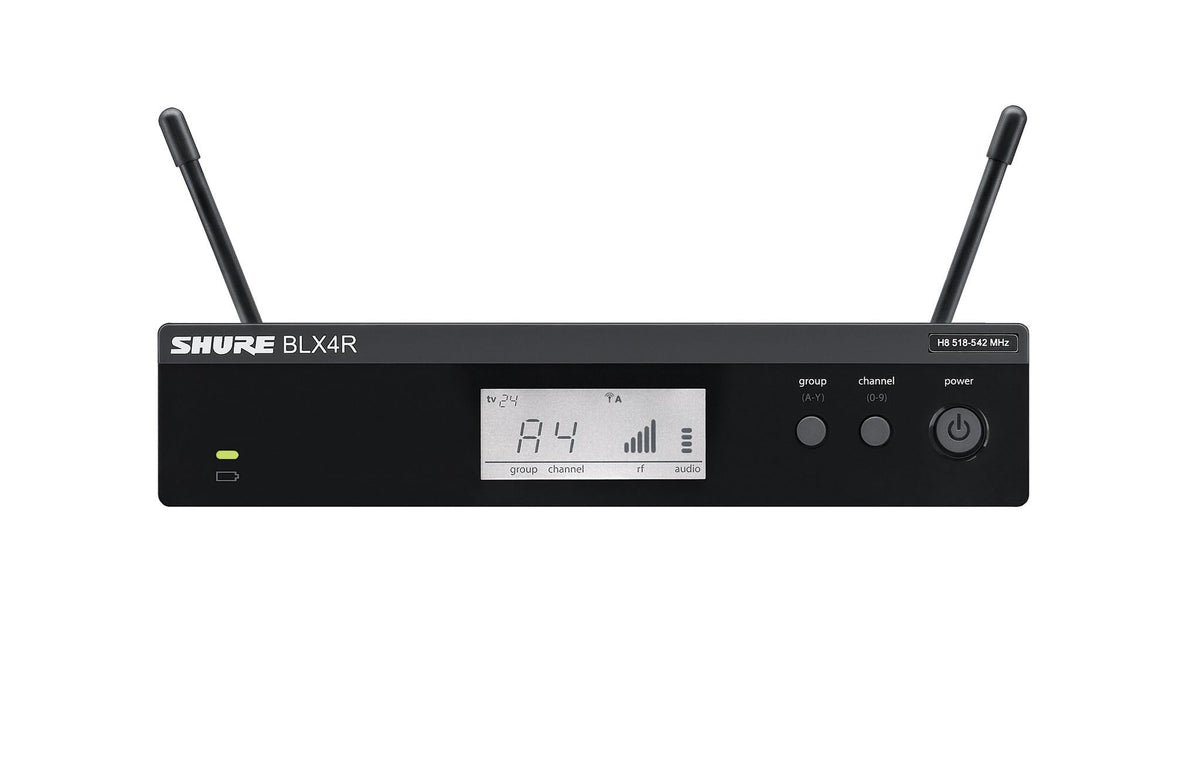

The BLX4R receiver provides balanced XLR and unbalanced 1/4-inch audio outputs for connection to a mixer, powered speaker system, amplifier, or other compatible audio equipment. Its LCD supplies RF and audio metering, while the two-color audio LED indicates normal level or overload. Adjustable output level supports practical matching with a variety of sound-system inputs.

QuickScan frequency selection is designed to help locate an available operating frequency during setup. The receiver uses microprocessor-controlled internal antenna diversity and includes removable BNC antennas for flexible rack installation. For larger wireless deployments, Shure specifies support for up to 12 compatible systems per frequency band, subject to regional conditions and the RF environment.

Key Features

• H9 UHF Band: Operates from 512–542 MHz; verify local authorization before use.
• SM58 Handheld Transmitter: Integrated cardioid vocal capsule supports focused live sound.
• BLX4R Rack Receiver: Half-rack receiver fits installed and portable rack systems.
• QuickScan Setup: One-touch scanning helps select an open operating frequency.
• Dual Audio Outputs: XLR and 1/4-inch outputs connect to common audio systems.
• Long Battery Life: BLX2 operates up to 14 hours on two AA batteries.

Design & Installation

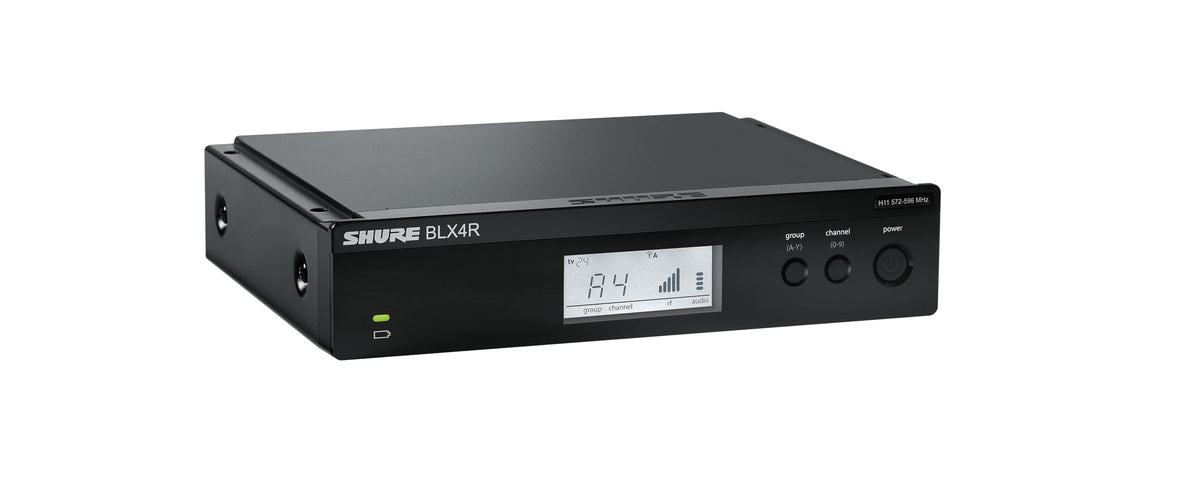

The BLX4R receiver combines molded ABS and steel construction in a compact half-rack format. Its front-panel LCD, audio-status LED, adjustable output control, and removable antennas are arranged for straightforward operation in a rack. The BLX2 transmitter uses a lightweight molded ABS housing with an integrated SM58 microphone capsule.

Install the receiver using the included rack hardware, then connect its XLR or 1/4-inch output to a compatible mixer, PA system, or amplifier input with the appropriate cable. Attach the included BNC antennas and use QuickScan to select a suitable channel before matching the H9 transmitter to the H9 receiver. For multi-system installations, frequency coordination and local spectrum compliance are important for dependable operation.
