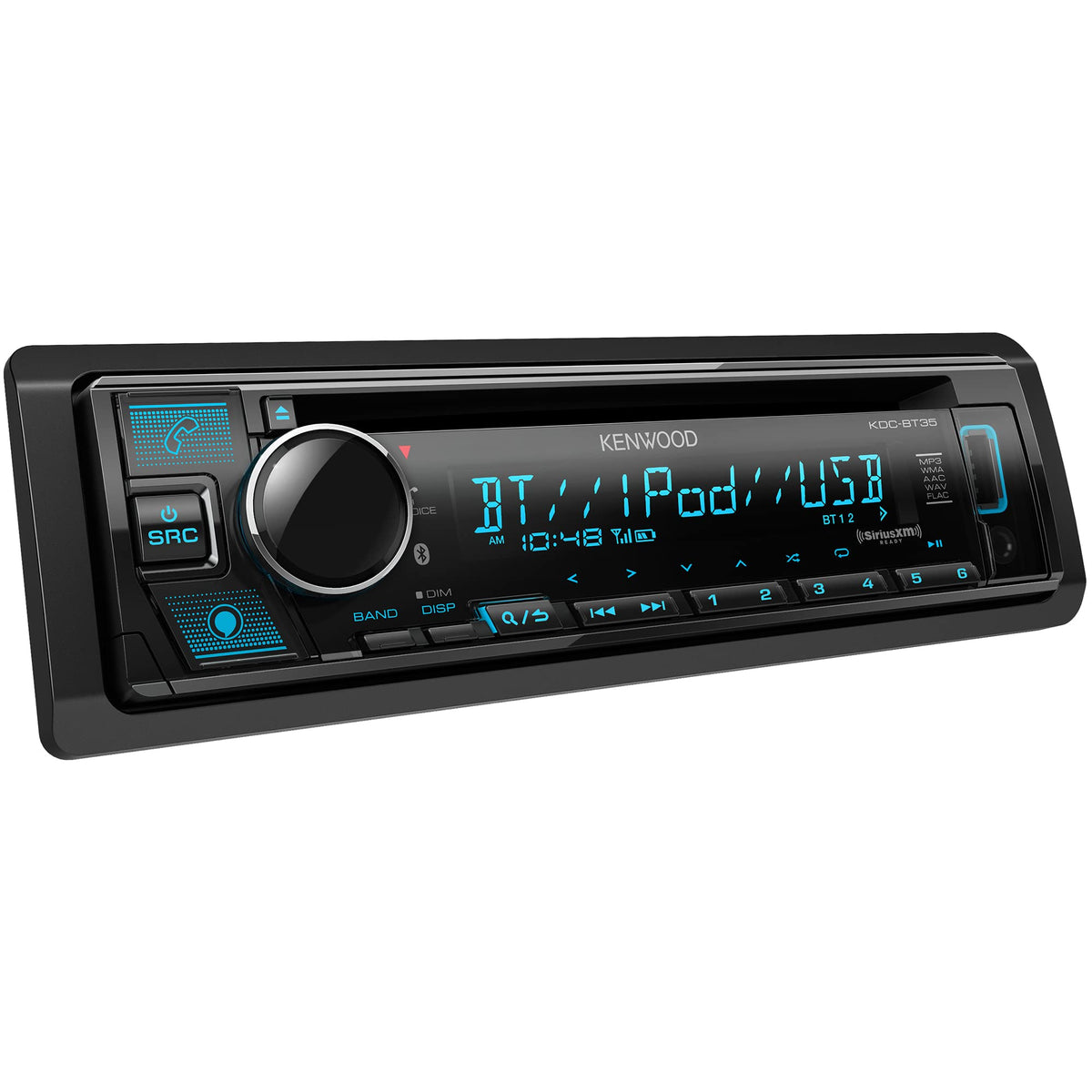

KENWOOD KDC-BT35 Single DIN CD Receiver with Bluetooth

The KENWOOD KDC-BT35 is a Single DIN CD receiver for drivers who want to refresh an older factory radio with modern phone connectivity while retaining CD playback. It combines Bluetooth calling and audio streaming with front-panel USB and AUX inputs for flexible everyday listening. The compact chassis fits standard Single DIN dash openings and includes a detachable faceplate for added security.

This receiver suits vehicles that do not need a touchscreen interface but benefit from straightforward physical controls, radio reception, and smartphone audio access. Bluetooth supports hands-free calling, while the supplied external microphone can be positioned for clearer voice pickup. Dual-phone connection lets two phones remain connected for calling, and Music Mix allows switching among up to five Bluetooth audio devices.

Its built-in four-channel amplifier delivers up to 22 watts per channel of full-bandwidth power at less than 1% THD, with 50 watts x 4 maximum output. A 13-band equalizer, Digital Time Alignment, and Drive EQ provide useful tools for tailoring the system to the vehicle and listening position. USB playback supports FLAC files up to 24-bit/96 kHz along with WAV, MP3, WMA, and AAC formats.

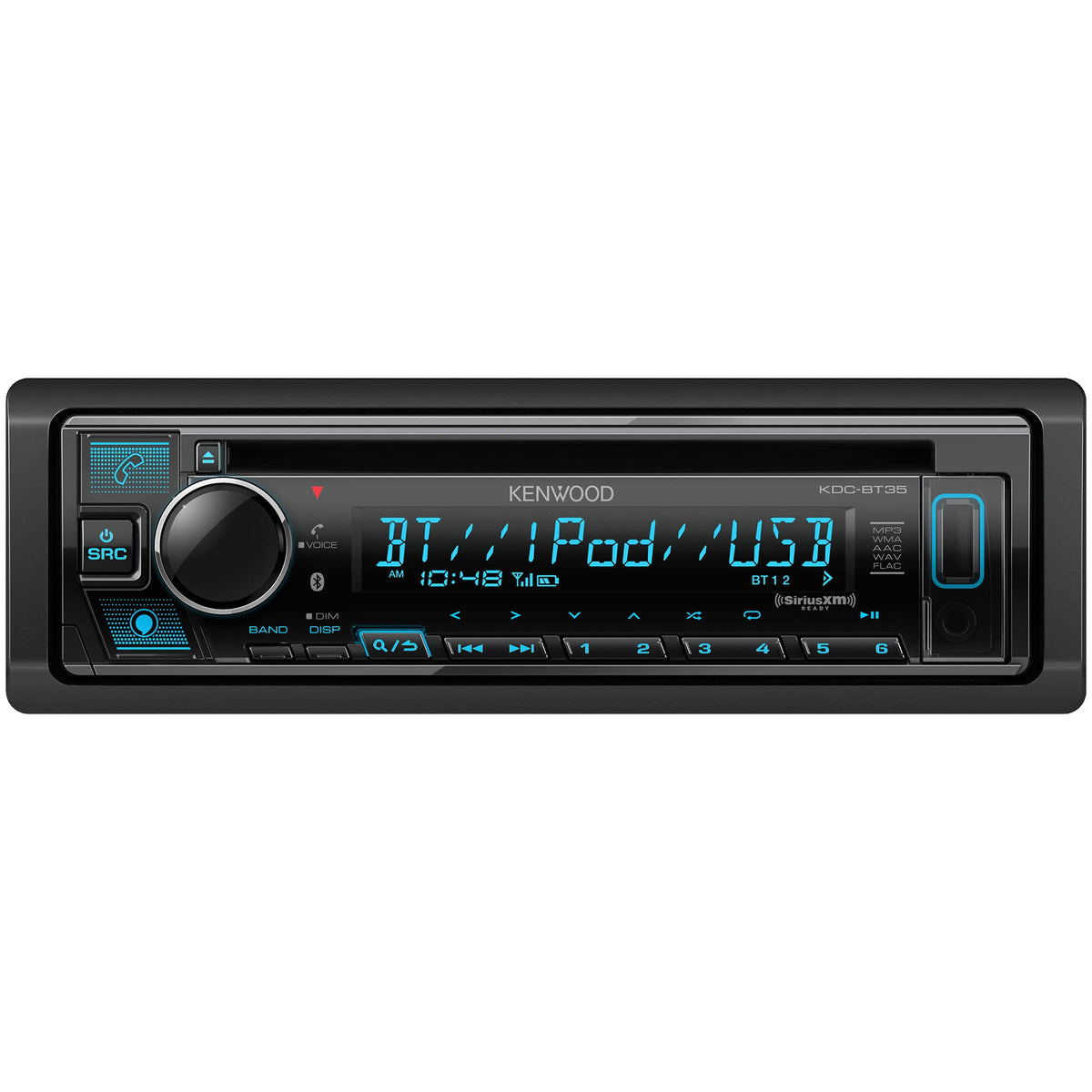

The KDC-BT35 uses a 255-segment, 1.5-line text display with variable-color illumination to integrate with a range of dashboard lighting colors. It also offers English, Spanish, and French display text options. Amazon Alexa compatibility adds voice interaction through a connected smartphone and the Alexa app.

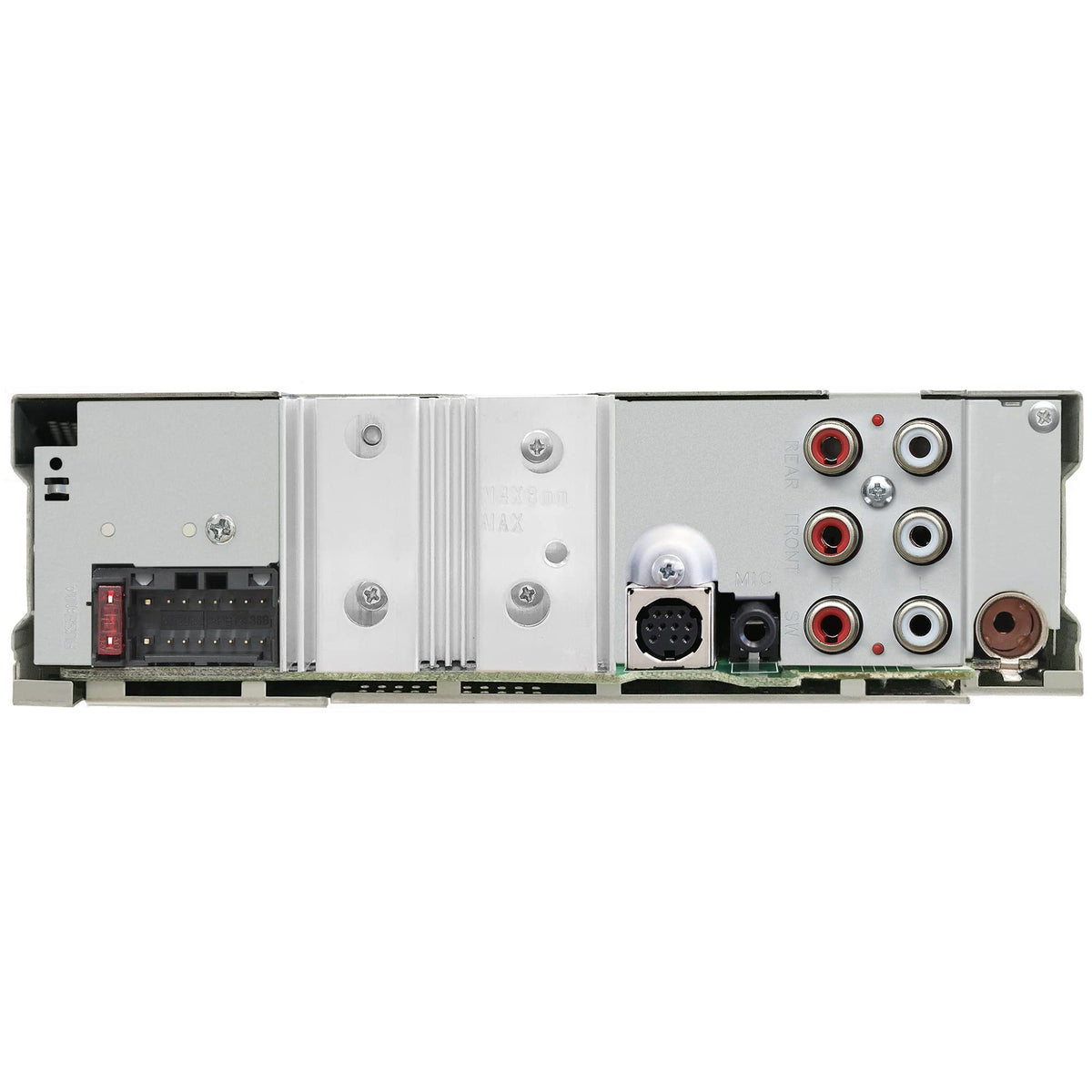

For a larger sound system, the receiver provides three pairs of 2.5-volt RCA preouts for front, rear, and subwoofer amplification. It is SiriusXM Radio Ready when used with a compatible optional SiriusXM vehicle tuner. This makes the KDC-BT35 a practical foundation for a basic speaker replacement, an amplified speaker system, or a system with a powered subwoofer.

Key Features

• Bluetooth 4.2: Supports hands-free calls, audio streaming, and compatible phonebook access.
• Music Mix: Switch among up to five Bluetooth audio devices.
• 13-Band EQ and DTA: Adjust tonal balance and speaker timing for your vehicle.
• Front USB and AUX: Connect flash drives, phones, and portable audio players.
• Three 2.5V RCA Preouts: Add external amplifiers or a powered subwoofer.
• Variable Color Illumination: Match the receiver lighting with your dashboard.

Design & Installation

The KDC-BT35 is a purpose-built CD receiver with a compact Single DIN chassis, detachable faceplate, front-access USB and AUX connections, and a 255-segment 1.5-line text display. KENWOOD specifies variable-color LED illumination for visual integration with different dash lighting colors. The included trim plate and mounting sleeve support a clean conventional receiver installation.

Confirm that the vehicle accepts a Single DIN radio opening before purchase; the receiver installation size is 7-3/16 inches wide by 2-1/16 inches high by 6-1/8 inches deep. Vehicle-specific wiring interfaces, dash kits, antenna adapters, steering-wheel-control interfaces, and SiriusXM hardware are not included unless separately supplied by the installer or retailer. Use the front USB input for supported music files and charging, connect the supplied microphone at the rear microphone input, and use the RCA preouts when adding external amplification.
