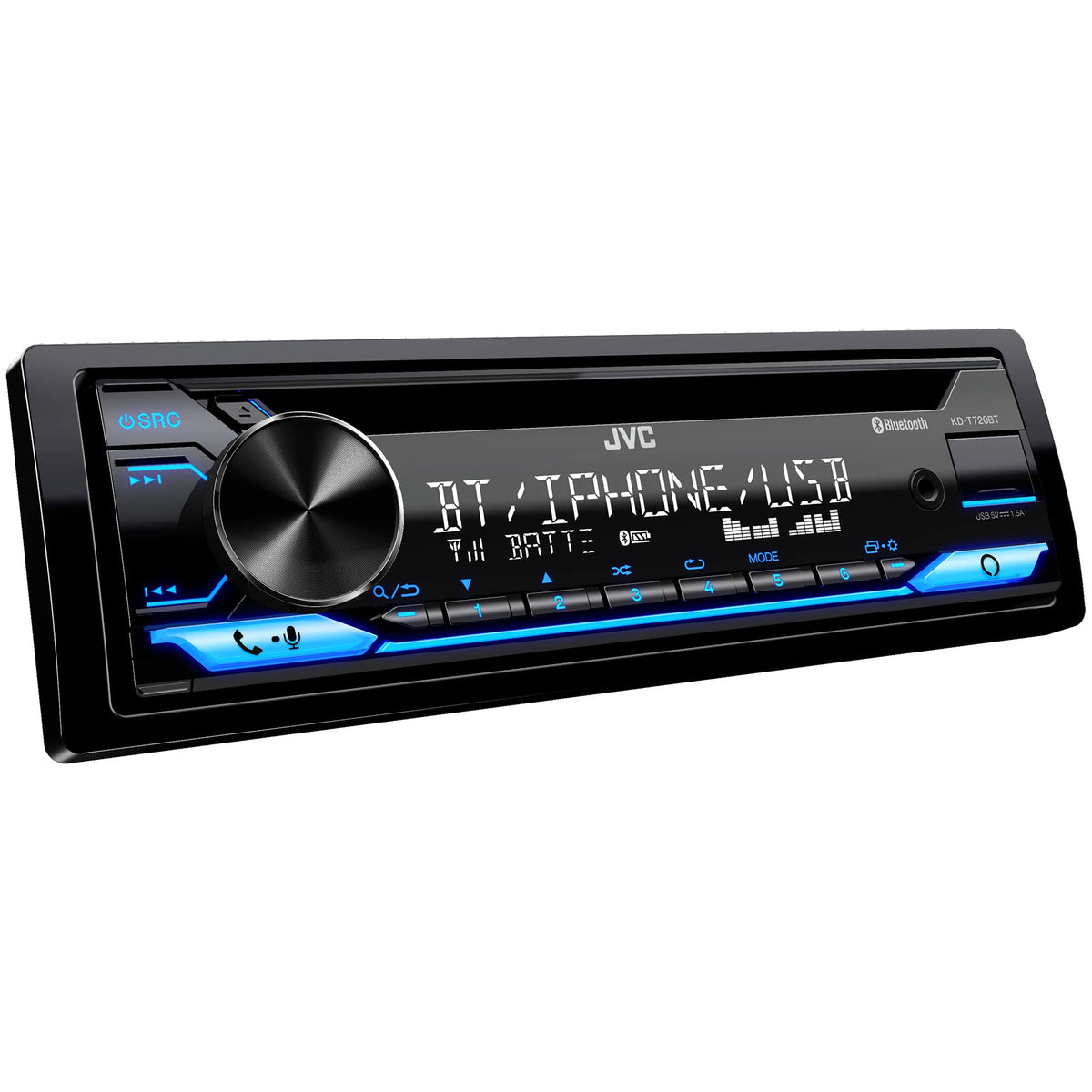

JVC KD-T720BT Single DIN CD Receiver with Bluetooth

The JVC KD-T720BT is a Single DIN CD receiver for drivers who want to update an older factory radio while retaining physical controls, AM/FM radio, and disc playback. It combines Bluetooth calling and music streaming with front USB and auxiliary inputs for everyday device connectivity. Its detachable faceplate also adds convenience for vehicles where a traditional compact receiver format is preferred.

This receiver suits drivers who still use CDs or USB music libraries but also want straightforward smartphone integration. Two phones can remain connected through Bluetooth for call handling, while JVC Streaming DJ supports music playback control from up to five paired Bluetooth devices. iPhone, iPod, and iPad music playback is supported by USB or Bluetooth, while Android music playback is supported through Bluetooth.

Its built-in amplifier is rated at 22 watts by four channels of full-bandwidth power at less than 1% THD, with a 50-watt-by-four maximum-output rating. A 13-band graphic EQ, 11 EQ presets, high-pass and low-pass filters, time alignment, and selectable speaker settings provide useful tuning tools for a factory-speaker upgrade. K2 processing, Sound Response, Sound Lift, Space Enhancement, and Volume Link EQ offer additional ways to tailor playback for the vehicle environment.

The KD-T720BT uses Bluetooth 4.2 with hands-free, phonebook-access, audio-streaming, and audio-control profiles. A wired microphone is included for hands-free calling, and the receiver supports Amazon Alexa compatibility through a connected smartphone and the Alexa app. The front USB port supplies up to 1.5 amps for charging while also supporting compatible USB mass-storage music files.

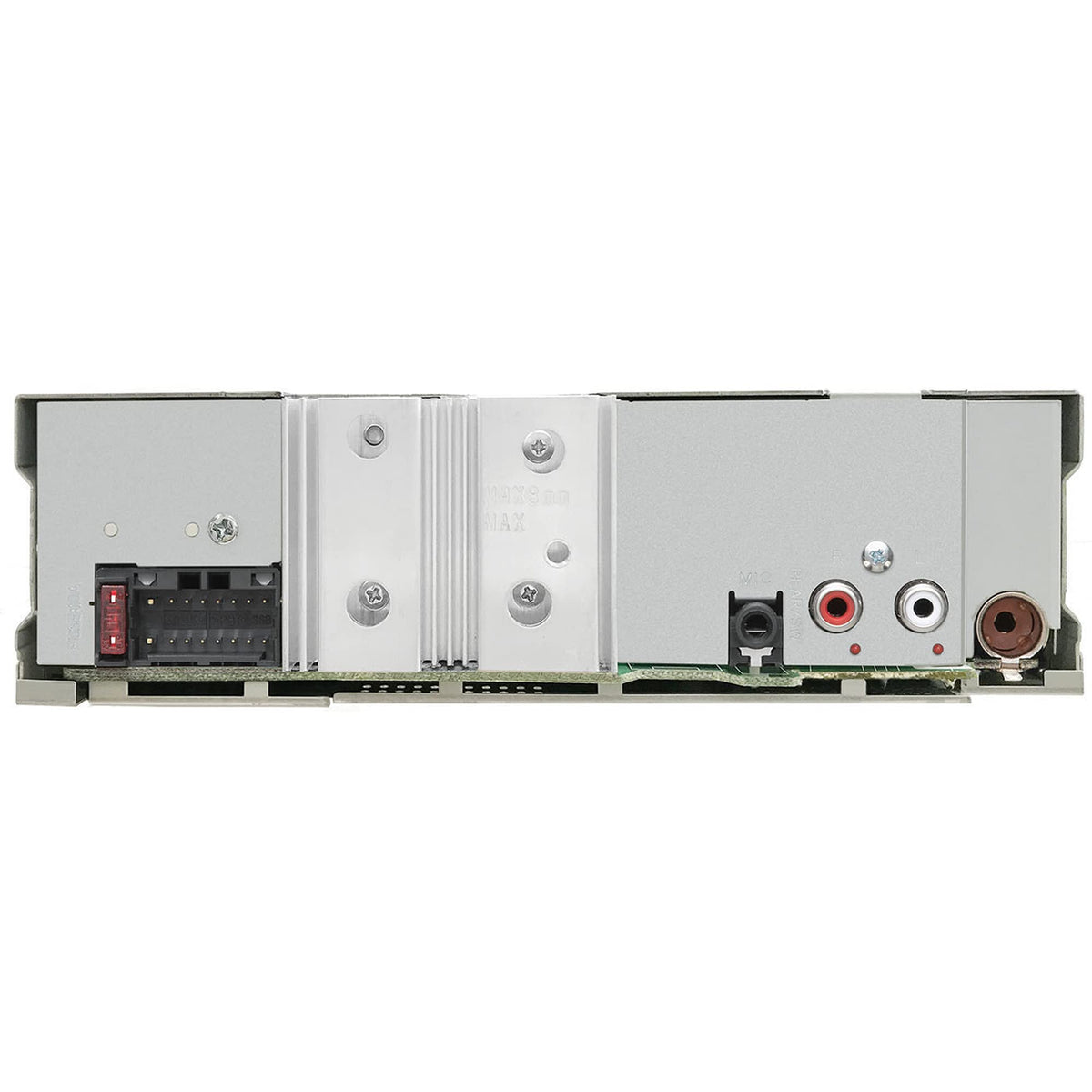

For system expansion, the receiver provides one pair of 2.5-volt rear/subwoofer-selectable preamp outputs for an external amplifier. Its rear speaker leads can also be configured for direct mono subwoofer connection in the appropriate output setting. This makes it a practical fit for a basic four-speaker replacement system or a setup that adds an amplifier and subwoofer later.

Key Features

• CD And Digital Playback: Plays CDs plus compatible MP3, WMA, AAC, WAV, and FLAC files from USB media.
• Bluetooth 4.2: Enables hands-free calls, wireless music streaming, phonebook access, and supported audio controls.
• Dual-Phone Connection: Keeps two phones connected for convenient call handling from either device.
• 13-Band Sound Tuning: Provides EQ, time alignment, crossover filters, and additional sound-adjustment tools.
• Amazon Alexa Compatibility: Provides voice-assistant access through a compatible Bluetooth-connected smartphone and Alexa app.
• 2.5V Rear/Subwoofer Preouts: Supports adding an external amplifier or powered subwoofer to the system.

Design & Installation

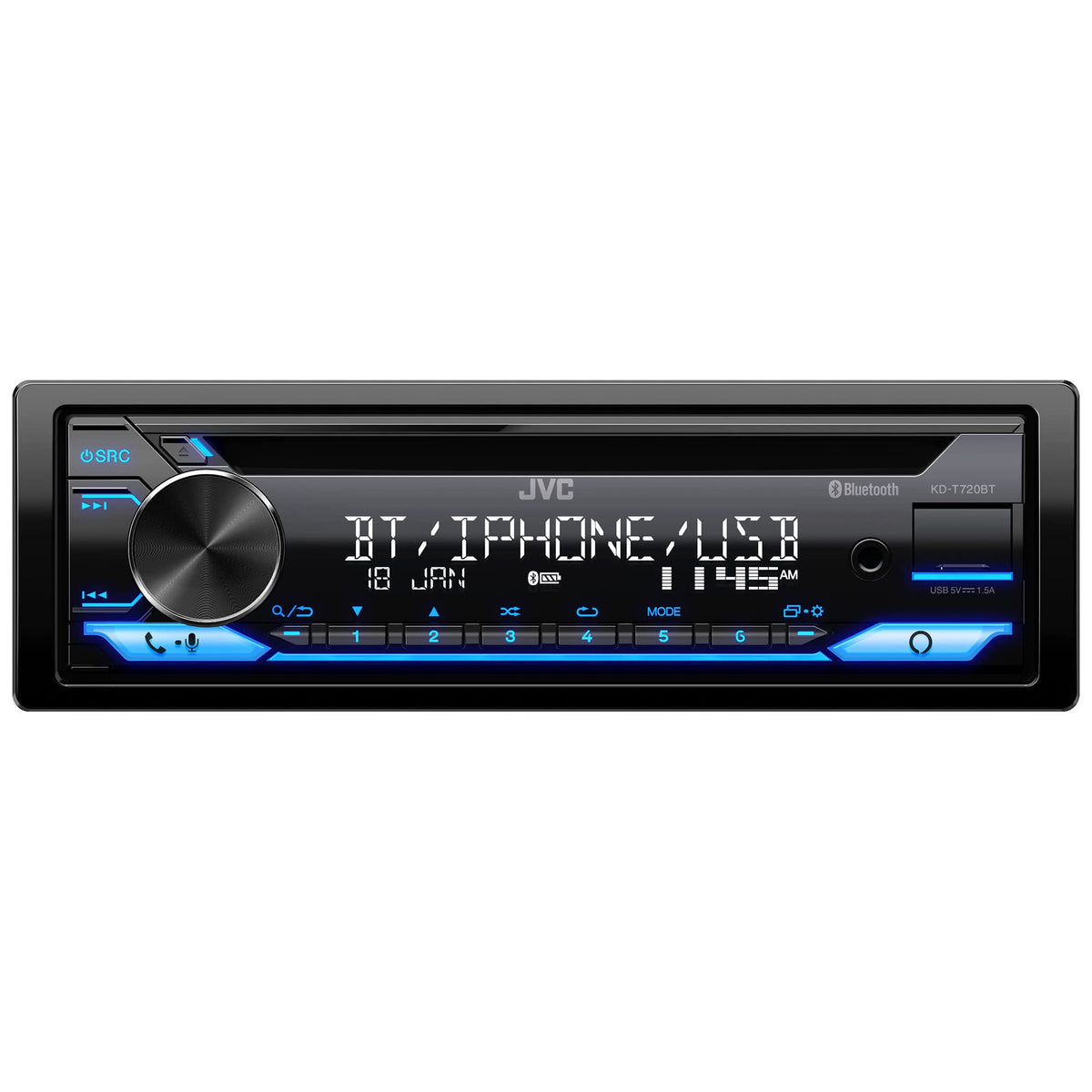

The front-panel design centers on a detachable faceplate, blue key illumination, and a white 2-line VA LCD display with brightness control and auto dimming. The display supports English, Spanish, and French text, while Music Sync illumination changes patterns with the music. A dedicated front USB port and 3.5 mm auxiliary input keep commonly used connections accessible.

The KD-T720BT fits a standard Single DIN opening with an installation size of 182 x 53 x 156 mm. Installation uses the supplied mounting sleeve, trim plate, wiring harness, and extraction keys; a vehicle-specific wiring harness is recommended for proper integration. Retaining factory steering-wheel controls requires a separately purchased compatible adapter, and external amplifiers connect through the rear/subwoofer-selectable preamp output.
