JBL CELEBRITY100 Single DIN Digital Media Receiver

The JBL CELEBRITY100 is a Single DIN digital media receiver designed to update a vehicle with Bluetooth connectivity and flexible music playback without adding a CD mechanism. It provides FM radio, USB, AUX, SD card, and Bluetooth source options in a compact dashboard format. Its detachable faceplate adds a practical measure of security when the vehicle is parked.

This receiver is suited to drivers replacing an older factory radio or adding modern wireless audio streaming to a vehicle with a standard Single DIN opening. Bluetooth supports both audio streaming and hands-free calling, helping keep a compatible phone connected while driving. Front-panel USB and 3.5 mm AUX inputs provide straightforward wired options for portable devices.

The CELEBRITY100 uses a built-in four-channel amplifier rated for up to 50 watts peak per channel, with a listed RMS output of 22 watts per channel. Its 20 Hz to 20 kHz frequency response supports full-range playback for conventional car speaker systems. A rear preamp output set also provides a connection point for an external amplifier.

As a mechless design, the CELEBRITY100 is built around digital media playback rather than disc playback. It supports MP3 and FLAC audio files and can display MP3 ID3 tag information including title, artist, and album data. The integrated FM tuner covers 87.5 to 108 MHz and stores up to 18 station presets.

The receiver can serve as a simple foundation for a practical audio-system refresh, powering compatible speakers directly or feeding an external amplifier through its rear preamp outputs. Its included ISO wiring harnesses and removal tools support installation, while its standard 178 x 50 x 87 mm installation dimensions suit standard Single DIN dashboard locations. Confirm dashboard space, mounting hardware, antenna connection, and vehicle-specific wiring needs before installation.

Key Features

• Single DIN Mechless Design: Fits standard Single DIN locations without a CD mechanism.
• Bluetooth Connectivity: Supports wireless music streaming and hands-free calling.
• Multiple Media Sources: Plays audio from USB, AUX, SD card, Bluetooth, and FM.
• Four-Channel Amplification: Delivers up to 4 x 50 watts peak output.
• FM Preset Memory: Stores up to 18 favorite FM radio stations.
• Rear Preamp Outputs: Provides one rear output set for amplifier connection.

Design & Installation

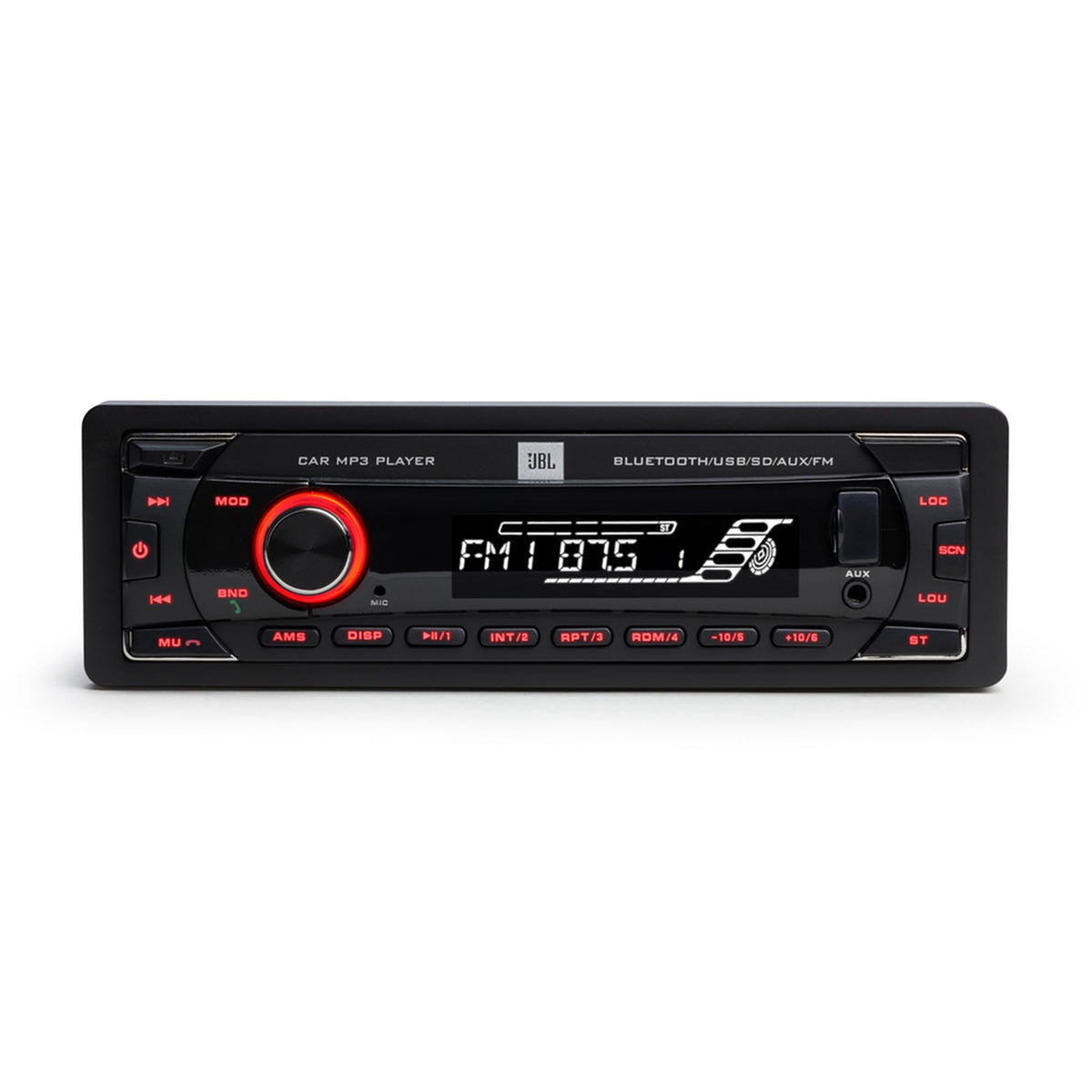

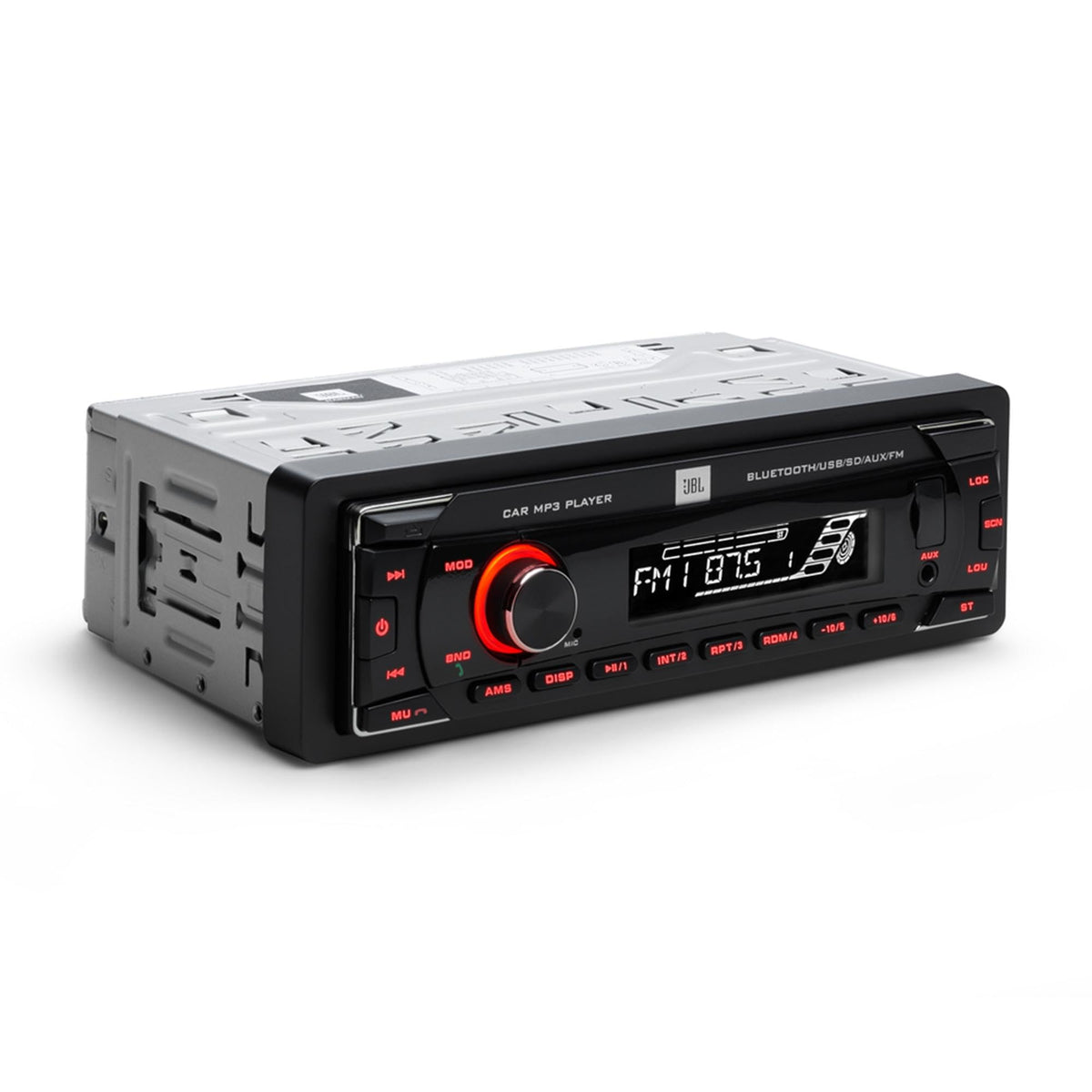

The CELEBRITY100 has a black, compact Single DIN chassis with a detachable front panel and LCD text display. Its mechless layout eliminates the CD transport and focuses the front panel on source selection, radio controls, media playback, USB, AUX, and SD-card access. The removable faceplate can be taken with you when leaving the vehicle.

Install the receiver in a dashboard location that accepts the listed 178 x 50 x 87 mm dimensions. The package includes two ISO wiring harnesses, two removal tools, four face-fixing screws, and an owner's manual; connect the vehicle antenna and wire the receiver according to the supplied harness and installation guidance. Bluetooth is suitable for compatible Android and Apple iOS devices, while USB, AUX, and SD media provide additional playback choices.
