JBL Celebrity 150 Single DIN Digital Media Receiver

The JBL Celebrity 150 is a Single DIN mechless digital media receiver designed to update a compatible vehicle with modern music playback and hands-free Bluetooth calling. It replaces a traditional CD-based radio with Bluetooth, USB, AUX, SD card, AM, and FM listening options. Its detachable faceplate adds a practical theft-deterrent feature for daily-driven vehicles.

This receiver suits drivers who want straightforward source flexibility without needing a touchscreen or disc player. Bluetooth supports both wireless music streaming and hands-free calling, while the front USB, AUX input, and SD/MMC card slot provide convenient wired and stored-media options. AM/FM radio remains available for local broadcasts and preset station access.

Built-in amplification is rated at 4 x 20 watts RMS and 4 x 50 watts peak, providing power for four 4-ohm vehicle speakers. The receiver offers a 20 Hz to 20 kHz frequency response and adjustable bass and treble controls for basic system tuning. USB and SD playback specifications include a signal-to-noise ratio of at least 70 dB and channel separation of at least 70 dB.

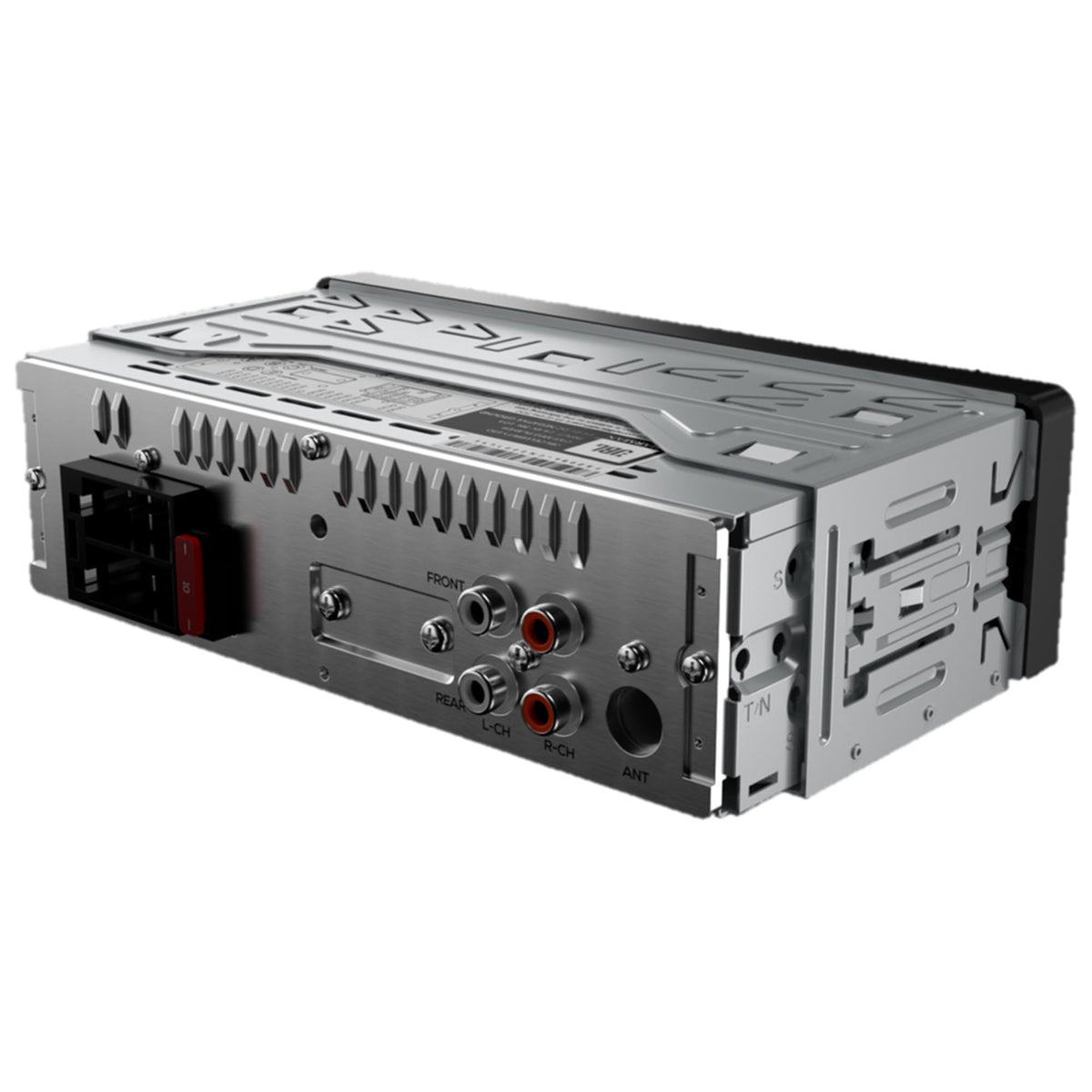

For system expansion, the Celebrity 150 includes two pairs of 4-volt RCA line outputs for front and rear channels. This provides a cleaner signal path for compatible external amplification or processor-equipped installations. The receiver also includes 30 station presets, divided between 18 FM and 12 AM presets.

The standard 1 DIN installation format makes this receiver a practical fit for many dash openings designed for a conventional single-height radio. An ISO wiring harness is included to support installation, although some vehicles may require a vehicle-specific harness adapter, antenna adapter, dash kit, or professional integration. It is intended for 12 V negative-ground automotive electrical systems.

Key Features

• Single DIN Mechless Design: Fits a standard single-height radio opening without a CD mechanism.
• Detachable Faceplate: Removable front panel provides an added theft-deterrent measure.
• Bluetooth 5.0: Supports wireless music streaming and hands-free phone calls.
• Multiple Media Sources: Plays audio through USB, AUX, SD/MMC, AM, and FM.
• 4-Volt RCA Outputs: Two RCA output pairs support front and rear external amplification.
• ISO Harness Included: Includes two ISO wiring harnesses for receiver connection.

Design & Installation

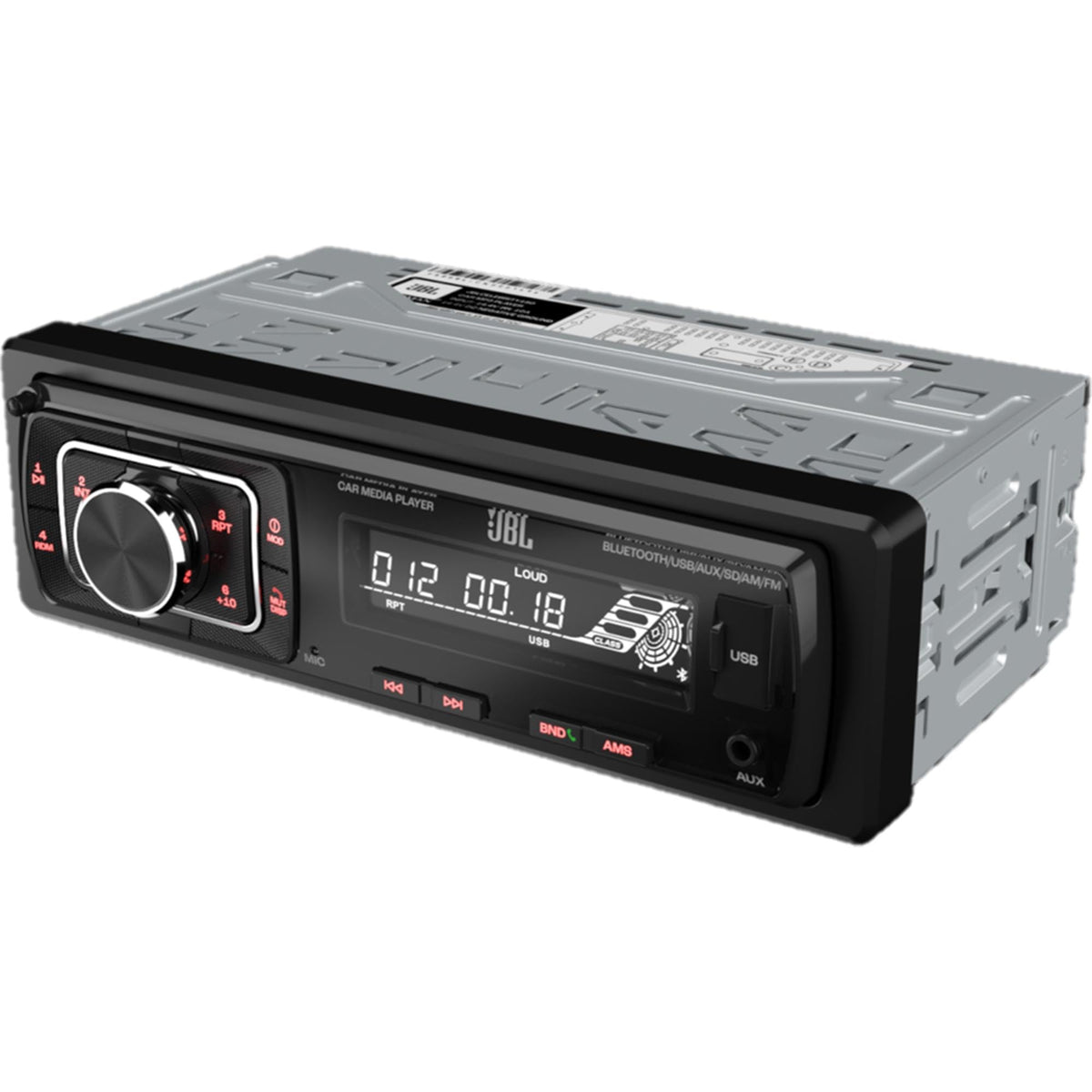

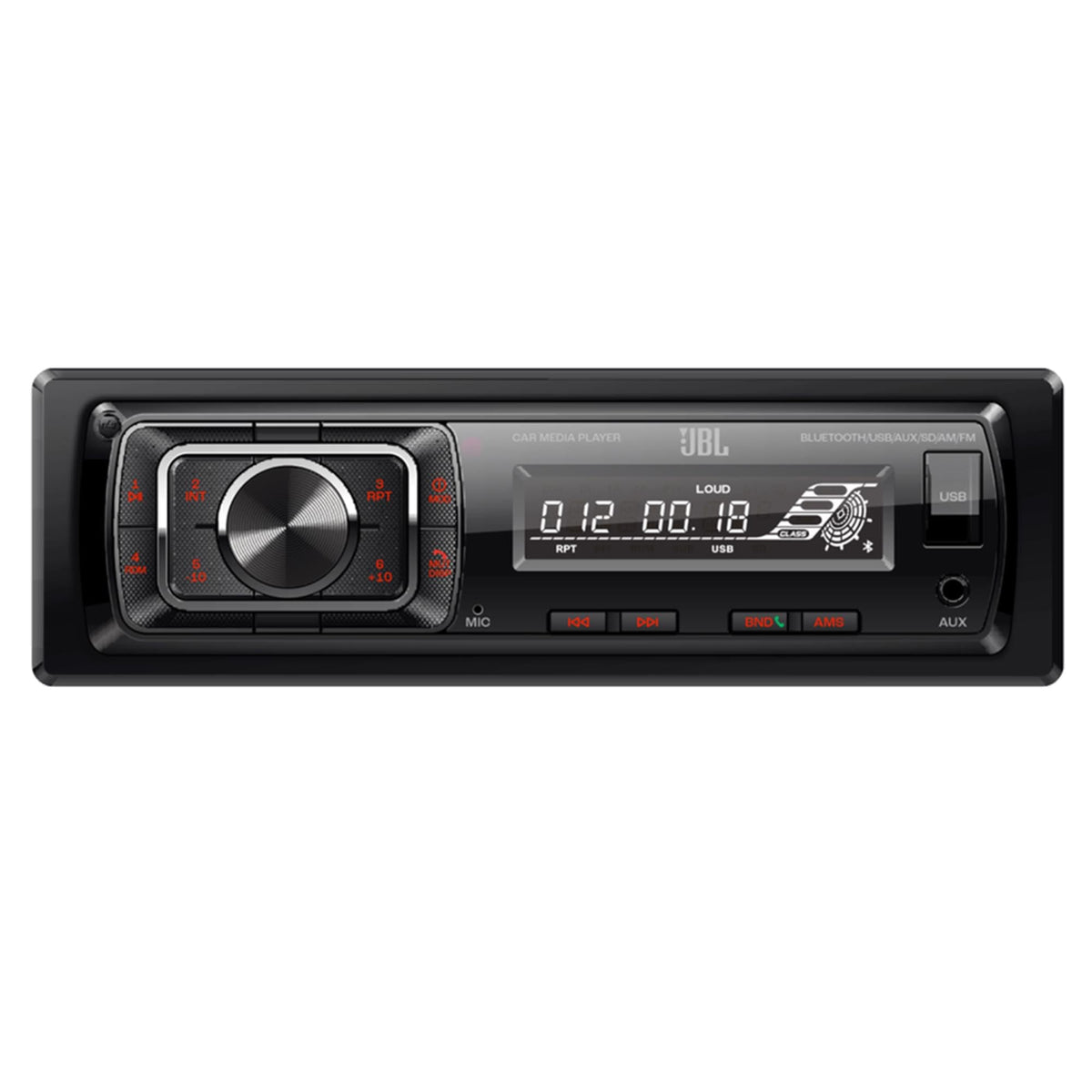

The Celebrity 150 uses a compact black Single DIN chassis with a detachable faceplate, LCD display, front-panel control buttons, a volume/select knob, and accessible AUX, USB, and SD/MMC connections. Its mechless design omits a disc transport, focusing the receiver on digital media, radio, and Bluetooth functions. JBL specifies a 178 x 50 x 87 mm installation size.

Install the receiver only in a compatible 12 V negative-ground vehicle and use the included ISO harnesses as appropriate for the vehicle wiring. A vehicle-specific mounting kit, wiring adapter, and antenna adapter may be needed depending on the factory dash and connector arrangement. For USB and SD playback, use media formatted with the FAT32 file system; pair a phone through Bluetooth for streaming and calling functions.
