Cerwin Vega CV15BT Single DIN Bluetooth Multimedia Receiver

The Cerwin Vega CV15BT is a Single DIN multimedia receiver for vehicles that need modern music playback, Bluetooth calling, and AM/FM radio in a compact dashboard format. It is designed as a digital-media head unit with USB, SD card, and 3.5 mm auxiliary inputs. This makes it a practical replacement for an older factory radio or a basic source unit for a custom car-audio installation.

Built-in Bluetooth 4.0 supports wireless audio streaming and hands-free phone calls through the receiver's integrated microphone. The unit uses the pairing name “CV15BT” when connecting a compatible mobile device. It supports A2DP for Bluetooth audio and AVRCP for compatible playback control.

The CV15BT provides 50 watts maximum output across each of its four channels and is specified for 4-ohm speakers. Preset EQ modes allow listeners to choose a sound setting that suits their music and system. For radio listening, the receiver includes an AM/FM tuner with station presets.

For expanded systems, the receiver includes three pairs of 5V preamp outputs for front, rear, and subwoofer amplifier connections. This layout lets the unit serve as a control center for externally amplified speakers and a subwoofer. Its dedicated front, rear, and subwoofer outputs provide flexibility when planning a staged system upgrade.

The front panel combines a digital LED-backlit display with USB, SD card, and AUX access for straightforward daily use. It plays MP3 and WMA files from USB or SD media, but it does not play video files or display images. A wireless remote control is included for additional operation convenience.

Key Features

• Single DIN Chassis: Fits a standard Single DIN dashboard opening.
• Bluetooth 4.0: Streams audio and supports hands-free calling.
• Built-In Microphone: Enables phone conversations through the receiver.
• 5V Preamp Outputs: Supports external front, rear, and subwoofer amplifiers.
• USB, SD, and AUX: Provides several wired music-source options.
• AM/FM Tuner: Keeps local radio listening available in the system.

Design & Installation

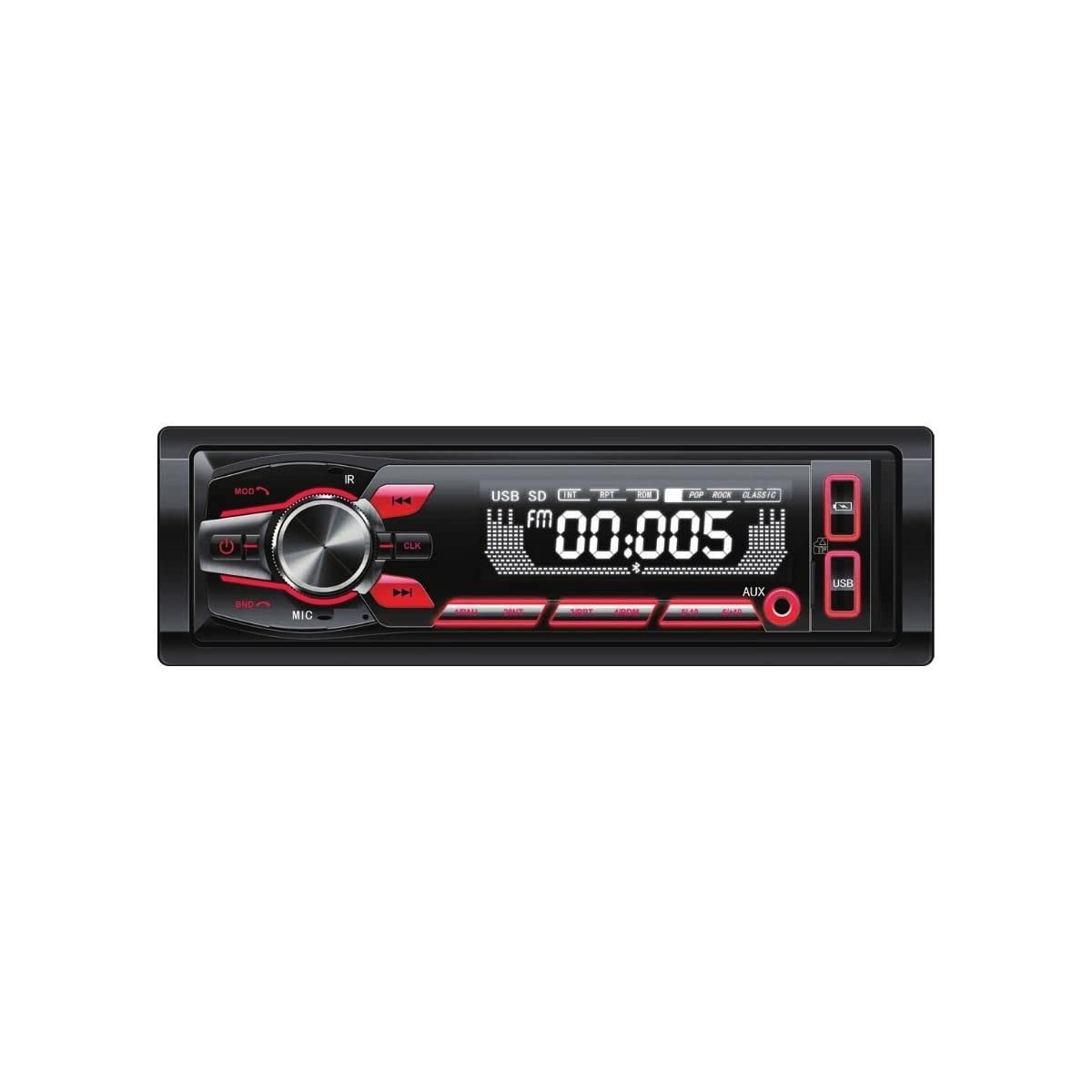

The CV15BT uses a compact Single DIN chassis with a digital LED-backlit display, front-panel media connections, a rotary control, preset buttons, and an SD card slot. Its front panel also includes a dedicated USB charging connection. The receiver includes a wireless remote control, while its standard dashboard-oriented layout keeps commonly used controls accessible from the front of the unit.

Installation uses the receiver's ISO speaker and power connections, with front, rear, and subwoofer RCA preamp outputs available for amplifier wiring. The manufacturer specifies a 12V DC vehicle electrical system, a maximum current draw of 10A, and a mounting angle below 30 degrees. Confirm vehicle-specific dash fitment, antenna adaptation, harness compatibility, and any needed installation hardware before purchase.
