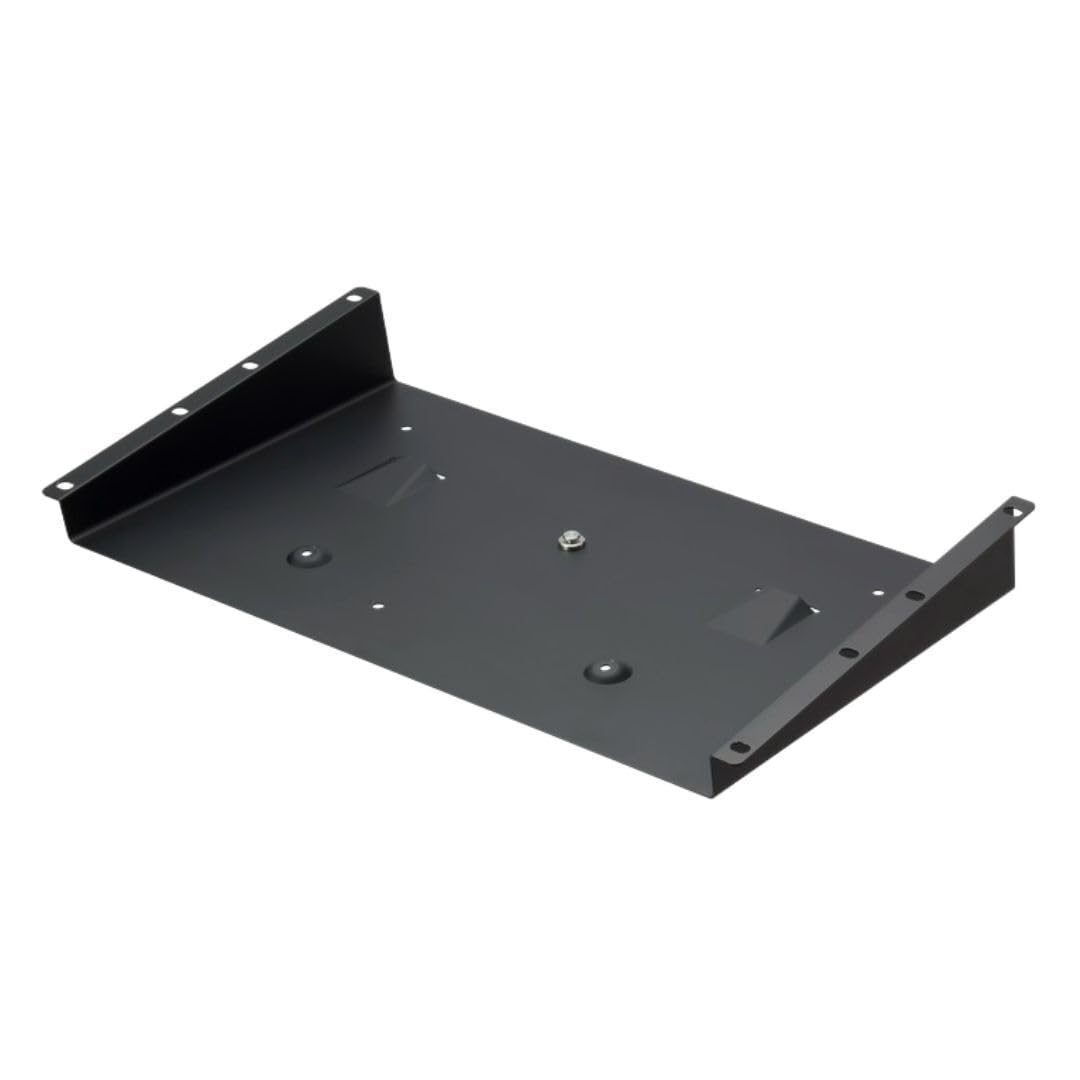

Zoom ZRKL12 Rack Mount Adapter for LiveTrak L-12/L-20

The Zoom RKL-12 is a steel rack mount adapter set made for installing compatible Zoom LiveTrak digital mixers in a standard 19" equipment rack. It provides a fixed rack-mounting solution for LiveTrak L-12 and L-20 users who want to move their mixer from a tabletop setup into a protected rack or flight case. The set includes two adapters, one for each side of the mixer.

This accessory is intended for musicians, engineers, podcasters, houses of worship, production crews, and mobile recording users who transport a LiveTrak mixer between locations. Rack mounting can help keep a compatible mixer organized with other production equipment while providing a consistent installation position. It is a hardware accessory and does not add audio processing or change the mixer’s sound.

The RKL-12 uses steel construction for a durable equipment-mounting solution. Its design is specific to the LiveTrak mounting arrangement rather than being a universal mixer bracket. The adapters secure to the sides of the compatible mixer using the included M4 x 8 mm screws.

Once installed, the RKL-12 allows the mixer to occupy a standard 19-inch rack format. Zoom advises allowing an additional 1U of rack space behind the mixer to make rear-panel cable insertion and removal easier. This consideration is useful when planning a rack case, studio rack, or mobile production system.

The RKL-12 supports the LiveTrak L-12 and L-20, and Zoom also lists compatibility with the LiveTrak L12next. It is a practical upgrade path for owners who already use one of these mixers and need a more permanent or transport-ready installation. The mixer, rack case, and external rack hardware are separate items.

Key Features

• Steel Construction: Provides a durable mounting solution for compatible LiveTrak mixers.
• 19-Inch Rack Compatibility: Enables installation in standard-width equipment racks.
• Two-Adapter Set: Includes a left and right adapter for the mixer.
• LiveTrak Compatibility: Supports LiveTrak L-12, L-20, and L12next models.
• Included Mounting Screws: Includes two M4 x 8 mm screws for attachment.
• Rear Cable Clearance Guidance: Zoom recommends one additional rear rack unit of space.

Design & Installation

The RKL-12 is built from steel and consists of two dedicated rack-mount adapters that attach at opposite sides of a compatible LiveTrak mixer. This purpose-built arrangement is designed to position the mixer for standard 19-inch rack installation. The included screws are M4 x 8 mm.

Attach one adapter to each side of the compatible LiveTrak mixer, then install the assembled unit in a suitable standard 19-inch rack or flight case. Refer to Zoom’s installation instructions and the installation dimensions for the specific mixer model being used. Leave an additional 1U of space behind the mixer when possible to improve access to rear-panel cables.
