Roland TR-8S Rhythm Performer Drum Machine

The Roland TR-8S Rhythm Performer is a desktop drum machine for building, sequencing, and performing electronic rhythm tracks without relying solely on a computer. It combines modeled Roland drum-machine voices, FM percussion, preset samples, and imported user samples in one hands-on instrument. This makes it well suited to producers, electronic musicians, DJs, and live performers who want fast pattern creation with flexible sound design.

Its core character comes from Roland ACB modeling of classic TR and CR instruments, including the TR-808, TR-909, TR-606, TR-707, TR-727, and CR-78. The TR-8S also includes editable FM sounds and a large preset sample collection, allowing classic drum-machine timbres to sit alongside more contemporary textures. Individual instrument parts can be freely assigned from the available tone types for hybrid kits.

The TR-REC sequencer provides 16 steps per variation, eight variations per pattern, and two fill-in patterns per pattern. Eleven instrument parts plus a dedicated trigger-out part support layered rhythm programming and external hardware control. Velocity-sensitive performance pads, parameter motion recording, probability, flams, accents, sub-steps, and adjustable last-step settings help create evolving grooves and detailed fills.

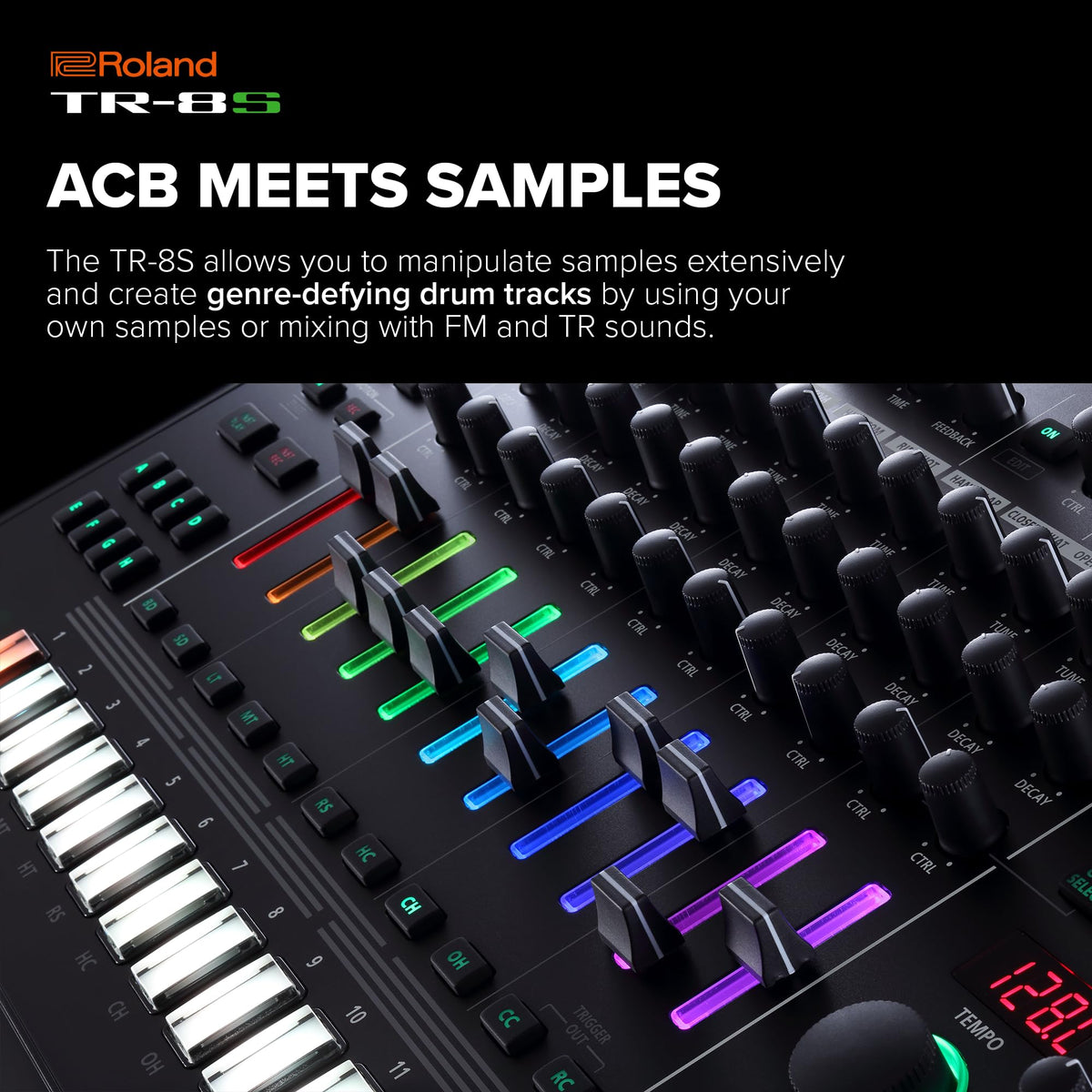

For custom sound work, the TR-8S accepts WAV and AIFF user samples from an SD card. Sample start point, speed, direction, tuning, and decay can be adjusted, making it practical to blend personal recordings with ACB or FM drum sounds. The shared sample memory supports approximately 600 seconds at 44.1 kHz mono, while a single imported audio file can be approximately 180 seconds long.

The TR-8S is designed to integrate into studio and performance rigs with stereo mix outputs, six assignable outputs, a dedicated trigger output, stereo external inputs, MIDI, and USB audio/MIDI. Its assignable outputs can route individual instruments or be used as additional trigger outputs for compatible external gear. USB connectivity also supports multichannel audio and MIDI transfer with a computer or compatible AIRA Link setup.

Key Features

• ACB Drum Modeling: Includes modeled TR-808, TR-909, TR-606, TR-707, TR-727, and CR-78 sounds.
• Hybrid Kit Creation: Combines ACB tones, FM sounds, preset samples, and user samples.
• 11-Part Sequencer: Programs 11 instrument parts plus one dedicated trigger track.
• Flexible Effects: Provides instrument effects, reverb, delay, master effects, side chain, and Scatter.
• SD Sample Import: Imports WAV and AIFF samples from SD or SDHC cards.
• Expanded I/O: Offers stereo mix, six assignable outputs, external input, trigger, MIDI, and USB.

Design & Installation

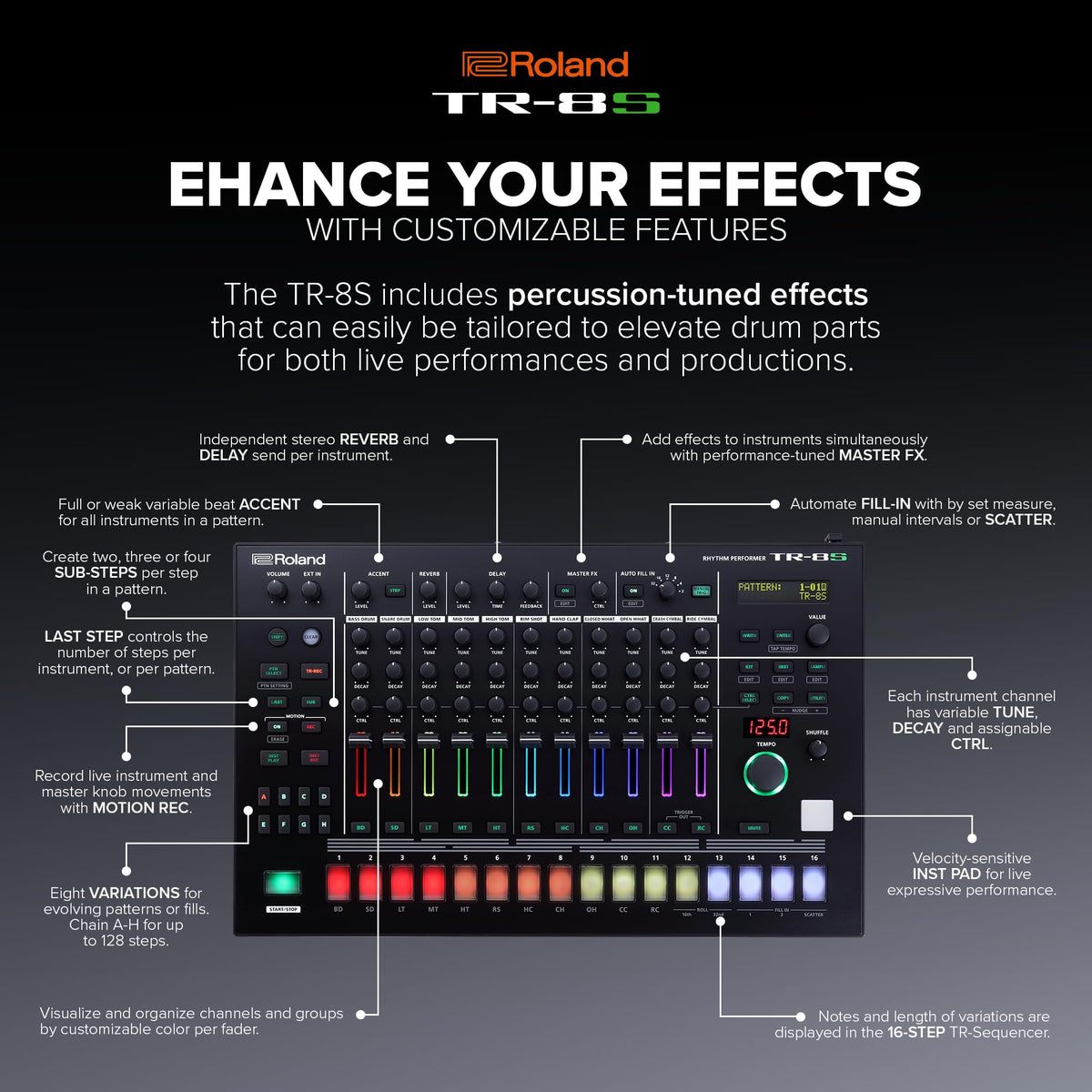

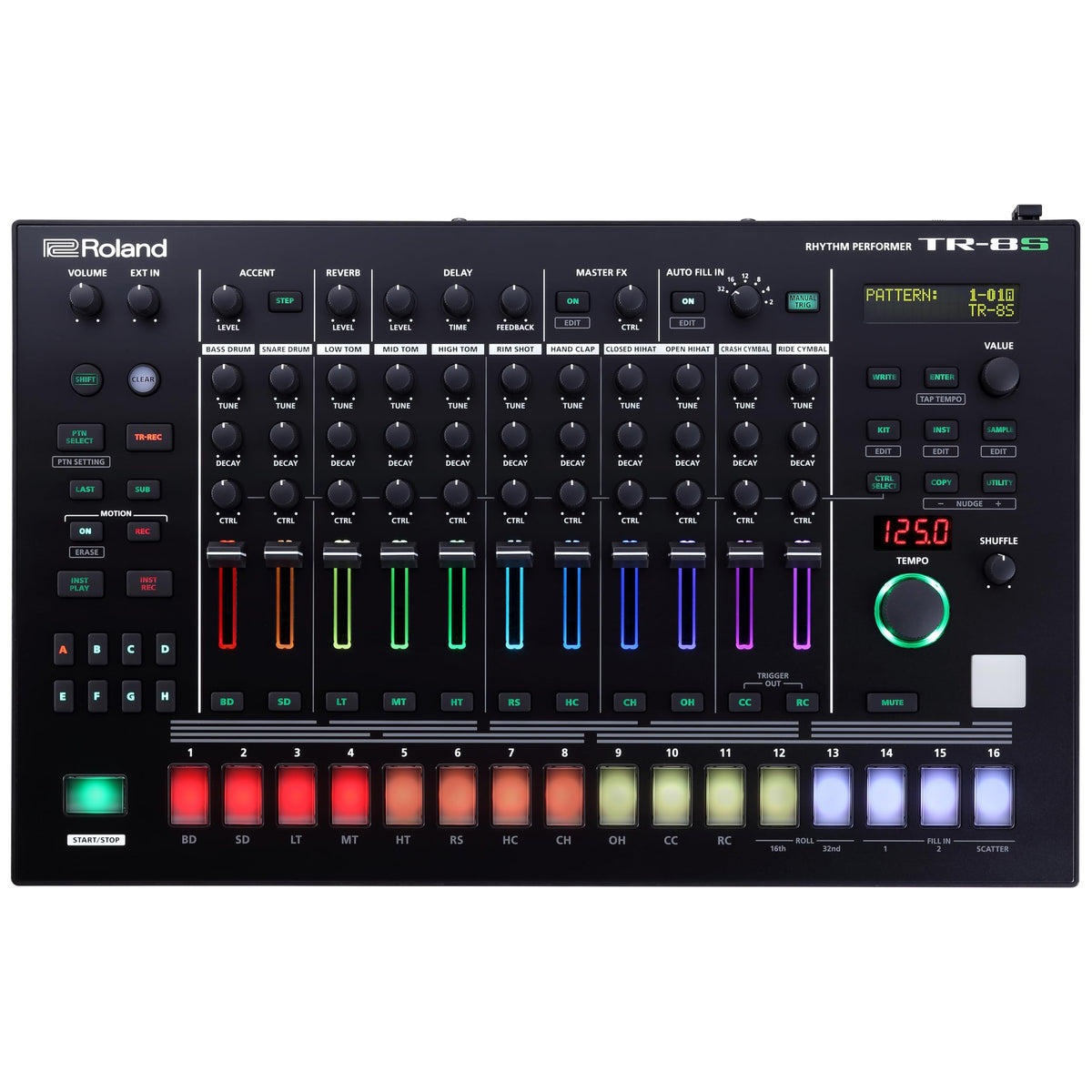

The TR-8S uses a compact desktop control layout with dedicated performance controls, 16 TR-REC buttons, a velocity-sensitive performance pad, RGB faders, and a backlit LCD. Roland specifies a 409 mm wide, 263 mm deep, and 58 mm high enclosure weighing 2.1 kg. Its panel-based workflow is intended for direct sound adjustment, pattern editing, and live control rather than menu-only operation.

Place the TR-8S on a stable desktop, stand, or performance surface and power it with the included AC adaptor. Connect its MIX OUT jacks to a mixer, interface, monitors, or PA system; use the assignable outputs when separate instrument routing is needed. An SD or SDHC card is useful for backup, restore, and user-sample import, while USB Type-B and MIDI connections support computer and external-hardware synchronization.
