Roland JC-40 40-Watt Stereo Guitar Combo Amplifier

The Roland JC-40 is a compact stereo guitar combo amplifier built around the clean, articulate voice of the Jazz Chorus series. It gives guitarists a portable alternative to larger stereo rigs while retaining two-speaker sound dispersion and onboard effects. It is well suited to players who want a clear platform for guitars, pedals, modelers, and multi-effects processors.

Rated at 40 watts and fitted with two 10-inch speakers, the JC-40 delivers stereo amplification from a single combo enclosure. Its clean character is designed to preserve the sound of connected effects rather than heavily color it. This makes it a practical choice for pedal-based players, studio use, rehearsals, and smaller performance settings.

A defining feature is Roland's Dimensional Space Chorus, which creates a broad stereo modulation effect through the amp's dual-speaker design. The chorus section offers fixed and manual modes, while onboard vibrato and reverb operate in stereo. A dedicated distortion control is also provided for adding gain without requiring an external pedal.

The JC-40 uses two independent power amps and custom-designed 10-inch speakers to produce its stereo presentation. Separate left/mono and right inputs allow compatible stereo-output pedals, guitar synthesizers, amp modelers, and multi-effects units to feed both channels. This can simplify a stereo setup by avoiding the need to carry two separate amplifiers.

For system expansion, the amp includes stereo line outputs, a headphone output, footswitch connections, and an effects loop with serial or parallel operation. The effects loop provides a send plus left/mono and right returns for integrating external processors. Its combination of direct controls and flexible connections supports simple guitar-and-amp use as well as more involved pedalboard or modeling rigs.

Key Features

• 40-Watt Stereo Amplification: Two independent power amps drive a compact stereo combo format.
• Dual 10-Inch Speakers: Two custom-designed speakers provide broad, full-range guitar sound.
• Dimensional Space Chorus: Roland's signature stereo chorus adds width and motion.
• Stereo Instrument Inputs: Connect stereo pedals, modelers, synthesizers, or multi-effects processors.
• Onboard Effects: Chorus, vibrato, distortion, and reverb are available from the front panel.
• Effects Loop And Footswitch Support: Expand the rig with external effects and optional remote switching.

Design & Installation

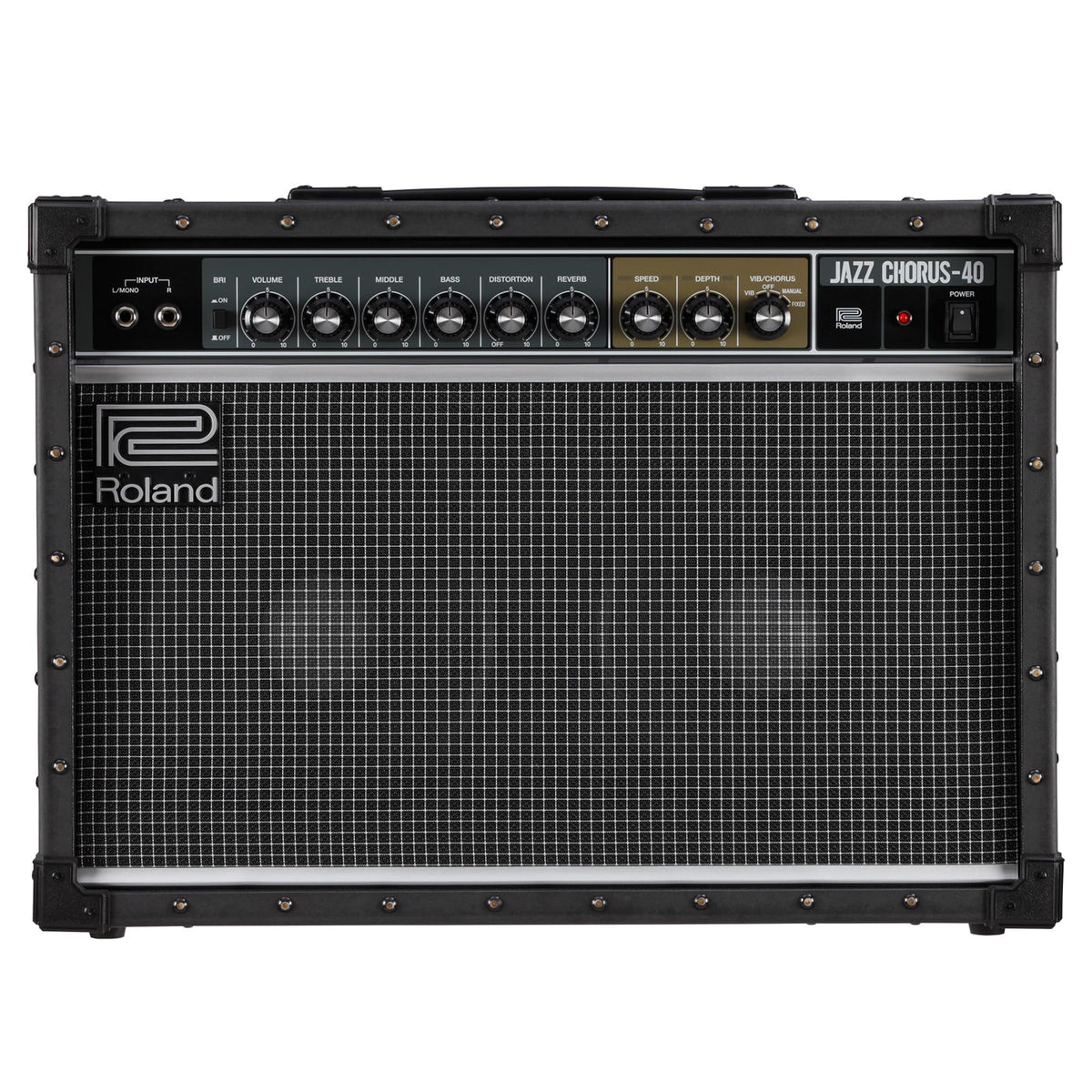

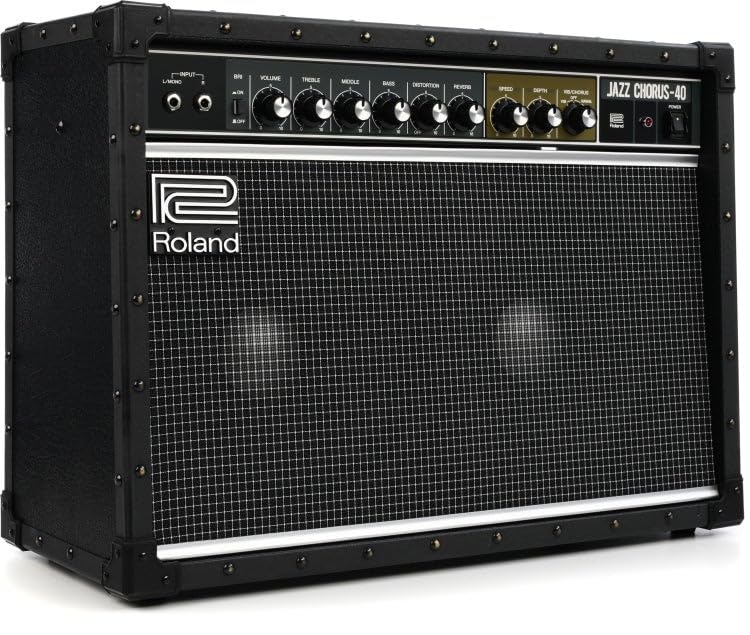

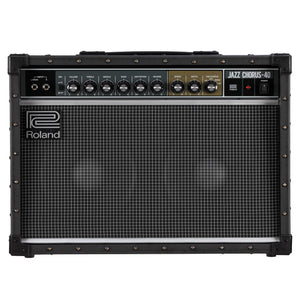

The JC-40 is a self-contained guitar combo amplifier with a durable, road-oriented enclosure, dual front-mounted 10-inch speakers, and a front control panel. Its layout includes dedicated controls for volume, three-band EQ, distortion, reverb, modulation speed, and modulation depth. A Bright switch provides an additional tonal shaping option.

Connect a guitar or mono source to the INPUT L/MONO jack; use both INPUT L/MONO and R jacks when feeding a stereo-output device. External effects can be connected through the EFFECT LOOP SEND and left/mono and right return jacks, while line outputs can feed a mixer or recorder. Optional compatible BOSS footswitches can be connected to control chorus/vibrato, reverb, and distortion during performance.
