SoundXtreme ST-W6528ML Double DIN 6.2" Touchscreen Receiver

The SoundXtreme ST-W6528ML is a double-DIN multimedia receiver designed to add touchscreen control, Bluetooth calling, and flexible media playback to a compatible vehicle dashboard. Its 6.2-inch digital touchscreen brings commonly used audio, video, and camera functions into one in-dash unit. It is suited to drivers replacing an older factory radio or building a straightforward multimedia upgrade.

The receiver provides a four-channel amplified output rated at 50 watts maximum per channel, or 200 watts maximum total. This makes it appropriate for powering compatible factory-style speakers directly while serving as a media-control center for the vehicle. Bluetooth with a built-in microphone supports hands-free calling and wireless audio use.

For media access, the ST-W6528ML supports FM radio, USB, TF card, and AUX input sources. It also supports music and video playback, allowing users to access stored content from compatible devices. A USB connection can also provide charging capability for a mobile phone.

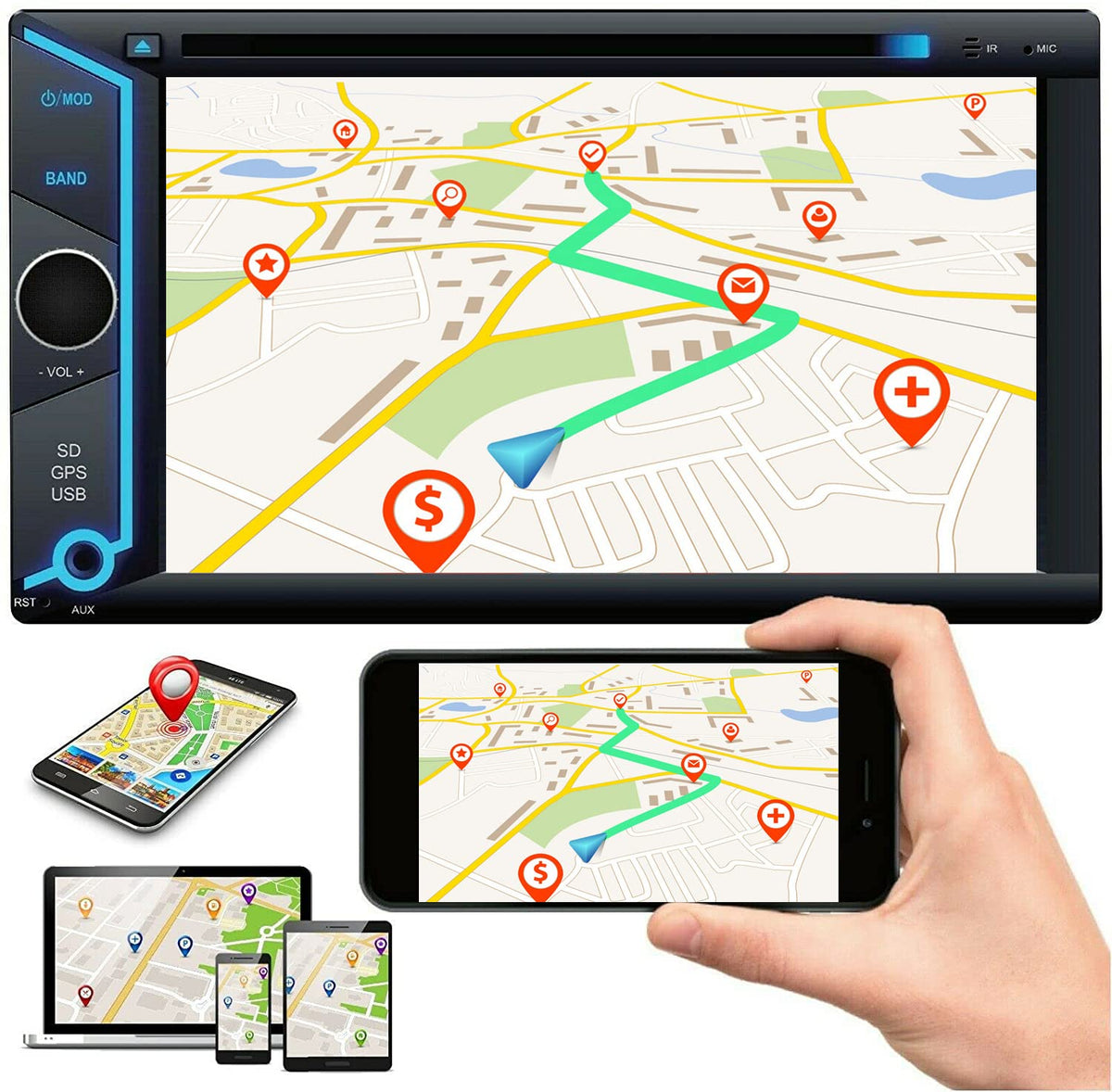

Mirror functionality is documented for Android devices running Android 4.0 through 7.0, allowing a compatible phone screen to be displayed on the receiver. The unit does not include built-in GPS navigation, but mirrored navigation imagery can be shown when a compatible phone and screen-mirroring function are in use. This approach keeps navigation dependent on the connected mobile device rather than an onboard navigation system.

A rear-view camera is included, and the receiver is designed to display the camera image automatically when the vehicle is shifted into reverse. The ST-W6528ML also lists steering-wheel-control support, a remote control, video input, and driving-recorder input. These features make it a practical foundation for a basic camera-equipped audio and multimedia system.

Key Features

• Double-DIN Chassis: Fits a compatible double-DIN dashboard opening.
• 6.2-Inch Touchscreen: Provides direct control of media and receiver functions.
• Bluetooth Calling: Supports hands-free calls through the built-in microphone.

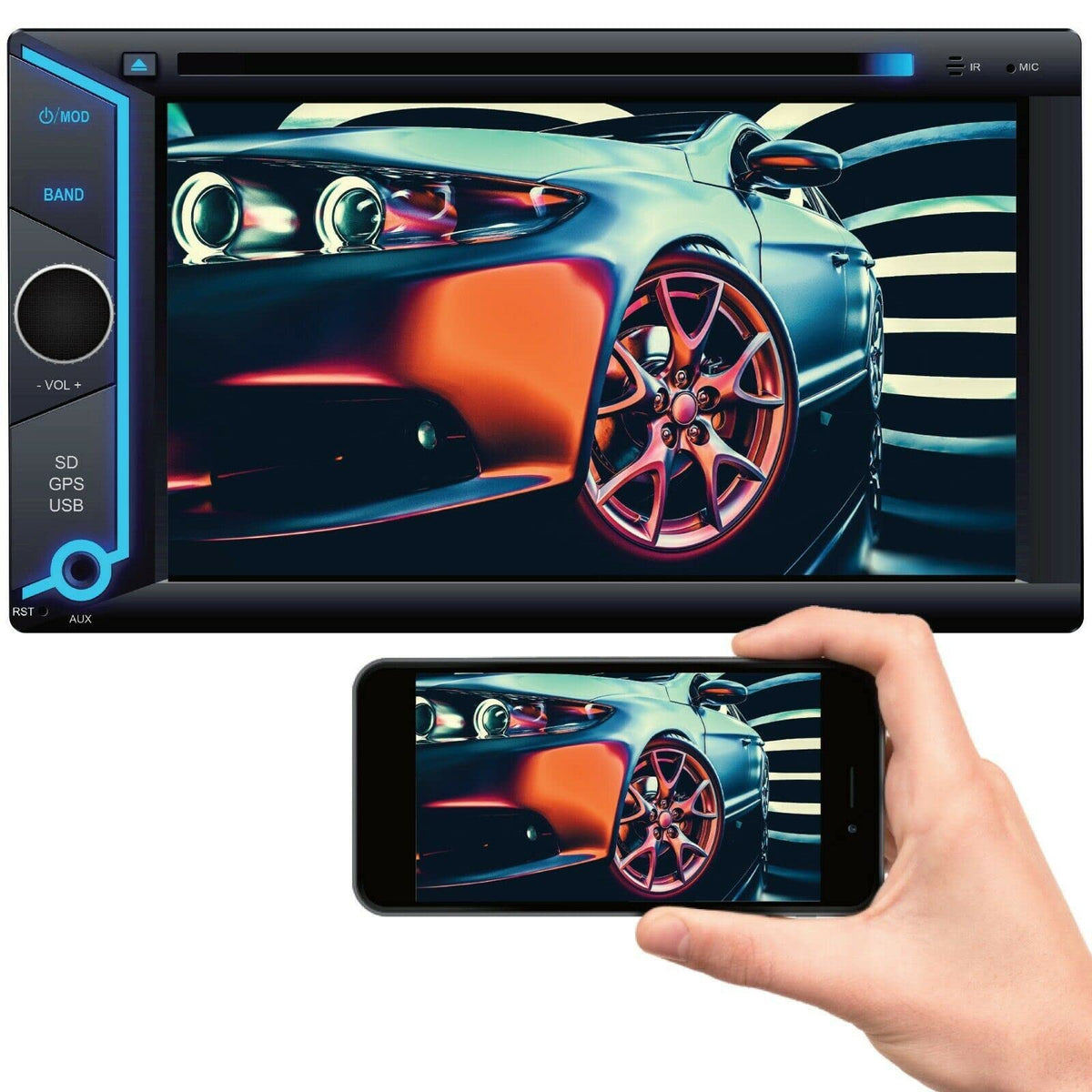

• Android Screen Mirroring: Displays compatible Android phone content on-screen.
• Rear Camera Included: Adds automatic reverse-view display capability.
• Multiple Media Inputs: Supports FM, USB, TF card, and AUX sources.

Design & Installation

The ST-W6528ML uses an integrated double-DIN receiver chassis with a 6.2-inch digital touchscreen interface. Its documented installation dimensions are 178 x 100 x 65 mm, matching the standard face-size format commonly used for double-DIN receiver installations. Specific chassis-material and display-panel-material specifications are not published.

Confirm that the vehicle accepts a double-DIN radio and that the 178 x 100 x 65 mm installation dimensions work with the available dashboard space. A vehicle-specific dash kit, wiring harness, antenna adapter, and steering-wheel-control interface may be needed depending on the vehicle. Connect the included rear-view camera and reverse trigger correctly to enable automatic reverse-image display.
