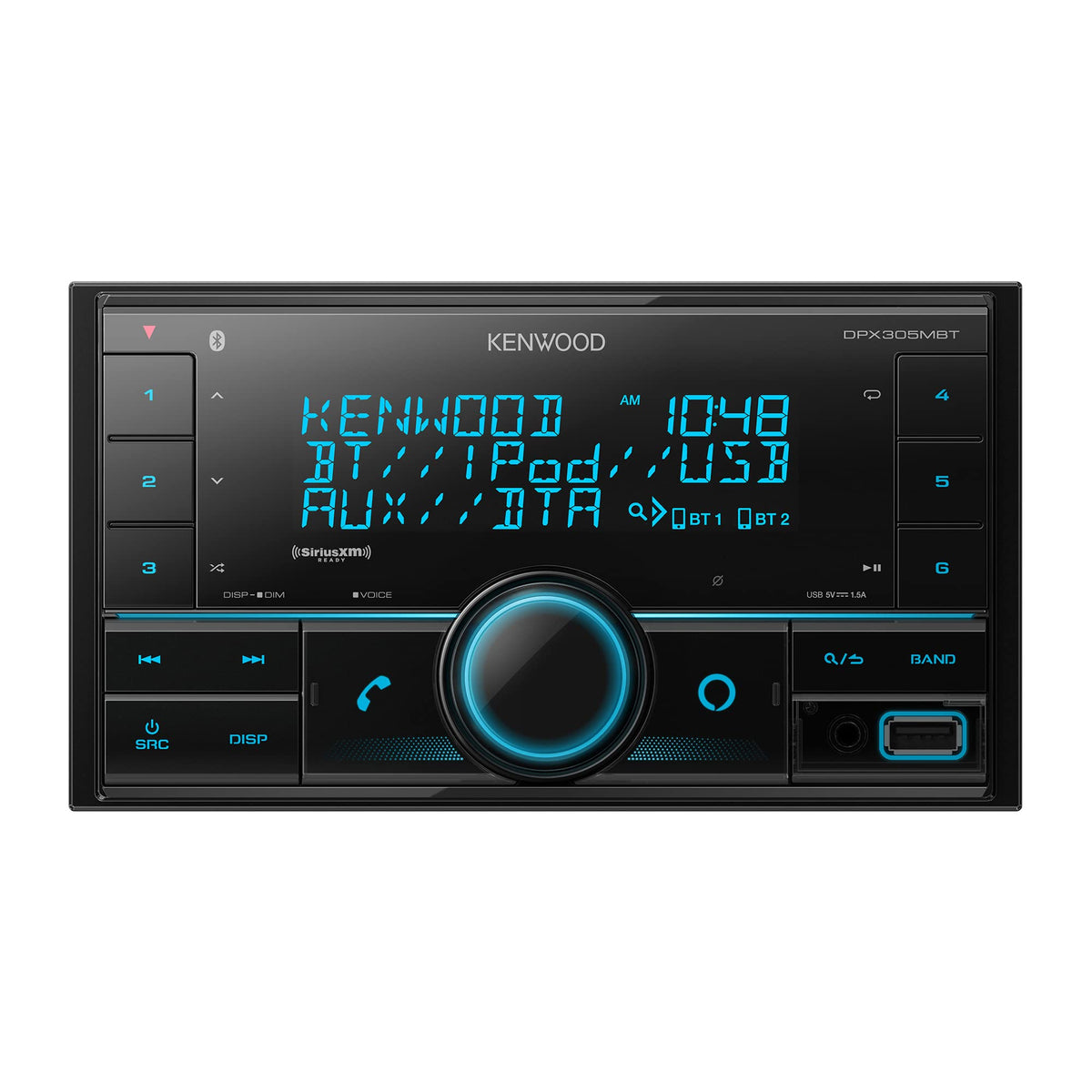

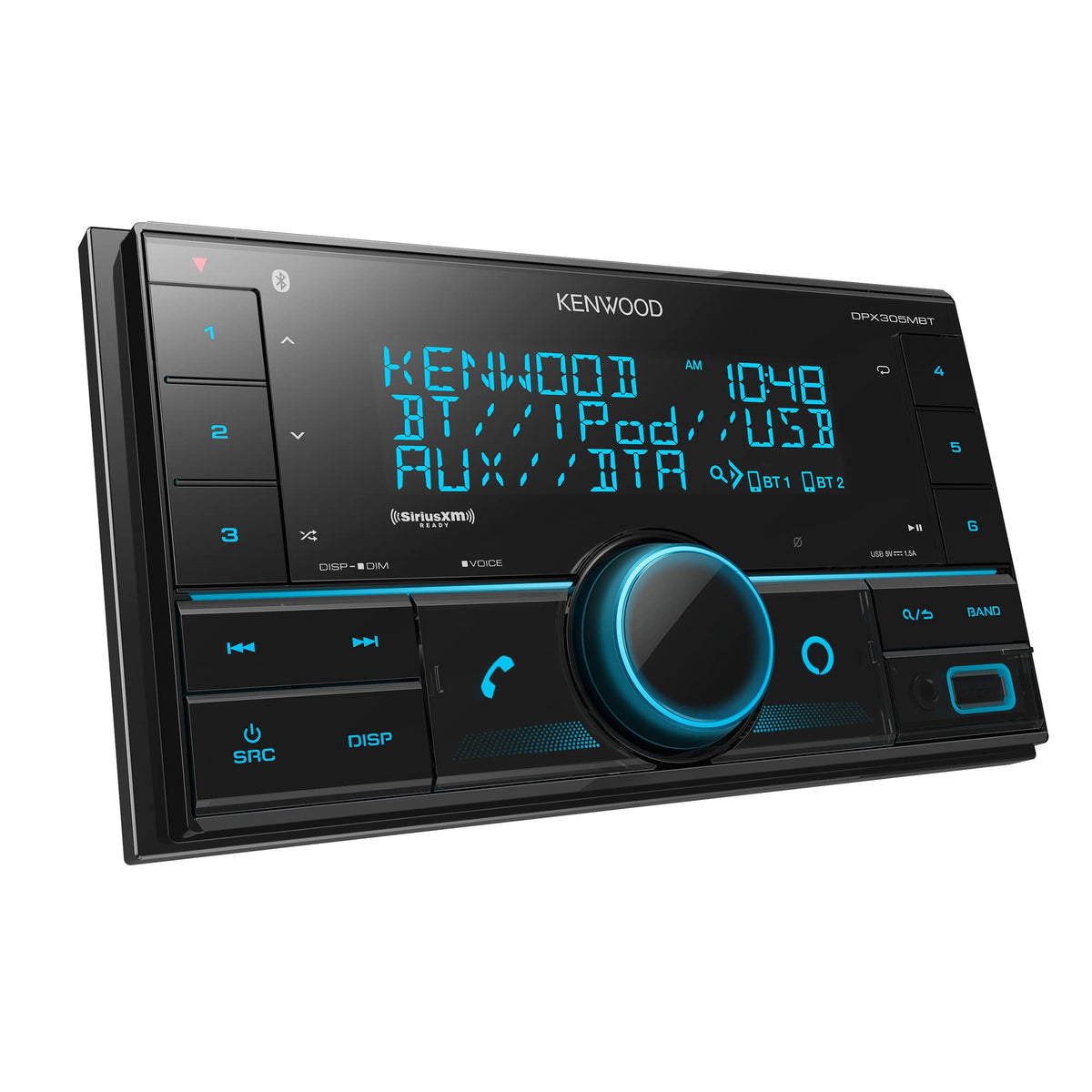

Kenwood DPX305MBT Double DIN Digital Media Receiver

The Kenwood DPX305MBT is a Double DIN digital media receiver for drivers who want modern phone connectivity and AM/FM listening without a CD mechanism. Its compact 100 mm chassis depth can help make installation more practical in vehicles with limited dash clearance. The receiver uses a 420-segment, three-line text display for source, track, and menu information. It is designed for playback from Bluetooth devices, USB media, and the front auxiliary input.

Bluetooth 4.2 supports hands-free calling and wireless music streaming, allowing the receiver to serve as a straightforward daily-use upgrade from an older factory radio. A dedicated Bluetooth access button provides quick entry to Bluetooth functions. Kenwood Music Mix allows up to five Bluetooth devices to be paired, which is useful when multiple people share the vehicle. Dual Phone Connection lets the user switch between two connected phones.

For sound tuning, the DPX305MBT combines a built-in four-channel amplifier with a 13-band equalizer and Digital Time Alignment. The internal amplifier is rated at 22 watts x 4 channels full bandwidth at less than 1% THD, with 50 watts x 4 channels maximum output. Drive EQ is included to adjust selected frequencies in response to road-noise effects. Three 2.5-volt preouts provide a path to external amplification or a powered subwoofer.

The front USB port supports common audio libraries and USB storage formatted in FAT12, FAT16, or FAT32. It plays MP3, WMA, AAC, WAV, and FLAC audio files, including FLAC files up to 24-bit/96 kHz. The USB port supplies up to 1.5A at 5V for compatible devices. A front-panel auxiliary input provides an additional wired source option.

The receiver is Amazon Alexa ready for compatible voice-control use and is SiriusXM Radio ready when paired with the required optional tuner and service. Its three-zone variable-color illumination can be adjusted to coordinate with a vehicle's dashboard lighting. English, Spanish, and French display-menu options are available. This is a practical choice for a conventional Double DIN audio upgrade where physical controls, Bluetooth, USB playback, and system expansion matter more than a touchscreen interface.

Key Features

• Bluetooth 4.2: Supports hands-free calls and wireless audio streaming from compatible devices.
• Kenwood Music Mix: Pairs up to five Bluetooth devices for shared music access.
• 13-Band EQ and DTA: Provides detailed tonal adjustment and speaker time alignment.
• Three 2.5V Preouts: Supports connection to external amplifiers or a powered subwoofer.
• Front USB and AUX: Adds convenient access for wired devices and stored music.
• Variable Color Illumination: Adjusts front-panel lighting across three separate color zones.

Design & Installation

The DPX305MBT has a black Double DIN chassis with a physical volume knob, front USB input, front auxiliary input, and a text-based display rather than a touchscreen. Its 420-segment, three-line display is paired with configurable front-panel illumination. The short 100 mm chassis depth is intended to make room behind the dash for wiring and vehicle-specific installation hardware.

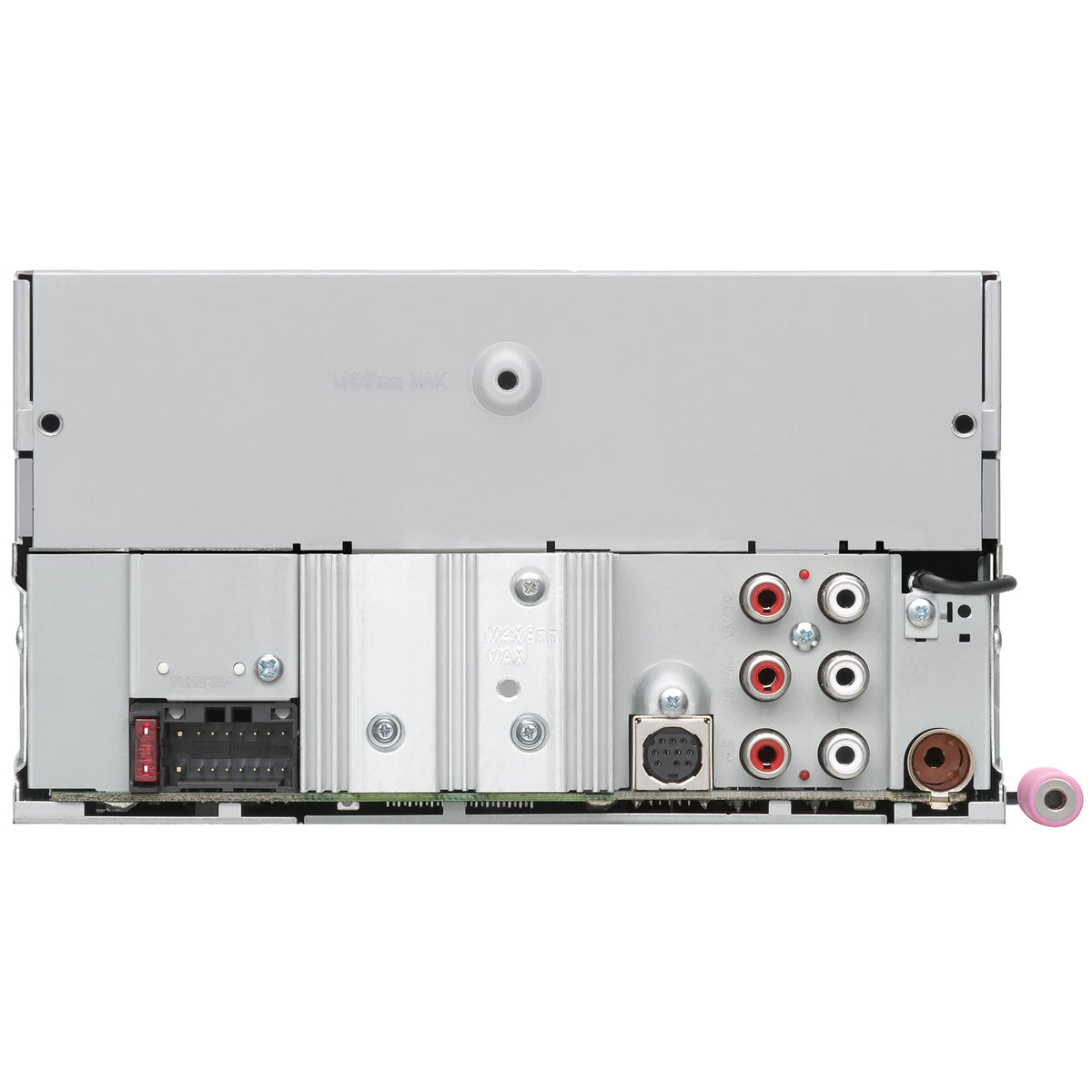

Confirm that the vehicle accepts a Double DIN receiver before purchase, and use the appropriate vehicle-specific dash kit, wiring harness, and antenna adapter where required. The receiver operates from a 12V DC negative-ground vehicle electrical system and uses a 10A fuse. A supplied microphone connects at the rear for Bluetooth calling; professional installation is recommended for safe wiring, steering-wheel-control integration, and proper system setup.
