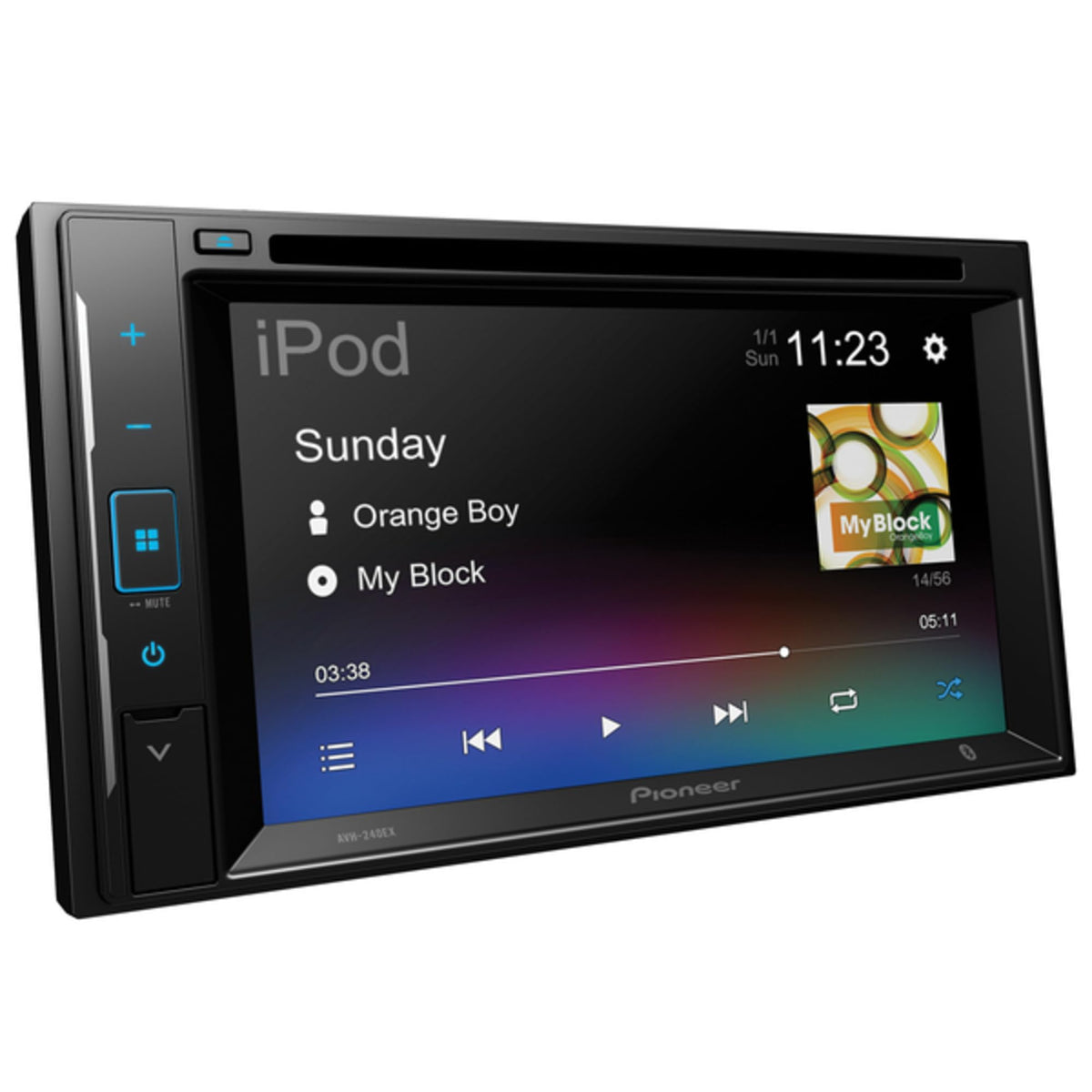

Pioneer AVH-240EX 6.2" Double DIN DVD Receiver

The Pioneer AVH-240EX is a Double DIN DVD RDS receiver designed for vehicles that need a touchscreen-based upgrade with disc playback, Bluetooth connectivity, and camera expandability. Its 6.2-inch WVGA resistive touchscreen brings radio, USB media, compatible smartphone functions, and auxiliary sources into one dashboard component. It is suited to drivers replacing a factory radio while retaining straightforward physical media playback.

Built-in Bluetooth supports hands-free calling and wireless audio streaming from compatible devices. The receiver can register up to five phones and includes an external microphone for calling. USB playback, AUX input, AM/FM radio, and DVD/CD capability provide multiple options for everyday listening and viewing while parked.

For sound adjustment, the AVH-240EX uses a built-in MOSFET four-channel amplifier, 13-band graphic equalizer, DSP, and high-pass and low-pass crossover controls. Its audio settings allow the system to be tailored for factory speakers or an upgraded speaker-and-subwoofer system. Three preout sections provide front, rear, and subwoofer signal connections for external amplification.

The fixed 6.2-inch display uses an LED backlight, 800 x 480 resolution, and a 16:9 aspect ratio. It supports a PAL/NTSC-compatible video display and includes brightness, dimmer, and display-off functions. The receiver also provides a dedicated rear-view camera input and an RCA video output for an additional rear-seat display.

Smartphone integration includes WebLink 2.0, Siri Eyes Free for compatible iPhones, and Amazon Alexa functionality when paired with the Pioneer Vozsis app. It supports USB playback of common audio, image, and video formats, including FLAC and WAV audio. This makes the AVH-240EX a practical centerpiece for a Double DIN multimedia system with optional camera and amplifier expansion.

Key Features

• 6.2-Inch WVGA Touchscreen: Provides touchscreen control in a standard Double DIN chassis.
• DVD And CD Playback: Plays supported DVD-Video, Video CD, CD, and recordable disc media.
• Built-In Bluetooth: Enables compatible hands-free calling and wireless audio streaming.
• 13-Band Graphic Equalizer: Allows detailed tonal adjustment for the vehicle acoustic environment.
• Three Preout Sections: Supports front, rear, and subwoofer connections for external amplifiers.
• Rear Camera Input: Accepts a dedicated compatible rear-view camera connection.

Design & Installation

The AVH-240EX uses a fixed-face Double DIN design with a resistive touchscreen, LED backlight, and integrated DVD mechanism. Its chassis measures 7 inches wide by 3-7/8 inches high by 6-3/8 inches deep, while the nose section measures 6-3/4 inches wide by 3-7/8 inches high by 1/8 inch deep. The unit has a negative-ground electrical system and is intended for 12-volt vehicle electrical systems.

Verify Double DIN dash fitment, mounting depth, and the vehicle-specific harness and dash-kit requirements before purchase. The parking-brake lead must be connected correctly, and rear-camera integration may require a separate adapter depending on the vehicle. Remove the two transport screws before installing the receiver so its disc mechanism can operate correctly.
