Pioneer DMH-W3000NEX 6.8" Double DIN Digital Media Receiver

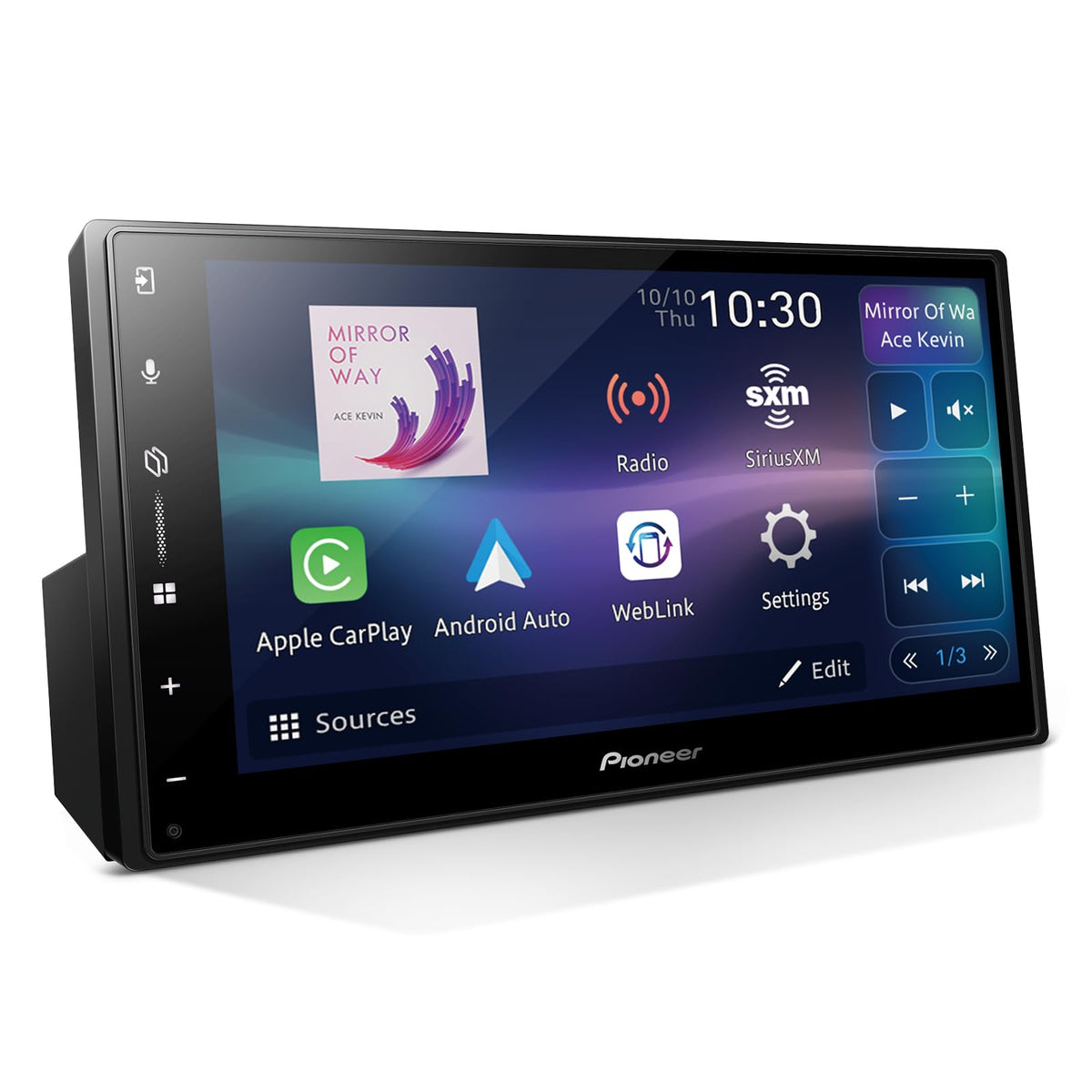

The Pioneer DMH-W3000NEX is a 6.8-inch touchscreen digital media receiver for vehicles that accept a double-DIN installation. It modernizes an existing dash with smartphone-focused control, Bluetooth calling and streaming, USB media playback, and radio reception. Its L-shaped 2-DIN chassis is designed to provide installation flexibility while retaining a conventional in-dash form factor.

This receiver is suited to drivers who want Apple CarPlay or Android Auto access without needing to plug in every trip. Both platforms support wired USB and wireless connections with compatible phones, making it easier to use navigation, music, calls, messages, and voice control through the vehicle display. Built-in Wi-Fi and Bluetooth support the wireless smartphone experience.

For audio system upgrades, the DMH-W3000NEX includes a MOSFET four-channel amplifier, six-channel 4-volt RCA preouts, a 13-band graphic equalizer, and built-in DSP. Standard and network speaker modes provide useful configuration options for conventional front/rear speaker systems or more advanced active systems. Adjustable crossover, time-alignment, speaker-level, and subwoofer controls help tailor the system to the vehicle and installed equipment.

The 6.8-inch WVGA capacitive touchscreen uses an 800 x 480 TFT active-matrix display. A quick-access navigation bar is intended to make switching between smartphone interfaces and receiver settings more direct. USB playback supports a broad range of audio, video, and image files for drivers who keep media on compatible storage devices.

The receiver can serve as the central control point for a larger aftermarket system. It provides a dedicated backup-camera input with adjustable parking-assist guidelines, is SiriusXM-ready with a separately sold tuner and subscription, and supports steering-wheel-control integration with a separately sold adapter. An optional iDatalink Maestro module can add supported vehicle-information and vehicle-feature integration when matched to the vehicle.

Key Features

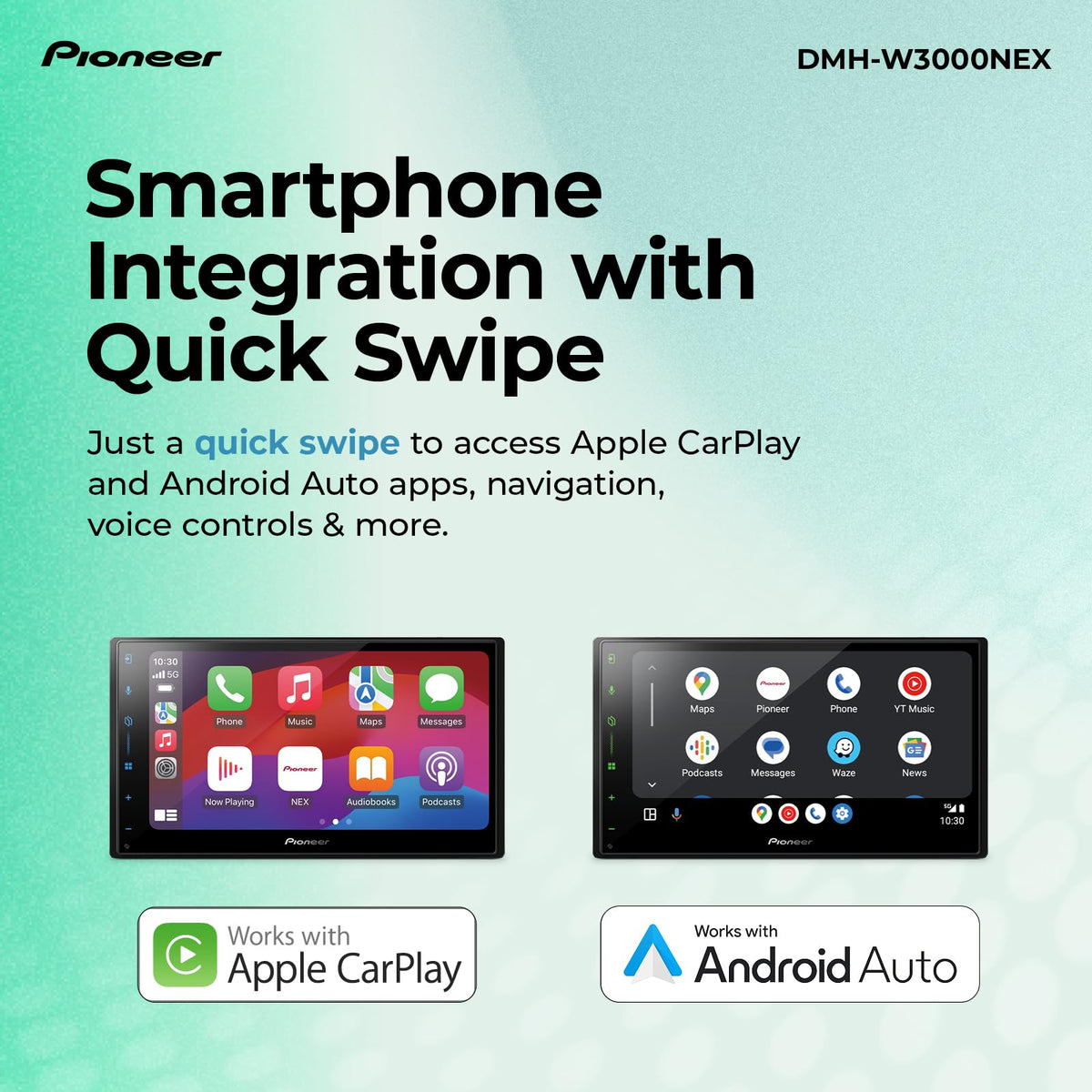

• Wireless Smartphone Integration: Supports wired or wireless Apple CarPlay and Android Auto with compatible phones.

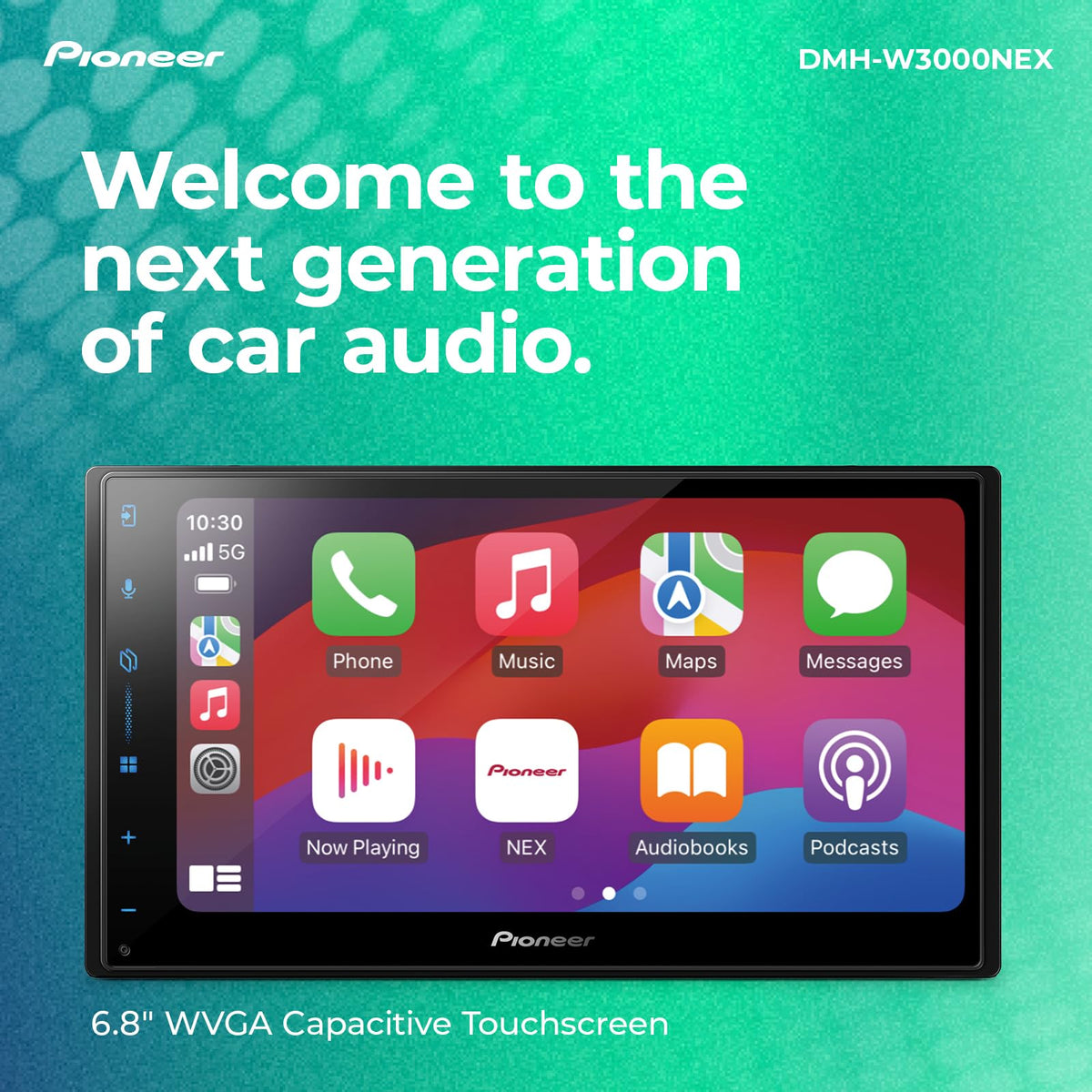

• 6.8-Inch Capacitive Touchscreen: Provides responsive control with WVGA 800 x 480 resolution.
• Built-In Bluetooth: Enables hands-free calling, audio streaming, and dual-phone connection capability.
• Advanced Audio Tuning: Includes DSP, a 13-band EQ, crossover controls, and time alignment.
• 4-Volt RCA Preouts: Six-channel preouts support connection to external amplifiers and subwoofers.

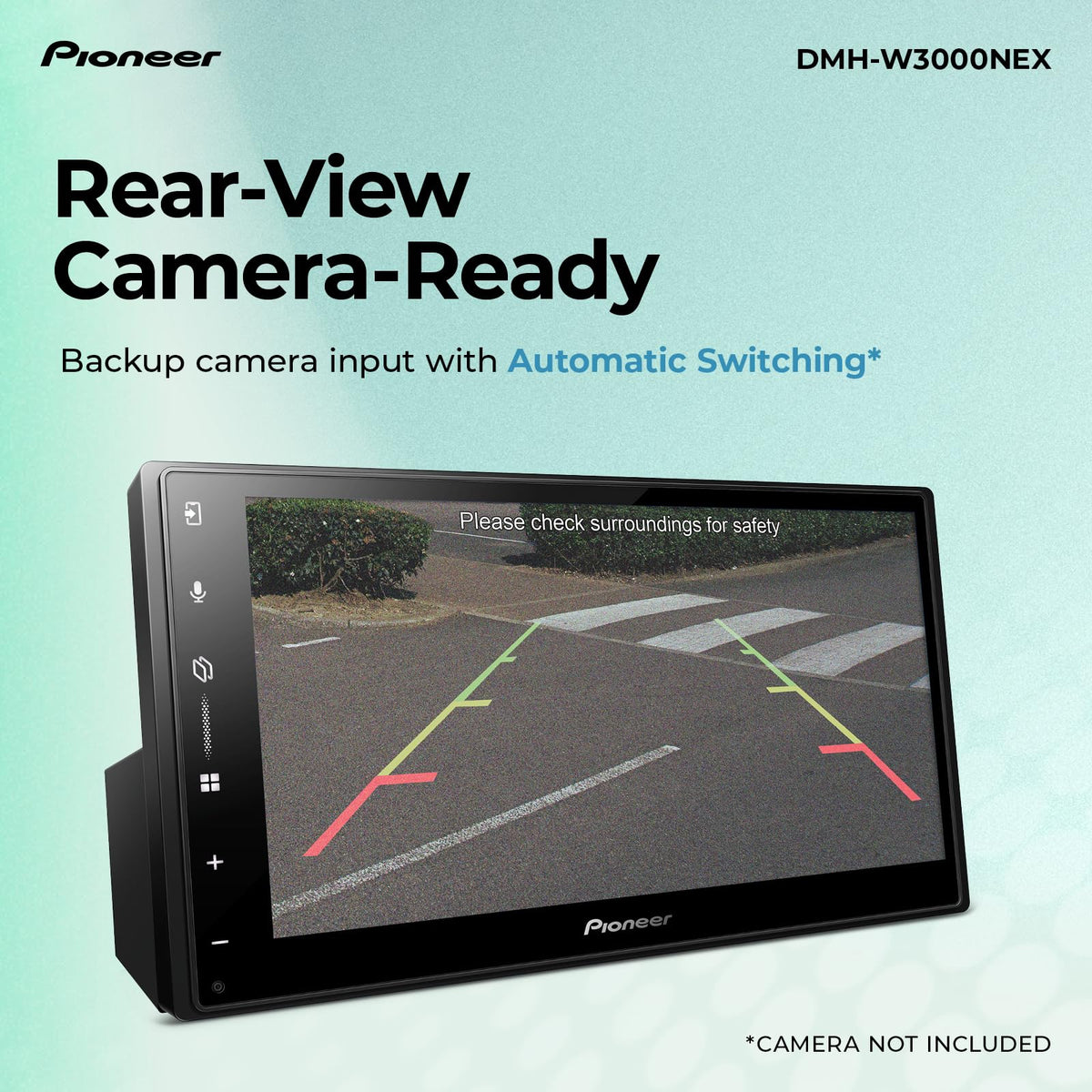

• Backup Camera Ready: Accepts an optional rear-view camera and offers adjustable parking-assist guidelines.

Design & Installation

The DMH-W3000NEX uses a fixed-face, 6.8-inch capacitive touchscreen with a 2-DIN L-shaped chassis. Its display is a TFT active-matrix panel with LED backlighting, and the receiver has a compact 125 mm chassis depth. Physical volume controls and touchscreen controls provide access to core functions.

Confirm dash opening, chassis depth, and vehicle-specific mounting requirements before purchase. Installation requires appropriate vehicle wiring integration, and steering-wheel controls require a compatible separately sold adapter; a rear-view camera, SiriusXM tuner, and iDatalink Maestro module are also optional accessories. Pioneer recommends installation by trained mobile-electronics personnel, particularly when integrating factory vehicle systems, a camera, or external amplifiers.
