JVC KW-M695BW 6.8" Double DIN Receiver with Wireless CarPlay

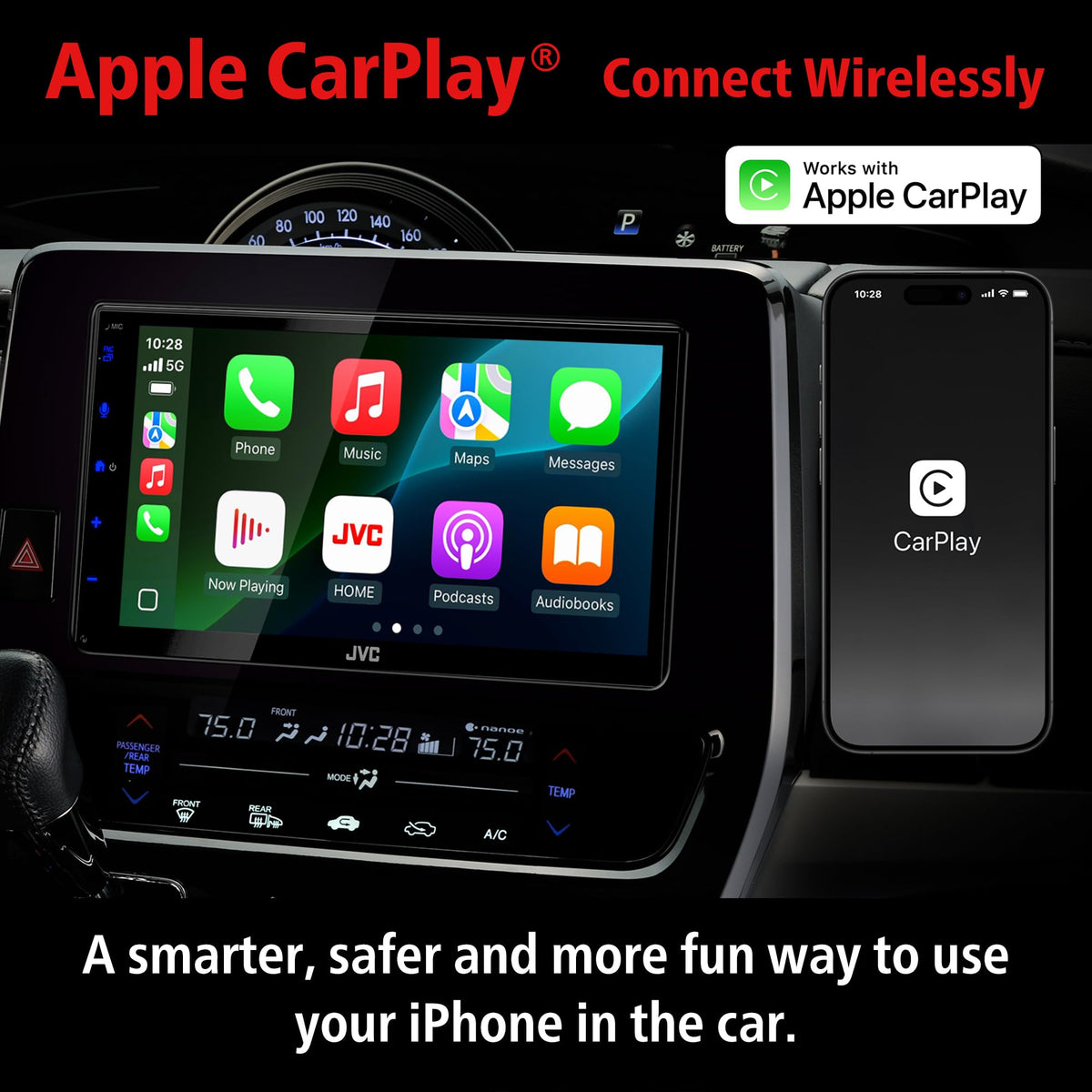

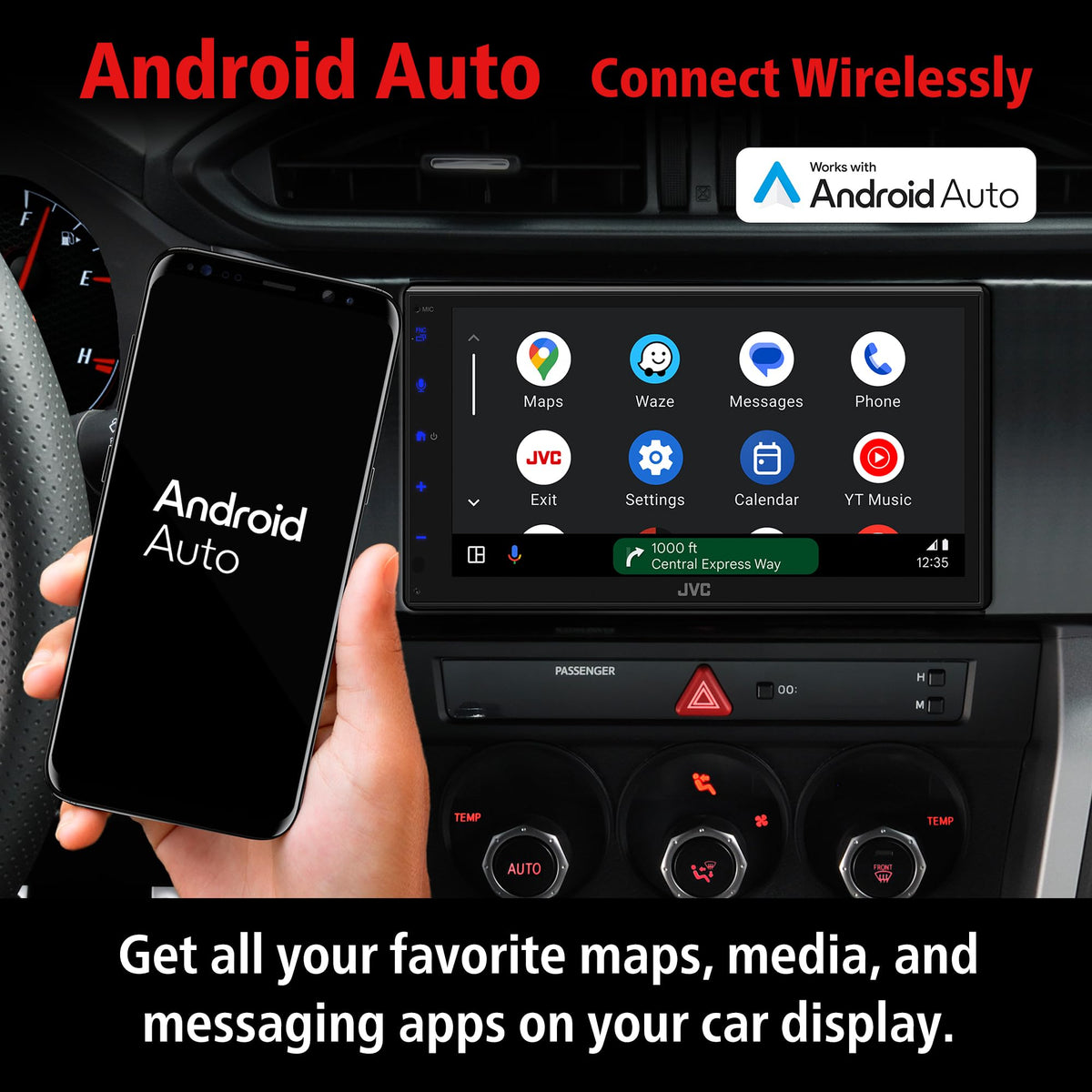

The JVC KW-M695BW is a Double DIN digital media receiver designed to bring current smartphone connectivity and clear touchscreen control to vehicles with an upgrade-ready dash. Its 6.8-inch capacitive display puts compatible navigation, calling, music, and messaging functions within easy reach. Wireless or USB-connected Apple CarPlay and Android Auto help reduce the need to handle a phone while driving.

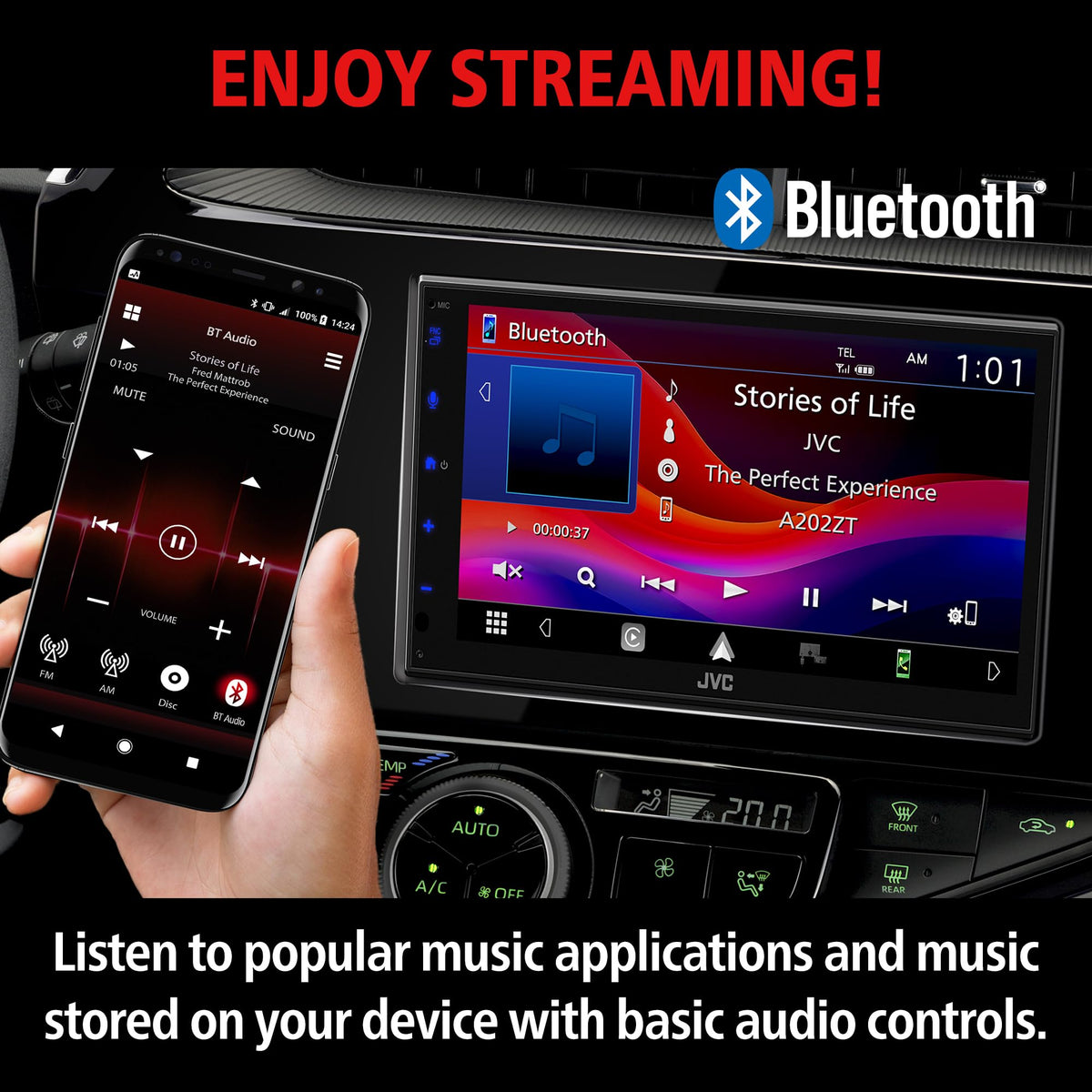

This receiver is a practical choice for drivers replacing an older factory radio or adding modern phone integration to a compatible vehicle. Bluetooth supports hands-free calling and wireless audio streaming, while the rear USB connection provides media playback and up to 2.1A phone charging. SiriusXM capability is available when an optional compatible tuner is added.

For sound tuning, the KW-M695BW combines a built-in 50-watt x 4 maximum amplifier with a 13-band graphic equalizer, preset EQ options, bass boost, and adjustable high-pass and low-pass filters. Time alignment helps tailor arrival timing from the vehicle speakers to the listening position. Three 2.5-volt preouts provide a foundation for adding external front, rear, and subwoofer amplification.

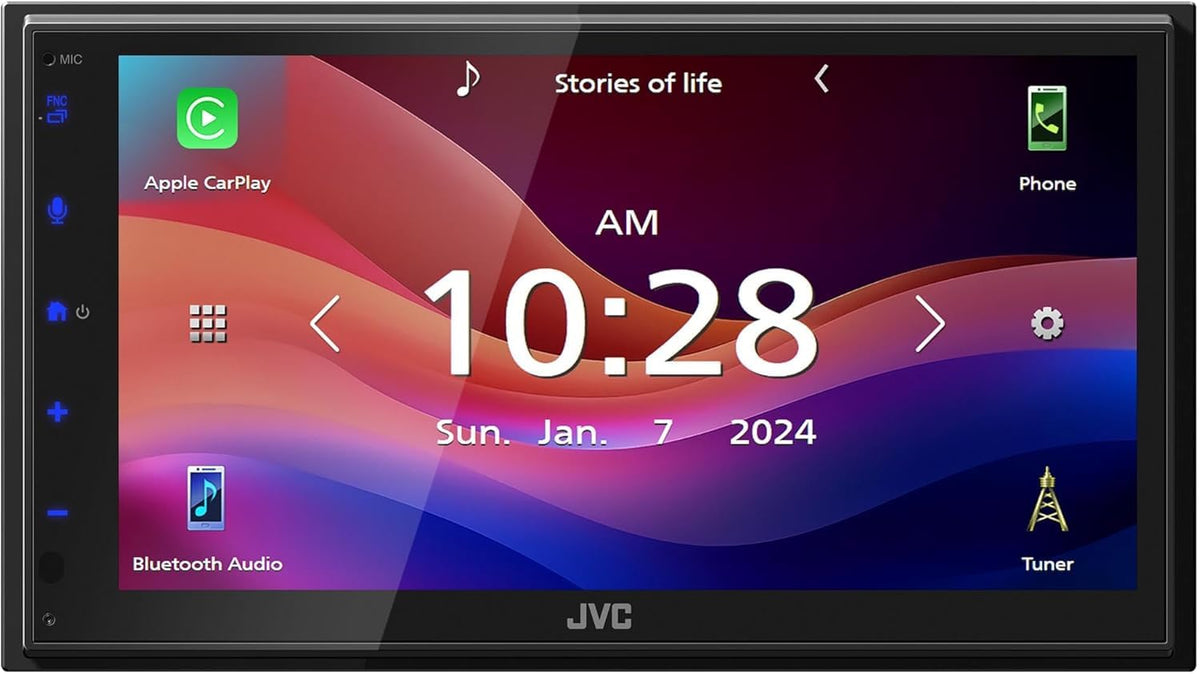

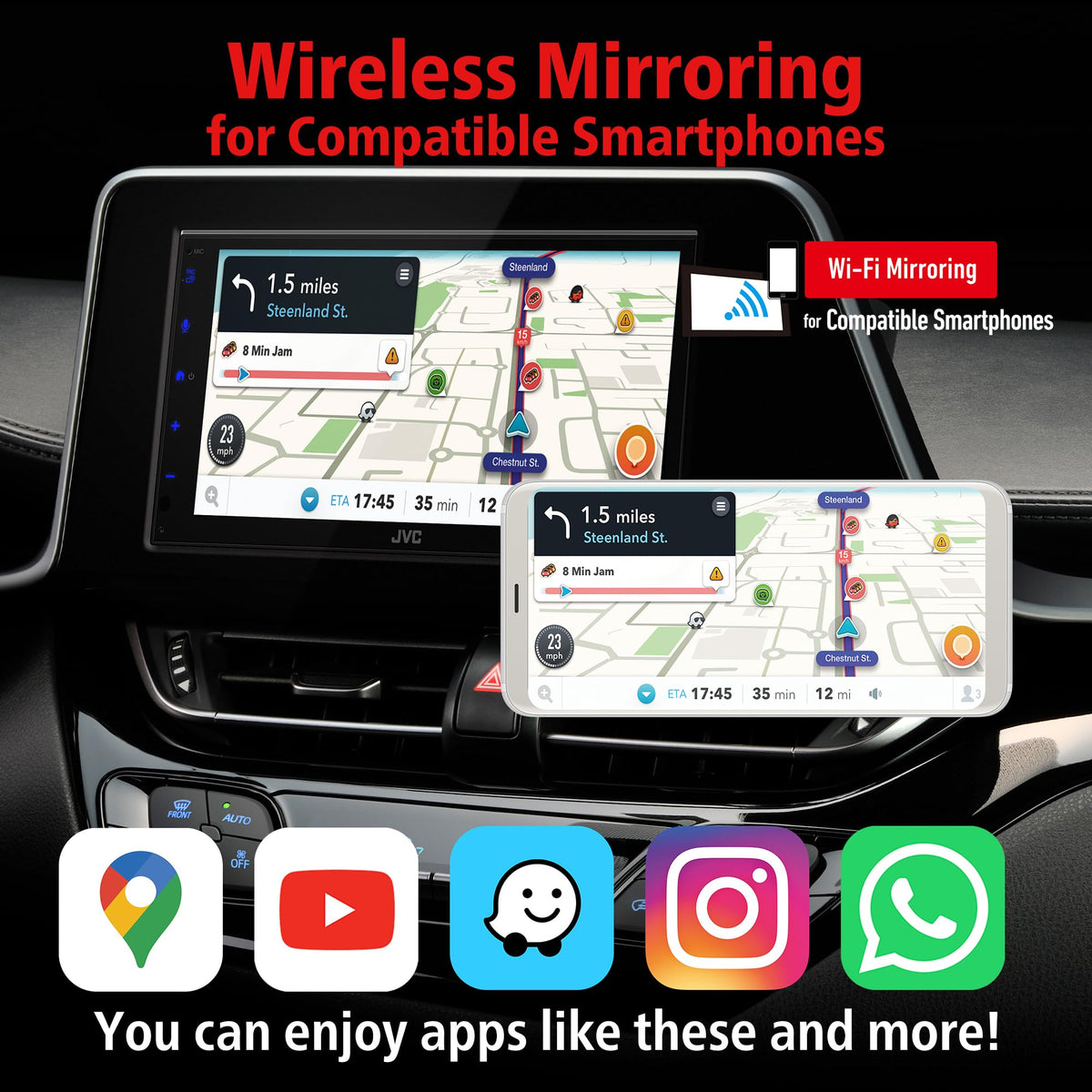

The 1024 x 600 WSVGA LCD uses a TFT active-matrix system with LED backlighting for detailed on-screen information. Capacitive touch operation is designed for light, accurate inputs, and gesture control is available for selected sources. The receiver also supports wireless mirroring through the MirrorApp+ app with selected compatible smartphones.

Its short 85.7 mm rear chassis is intended to simplify installation where dash depth and cable routing are limited. iDatalink Maestro readiness can add compatible factory-feature retention and vehicle-information display when used with a separately sold Maestro RR or RR2 interface. Rear-camera input, video output, and steering-wheel-control readiness make the KW-M695BW a flexible centerpiece for a staged vehicle audio upgrade.

Key Features

• Wireless CarPlay and Android Auto: Connect compatible phones by Wi-Fi or USB for familiar communication, media, and navigation controls.
• 6.8-Inch Capacitive Touchscreen: The WSVGA display delivers responsive touch control and 1024 x 600 resolution.
• 13-Band Graphic Equalizer: Adjust key frequency bands to better match speakers, vehicle acoustics, and listening preferences.
• Time Alignment: Helps synchronize speaker arrival times at the selected listening position.
• Three 2.5-Volt Preouts: Supports expansion with external front, rear, and subwoofer amplification.
• iDatalink Maestro Ready: Enables advanced factory-system integration in compatible vehicles with a separately sold interface.

Design & Installation

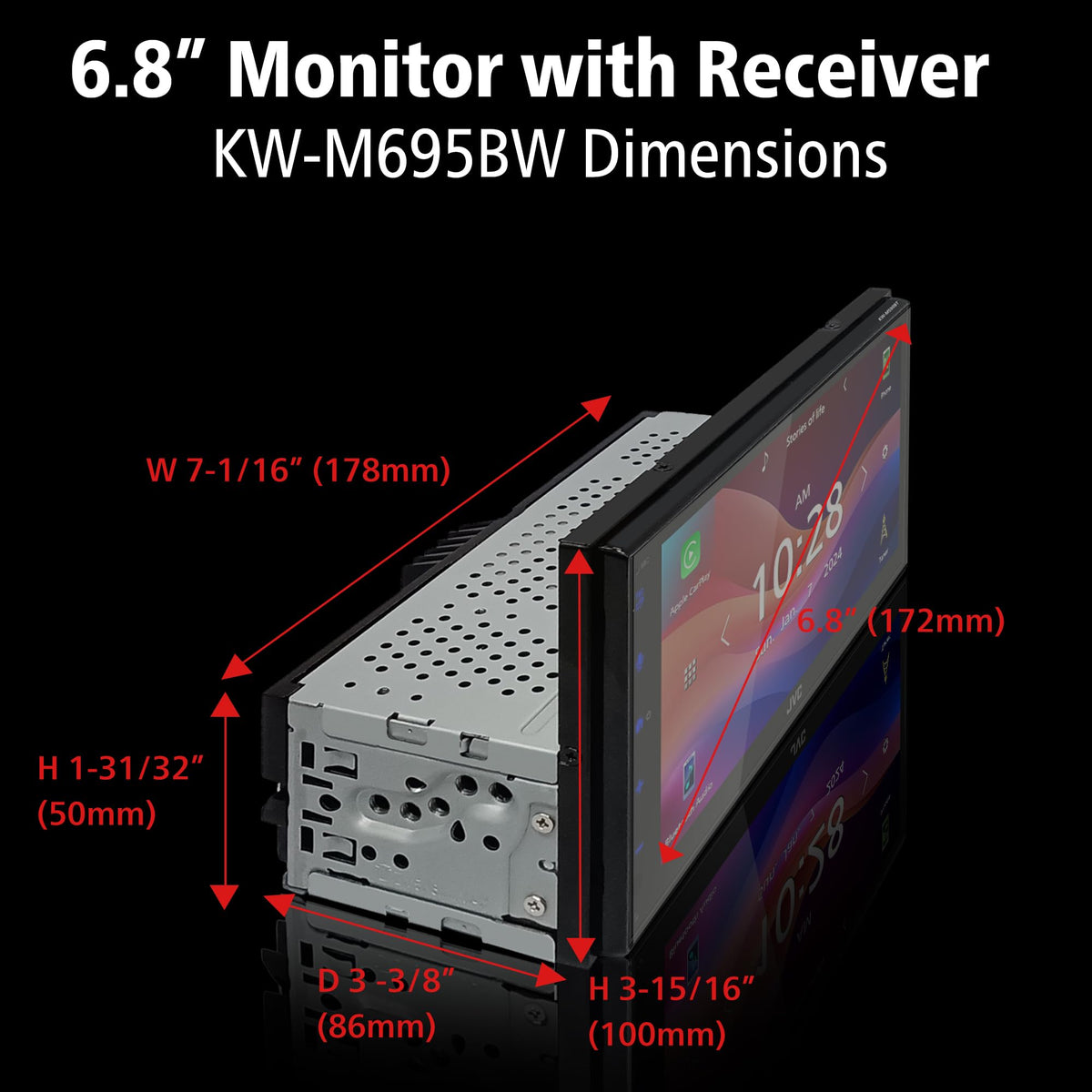

The KW-M695BW is built around a 6.8-inch transparent TN LCD panel with TFT active-matrix drive, LED backlighting, and a capacitive touch surface. Its blue key illumination, dimmer function, multilingual display support, and short-chassis layout prioritize straightforward in-dash operation. The chassis installation size is 178 x 100 x 85.7 mm, corresponding to a standard Double DIN form factor.

Confirm vehicle-specific dash fitment before purchase and use the appropriate installation kit, wiring harness, and antenna adapter for the vehicle where needed. The included rear USB lead supports wired phone connection and charging, while wireless phone integration requires a compatible phone and applicable service or data plan. For factory steering-wheel controls or advanced vehicle-data integration, use a compatible third-party steering-wheel interface or separately sold iDatalink Maestro RR/RR2 module.
