Pioneer DMH-W4660NEX 6.8" Double DIN Multimedia Receiver

The Pioneer DMH-W4660NEX is a double DIN digital multimedia receiver designed to update an in-dash system with a 6.8-inch capacitive touchscreen and modern smartphone integration. It gives drivers a central interface for compatible phone-based navigation, calls, messages, and music instead of relying on a factory radio with limited connectivity. Wireless and wired Apple CarPlay and Android Auto support offer flexible connection options for compatible devices.

This receiver is suited to drivers building a practical daily-use infotainment upgrade, whether replacing an older factory stereo or adding a touchscreen to a compatible double DIN dashboard. Built-in Bluetooth supports hands-free calling and wireless audio streaming, while dual-phone connection helps accommodate more than one regular driver. Amazon Alexa Built-in adds another voice-control option when connected and configured for use.

For audio systems, the DMH-W4660NEX combines a built-in four-channel MOSFET amplifier with six-channel, 4-volt RCA preamp outputs. Its 13-band graphic equalizer, DSP, manual time alignment, crossover controls, subwoofer control, and listening-position selector provide useful tools for tuning a factory-speaker system or an expanded amplified system. The receiver supports standard and network crossover modes for different system configurations.

The 6.8-inch WVGA capacitive display is paired with a short-chassis double DIN design for installations where behind-dash depth matters. Built-in HD Radio provides terrestrial radio reception, while SiriusXM readiness supports an optional compatible tuner. USB media playback supports a wide selection of audio, video, and image file formats, including high-resolution WAV, FLAC, and DSD audio playback.

The DMH-W4660NEX can serve as the control center for a broader vehicle upgrade. It provides a dedicated backup-camera input plus an A/V or second-camera input, and it includes parking-assist line support. Compatibility with iDatalink Maestro, Metra Axxess, and separately sold steering-wheel-control adapters can help retain or add supported vehicle integration features when matched to the vehicle and installation hardware.

Key Features

• Wireless Smartphone Integration: Supports both wired and wireless Apple CarPlay and Android Auto for compatible phones.

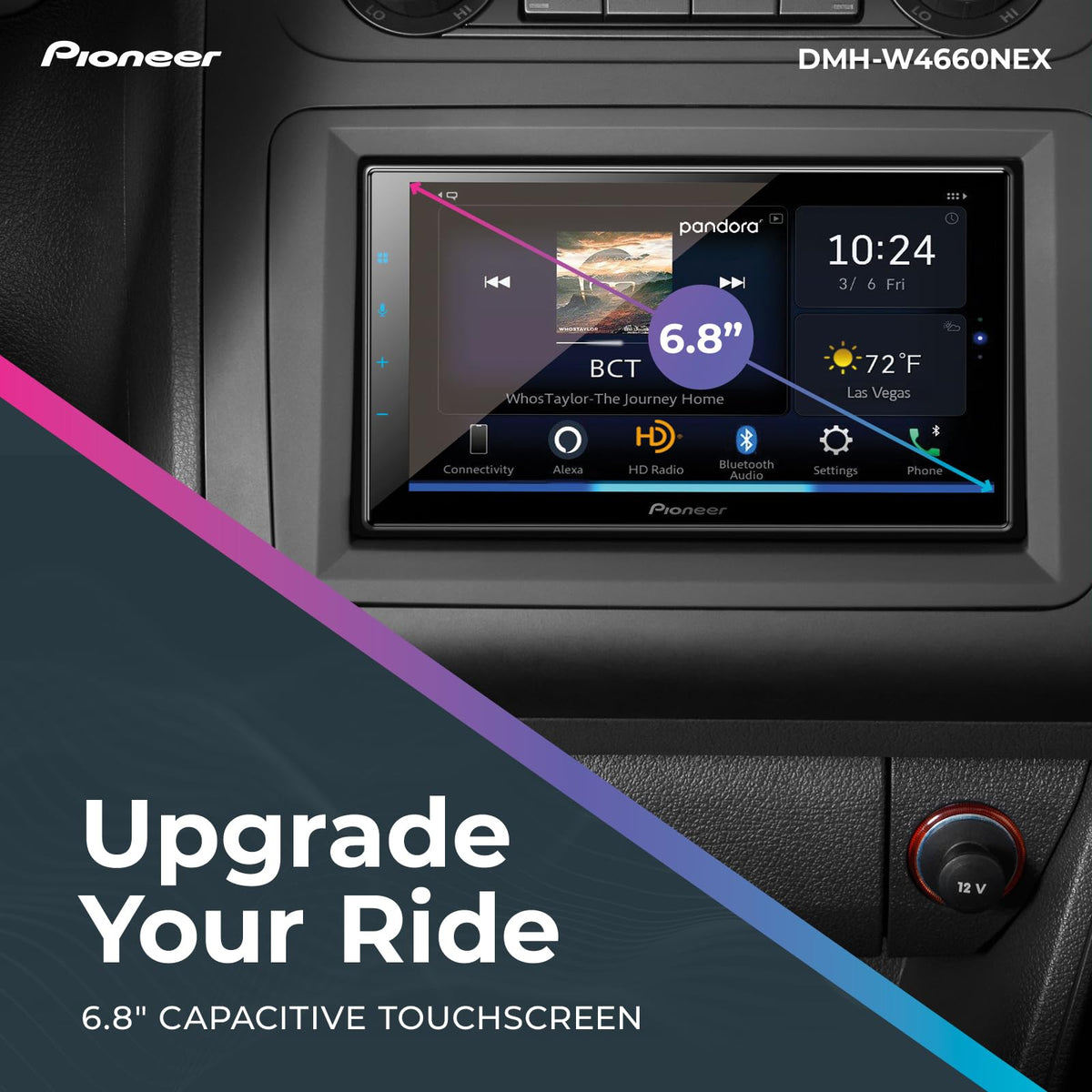

• 6.8-Inch Capacitive Display: The WVGA touchscreen provides a responsive interface for media, settings, and supported smartphone apps.
• 4-Volt RCA Preouts: Six-channel preamp outputs provide a connection path for external amplifiers.
• Built-In Audio Tuning: A 13-band EQ, DSP, time alignment, crossovers, and subwoofer control help tailor system response.

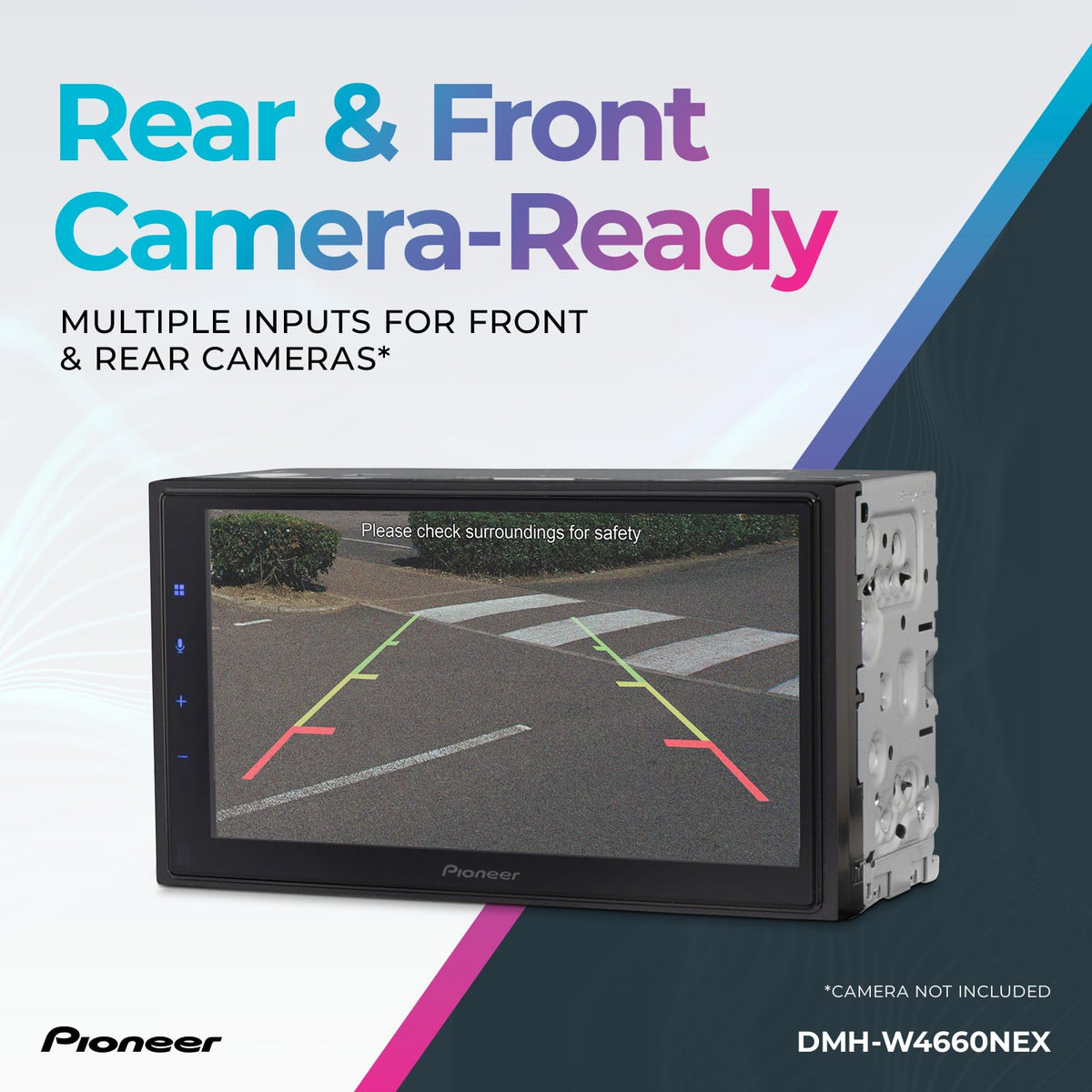

• Camera-Ready Inputs: Supports a dedicated backup camera and an additional A/V or second-camera input.
• HD Radio And SiriusXM Readiness: Includes HD Radio and supports SiriusXM with a separately sold compatible tuner.

Design & Installation

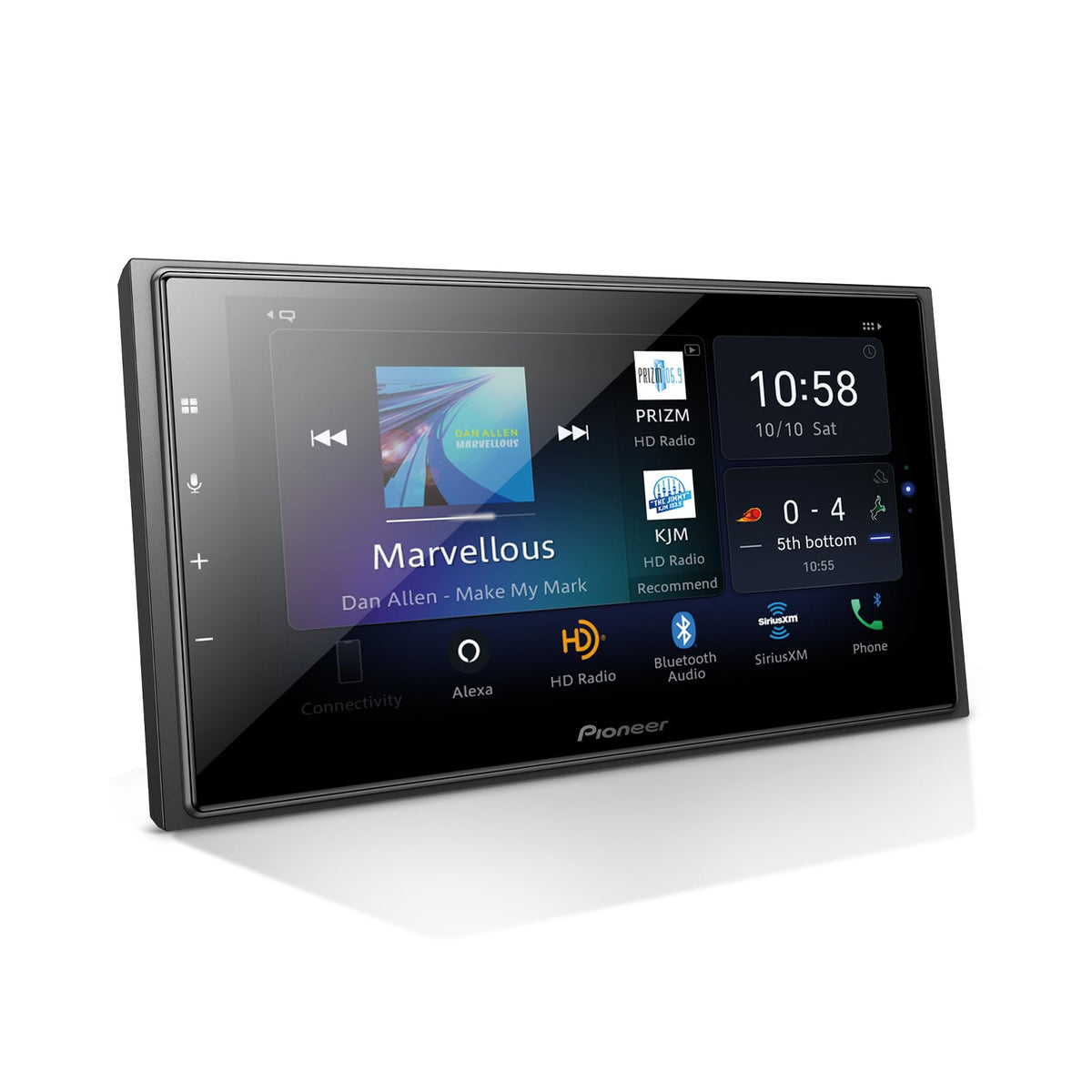

The DMH-W4660NEX uses a fixed-face, short-chassis 2-DIN layout with a 6.8-inch 16:9 WVGA capacitive touchscreen. Its display-focused design omits a detachable faceplate and includes a supplied remote control and external microphone. The rear connection layout provides speaker wiring, RCA preouts, USB-C, camera, A/V, and integration connections for a flexible system layout.

Confirm that the vehicle accepts a double DIN receiver and verify dashboard opening and available depth before purchase; the listed chassis dimensions are 7 inches wide by 3-7/8 inches high by 3-3/8 inches deep. Vehicle-specific mounting hardware, wiring interfaces, antenna adapters, steering-wheel-control adapters, cameras, amplifiers, and a SiriusXM tuner may be needed depending on the vehicle and desired functions. For retained factory features or camera integration, use a compatible iDatalink Maestro or Metra Axxess interface where applicable and follow the receiver and vehicle-interface installation instructions.
