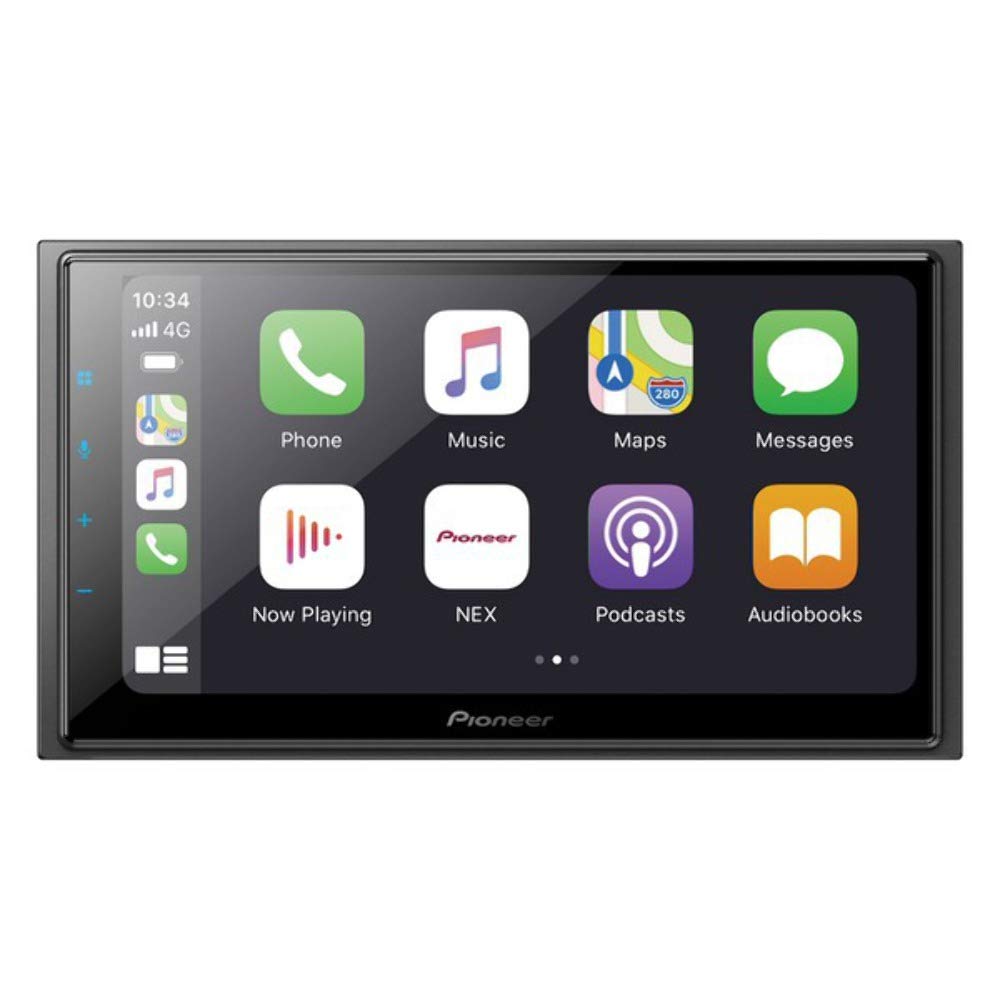

Pioneer DMH-W4600NEX 6.8" Double-DIN Digital Media Receiver

The Pioneer DMH-W4600NEX is a Double-DIN digital media receiver built to modernize a vehicle's dashboard with touchscreen control, smartphone integration, Bluetooth calling, and HD Radio. Its 6.8-inch WVGA capacitive touchscreen provides a familiar interface for music, navigation apps, calls, and compatible media. The short-chassis design helps address installations where behind-dash space is limited.

This receiver is designed for drivers who want wired or wireless Apple CarPlay and Android Auto without relying on a factory infotainment system. It supports voice control functions and has Amazon Alexa built in for compatible voice-enabled use. Built-in Wi-Fi supports tethering and hotspot connectivity, while the included microphone supports hands-free Bluetooth calling.

For audio tuning, the DMH-W4600NEX combines a built-in MOSFET amplifier with a 13-band graphic equalizer, 24-bit DAC, manual time alignment, and selectable crossover settings. Its sound controls include bass boost, loudness settings, Dynamic Bass Enhancer, listening-position selection, and subwoofer control. The result is a flexible platform for dialing in factory-replacement speakers or a more developed amplified system.

The receiver includes six channels of 4-volt RCA preamp outputs for connecting external amplifiers, plus a dedicated backup-camera input and RCA video output. It is SiriusXM-ready with a separately sold tuner and includes built-in HD Radio with RDS, Artist Experience, and multicasting support. USB media playback supports a wide selection of audio, video, and image formats for locally stored content.

Vehicle-integration support includes compatibility with iDatalink Maestro RR and RR2 modules as well as Metra Axxess interfaces. It is also steering-wheel-control ready when used with a separately sold adapter. This makes the DMH-W4600NEX a practical upgrade path for vehicles needing smartphone connectivity, camera support, and expanded audio-system control.

Key Features

• 6.8-Inch Capacitive Touchscreen: Provides responsive touchscreen operation in a compact Double-DIN format.
• Wireless Smartphone Integration: Supports Apple CarPlay and Android Auto through wireless or wired USB connections.
• Short Chassis: Helps simplify installation in dashboards with limited rear mounting depth.
• 13-Band Graphic Equalizer: Lets you make detailed tonal adjustments for your vehicle and speakers.
• 4-Volt RCA Preouts: Supplies six preamp channels for adding external amplifiers.
• Dedicated Camera Input: Accepts a backup camera and supports parking-assist lines.

Design & Installation

The DMH-W4600NEX uses a fixed-face, short-chassis Double-DIN layout centered around a 6.8-inch 16:9 WVGA capacitive touchscreen. Its control design combines touchscreen access with a built-in Bluetooth system, external GPS antenna support, and rear-panel connections for system expansion. Multi-language display support includes English, French, Spanish, Portuguese, and Simplified Chinese.

Confirm Double-DIN dash compatibility and select the correct vehicle-specific dash kit, wiring harness, and antenna adapter before installation. A separately sold interface may be needed to retain factory steering-wheel controls or vehicle data functions, while SiriusXM requires a separately sold tuner. For the most complete setup, connect the included microphone, USB lead, optional backup camera, and external amplifiers or integration modules as needed.
