Rockford Fosgate RZR14-K8 8 AWG RZR Amplifier Install Kit

The Rockford Fosgate RZR14-K8 is a vehicle-specific single-amplifier installation kit for select Polaris RZR side-by-sides. It provides the power, ground, signal, speaker, and mounting components needed to add a compatible Rockford Fosgate amplifier without building a wiring system from individual parts. The kit is intended for both 2-seat and 4-seat RZR applications within its specified fitment range.

This kit is designed around the Rockford Fosgate M5-800X4 four-channel Element Ready amplifier, sold separately. Its preconfigured harnesses and amplifier-specific mounting plates help simplify the connection between the vehicle, audio source, amplifier, and front speakers. It is a practical foundation for a front-speaker or staged RZR audio upgrade.

The RZR14-K8 uses 8 AWG power and ground wiring with an inline 60-amp Maxi fuse to support its intended amplifier application. Front-speaker wiring and RCA-to-Molex signal harnesses are included, reducing the amount of custom wiring required during installation. The harness system is Color Optix-ready for use in compatible Rockford Fosgate RZR audio systems.

Two mounting plates are included to address different RZR dashboard mounting arrangements. One bracket is intended for 2014-2018 applications, while the other supports 2019-and-newer applications within the confirmed vehicle range. Each plate mounts below the dash using factory mounting points and is predrilled for the compatible M5-800X4 amplifier.

Rather than changing the sound on its own, the RZR14-K8 provides the electrical and physical infrastructure for a properly integrated amplifier installation. It is suited to owners building a Rockford Fosgate RZR system with compatible front speakers, source equipment, and Color Optix components. The amplifier, speakers, radio or source unit, and any additional system components are purchased separately.

Key Features

• 8 AWG Power and Ground: Pre-cut power and ground wiring supports the intended single-amplifier installation.
• M5-800X4 Compatibility: Harnesses and mounting plates are configured for Rockford Fosgate's M5-800X4 four-channel amplifier.
• Color Optix-Ready Harnessing: Supports integration into compatible Rockford Fosgate Color Optix RZR systems.
• Front Speaker Wiring: Includes speaker-output wiring for the front audio locations.
• Two Under-Dash Brackets: Includes separate mounting plates for applicable 2014-2018 and 2019-and-newer RZR layouts.
• Factory-Point Mounting: Brackets attach to factory mounting points without cutting or drilling for the intended application.

Design & Installation

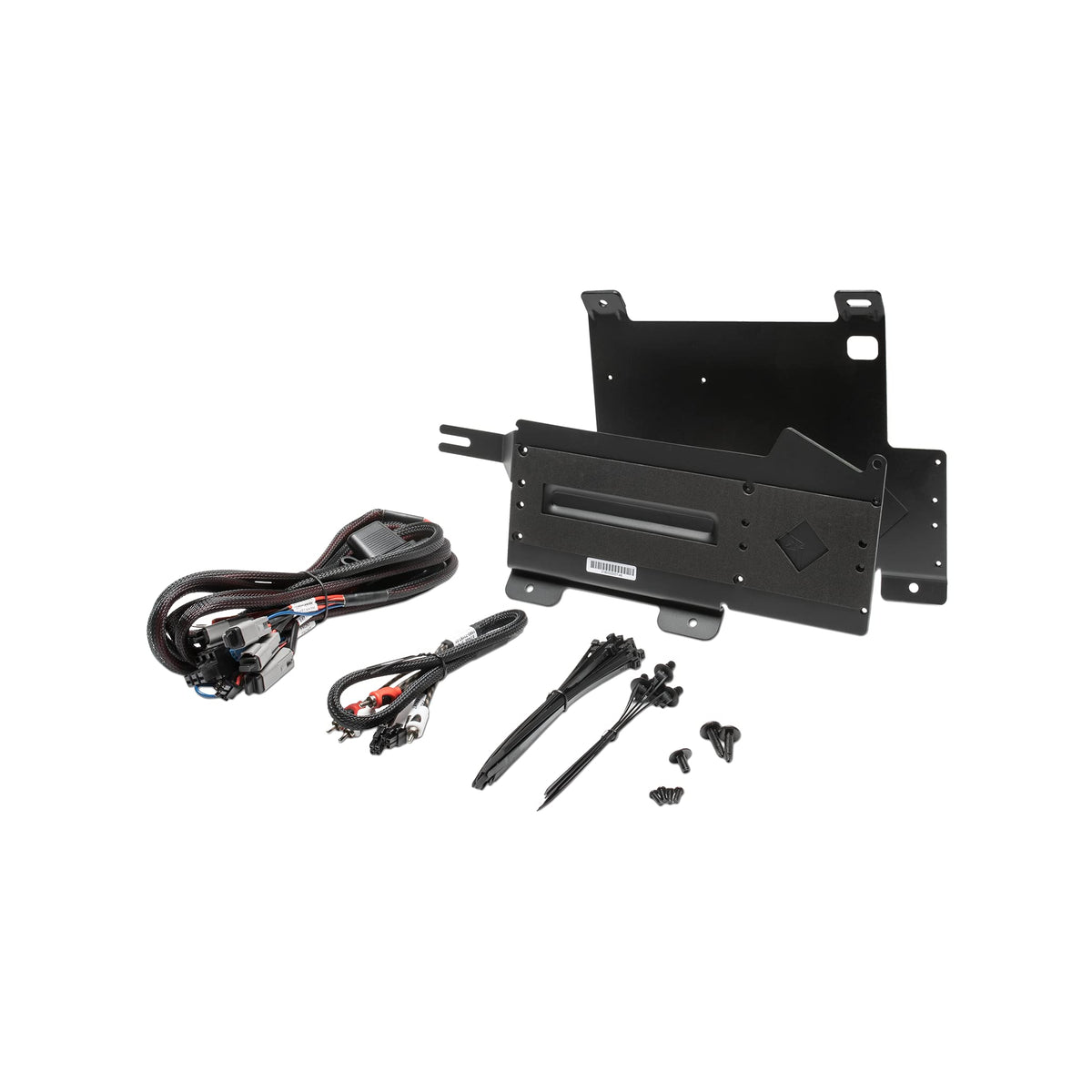

The RZR14-K8 combines loomed wiring, purpose-built connectors, an inline fused power harness, and two vehicle-specific amplifier mounting plates. The included brackets are predrilled and tapped for the M5-800X4, while the harnesses use Molex connections intended to connect with that amplifier. Hardware, wire ties, push-fastener zip ties, and an installation manual are supplied to support a clean installation.

Select the mounting plate that matches the RZR model year and mount the amplifier beneath the dash at the factory mounting points. Route and secure the 9.5-foot power, ground, and speaker harness as directed in the installation manual, then connect the RCA-to-Molex harnesses to the compatible audio source and amplifier. The included harnesses and brackets are purpose-built for the M5-800X4; fitting another amplifier may require wiring or mounting modifications.
