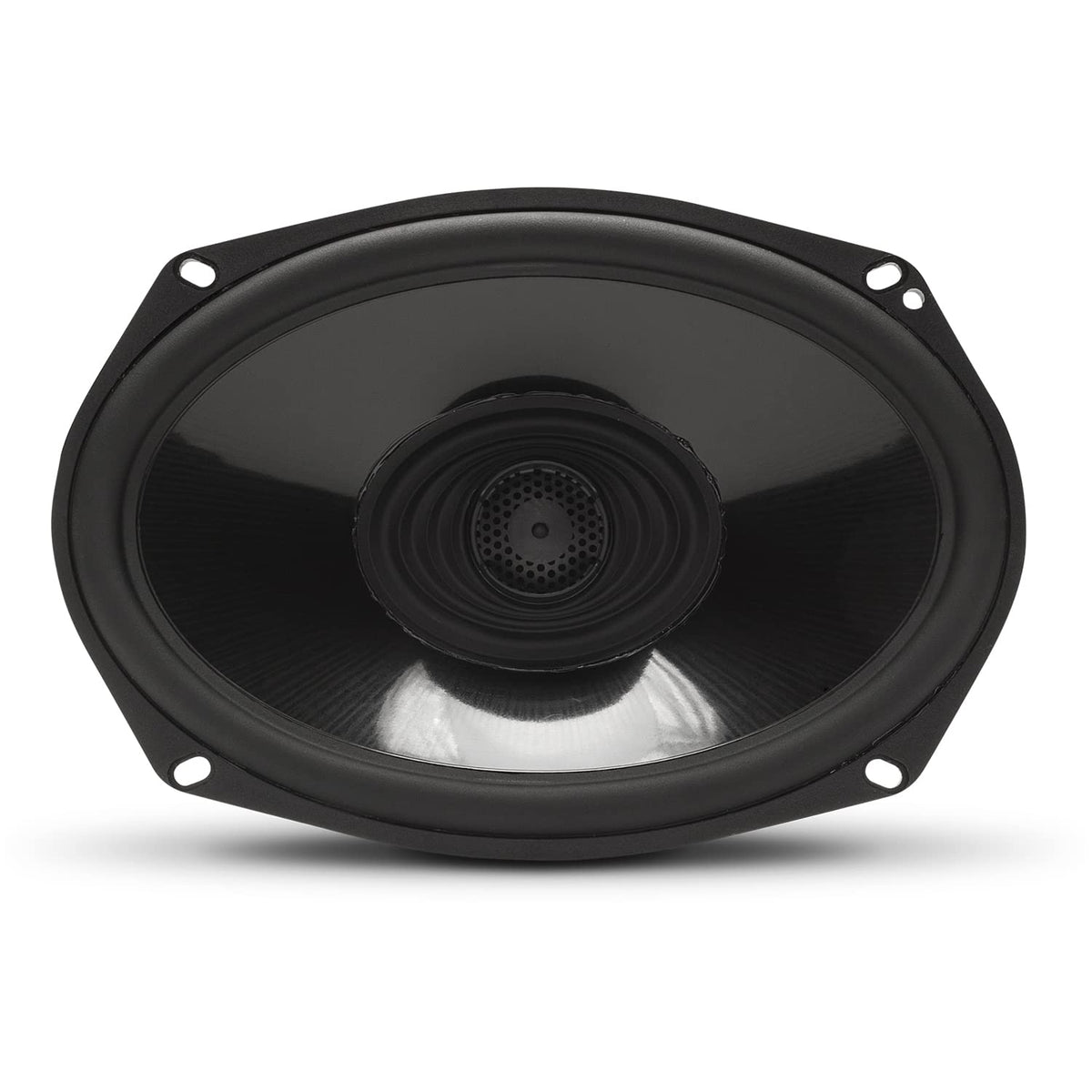

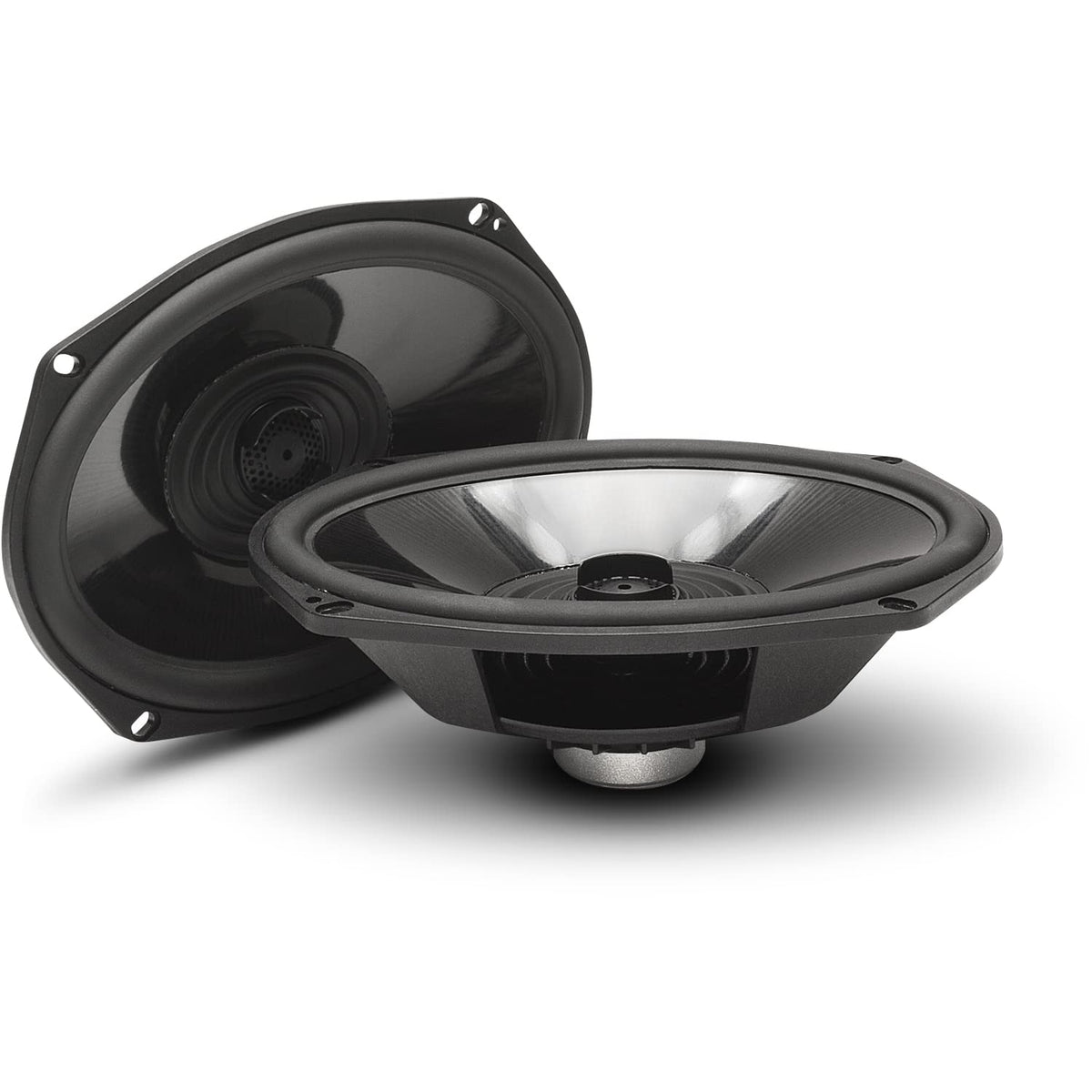

Rockford Fosgate TMS69 6"x9" Motorcycle Bag Lid Speakers

The Rockford Fosgate TMS69 is a pair of 6"x9" two-way coaxial speakers made for motorcycle bag-lid locations sized for 6"x9" speakers. They are intended for riders who need more audible music output than typical motorcycle speakers can provide in an open-air riding environment. The design combines a dedicated midrange driver and coaxial tweeter in a compact, bag-lid-ready format.

With 100 watts RMS power handling per pair and a 4-ohm nominal impedance, the TMS69 is suited to a properly matched motorcycle audio system. Its 56 Hz to 20 kHz frequency response supports midbass, vocals, and high-frequency detail from one speaker assembly. The 89 dB sensitivity rating at 1 watt/1 meter helps support useful output from an appropriately configured amplifier.

A 25 mm film-dome neodymium tweeter handles high frequencies, while the reinforced polypropylene cone is paired with a Santoprene VAST surround. The low-profile coaxial tweeter design keeps the assembly compact for bag-lid applications. An integrated high-pass crossover uses a high-power polyester capacitor to direct high frequencies to the tweeter.

The TMS69 uses Rockford Fosgate Element Ready construction for motorcycle use. Its materials and construction are designed to address exposure to dust, UV, temperature changes, water, corrosion, and vibration. A neodymium ring-magnet motor, glass-reinforced polymer frame, and integrated spade terminals support the speaker's motorcycle-focused design.

These speakers are a practical choice for a bag-lid audio upgrade where a 6"x9" opening is already available or is being added with a compatible installation solution. Confirm the available mounting opening and depth before installation, as the speaker requires a 2.8-inch mounting depth. Pair the TMS69 with compatible 4-ohm amplifier channels and suitable motorcycle-grade wiring for a complete system.

Key Features

• 6"x9" Bag-Lid Format: Designed for motorcycle bag-lid locations built for 6"x9" speakers.
• Two-Way Coaxial Design: Combines the main driver and tweeter in each speaker.
• 100W RMS Handling: Supports amplifier matching for higher-output motorcycle audio systems.
• 25 mm Film-Dome Tweeter: Reproduces high frequencies through an integrated coaxial design.
• Element Ready Construction: Built to address weather, UV exposure, corrosion, and vibration.
• Integrated High-Pass Crossover: Uses a polyester capacitor to route high frequencies to the tweeter.

Design & Installation

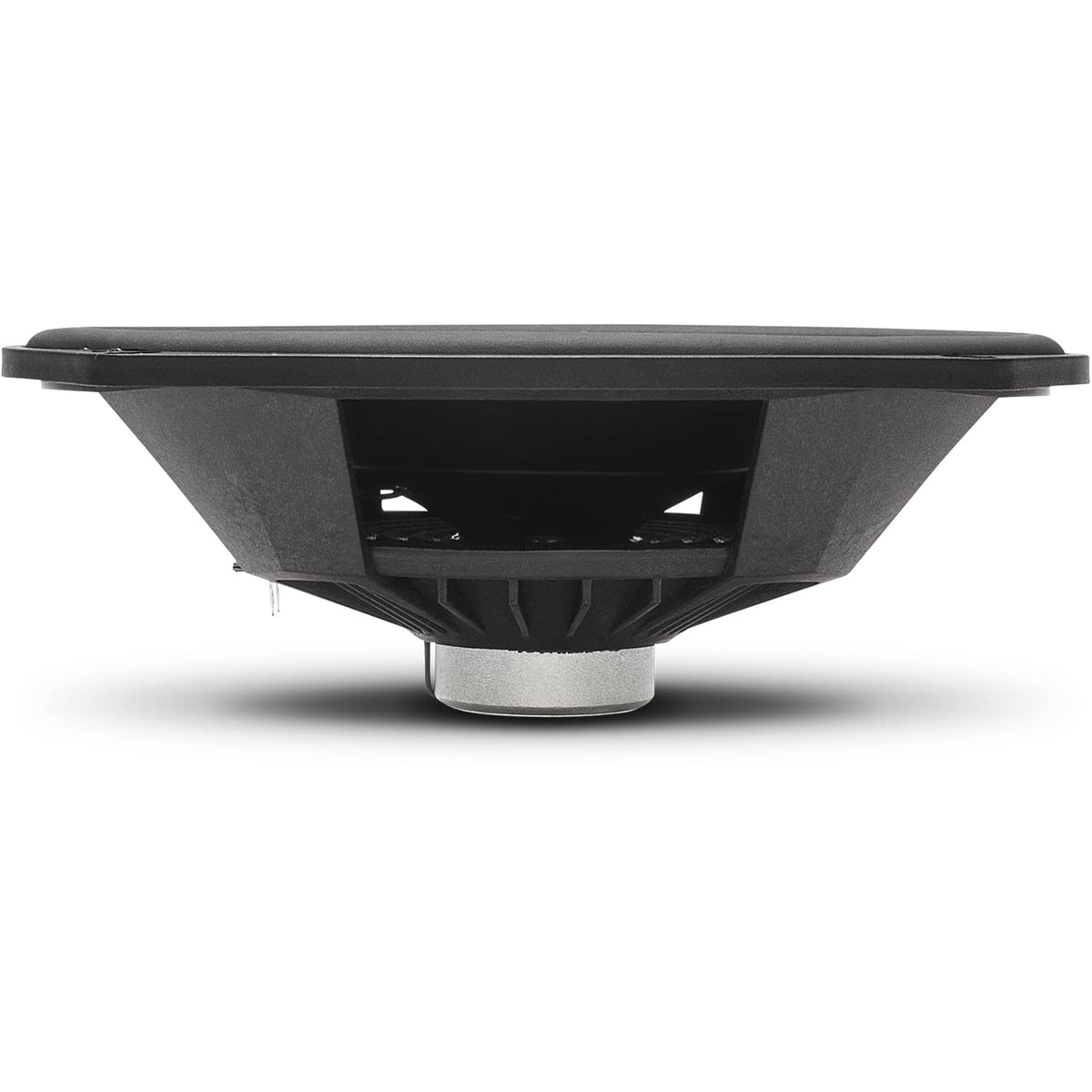

The TMS69 uses a carbon-fiber-reinforced polypropylene cone, Santoprene VAST surround, poly-cotton spider, Santoprene front isolation spider, and an ultra-high-temperature glass-reinforced polymer frame. Its neodymium ring-magnet motor and 35.6 mm voice coil are paired with a low-profile coaxial tweeter assembly. The speaker has integrated spade terminals and does not include a separate grille or trim ring.

Verify that the motorcycle has an appropriate 6"x9" bag-lid speaker location and sufficient 2.8-inch mounting depth before purchasing. The published mounting opening is 8.6 by 5.6 inches, so measure the specific lid or installation kit carefully. The package includes a pair of TMS69 speakers and eight stainless socket-head mounting screws; use suitable wiring, secure connections, and a compatible 4-ohm audio system.
